air condition KIA SOUL EV 2018 Features and Functions Guide

ESSENTIAL FEATURES
SOUL EV FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Climate Control 27
Audio Systems - UVO E V Services / Android Auto™ /
Apple CarPlay® Setup* 25
Audio Systems - UVO E V Services /
Premium Navigation* 26
Audio Systems - Standard Audio System* 24
Aux/USB/iPod® Port & Power Outlets 28
Bluetooth® Wireless Technology 22
Charging your Electric Vehicle 10
Cruise Control 21
Digital Clock 28
Active ECO System 09
Folding Rear Seatback 34
Passenger Airbag Off Indicator 41
Tire Mobility Kit 39
Tire Pressure Monitoring System (TPMS) 06
Windshield/Rear Wipers & Washers 19
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
VIDEOS & QR CODES 02
INSTRUMENT CLUSTERInstrument Cluster Overview 03Indicators & Warning Lights 04Electric Vehicle (E V ) Indicators 05Energy Consumption 06Tire Pressure Monitoring System (TPMS) 06LCD Instrument Cluster Modes 07Trip Computer / Tripmeter 07User Settings Mode 08Service Mode 08
ELECTRIC VEHICLE (EV) FEATURESActive ECO System 09Charging Your Electric Vehicle 10E V Information Modes - Instrument Cluster 13E V System Information - UVO E V Services/ Premium Navigation* 14
DRIVER’S PANELInstrument Panel Dimmer 16Electronic Stability Control (ESC) 16Heated Steering Wheel Button 16Hill-Start Assist Control (HAC) 16Power Windows, Window Lock & Central Door Lock 17Automatic Door Lock /Unlock 17Heated Outside Mirrors* 17Power Folding Outside Mirrors* 17
STEERING WHEEL CONTROLSTilt/ Telescoping Steering Wheel 18Headlights & High Beams 18Turn Signals & Fog Lights* 18Windshield Wipers & Washers 19Rear Wiper & Washer 19FlexSteer™ Steering Wheel Mode 20Audio Controls 21Cruise Control 21Bluetooth® Wireless Technology 22
AUDIO SYSTEMSStandard Audio System* 24UVO E V Services / Android Auto™ / Apple CarPlay® Setup* 25UVO E V Services with Premium Navigation* 26
CENTER PANELAutomatic Climate Control 27Driver Only Ventilation 28Reserved Climate Control* 28Digital Clock 28Aux/USB/iPod® Port & Power Outlets 28Power Button 29Electronic Parking Brake (EPB) 30Automatic Gear Shift with Regenerative Brake Mode 31Seat Warmers / Ventilated Seats* 32
S E AT I N G6-Way Adjustable Driver’s Seat 33Front Seat Headrest Adjustment 33Folding Rear Seatback 34
OTHER KEY FEATURESSmart Key 35Double-Turn Lock /Unlock All 35Panoramic Sunroof Operation* 36Map/Room Lamps 37Sunvisor 37Pedestrian Warning System 37Rear-Camera Display 38Parking Assist System* 38Hood Release Lever and Latch 39Tire Mobility Kit 39High-Voltage Areas 40Air Inlet 40Tailgate Release Button 40Child-Protector Rear Door Locks 40
SAFETY FEATURESSeat Belts 41Seat Belt Retractor Locks 41Occupant Detection System (ODS) /Passenger Airbag Off Indicator 41
NORMAL MAINTENANCE SCHEDULE 42
LEGAL DISCLAIMERS (See Back Inside Cover Page)
*IF EQUIPPED

*IF EQUIPPED 27ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTER PANEL
Face-Level
Bi-Level
F lo o r- L evel
Floor/Defrost-Level
AUTO
OFF
FRONT
DRIVER
EV
HEAT
REAR
ONLY
A/C MODE
CLIMATE
P
A SSE NGE R
A IR BA G
DRIVER
EV
ONLYPA SSE NGE R
A IR BA G
Fan Speed Control buttons
Mode Selection button
Display CLIMATE control information
Rear Windshield Defroster button
Automatic Climate Control button
Air Conditioning ON/OFF button
Front Windshield Defroster buttonHeat ON/OFF button

Temperature Control knob
System OFF button
DRIVER ONLY Ventilation buttonRecirculated Air buttonReserved Climate Control button
Automatic Climate Control
Air Flow Modes
To select Air Flow Modes,
press the Mode selection
buttons:
Climate Control Auto Function:
1 Press AUTO to select Full Auto Operation - The Auto setting
automatically controls the airflow modes, fan speeds, air intake
and air conditioning according to the temperature setting selected
2 Set desired Temperature
Defrost Outside Windshield:
1 Set Fan Speed to the
highest position
2 Set Temperature to Hot
3 Press the Defrost button
Defog Inside Windshield:
1 Set desired fan Fan Speed
2 Set desired Temperature
3 Press the Defrost button

Your Automatic Climate Control system may differ from those in the illustrations. See your Owner’s Manual for more details.
•
•Keep inside glass as clean as possible to reduce window fogging •Defrost Mode activates A /C and opens Fresh Air Vent •During Auto Operation, the A /C indicator will NOT illuminate The fan speed, air intake, air flow and air conditioning may automatically engage at any time to reach desired temperature and reduce humidity
QUICK TIPS
REMINDERS:
•
Pressing any button during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•
Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
(Type B shown)

MAINTENANCE
Normal Maintenance Schedule
When your vehicle requires service, remember that your dealer knows your vehicle best Your dealer has factory-trained technicians, recommended special tools,
genuine Kia replacement parts and is dedicated to your complete satisfaction For expert advice and quality service, see your authorized Kia dealer
3,750 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear
7,500 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear
REPLACE
•Climate control air filter**
INSPECT*
•Air conditioning compressor,
air conditioner refrigerant
and performance **
•Cooling system1
•12V battery condition
•Brake lines, hoses and
connections
•Brake fluid
•Disc brakes and pads
•Suspension ball joints
& mounting bolts
•Steering gear rack, linkage
and boots
•Brake pedal
•Drive shaft and boots
*Inspect and, if necessary, adjust, correct, clean, or replace * * If equipped
1 When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at the factory An improper coolant mixture can result in serious malfunction or motor compartment damage
11,250 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear
15,000 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear
REPLACE
•Climate control air filter**
INSPECT*
•Air conditioning compressor,
air conditioner refrigerant and
performance**
•Cooling system1
•12V battery condition
•Brake lines, hoses and connections
•Brake fluid
•Disc brakes and pads
•Suspension ball joints & mounting
bolts
•Steering gear rack, linkage and
boots
•Brake pedal
•Drive shaft and boots
*Inspect and, if necessary, adjust, correct, clean, or replace * *If equipped
1 When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at the factory An improper coolant mixture can result in serious malfunction or motor compartment damage
QUICK TIP
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO EV Services account by logging into your UVO Eco App or your account on MyUVO com ( Vehicles equipped with UVO EV Services only - See page 25 for setup)
42*IF EQUIPPED SOUL EV FEATURES & FUNCTIONS GUIDE

MAINTENANCE
*IF EQUIPPED 43ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS

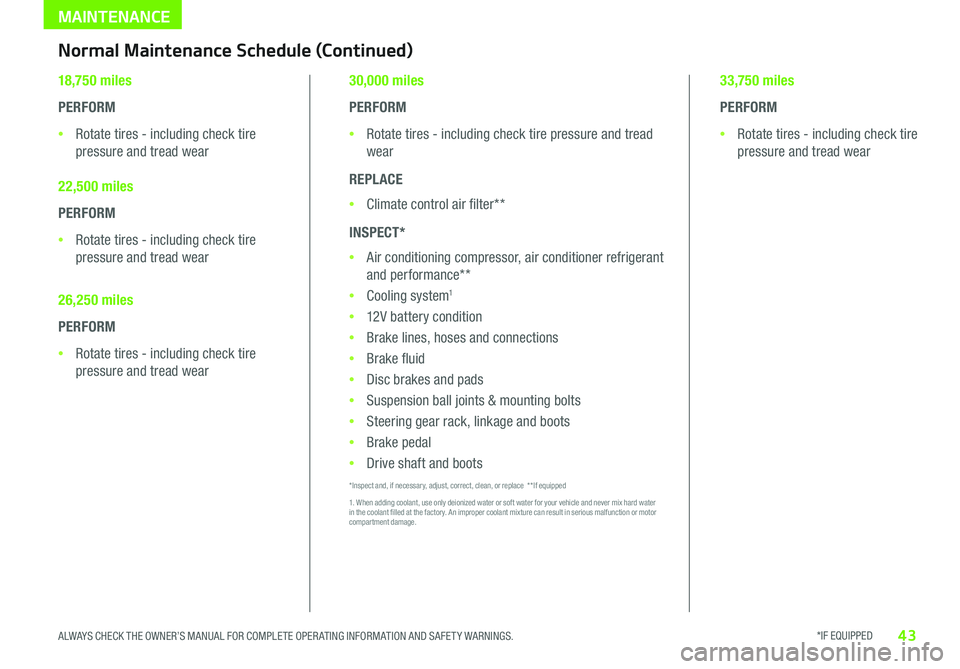

Normal Maintenance Schedule (Continued)
18,750 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear

22,500 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear

26,250 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear
30,000 miles
PERFORM
•Rotate tires - including check tire pressure and tread
wear
REPLACE
•Climate control air filter**
INSPECT*
•Air conditioning compressor, air conditioner refrigerant
and performance**
•Cooling system1
•12V battery condition
•Brake lines, hoses and connections
•Brake fluid
•Disc brakes and pads
•Suspension ball joints & mounting bolts
•Steering gear rack, linkage and boots
•Brake pedal
•Drive shaft and boots
*Inspect and, if necessary, adjust, correct, clean, or replace * *If equipped
1 When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at the factory An improper coolant mixture can result in serious malfunction or motor compartment damage
33,750 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear

Normal Maintenance Schedule (Continued)
37,500 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear
INSPECT*
•Reduction gear oil
*Inspect and, if necessary, adjust, correct, clean, or replace
41,250 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear

45,000 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear
REPLACE
•Climate control air filter**
INSPECT*
•Air conditioning compressor, air conditioner refrigerant
and performance**
•Cooling system1
•12V battery condition
•Brake lines, hoses and connections
•Brake fluid
•Disc brakes and pads
•Suspension ball joints & mounting bolts
•Steering gear rack, linkage and boots
•Brake pedal
•Drive shaft and boots
*Inspect and, if necessary, adjust, correct, clean, or replace * *If equipped
1 When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at the factory An improper coolant mixture can result in serious malfunction or motor compartment damage
48,750 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear
44*IF EQUIPPED SOUL EV FEATURES & FUNCTIONS GUIDE
MAINTENANCE

*IF EQUIPPED 45ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
MAINTENANCE
Normal Maintenance Schedule (Continued)
52,500 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear
56,250 miles
PERFORM
•Rotate tires - including check tire
pressure and tread wear
60,000 miles
PERFORM
•Rotate tires - including check tire pressure and tread wear
REPLACE
•Climate control air filter**
INSPECT*
•Air conditioning compressor, air conditioner refrigerant
and performance**
•Cooling system1
•12V battery condition
•Brake lines, hoses and connections
•Brake fluid
•Disc brakes and pads
•Suspension ball joints & mounting bolts
•Steering gear rack, linkage and boots
•Brake pedal
•Drive shaft and boots
*Inspect and, if necessary, adjust, correct, clean, or replace * *If equipped
1 When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at the factory An improper coolant mixture can result in serious malfunction or motor compartment damage

Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.Android Auto™: Android Auto is a trademark of Google, Inc. Android™ is a registered trademark of Google, Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Apple CarPlay®: Apple CarPlay® a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Apps: All information contained herein was based upon the latest available information at the time of appstore registration. Descriptions are believed to be correct, and Kia makes every effort to ensure accuracy, however, accuracy cannot be guaranteed. From time to time, Kia may need to update or make changes to the vehicle features and other vehicle information reported in this app. Kia, by the publication and dissemination of this material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for the most current information.Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.Google Play™ Store is a trademark of Google, Inc. © 2012 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.iPod®/iPhone® are registered trademarks of Apple Inc. iPod® mobile digital device sold separately, and connectivity requires the Kia accessory cable.Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.
Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.Seat belts: For maximum protection, always wear your seatbelt.Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on t\
he NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2017 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while\
driving.Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.UVO EV Services: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.UVO Eco app: App uses your smartphone data service. Normal cellular service rates will apply.UVO EV Services with Premium Navigation: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.

Air Conditioning / Climate Control –
page 27

Demonstrate Air Flow Modes, Defog and Defrosting Windshield
Driver Only Ventilation/Reserved Climate Control*

– page 28

Windshield/Rear Wipers & Washers –
page 19
Automatic*
Rotate level to adjust Intermittent Wipe Speed.
Pull to spray and wipe.
M I S T:
Single wipe
I N T: Intermittent wipeLO: Slow wipeHI: Fast wipeOFF: Wiper off
Push to spray and wipe.Move lever Up/Down to change Wiper modes.
ON: Normal wipeINT: Intermittent wipeOFF: Wiper Off
