Page 5 of 84
2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
Head Unit
NameDescription
003500240027002C0032Converts to FM/AM/SiriusXM™ mode
• Each time the key is pressed, the mode is changed in order of
FM 0003044F0003
AM 0003044F0003
SiriusXM™ 0003044F0003
FM.
003000280027002C0024Converts to MEDIA mode
• If the media is not connected, MEDIA mode will not be activated.
003800390032Displays the UVO mode
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: plays previous/next frequency
• SiriusXM™ mode: plays the previous/next channel
• MEDIA (USB/iPod/My Music) mode: changes the track, file or
title (except for USB Image and AUX)
When pressed and held down (more than 0.8 seconds),
• FM/AM mode: Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next
available frequency.
• SiriusXM™ mode: continuously changes the channel until the key is released and plays the current channel
• MEDIA (USB/iPod/My Music) mode: rewinds or fastforwards the track or file (except for USB Image, Bluetooth Audio and AUX)
003000240033
00390032002C00260028Displays the map for the current position
00310024Displays the menu screen where you can find your destination
and set the route.
04240003 The actual feature in the vehicle may differ from the illustration.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 6 of 84
3

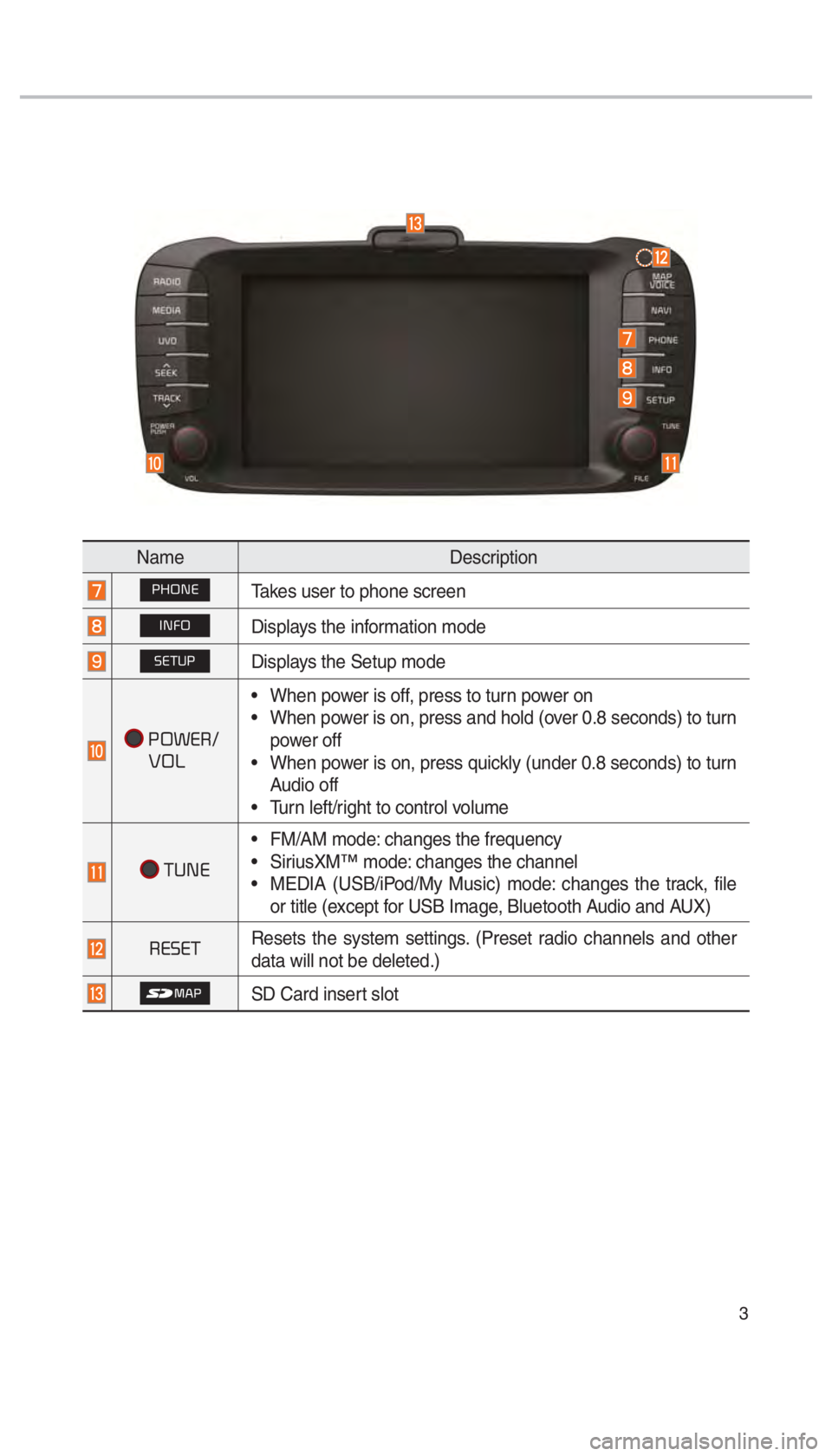

NameDescription
0033002B003200310028Takes user to phone screen
002C003100290032Displays the information mode
00360028003700380033Displays the Setup mode
00330032003A0028003500120003
000300390032002F • When power is off, press to turn power on
• When power is on, press and hold (over 0.8 seconds) to turn
power off
• When power is on, press quickly (under 0.8 seconds) to turn Audio off
• Turn left/right to control volume
0037003800310028 • FM/AM mode: changes the frequency
• SiriusXM™ mode: changes the channel
• MEDIA (USB/iPod/My Music) mode: changes the track, file
or title (except for USB Image, Bluetooth Audio and AUX)
00350028003600280037 Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 7 of 84
4
Steering Wheel Control
NameDescription
00390032002F
000E
0010
00390032002FUse to adjust the volume of audio or call.
0030003200270028
• Each time this key is pressed, mode is changed in order FM 044F
AM 044F
SiriusXM™ 044F
USB Music or iPod 044F
AUX 044F
Bluetooth
Audio 044F
My Music
You can select which mode to use in Advanced Settings.
• If the media is not connected, the corresponding modes will be disabled
• Press and hold the key (over 0.8 seconds) to turn the Audio system on/off
• When power is off, press the key to turn power back on
0003
0003
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: searches broadcast frequencies saved to Presets
• SiriusXM™ mode: searches broadcast channels saved to Presets
• MEDIA(USB/iPod/My Music) mode: changes the file or chapter (except for USB Image, AUX)
When pressed and held (more than 0.8 seconds),
• FM/AM Mode: automatically searches broadcast frequencies
• SiriusXM™ mode: automatically searches broadcast channels
• MEDIA(USB/iPod/My Music) mode: quickly looks up songs (except for USB images, AUX, and Bluetooth audio files)
When pressed quickly. (less than 0.8 seconds)
• Activates voice recognition
When pressed and held. (more than 0.8 seconds)
• Ends voice recognition
• If iOS device is connected through Bluetooth, activates or ends Siri Eyes Free.
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 19 of 84
16
003800360025
USB Music
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/title/album info
ListMoves to the list screen
Previous File• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards the track.
Repeat Repeats the current file
• Select the song in the file tab on the list screen: Select the
003500480053004800440057 button to switch between repeating one song, repeat-
ing folder, and turning repeat off
• Select the song in the other tabs on the list screen: Select the
003500480053004800440057 button to switch between repeating one song and
turning repeat off
Back Button Converts to basic mode screen
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 20 of 84
17
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Folder, Shuffle All,
and turning shuffle off
• Select the song in the other tabs on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Category and turn-
ing shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Select the
0036004600440051 button to switch between Scan Folder, Scan All, and
turning scan off
• Select the song in the other tabs on the list screen: Select the
0036004600440051 button to switch between Scan category and turning
scan off
Menu • Save to My Music: You can save the current track to My
Music. You can play saved track from My Music without USB.
Access to My Music in the Media mode.
• Hide Current File: a selected file can be deleted. Deleted file can be found in the “Hidden_” folder.
This function is only supported when USB format is compati-
ble with FAT16 or FAT32.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 22 of 84
19
USB Image
FeaturesDescription
Mode
Displays the current operating mode
Folder/
File Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 28 of 84
25
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen:
Select the 0036004B005800490049004F0048 button to switch between shuffle and turning shuffle off
• Select the song in the other tabs on the list screen: Select the
0036004B005800490049004F0048 button to switch between shuffle and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Select the 0036004600440051 button to switch between scan and turning scan off
• Select the song in the other tabs on the list screen: Select the
0036004600440051 button to switch between scan and turning scan off
Menu • Add to Playlist: Adds the current song to the Playlist: Playlist
is placed on the left tab in the list
• Delete Current File: Deletes the current track from My Music.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
TUNETurn the
0003
knob to search a desired track. If the desired
track is displayed, press the
00030037003800310028 knob to play the track.
If the 00030037003800310028
knob is not pressed within 5 seconds of search-
ing tracks, the track info for the current track is restored.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 34 of 84
31
00350048004600520050005000480051004700440057004C0052005100560003
0035004800540058004C00550048004700030049005200550003
003600580046004600480056005600490058004F00030039
0035004800460052004A0051004C0057004C00520051
1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if: 1) A call is incoming or outgoing
2) A media device (USB or iPod,
etc.) is connected or discon-
nected
3) The front or rear view camera is
operated (optional)
4) The car engine starts or stops
5) A system key, such as
003500240027002C0032
or
003000280027002C0024 is selected
6) An emergency occurs, for
example re-searching for the
route after the navigation route
has been lost
4. The microphone used for the
voice recognition system is
located in the headliner directly
above the driver’s head. To make
your commands better under-
stood, keep your body straight in
the driver’s seat when speaking
the command. 5.
Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is open.
2) A strong wind blowing from the
air vents. Set climate control to
blow softer than level 3.
3) Vibrations from passing through
a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
0039
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
Page 42 of 84
39
Radio Commands
CommandOperation
052CRadioPlays the most recent radio channels from FM, AM, and
SiriusXM™.
052CFM
Plays FM radio.
052CFM
<87.5~107.9>Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
052CSiriusXM Plays SiriusXM™ radio.
052CSiriusXM
Channel
<0~999>Tunes to SiriusXM™ Channel
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
052CAM
Plays AM radio.
052CAM
<530~1710>Tunes to AM
e.g.) AM 530: AM five thirty
052APreset <1~18> Tunes to your preset stations (1 to 18).
052AChannel
<0~999>In SiriusXM™ Radio mode, turns on the
Media Commands
* Check the followings before you use media commands.
1. If no media is connected or if no playable files exist at the time when you
use these commands, a voice message will tell you that this is not available.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
052CMusic Continues the last media you played.
052CiPodPlays the iPod currently connected. This will work the same
when an iPhone is connected. If a USB is connected, then it will
be played instead of the iPod.
052CUSBPlays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of
the USB.
052CBluetooth
AudioPlays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth connec-
tion status.
052CAUX Plays external devices that are currently connected.
052CMy Music Plays My Music files stored in the system.
052CPandora
Radio
Plays Pandora Radio that is currently connected. Pandora Radio
operates according to the iPod® that is currently connected.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
y
