Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s Air Bag
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Ignition switch
6. Traction control system (if equipped)
7. Hazard
8. Climate control system
9. Shift lever
10. Passenger’s airbag
11. Glove box
12. Audio controls (if equipped)
13. Auto cruise controls (if equipped)
1LDC0003A
LD CAN (ENG) 2.qxd 7/29/05 10:14 AM Page 5

1
2
3
4
5
6
7
8
9
Keys / 3-2
Remote keyless entry / 3-4
Immobilizer system / 3-7
Door locks / 3-9
Windows / 3-14
Seat / 3-17
Safety belts / 3-29
Airbag - supplemental restraint system / 3-56
Trunk / 3-80
Hood / 3-83
Fuel filler lid / 3-84
Mirrors / 3-87
Interior lights / 3-91
Storage compartment / 3-93
Interior features / 3-96
Sunroof / 3-101
Luggage net / 3-104
Antenna / 3-105
Knowing your vehicle
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:27 AM Page 1

Knowing your vehicle23
1
2
3
4
5
6
7
8
9
The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle.
Key operations➀Master key
Used to start the engine, lock and unlock the doors, lock and unlock
the glove box (if equipped), and
open the trunk (if equipped).
➁ Transmitter
Used to lock and unlock the doors
and trunk (if equipped).
KEYS
1LDA2001A
1LDA2001
WARNING
- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.
➀➁
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:27 AM Page 2

33
1
2
3
4
5
6
7
8
9
Knowing your vehicle

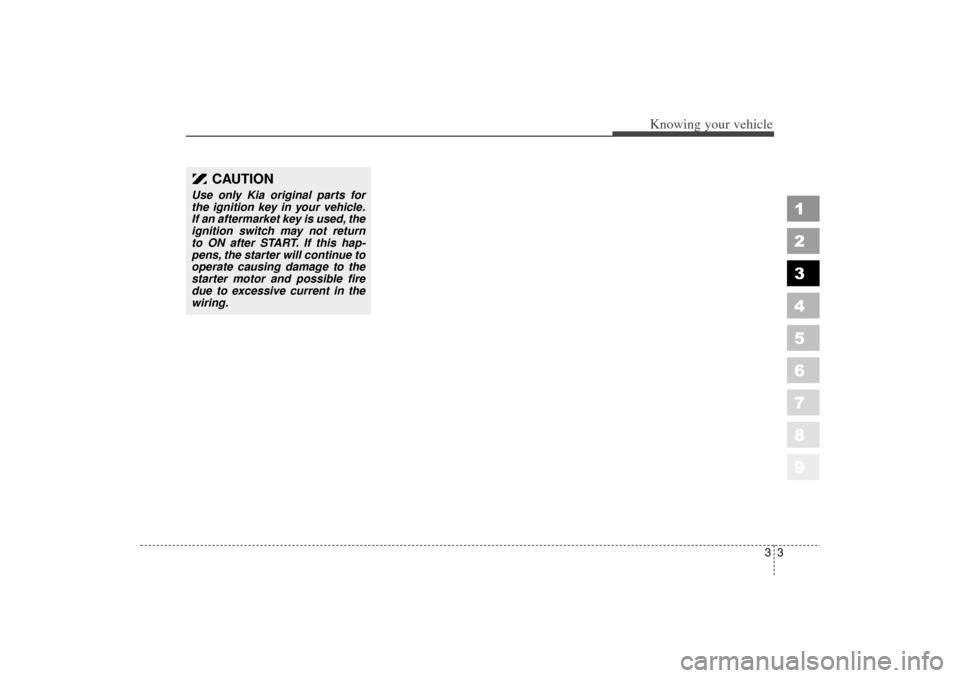

CAUTION
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used, the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in the
wiring.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:27 AM Page 3

Knowing your vehicle43
1
2
3
4
5
6
7
8
9
➀
Lock button
➁
Unlock button
➂
Trunk lid open button
➃
Panic button
➀
Lock ( )All doors are locked and the haz-
ard lamp flash once if the lock but-
ton is pressed.
➁
Unlock ( )The driver’s door is unlocked and
the hazard lamp will flash twice if
the unlock button is pressed once.
All doors are unlocked if the
unlock button is pressed twice
within 3 seconds.
After depressing this button, the
doors will be locked automatically
unless you open the doors within
30 seconds.
➂
Trunk lid open ( , if equipped)
The trunk lid opens if this button is
pressed.
➃
Panic ( , if equipped)The horn sounds and hazard
lamp will flash for about 27 sec-
onds if this button is pressed.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
1LDA2002
 Type A1LDA2001-1
➀
➀
➂
➁
➃
➃
 Type B
➁
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 4

35
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICEThe transmitter will not work if any
of following occur:
- The ignition key is in ignition
switch.
- You exceed the operating distance limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, con-
tact an authorized Kia Dealer.
✽ ✽ NOTICEKeep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufactur-
er vehicle warranty. Operational distance may vary
depending upon the area the trans-
mitter is used in. For example, if the
vehicle is parked near police sta-
tions, government and public offices,
broadcasting stations, military instal-
lations, airports, or transmitting tow-
ers, etc. This device complies with
Industry Canada Standard RSS-
210.
Operation is subject to the fol-
lowing two conditions:
1. This device may not cause inter- ference, and
2. This device must accept any inter- ference, including interference that
may cause undesired operation of
the device.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 5

Knowing your vehicle63
1
2
3
4
5
6
7
8
9
Battery replacementTransmitter uses a 3 volt lithium bat-
tery which will normally last for sever-
al years. When replacement is neces-
sary, use the following procedure.1. Insert a slim tool into the slot and
gently pry open the transmitter
center cover (
➀).
2. Replace the battery with new one. When replacing the battery, make
sure the battery positive “+” sym-
bol faces up (type A) or faces
down (type B) as indicated in the
illustration.
3. Install the battery in the reverse order of removal.
✽ ✽NOTICEThe keyless entry system transmit-
ter is designed to give you years of
troublefree use, however it can mal-
function if exposed to moisture or
static electricity. If you are unsure
how to use your transmitter or
replace the battery, contact an
authorized Kia dealer. For replacement transmitters, see an
Authorized Kia Dealer for reprogram-
ming.
1LDA2003E2BLA352
CAUTION
• Using the wrong battery can
cause the transmitter to mal-
function. Be sure to use the
correct battery.
 To avoid damaging the trans- mitter, don't drop it, get it wet,
or expose it to heat or sun-
light.
➀➀
 Type A
 Type B
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 6

37
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Your vehicle is equipped with an
electronic engine immobilizer system
to reduce the risk of unauthorized
vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
ignition key, and antenna coil in the
key cylinder and BCM (Body Control
Module) in the instrument panel.
With this system, whenever you
insert your ignition key into the igni-
tion switch and turn it to ON, the
antenna coil in the ignition switch
receives a signal from the transpon-
der in the ignition key and then sends
the signal to the BCM (Body control
Module).
The BCM checks the signal and
determines whether the ignition key
is valid.
If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.To deactivate the immobilizer sys-
tem:
Insert the ignition key into the key
cylinder and turn it to the ON posi-
tion.
To activate the immobilizer sys-
tem:
Turn the ignition key to the OFF posi-
tion. The immobilizer system acti-
vates automatically. Without a valid
ignition key for your vehicle, the
engine will not start.
✽ ✽
NOTICEWhen starting the engine, do not use
the key with other immobilizer keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separately not
to have any malfunction after you
receive your new vehicle.
This device complies with
Industry Canada Standard RSS-
210. Operation is subject to the fol-
lowing two conditions:
1. This device may not cause inter- ference, and
2. This device must accept any inter- ference, including interference that
may cause undesired operation of
the device.
IMMOBILIZER SYSTEM (IF EQUIPPED)
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 7

Knowing your vehicle83
1
2
3
4
5
6
7
8
9
Limp home (override) proce-
dureWhen you turn the ignition key to the
ON position, if the IMMO indicator
remains on continuously after blink-
ing 6 times, your transponder
equipped in the ignition key is out of
order. You cannot start the engine
without the lime home procedure. To
start the engine, you have to input
your password by using the ignition
switch.
The following procedure is how to
input your password of “2345” as an
example.
1. Turn the ignition key to the ON posi-tion. The IMMO indicator ( ) will
blink 6 times and remain on indicat-
ing the beginning of the limp home
procedure.
2. Turn the ignition key to the ACC position. 3. To enter the first digit (in this
example “2”), turn the ignition key
to the ON and ACC position twice.
Perform the same procedure for
the next digits between 3 seconds
and 10 seconds (for example, for
“3”, turn the ignition ON and ACC
3 times).
4. If all of the digits have been input successfully, you have to start the
engine within 10 seconds. If you
attempt to start the engine after 10
seconds, the engine will not start
and you will have to input your
password again.
After performing the limp home pro-
cedure, you have to see an author-
ized Kia dealer immediately to
inspect and repair your ignition key
or immobilizer system.
CAUTION
The transponder in your ignition
key is an important part of the
immobilizer system. It is
designed to give years of trou-
ble free service, however you
should avoid exposure to mois-
ture, static electricity and rough
handling. Immobilizer system
malfunction could occur.
CAUTION
If you cannot start your engine
in spite of limp home procedure,
have your vehicle towed by an
authorized Kia dealer for
inspection and necessary
repairs.
CAUTION
Do not change, alter or adjust
the immobilizer system because
it could cause the immobilizer
system to malfunction and
should only be serviced by an
authorized Kia dealer.
Malfunctions caused by improp-
er alterations, adjustments or
modifications to the immobilizer
system are not covered by your
vehicle manufacturer warranty.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 8

39
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Operating door locks from
outside the vehicle  Turn the key toward rear of vehicleto unlock and toward front of vehi-
cle to lock.
 Turn the key to the right once to unlock the driver’s door and to the
right twice within 3 seconds to
unlock all doors. (if equipped)
 Turn the key to the left once to unlock the passenger’s door and to
the left twice within 3 seconds to
unlock all doors. (if equipped)  Doors can also be locked and
unlocked with the transmitter key.
 Once the doors are unlocked, it may be opened by pulling the door
handle.
 When closing the door, push the door by the hand. Make sure that
doors are closed securely.
To lock a door without the key, push
the inside door lock button (
➀) or
door lock switch (
➁, if equipped) to
the “LOCK” position and close the
door (
➂).
✽ ✽ NOTICEAlways remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
1LDA2004
Lock
Unlock
1LDA2005
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 9
