Your vehicle at a glance22
1
2
3
4
5
6
7
8
9
EXTERIOR OVERVIEW
1. Headlights
2. Turn signal light
3. Engine hood
4. Wiper
5. Sunroof (if equipped)
6. Window
7. Outside rearview mirror
8. Door
1LDN0001A
LD CAN (ENG) 2.qxd 7/29/05 10:14 AM Page 2

23
1
2
3
4
5
6
7
8
9
Your vehicle at a glance
1. Rear door child safety lock
2. Fuel filler lid
3. Rear window
4. Trunk release lever and key lock
5. Spare tire
6. Outside rearview mirror
7. Tail lights
8. Door handle (driver)
9. Door handle (passenger)
10. Emergency trunk release lever
11. Antenna (if equipped)
1LDN0002A
LD CAN (ENG) 2.qxd 7/29/05 10:14 AM Page 3

Your vehicle at a glance42
1
2
3
4
5
6
7
8
9
INTERIOR OVERVIEW
1LDN0004A/1LDA2018
1. Door lock/unlock button
2. Outside rearview mirror control switch(if equipped)
3. Power window switches (if equipped)
4. Master power door lock control (if equipped)
5. Master power window control lock (if equipped)
6. Vent controls
7. Instrument cluster
8. Inside rearview mirror
9. Steering wheel
10. Steering wheel tilt (if equipped)
11. Instrument panel illumination (if equipped)
12. Trunk release button
13. Hood release lever
14. Brake pedal
15. Accelerator pedal
16. Fuel filler lid release lever
LD CAN (ENG) 2.qxd 7/29/05 10:14 AM Page 4

367
1
2
3
4
5
6
7
8
9
Knowing your vehicle

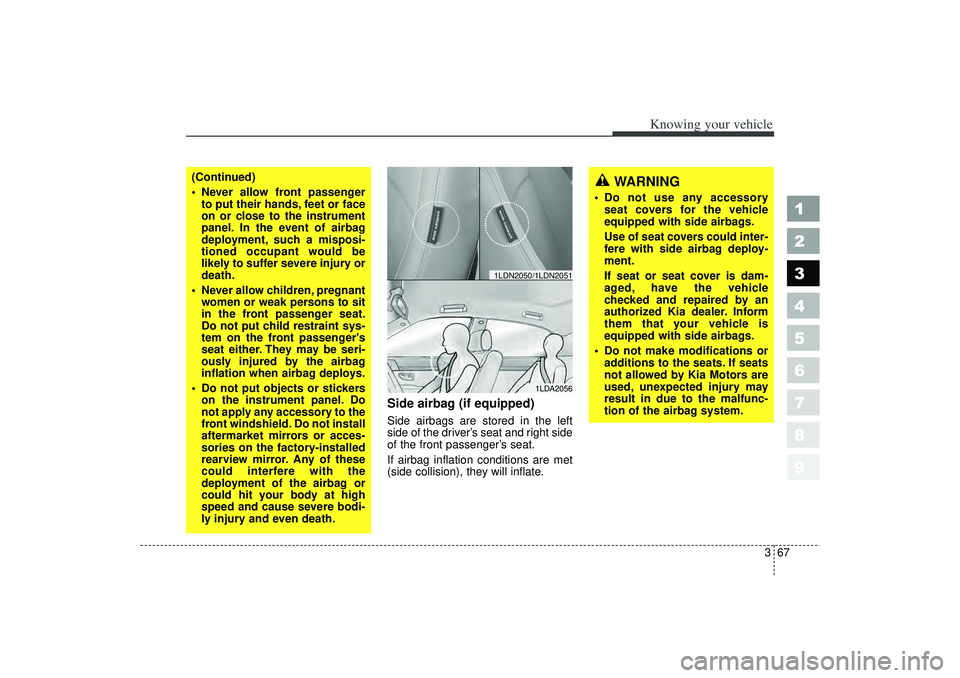

Side airbag (if equipped)Side airbags are stored in the left
side of the driver’s seat and right side
of the front passenger’ s seat.
If airbag inflation conditions are met
(side collision), they will inflate.
WARNING
 Do not use any accessory seat covers for the vehicle
equipped with side airbags.
Use of seat covers could inter-
fere with side airbag deploy-
ment.
If seat or seat cover is dam-
aged, have the vehicle
checked and repaired by an
authorized Kia dealer. Inform
them that your vehicle is
equipped with side airbags.
 Do not make modifications or additions to the seats. If seats
not allowed by Kia Motors are
used, unexpected injury may
result in due to the malfunc-
tion of the airbag system.
1LDA2056
1LDN2050/1LDN2051
(Continued)
 Never allow front passengerto put their hands, feet or face
on or close to the instrument
panel. In the event of airbag
deployment, such a misposi-
tioned occupant would be
likely to suffer severe injury or
death.
 Never allow children, pregnant women or weak persons to sit
in the front passenger seat.
Do not put child restraint sys-
tem on the front passenger's
seat either. They may be seri-
ously injured by the airbag
inflation when airbag deploys.
 Do not put objects or stickers on the instrument panel. Do
not apply any accessory to the
front windshield. Do not install
aftermarket mirrors or acces-
sories on the factory-installed
rearview mirror. Any of these
could interfere with the
deployment of the airbag or
could hit your body at high
speed and cause severe bodi-
ly injury and even death.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 67

387
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Auto fuel cutoff switch (if equipped)The auto fuel cutoff switch is located
on the driver’s side of the engine
compartment. In the event of a colli-
sion or sudden impact, the auto fuel
cutoff device cuts off the fuel supply.
If this device is activated, it must be
reset by pressing in on the top of the
switch before the engine can be
restarted.
MIRRORS Outside rearview mirror Be sure to adjust mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can be
adjusted remotely with the control
levers or remote switch, depending
on the type your vehicle has. The
mirror heads can be folded back to
prevent damage during an automatic
car wash or when passing in a nar-
row street.
✽ ✽NOTICEDo not scrape ice off the mirror
face; this may damage the surface of
the glass. If ice should restrict move-
ment of the mirror, do not force the
mirror for adjustment. To remove
ice, use a deicer spray, or a sponge
or soft cloth with very warm water.
CAUTION
 The right outside rearview
mirror is convex. Objects seen
in the mirror are closer than
they appear.
 Use your interior rearview mir- ror or direct observation to
determine the actual distance
of following vehicles when
changing lanes.
WARNING
Before resetting the auto fuel
cutoff switch, the fuel line
should be checked for fuel
leaks.
1LDA5002A
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 87

Knowing your vehicle88
3
1
2
3
4
5
6
7
8
9
Manual remote control
(if equipped)
To adjust an outside mirror, move the
control lever located at the forward
inside area of the window frame. Electric remote control
(if equipped)
The electric remote control mirror
switch allows you to adjust the posi-
tion of the left and right outside
rearview mirrors. To adjust the posi-
tion of either mirror, move the lever
(
➀) to R or L to select the right side
mirror or the left side mirror, then
press a corresponding point ( ) on
the mirror adjustment control to posi-
tion the selected mirror up, down, left
or right.
After adjustment, put the lever into
neutral position to prevent the inad-
vertent adjustment.
✽ ✽ NOTICE The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch is
depressed. Do not depress the
switch longer than necessary, the
motor may be damaged.
 Do not attempt to adjust the out- side rearview mirror by hands.
Doing so may damage the parts.
1LDN2080
➀
1LDA2081
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 88

389
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Folding the outside rearview
mirror
Manual type
To fold outside rearview mirror, grasp
the housing of mirror and then fold it
toward the rear of the vehicle.Outside rearview mirror heater
(if equipped)
The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push the but-
ton for the rear window defroster.
The outside rearview mirror glass will
be heated for defrosting or defogging
and will give you improved rear
vision in inclement weather condi-
tions. Push the button again to turn
the heater off. The outside rearview
mirror heater automatically turns off
after 20 minutes.
Day/night rearview mirror Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.
1LDA2083
CAUTION
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 89

Knowing your vehicle90
3
1
2
3
4
5
6
7
8
9
Manual type
Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of
vehicles behind you during night
driving.
Remember that you lose some
rearview clarity in the night position. Electric type (if equipped)
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
mirror. The sensor mounted in the
mirror senses the light level around
the vehicle, and through a chemical
reaction, automatically controls the
headlight glare from vehicles behind
you.
Whenever the shift lever is shifted
into reverse (R), the mirror will auto-
matically go to the brightest setting in
order to improve the drivers view
behind the vehicle.When the ignition switch is ON, the
automatic-dimming function will turn
on automatically.
Press the ON/OFF button(
➀) to turn
the automatic-dimming function off.
The mirror indicator light will turn off.
Press the ON/OFF button(➀) once
again to turn the automatic-dimming
function on. The mirror indicator light
will illuminate.
✽ ✽ NOTICEWhen cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do not
spray glass cleaner directly on the
mirror as that may cause the liquid
cleaner to enter the mirror housing.
1LDA2078
Day
Night
Day/Night lever
1KMA3084
➀
Sensor
Indicator
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 90

459
1
2
3
4
5
6
7
8
9
Driving your vehicle

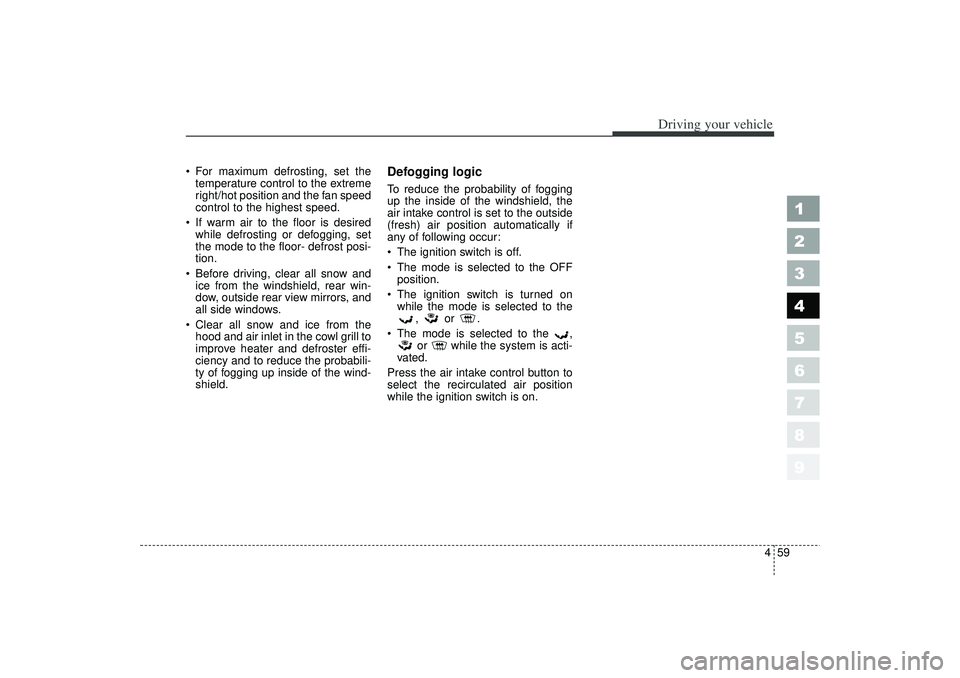

For maximum defrosting, set the
temperature control to the extreme
right/hot position and the fan speed
control to the highest speed.
 If warm air to the floor is desired
while defrosting or defogging, set
the mode to the floor- defrost posi-
tion.
 Before driving, clear all snow and
ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
 Clear all snow and ice from the
hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up inside of the wind-
shield.
Defogging logicTo reduce the probability of fogging
up the inside of the windshield, the
air intake control is set to the outside
(fresh) air position automatically if
any of following occur:
The ignition switch is off.
 The mode is selected to the OFF
position.
 The ignition switch is turned on
while the mode is selected to the
, or .
 The mode is selected to the ,
or while the system is acti-
vated.
Press the air intake control button to
select the recirculated air position
while the ignition switch is on.
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 59

55
Driving tips
BEFORE DRIVING Before entering vehicle: Be sure that all windows, outsidemirror(s), and outside lights are
clean.
 Check the condition of the tires.
 Check under the vehicle for any sign of leaks.
 Be sure there are no obstacles behind you if you intend to back up.Necessary inspections Fluid levels, such as engine oil,
engine coolant, brake fluid, and
washer fluid should be checked on a
regular basis, with the exact interval
depending on the fluid. Further
details are provided in Section 7,
Maintenance.
Before starting  Close and lock all doors.
 Position the seat so that all con-trols are easily reached.
 Adjust the inside and outside rearview mirrors.
 Be sure that all lights work.
 Check all gauges.
 Check the operation of warning lights when the ignition switch is
turned to the ON position.
 Release the parking brake and make sure the brake warning light
goes out.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
1
2
3
4
5
6
7
8
9
WARNING
- Driving under
the influence of alcohol or
drugs
Drinking and driving is danger-
ous. Drunk driving is the num-
ber one contributor to the high-
way death toll each year. Even a
small amount of alcohol will
affect your reflexes, perceptions
and judgement.
You are much more likely to
have a serious accident if you
drink and drive.
If you are drinking or taking
drugs, don’t drive. Do not ride
with a driver who has been
drinking or taking drugs.
Choose a designated driver or
call a cab.
Driving while under the influ-
ence of drugs is as dangerous
or more dangerous than driving
drunk.
LD CAN (ENG) 5.qxd 7/29/05 10:18 AM Page 5
