width KIA SPECTRA5 2006 Owners Manual

733
Maintenance
1
2
3
4
5
6
7
8
9
Wheel replacement When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
WARNING
 When replacing tires, nevermix radial, bias-belted, and
bias-type tires. All four tires
should be of the same size,
design and construction. Use
only the tire sizes listed on the
Tire Label found below the
door striker on the driver’s
side. Make sure that all tires
and wheels are the same size
and have the same load-carry-
ing capacity. Use only tire and
wheel combinations recom-
mended on the Tire Label or
by an Authorized Kia Dealer.
Failure to follow these precau-
tions can adversely affect the
safety and handling of your
vehicle.
(Continued)
(Continued)
 The use of any other tire sizeor type may seriously affect
ride, handling, ground clear-
ance, tire clearance, and
speedometer calibration.
 Driving on worn-out tires is very hazardous and will
reduce braking effectiveness,
steering accuracy, and trac-
tion.
 It is best to replace all four tires at the same time. If that is
not possible, or necessary,
then replace the two front or
two rear tires as a pair.
Replacing just one tire can
seriously affect your vehicle’s
handling.
WARNING
A wheel that is not the correct
size may adversely affect wheel
and bearing life, braking and
stopping abilities, handling
characteristics, ground clear-
ance, body-to-tire clearance,
speedometer calibration, head-
light aim and bumper height.
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 33

Maintenance34
7
1
2
3
4
5
6
7
8
9

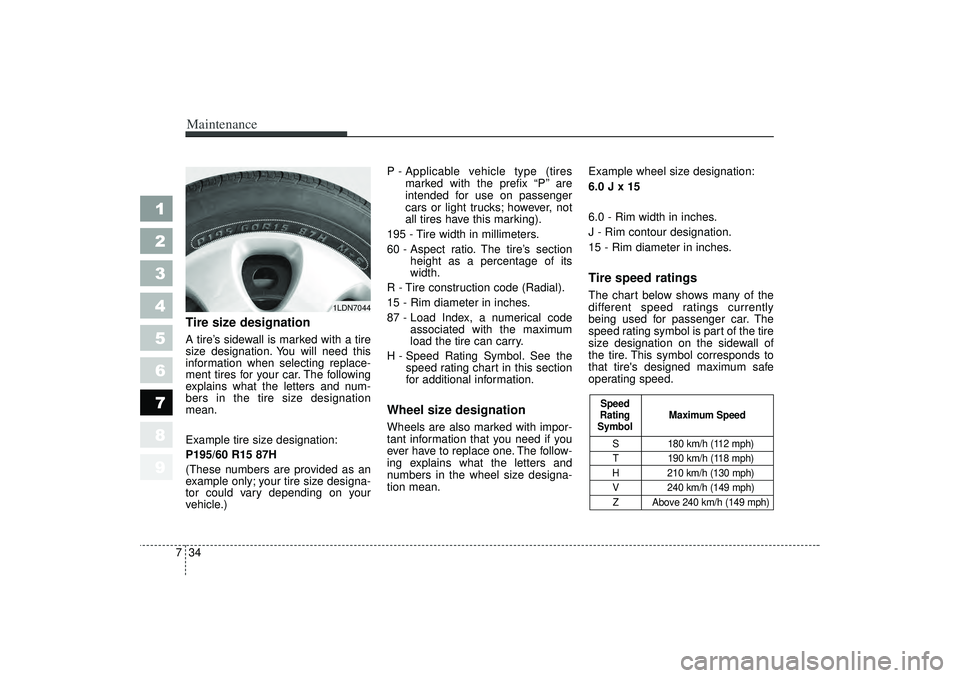

Tire size designation A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your car. The following
explains what the letters and num-
bers in the tire size designation
mean.
Example tire size designation:
P195/60 R15 87H
(These numbers are provided as an
example only; your tire size designa-
tor could vary depending on your
vehicle.) P - Applicable vehicle type (tires
marked with the prefix “P’’ are
intended for use on passenger
cars or light trucks; however, not
all tires have this marking).
195 - Tire width in millimeters.
60 - Aspect ratio. The tire’s section height as a percentage of its
width.
R - Tire construction code (Radial).
15 - Rim diameter in inches.
87 - Load Index, a numerical code associated with the maximum
load the tire can carry.
H - Speed Rating Symbol. See the speed rating chart in this section
for additional information.
Wheel size designation Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-
tion mean. Example wheel size designation:
6.0 J x 15
6.0 - Rim width in inches.
J - Rim contour designation.
15 - Rim diameter in inches.
Tire speed ratings The chart below shows many of the
different speed ratings currently
being used for passenger car. The
speed rating symbol is part of the tire
size designation on the sidewall of
the tire. This symbol corresponds to
that tire's designed maximum safe
operating speed.
S 180 km/h (112 mph)
T 190 km/h (118 mph)
H 210 km/h (130 mph) V 240 km/h (149 mph)Z Above 240 km/h (149 mph)
Maximum Speed
Speed
Rating
Symbol
1LDN7044
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 34

Specifications28
1
2
3
4
5
6
7
8
9
Dimensions
WeightsSPECIFICATIONSThe specifications given here are for general information only. Please check with an authorized Kia dealer for more
precise and more up-to-date information.
Item4 Door 5 Door
Overall length 4,480 (176.4)4,340 (170.9)
Overall width 1,735 (68.3)1,735 (68.3)
Overall height 1,470 (57.9)1,470 (57.9)
Front tread 1,495 (58.9)1,495 (58.9)
Rear tread 1,485 (58.5)1,485 (58.5)
Wheelbase 2,610 (102.8)2,610 (102.8)
mm (in)
Refer to the label describing GVWR & GAWR weights attached to your vehicle.
(see page 5-19, Label information)
LD CAN (ENG) 8.qxd 7/29/05 10:24 AM Page 2
