Knowing your vehicle
Cup holder
Front
Cups or small beverage cans may be
placed in the cup holders.
Rear (if equipped)
To use cup holders in rear seat, pull
the rear cup holder cover (
1) out.
Push the cover to close after use.
WARNING-Hot liquids
• Do not place uncovered cups
of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills,you
could be burned. Such a burn
to the driver could cause a
loss of control of the vehicle.
• To reduce the risk of personal
injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles,glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
OLD028153OLD026152
CAUTION
Do not place heavy cups or
cans in cup holders. Cup hold-
ers could be damaged.

Knowing your vehicle
92 3
1
2
3
4
5
6
7
8
9
Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
1) and swing it to the side.
To use the vanity mirror, pull down
the visor and pull up the mirror cover
(driver’s side) (
2).
Power socket (if equipped)
The power outlets are designed to
provide power for mobile telephones
or other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
OLD026150
CAUTION
Close the vanity mirror cover
(driver’s side) securely and
return the sunvisor to its original
position after use. If the vanity
mirror is not closed securely, the
lamp (if equipped) will stay on
and could result in battery dis-
charge and possible sunvisor
damage.1LDN2151
OLD028151
Driver’s side
Passenger’s side

393
1
2
3
4
5
6
7
8
9
Knowing your vehicle

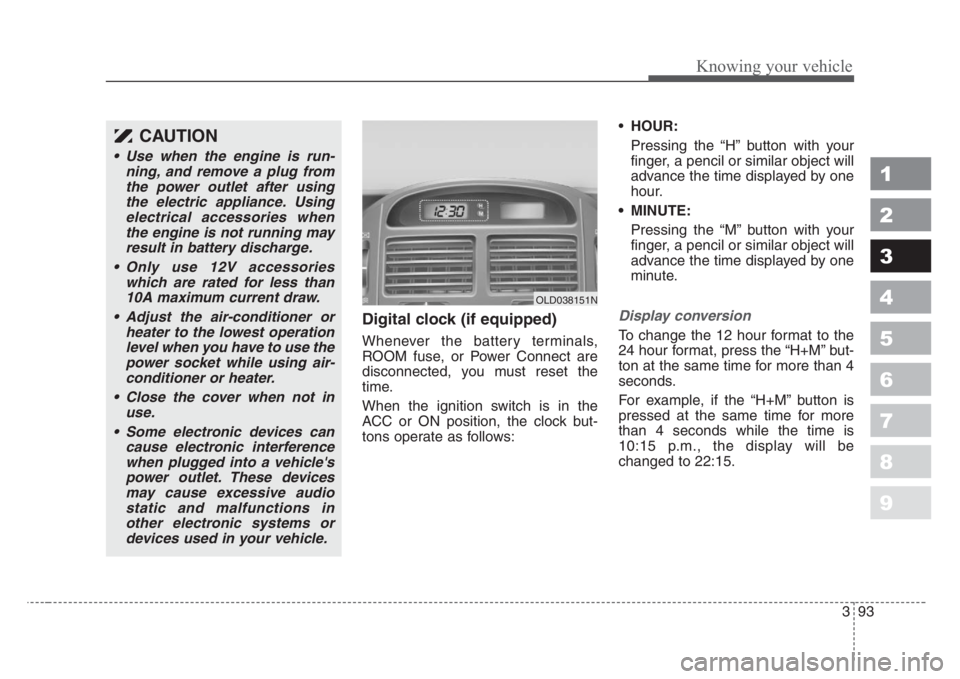

Digital clock (if equipped)
Whenever the battery terminals,
ROOM fuse, or Power Connect are
disconnected, you must reset the
time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operate as follows:•HOUR:
Pressing the “H” button with your
finger, a pencil or similar object will
advance the time displayed by one
hour.
• MINUTE:
Pressing the “M” button with your
finger, a pencil or similar object will
advance the time displayed by one
minute.
Display conversion
To change the 12 hour format to the
24 hour format, press the “H+M” but-
ton at the same time for more than 4
seconds.
For example, if the “H+M” button is
pressed at the same time for more
than 4 seconds while the time is
10:15 p.m., the display will be
changed to 22:15.
CAUTION
•Use when the engine is run-
ning, and remove a plug from
the power outlet after using
the electric appliance. Using
electrical accessories when
the engine is not running may
result in battery discharge.
• Only use 12V accessories
which are rated for less than
10A maximum current draw.
• Adjust the air-conditioner or
heater to the lowest operation
level when you have to use the
power socket while using air-
conditioner or heater.
•Close the cover when not in
use.
• Some electronic devices can
cause electronic interference
when plugged into a vehicle's
power outlet. These devices
may cause excessive audio
static and malfunctions in
other electronic systems or
devices used in your vehicle.
OLD038151N

Knowing your vehicle
94 3
1
2
3
4
5
6
7
8
9
If your vehicle is equipped with this
feature, you can slide or tilt your sun-
roof with the sunroof control buttons
located on the overhead console.
(1) Slide button
(2) Tilt button
(3) Close button
The sunroof can only be opened,
closed, or tilted when the ignition
switch is in the “ON” position.
Sliding the sunroof
Autoslide open
To use the autoslide feature,
momentarily (less than 0.4 second)
press the SLIDE OPEN ( ) button
on the overhead console. The sun-
roof will slide all the way open. To
stop the sunroof sliding at any point,
press any sunroof control button.
Manual slide open
Press the SLIDE OPEN ( ) button
on the overhead console for more
than 0.4 second.
Close
To close the sunroof, press the
CLOSE ( ) button on the over-
head console and hold it until the
sunroof is closed.
SUNROOF (IF EQUIPPED)
OLD028022
CAUTION
• Do not continue to press the
sunroof control button(s) after
the sunroof is in the fully
open, closed, or tilt
position(s). Damage to the
motor or system components
could occur.
• The sunroof cannot slide
when it is in the tilt position
nor can it be tilted while in an
open or slide position.

395
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Tilting the sunroof
Autotilt open
To use the autotilt feature, momen-
tarily (less than 0.4 second) press
the TILT UP ( ) button on the
overhead console. The sunroof will
tilt all the way open. To stop the sun-
roof tilting at any point, press any
sunroof control button.
Manual tilt open
Press the TILT UP ( ) button on
the overhead console for more than
0.4 second.
Close
To close the sunroof, press the
CLOSE ( ) button on the over-
head console and hold it until the
sunroof is closed.
Sunshade
The sunshade will be opened with
the glass panel automatically when
the glass panel is slid. You will have
to close it manually if you want it
closed.
E2BLA361
CAUTION
• Do not press any sunroof con-
trol button longer than neces-
sary. Damage to the motor or
system components could
occur.
• Periodically remove any dirt
that may accumulate on the
guide rail.
• If you try to open the sunroof
when the temperature is
below freezing or when the
sunroof is covered with snow
or ice, the glass or the motor
could be damaged.
• The sunroof is made to slide
together with sunshade. Do
not leave the sunshade closed
while the sunroof is open.
WARNING
• Do not extend face or arms
outside through the sunroof
opening while driving.
• Make sure hand and face are
safely out of the way before
closing a sunroof.

Knowing your vehicle
96 3
1
2
3
4
5
6
7
8
9
In case of an emergency
If the sunroof does not open electri-
cally:
1. Open the sunglass holder.
2. Remove the two (2) screws, and
then remove the overhead con-
sole.
3. Insert the emergency handle (pro-
vided with the vehicle) and turn
the handle clockwise to open or
counterclockwise to close.
Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, or you use
the emergency handle to operate the
sunroof, you have to reset your sun-
roof system as follows:
1. Turn the ignition key to the ON
position.
2. According to the position of the
sunroof, do as follows.
1) in case that the sunroof has
closed completely or been tilt-
ed
: Press the TILT UP ( ) but-
ton for 1 second.
2) in case that the sunroof has
slide-opened
: Press and hold the CLOSE
( ) button for more than 5
seconds until the sunroof has
closed completely. And then
press the TILT UP ( ) but-
ton for 1 second.3. Then, release it.
4. Press and hold the TILT UP ( )
button once again until the sun-
roof has returned to the original
position of TILT UP ( ) after it is
raised a little higher than the max-
imum TILT UP ( ) position.
When this is complete, the sunroof
system is reset.
1LDN3201

397
1
2
3
4
5
6
7
8
9
Knowing your vehicle
To keep items from shifting in the
trunk, you can use the four rings
located in the trunk to attach the
cargo net.
LUGGAGE NET (IF EQUIPPED)
MMSA3066
WARNING
To avoid eye injury. DO NOT
overstretch the netting.
ALWAYS keep face and body
out of recoil path.
DO NOT use the luggage net
when strap has visible signs of
wear or damage.
CAUTION
Do not put fragile, bulky or
excessive quantity of items into
luggage net. They could be dam-
aged.

Knowing your vehicle
98 3
1
2
3
4
5
6
7
8
9
Fixed rod antenna
(if equipped)
Your car uses a fixed rod antenna to
receive both AM and FM broadcast
signals.
This antenna is removable. To
remove the antenna, turn it counter-
clockwise. To install the antenna, turn
it clockwise.
Roof type antenna (if equipped)
If your vehicle has an audio system,
an amplifying antenna is installed in
your vehicle.
This antenna is removable. To remove
the antenna, turn it counterclockwise.
To install the antenna, turn it clockwise.
Aux outlet
You can use an aux outlet to connect
an audio device.
✽
NOTICE
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
ANTENNA
1LDN32046LDN3001A
CAUTION
• Be sure to remove the antenna
before washing the car in an
automatic car wash or it may
be damaged.
• When reinstalling your anten-
na, it is important that it is
fully tightened to ensure prop-
er reception.
OLD026157

399
1
2
3
4
5
6
7
8
9
Knowing your vehicle
How car audio works
AM and FM radio signals are broad-
cast from transmitter towers located
around your city. They are intercept-
ed by the radio antenna on your car.
This signal is then received by the
radio and sent to your car speakers.
When a strong radio signal has
reached your vehicle, the precise
engineering of your audio system
ensures the best possible quality
reproduction.However, in some cases the signal
coming to your vehicle may not be
strong and clear. This can be due to
factors such as the distance from the
radio station, closeness of other
strong radio stations or the presence
of buildings, bridges or other large
obstructions in the area.
AM broadcasts can be received at
greater distances than FM broad-
casts. This is because AM radio
waves are transmitted at low fre-
quencies. These long, low frequency
radio waves can follow the curvature
of the earth rather than travelling
straight out into the atmosphere. In
addition, they curve around obstruc-
tions so that they can provide better
signal coverage.
AUDIO SYSTEM
¢¢¢
JBM001

Knowing your vehicle
100 3
1
2
3
4
5
6
7
8
9
FM broadcasts are transmitted at
high frequencies and do not bend to
follow the earth's surface. Because
of this, FM broadcasts generally
begin to fade at short distances from
the station. Also, FM signals are eas-
ily affected by buildings, mountains,
or other obstructions. These can
result in certain listening conditions
which might lead you to believe a
problem exists with your radio. The
following conditions are normal and
do not indicate radio trouble:• Fading - As your car moves away
from the radio station, the signal
will weaken and sound will begin to
fade. When this occurs, we sug-
gest that you select another
stronger station.
• Flutter/Static - Weak FM signals or
large obstructions between the
transmitter and your radio can dis-
turb the signal causing static or
fluttering noises to occur. Reducing
the treble level may lessen this
effect until the disturbance clears.• Station Swapping - As a FM signal
weakens, another more powerful
signal near the same frequency
may begin to play. This is because
your radio is designed to lock onto
the clearest signal. If this occurs,
select another station with a
stronger signal.
• Multi-Path Cancellation - Radio
signals being received from sever-
al directions can cause distortion
or fluttering. This can be caused by
a direct and reflected signal from
the same station, or by signals
from two stations with close fre-
quencies. If this occurs, select
another station until the condition
has passed.
JBM003
FM radio station
¢¢¢
JBM004JBM005
