Knowing your vehicle86
3
1
2
3
4
5
6
7
8
9
Digital clock (if equipped)Whenever the battery terminals,
ROOM fuse, or Power Connect are
disconnected, you must reset the
time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operate as follows:
HOUR:
Pressing the “H” button with your
finger, a pencil or similar object will
advance the time displayed by one
hour.
MINUTE: Pressing the “M” button with your
finger, a pencil or similar object will
advance the time displayed by one
minute.
Display conversionTo change the 12 hour format to the
24 hour format, press the “H” and “M”
buttons at the same time for more
than 4 seconds.
For example, if the “H” and “M” but-
tons are pressed at the same time for
more than 4 seconds while the time
is 10:15 p.m., the display will be
changed to 22:15.
CAUTION
Use when the engine is run- ning, and remove a plug fromthe power outlet after usingthe electric appliance. Usingelectrical accessories whenthe engine is not running mayresult in battery discharge.
Only use 12V accessories which are rated for less than10A maximum current draw.
Adjust the air-conditioner or heater to the lowest operationlevel when you have to use thepower socket while using air-conditioner or heater.
Close the cover when not in use.
Some electronic devices can cause electronic interferencewhen plugged into a vehicle'spower outlet. These devicesmay cause excessive audiostatic and malfunctions inother electronic systems ordevices used in your vehicle.
OLD038151N

397
Knowing your vehicle
1
2
3
4
5
6
7
8
9

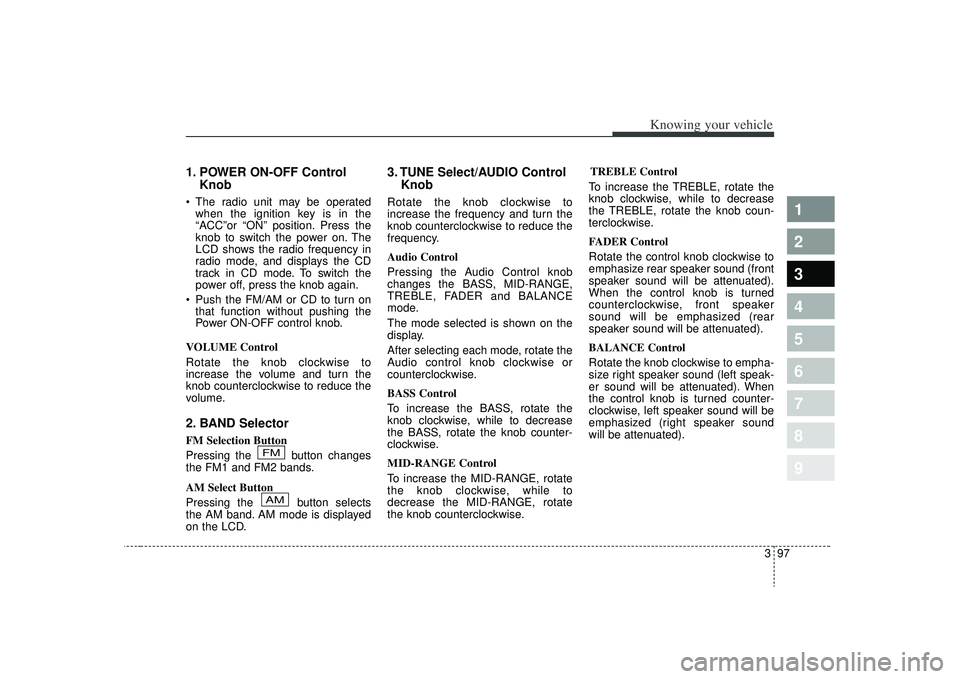

1. POWER ON-OFF ControlKnob The radio unit may be operated
when the ignition key is in the
“ACC”or “ON” position. Press the
knob to switch the power on. The
LCD shows the radio frequency in
radio mode, and displays the CD
track in CD mode. To switch the
power off, press the knob again.
Push the FM/AM or CD to turn on that function without pushing the
Power ON-OFF control knob.
VOLUME Control
Rotate the knob clockwise to
increase the volume and turn the
knob counterclockwise to reduce the
volume.2. BAND SelectorFM Selection Button
Pressing the button changes
the FM1 and FM2 bands.
AM Select Button
Pressing the button selects
the AM band. AM mode is displayed
on the LCD.
3. TUNE Select/AUDIO Control KnobRotate the knob clockwise to
increase the frequency and turn the
knob counterclockwise to reduce the
frequency.
Audio Control
Pressing the Audio Control knob
changes the BASS, MID-RANGE,
TREBLE, FADER and BALANCE
mode.
The mode selected is shown on the
display.
After selecting each mode, rotate the
Audio control knob clockwise or
counterclockwise.
BASS Control
To increase the BASS, rotate the
knob clockwise, while to decrease
the BASS, rotate the knob counter-
clockwise.
MID-RANGE Control
To increase the MID-RANGE, rotate
the knob clockwise, while to
decrease the MID-RANGE, rotate
the knob counterclockwise. TREBLE Control
To increase the TREBLE, rotate the
knob clockwise, while to decrease
the TREBLE, rotate the knob coun-
terclockwise.
FADER Control
Rotate the control knob clockwise to
emphasize rear speaker sound (front
speaker sound will be attenuated).
When the control knob is turned
counterclockwise, front speaker
sound will be emphasized (rear
speaker sound will be attenuated).
BALANCE Control
Rotate the knob clockwise to empha-
size right speaker sound (left speak-
er sound will be attenuated). When
the control knob is turned counter-
clockwise, left speaker sound will be
emphasized (right speaker sound
will be attenuated).
AMFM

Knowing your vehicle98
3
1
2
3
4
5
6
7
8
9
4. AUTO SEEK Select Button
(Automatic Channel Selection)Press the AUTO SEEK select button.
When the side is pressed, the unit
will automatically tune to the next
higher frequency and when the
side is pressed, it will automatically
tune to the next lower frequency.5. SCAN ButtonWhen you Press the button, frequen-
cy is changed and the next channel
is received automatically.
To stay on a station, press the SCAN
button again.6. EQ ButtonPress the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;
7. PRESET STATION SelectButtonsSix stations for AM, FM1 and FM2
respectively can be preset in the
electronic memory circuit.HOW TO PRESET STATIONSSix AM and twelve FM stations may
be programmed into the memory of
the radio. Then, by simply pressing
the AM/FM band select buttons
and/or one of the six station select
buttons, you may recall any of these
stations instantly.
To program the stations, follow these
steps:
Press AM/FM selector to set the
band for AM, FM1 and FM2.
Select the desired station to be stored by seek or manual tuning.
Determine the preset station select button you wish to use to access
that station. Press and hold the station select
button for more than 0.8 seconds.
A select button indicator will show
in the display indicating which
select button you have depressed.
The frequency display will flash
after it has been stored into the
memory. You should then release
the button, and proceed to pro-
gram the next desired station. A
total of 18 stations can be pro-
grammed by selecting one AM and
two FM stations per button.
When completed, any preset sta- tion may be recalled by selecting
AM, FM1 or FM2 band and the
appropriate station button.
CAUTION
Do not place beverages close
to the audio system. The audiosystem mechanism may bedamaged if you spill them.
Do not strike or allow anything to impact the audio system,damage to the system mecha-nisms could occur.
CLASSIC➟ POPS➟ROCK➟ JAZZ➟OFF

Knowing your vehicle104
3
1
2
3
4
5
6
7
8
9

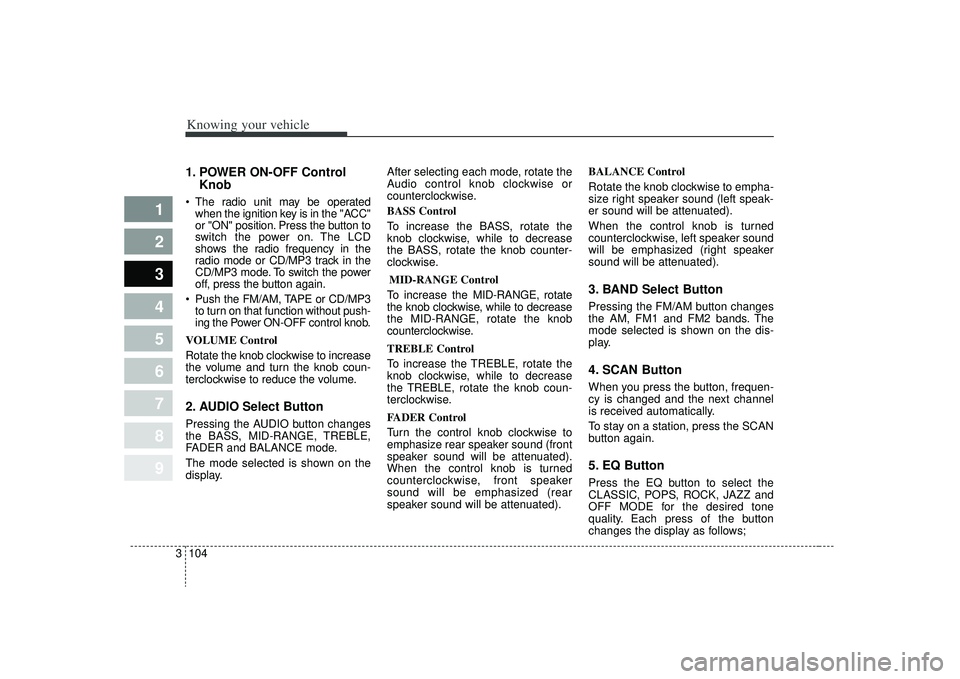

1. POWER ON-OFF Control
Knob The radio unit may be operated
when the ignition key is in the "ACC"
or "ON" position. Press the button to
switch the power on. The LCD
shows the radio frequency in the
radio mode or CD/MP3 track in the
CD/MP3 mode. To switch the power
off, press the button again.
Push the FM/AM, TAPE or CD/MP3 to turn on that function without push-
ing the Power ON-OFF control knob.
VOLUME Control
Rotate the knob clockwise to increase
the volume and turn the knob coun-
terclockwise to reduce the volume.2. AUDIO Select ButtonPressing the AUDIO button changes
the BASS, MID-RANGE, TREBLE,
FADER and BALANCE mode.
The mode selected is shown on the
display. After selecting each mode, rotate the
Audio control knob clockwise or
counterclockwise.
BASS Control
To increase the BASS, rotate the
knob clockwise, while to decrease
the BASS, rotate the knob counter-
clockwise.
MID-RANGE Control
To increase the MID-RANGE, rotate
the knob clockwise, while to decrease
the MID-RANGE, rotate the knob
counterclockwise.
TREBLE Control
To increase the TREBLE, rotate the
knob clockwise, while to decrease
the TREBLE, rotate the knob coun-
terclockwise.
FADER Control
Turn the control knob clockwise to
emphasize rear speaker sound (front
speaker sound will be attenuated).
When the control knob is turned
counterclockwise, front speaker
sound will be emphasized (rear
speaker sound will be attenuated). BALANCE Control
Rotate the knob clockwise to empha-
size right speaker sound (left speak-
er sound will be attenuated).
When the control knob is turned
counterclockwise, left speaker sound
will be emphasized (right speaker
sound will be attenuated).
3. BAND Select ButtonPressing the FM/AM button changes
the AM, FM1 and FM2 bands. The
mode selected is shown on the dis-
play.4. SCAN ButtonWhen you press the button, frequen-
cy is changed and the next channel
is received automatically.
To stay on a station, press the SCAN
button again.5. EQ ButtonPress the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;

3 105
Knowing your vehicle
1
2
3
4
5
6
7
8
9
6. AUTO SEEK Select Button(Automatic Channel Selection)Press the AUTO SEEK select button.
When the side is pressed, the
unit will automatically tune to the
next higher frequency and when the
side is pressed, it will automati-
cally tune to the next lower frequen-
cy.7. TUNE Select/Audio Control KnobRotate the knob clockwise to
increase the frequency and turn the
knob counterclockwise to reduce the
frequency.8. PRESET STATION Select ButtonsSix stations for AM, FM1 and FM2
respectively can be preset in the
electronic memory circuit.
HOW TO PRESET STATIONSSix AM and twelve FM stations may
be programmed into the memory of
the radio. Then, by simply pressing
the AM/FM band select button and/or
one of the six station select buttons,
you may recall any of these stations
instantly. To program the stations, fol-
low these steps:
Press AM/FM selector to set the
band for AM, FM1 and FM2.
Select the desired station to be stored by seek or manual tuning.
Determine the preset station select button you wish to use to access
that station.
Press and hold the station select button for more than 0.8 seconds. A
select button indicator will show in
the display indicating which select
button you have depressed. The fre-
quency display will flash after it has
been stored in to the memory. You
should then release the button, and
proceed to program the next
desired station. A total of 18 stations
can be programmed by selecting
one AM and two FM stations per
button. When completed, any preset sta-
tion may be recalled by selecting
AM, FM1 or FM2 band and the
appropriate station button.
CAUTION
Do not place beverages close
to the audio system. The play-back mechanism may be dam-aged if you spill them.
Do not strike or allow anything to impact the audio system,damage to the system mecha-nisms could occur.
CLASSIC➟ POPS➟ROCK➟ JAZZ➟OFF

Knowing your vehicle108
3
1
2
3
4
5
6
7
8
9
2. TRACK UP/DOWN Button The desired track on the disc cur-
rently being played can be select-
ed using the track number.
Press button once to skip for- ward to the beginning of the next
track.
Press within a second after
playback begins to quickly move
backward through a CD.
If you press after more than a
second, it will take you to the
beginning of the file you are now
listening to.3. FF/REW Button If you want to fast forward or reverse
through the compact disc track, push
and hold the FF or REW button.
When you release the button, the com-
pact disc player will resume playing.4. REPEAT (RPT) Button To repeat the track you are current-ly listening to, press the RPT but-
ton. To cancel, press it again. To repeat the music within selected
folder, press the RPT button for
more than 0.8 seconds. To cancel,
press it again. (MP3 CD only)
If you do not release RPT opera- tion when the track ends, it will
automatically be replayed.
This process will be continued until
you push the button again or turn
the power OFF then ON.
5. RANDOM (RDM) ButtonWith random, you can listen to the
tracks in random, rather than
sequential order.
To use random, do the following:
Press the RDM button to listen to
recorded tracks in random
sequence. Press RDM again to
cancel or turn the power OFF then
ON. The unit defaults to playing
tracks in sequential order.
To listen to the music within the selected folder in random order,
press the RDM button within a sec-
ond. To cancel, press it again or
turn the power OFF then ON. (MP3
CD only)
6. BOOKMARK (MARK) ButtonWhen the CD player unit is operat-
ing, the desired track on the disc can
be bookmarked by using the MARK
button. (MP3 CD only)
Press the MARK button for morethan 0.8 seconds to bookmark the
desired track.
“M” will be displayed on the LCD
and “MEMORY(1~50)” will display
for approximately five seconds with
beep sound.
To play a bookmarked track, press
the MARK button within 0.8 sec-
onds and select the bookmarked
track to play.
To erase a bookmarked track, press the MARK button for more
than 0.8 seconds. The unit will
beep once when the bookmark is
erased.✽ ✽ NOTICETracks stored on Mark Memory will
be automatically erased after you
eject CDs that contain those tracks.

3 109
Knowing your vehicle
1
2
3
4
5
6
7
8
9

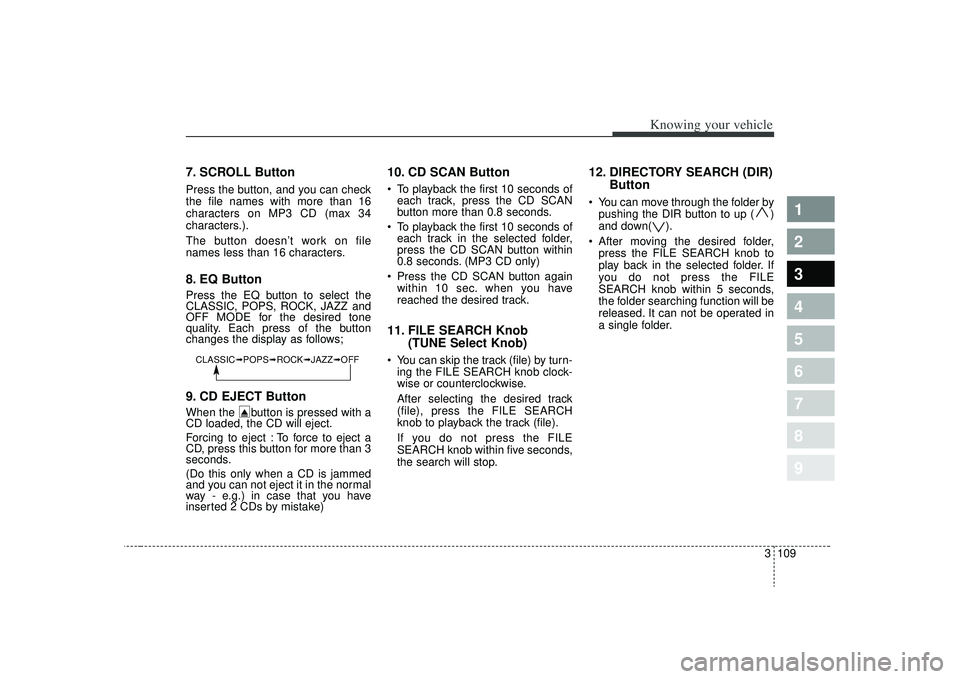

7. SCROLL ButtonPress the button, and you can check
the file names with more than 16
characters on MP3 CD (max 34
characters.).
The button doesn’t work on file
names less than 16 characters.8. EQ ButtonPress the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;9. CD EJECT ButtonWhen the button is pressed with a
CD loaded, the CD will eject.
Forcing to eject : To force to eject a
CD, press this button for more than 3
seconds.
(Do this only when a CD is jammed
and you can not eject it in the normal
way - e.g.) in case that you have
inserted 2 CDs by mistake)
10. CD SCAN Button To playback the first 10 seconds ofeach track, press the CD SCAN
button more than 0.8 seconds.
To playback the first 10 seconds of each track in the selected folder,
press the CD SCAN button within
0.8 seconds. (MP3 CD only)
Press the CD SCAN button again within 10 sec. when you have
reached the desired track.11. FILE SEARCH Knob (TUNE Select Knob) You can skip the track (file) by turn-
ing the FILE SEARCH knob clock-
wise or counterclockwise.
After selecting the desired track
(file), press the FILE SEARCH
knob to playback the track (file).
If you do not press the FILE
SEARCH knob within five seconds,
the search will stop.
12. DIRECTORY SEARCH (DIR) Button You can move through the folder by
pushing the DIR button to up ( )
and down( ).
After moving the desired folder, press the FILE SEARCH knob to
play back in the selected folder. If
you do not press the FILE
SEARCH knob within 5 seconds,
the folder searching function will be
released. It can not be operated in
a single folder.
CLASSIC➟ POPS➟ROCK➟ JAZZ➟OFF

3 111
Knowing your vehicle
1
2
3
4
5
6
7
8
9

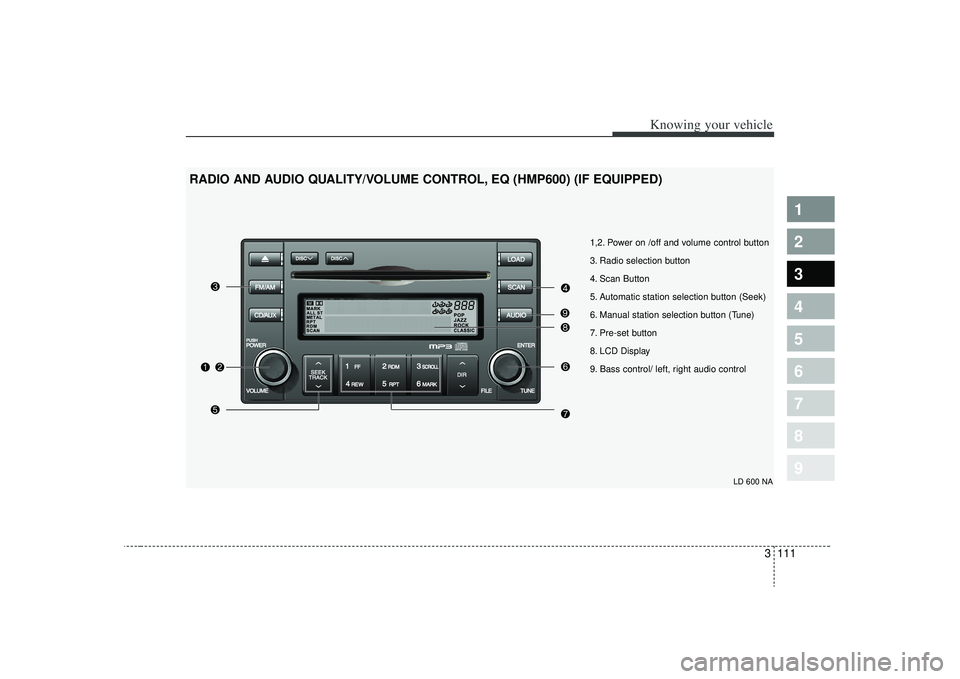

LD 600 NA
1,2. Power on /off and volume control button
3. Radio selection button
4. Scan Button
5. Automatic station selection button (Seek)
6. Manual station selection button (Tune)
7. Pre-set button
8. LCD Display
9. Bass control/ left, right audio control
RADIO AND AUDIO QUALITY/VOLUME CONTROL, EQ (HMP600) (IF EQUIPPED)

Knowing your vehicle112
3
1
2
3
4
5
6
7
8
9
1. Power on/off and volume
control buttonWhen the ignition switch is on ACC
or ON, push this button to power on.
Push this button again to power off.2. Volume control buttonRotate this button clockwise to vol-
ume up and anti-clockwise to volume
down.3. Radio selection button(FM/AM)Push [FM/AM] button for FM or AM
radio. Each press will change
FM1
➟FM2
➟AM
➟FM1 and repeats.
4. Scan buttonPush this button to automatically
select available stations and remains
for 5 seconds from current station.
Push again to stay on current station.
BSM buttonPush [BSM] button to start automatic
search from current station. The sta-
tions are memorized in 1~6 pre-set
buttons from smallest station.
Number 1 pre-set station will be on
after the search and memory.5. Automatic station selectionbutton (Seek)Push [seek ] button, to increase
the band and [seek ] button to
decrease the band. It automatically
finds available station. If the station is
already memorized in pre-set memo-
ry, it will show the pre-set number.6. Manual station selectionbutton (Tune)Rotate this tune button clockwise 1
click to increase band 1 step and
anti-clockwise to decrease.Regular export FM: Move by 0.1MHz
(87.5
➟87.6
➟87.7····87.7
➟87.6
➟87.5) AM: Move by 9 KHz
(531
➟540
➟549····549
➟540
➟531)
North America export (Columbianunits FM move by 0.1 MHz) FM: Move by 0.2MHz
(87.5
➟87.7
➟87.9····87.9
➟87.7
➟87.5)
AM: Move by 10 KHz
(530
➟540
➟550····550
➟540
➟530)
7. Pre-set button (1~6)Push these buttons to listen to mem-
orized stations. Push pre-set button
for more than 1.5 seconds (with a
beep) to memorize current station.8. LCD displayIt indicates FM1/FM2/AM along with
current band, pre-set channel, FM
stereo with "ST".

3 113
Knowing your vehicle
1
2
3
4
5
6
7
8
9
9. Bass control/ left, rightaudio controlPush this button to select BASS
➟
MIDDLE
➟TREBBLE
➟FADER
➟
BALANCE on LCD display screen.
Rotate the volume button
clockwise to increase
high sound and anti-
clockwise to decrease
high sound.
Rotate the volume button
clockwise to enable right
speakers and anti-clock-
wise to enable left speak-
ers.
Rotate the volume button
clockwise to increase
back speaker sound and
anti-clockwise to increa-
se front speaker sound.
TREBLE
BALANCE
FADER
Rotate the volume button
clockwise to increase
Bass sound and anti-
clockwise to decrease
Bass sound.
Rotate the volume button
clockwise to increase
middle sound and anti-
clockwise to decrease
Middle sound.
BASS
MIDDLE
