KIA Sportage 2006 JE_ / 2.G Owner's Manual

335
Knowing your vehicle
1
2
3
4
5
6
7
8
9

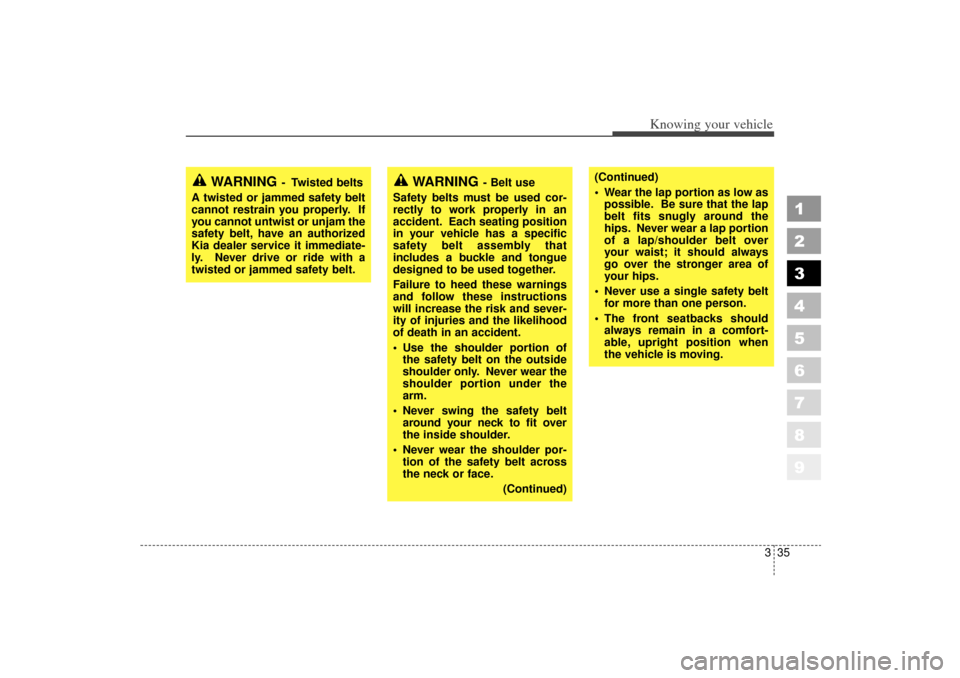

WARNING
- Belt use
Safety belts must be used cor-
rectly to work properly in an
accident. Each seating position
in your vehicle has a specific
safety belt assembly that
includes a buckle and tongue
designed to be used together.
Failure to heed these warnings
and follow these instructions
will increase the risk and sever-
ity of injuries and the likelihood
of death in an accident.
 Use the shoulder portion of the safety belt on the outside
shoulder only. Never wear the
shoulder portion under the
arm.
 Never swing the safety belt around your neck to fit over
the inside shoulder.
 Never wear the shoulder por- tion of the safety belt across
the neck or face.
(Continued)
(Continued)
 Wear the lap portion as low aspossible. Be sure that the lap
belt fits snugly around the
hips. Never wear a lap portion
of a lap/shoulder belt over
your waist; it should always
go over the stronger area of
your hips.
 Never use a single safety belt for more than one person.
 The front seatbacks should always remain in a comfort-
able, upright position when
the vehicle is moving.
WARNING
- Twisted belts
A twisted or jammed safety belt
cannot restrain you properly. If
you cannot untwist or unjam the
safety belt, have an authorized
Kia dealer service it immediate-
ly. Never drive or ride with a
twisted or jammed safety belt.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 35

Knowing your vehicle36
3
1
2
3
4
5
6
7
8
9
Safety belt warning light and
chimeIf the driver's safety belt is not fas-
tened when the key is turned ON or
if it is unfastened after the key is
turned ON, the safety belt warning
light blinks until the belt fastened.
If the driver's safety belt is not fas-
tened when the key is turned ON or
if it is unfastened after the key is ON,
the safety belt warning chime will
sound for approximately 6 seconds.
At this time, if the safety belt is fas-
tened, the chime will stop at once.
1GQA2083
CAUTION
Never close the doors on any
part of the lap or shoulder belt.
It can damage the safety belt or
buckle which could increase the
risk of injury in case of an acci-
dent.
WARNING
- Safety belt
care
 A damaged belt may not give you the protection you need in
an accident.
 Inspect your safety belts peri- odically for excessive wear or
damage. Pull out each belt
fully and look for fraying, cuts,
burns or other damage. Pull
the safety belt out and let it
retract a number of times.
Make sure that the lap/shoul-
der belts return smoothly and
easily into the retractor.
 Check the latches to make sure they latch and release
without interference or delay.
 Never close the doors on any part of the lap or shoulder
belt.
 Any belt not in good condition or in good working order
should be promptly replaced.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 36

337
Knowing your vehicle
1
2
3
4
5
6
7
8
9

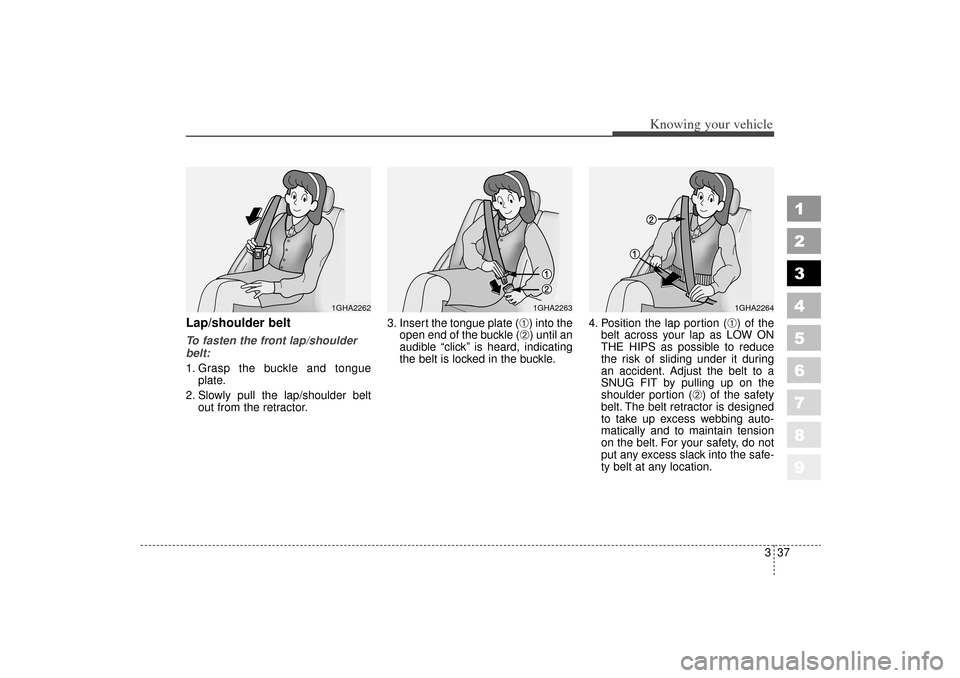

Lap/shoulder beltTo fasten the front lap/shoulder
belt:
1. Grasp the buckle and tongueplate.
2. Slowly pull the lap/shoulder belt out from the retractor. 3. Insert the tongue plate (
➀) into the
open end of the buckle (➁) until an
audible “click” is heard, indicating
the belt is locked in the buckle. 4. Position the lap portion (
➀) of the
belt across your lap as LOW ON
THE HIPS as possible to reduce
the risk of sliding under it during
an accident. Adjust the belt to a
SNUG FIT by pulling up on the
shoulder portion (
➁) of the safety
belt. The belt retractor is designed
to take up excess webbing auto-
matically and to maintain tension
on the belt. For your safety, do not
put any excess slack into the safe-
ty belt at any location.
1GHA2263
1GHA2264
1GHA2262
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 37

Knowing your vehicle38
3
1
2
3
4
5
6
7
8
9
5. Adjust the shoulder anchor posi-
tion to your size. To raise the
anchor position, push the anchor
up (
➀). To lower the anchor posi-
tion, press (
➁) the button ( ) and
slide the anchor down (
➂). After
adjustment, make sure the anchor
is locked in position. To unfasten the front lap/shoulder
belt:
Press the release button on the
buckle and allow the belt to slowly
retract.
Rear lap/shoulder belt To fasten the rear lap/shoulder
belt:
1. Grasp the buckle and tongue
plate.
2. Slowly pull the lap/shoulder belt out.
3. Insert the tongue plate (
➀) into the
open end of the buckle (➁) until an
audible “click’’ is heard, indicating
the belt is locked in the buckle.
4GQB0338
1KMA2050A
1GHA2263
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 38

339
Knowing your vehicle
1
2
3
4
5
6
7
8
9
4. Position the lap portion (
➀) of the
belt across your lap as LOW ON
THE HIPS as possible to reduce
the risk of sliding under it during
an accident. Adjust the belt to a
SNUG FIT by pulling up on the
shoulder portion (
➁) of the safety
belt. The belt retractor is designed
to take up excess webbing auto-
matically and to maintain tension
on the belt. For your safety do not
put any excess slack into the safe-
ty belt. To unfasten the rear lap/shoulder
belt:
Press the release button on the
buckle and allow the belt to slowly
retract.
3 Point rear center belt
(if equipped) To fasten the rear center belt
1. Extract the tongue plate from the
hole on the belt assembly cover
and slowly pull the tongue plates
out from the retractor.
1GHA2264
4GQB0338
1KMN3441
CAUTION
- Cargo
Be sure that the cargo is secure-
ly loaded in the rear cargo area.
Loose cargo may damage the
rear center safety belt in sudden
stops or certain collisions.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 39

Knowing your vehicle40
3
1
2
3
4
5
6
7
8
9
2. Insert the tongue plate (A) into the
open end of the buckle (C) until an
audible “click" is heard, indicating
the latch is locked. Make sure the
belt is not twisted. 3. Pull the tongue plate (B) and
insert the tongue plate (B) into the
open end of the buckle (D) until an
audible “click” is heard, indicating
the latch is locked. Make sure the
belt is not twisted. There will be an audible “click” when
the tab locks in the buckle. The safe-
ty belt automatically adjusts to the
proper length only after the lap belt is
adjusted manually so that it fits snug-
ly around your hips, if you lean for-
ward in a slow, easy motion, the belt
will extend and let you move around.
If there is a sudden stop or impact,
the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
1KMN3442
1KMB3443
WARNING
When using the rear safety cen-
ter belt, you must lock all
tongue plates and buckles. If
any tongue plate or buckle is
not locked, it will increase the
chance of injury in the event of
collision.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 40

341
Knowing your vehicle
1
2
3
4
5
6
7
8
9
To unfasten the rear center belt
1. Press the release button on thebuckle (D) and remove the tongue
plate (B) from the buckle (D).
2. To retract the rear center seatbelt, insert the key or similar small rigid
device into the web release button
on the anchor connector. Pull up on
the seat belt web (A) and allow the
webbing to retract automatically. 3. Insert the tongue plate (A) into the
hole on the belt assembly cover. When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used.
1KMB2051
1KMB34511KMN3452
1KMN3453
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 41

Knowing your vehicle42
3
1
2
3
4
5
6
7
8
9
Stowing the rear safety belt
The rear safety belt buckles can be
stowed in the pocket between the
rear seatback and cushion when not
in use.
Proper use and care of the
safety belt system To ensure that the safety belts pro-
vide the maximum protection, please
follow these instructions:
 Use the belts at all times - even on
short trips.
 If the safety belt is twisted, straighten it prior to use.
 Keep sharp edges and damaging objects away from the belts.
 Periodically inspect belt webbing, anchors, buckles and all other
parts for signs of wear and dam-
age. Replace damaged, excessive-
ly worn or questionable parts
immediately.  To clean the belt webbing, use a
mild soap solution recommended
for cleaning upholstery or carpets.
Follow the instructions provided
with the soap.
 Do not make modifications or addi- tions to the safety belt.
 After wearing a safety belt, make sure it fully retracts to the stowed
position. Do not allow the belt to
get caught in the door when you
close it.
1KMA2054
WARNING -
Belt cleaning
Do not bleach or dye the web-
bing because this may weaken
the webbing fibers and allow
them to fail when restraining an
occupant in a collision.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 42

343
Knowing your vehicle
1
2
3
4
5
6
7
8
9

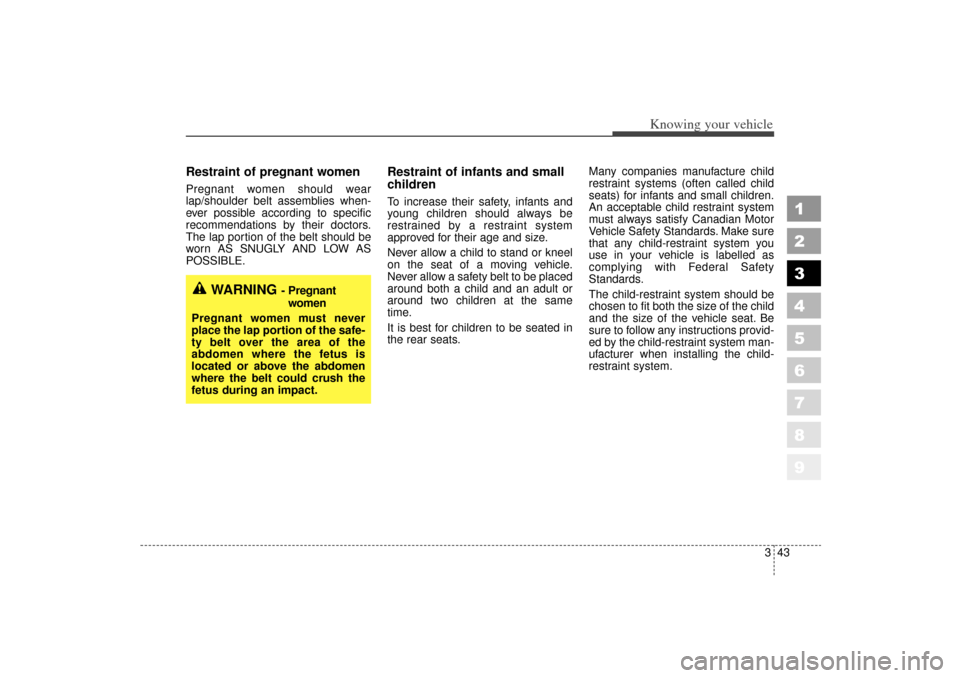

Restraint of pregnant women Pregnant women should wear
lap/shoulder belt assemblies when-
ever possible according to specific
recommendations by their doctors.
The lap portion of the belt should be
worn AS SNUGLY AND LOW AS
POSSIBLE.
Restraint of infants and small
children To increase their safety, infants and
young children should always be
restrained by a restraint system
approved for their age and size.
Never allow a child to stand or kneel
on the seat of a moving vehicle.
Never allow a safety belt to be placed
around both a child and an adult or
around two children at the same
time.
It is best for children to be seated in
the rear seats.Many companies manufacture child
restraint systems (often called child
seats) for infants and small children.
An acceptable child restraint system
must always satisfy Canadian Motor
Vehicle Safety Standards. Make sure
that any child-restraint system you
use in your vehicle is labelled as
complying with Federal Safety
Standards.
The child-restraint system should be
chosen to fit both the size of the child
and the size of the vehicle seat. Be
sure to follow any instructions provid-
ed by the child-restraint system man-
ufacturer when installing the child-
restraint system.
WARNING
- Pregnant
women
Pregnant women must never
place the lap portion of the safe-
ty belt over the area of the
abdomen where the fetus is
located or above the abdomen
where the belt could crush the
fetus during an impact.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 43

Knowing your vehicle44
3
1
2
3
4
5
6
7
8
9
Restraint of larger children As children grow, they may need to
use new child-restraint systems,
including larger child seats or boost-
er seats, which are appropriate for
their increased size.
A child who has outgrown available
child-restraint systems should use
the belts provided in the vehicle.
When seated in the rear outboard
seats, the child should be restrained
by the lap/shoulder belt.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck they need
to be returned to a child restraint sys-
tem. In addition, after-market devices
are available from independent man-
ufacturers which help pull the shoul-
der belt down and away from the
child’s face or neck.
WARNING
- Infants and
young children
 Infants and young children are at much greater risk of serious
injury or death in an accident
or sudden stop if they are unre-
strained or restrained improp-
erly. Follow all instructions in
this section and the instruc-
tions that came with an
approved child safety system.
The child restraint must be cor-
rectly installed in the vehicle,
and the child must be correctly
placed in the child restraint.
 All children under 12 are safest in the back seat.
 Never install a child or infant seat in the front passenger
position. The baby will be
injured or killed by the airbag
if it deploys.

Never allow a child to stand or
kneel on the seat of a moving
vehicle.
WARNING
- Children on laps
Never hold a child on your lap or
in your arms in a moving vehi-
cle.
Even a very strong person can-
not hold onto a child in the
event of even a minor collision.
CAUTION
- Hot metal parts
Safety belts and seats can
become hot in a vehicle that has
been closed during warm/hot
weather; they could burn a
child. Check seat covers and
buckles before you place a child
anywhere near them.
KM CAN (ENG) 3 (~54)new.qxd 7/29/05 9:33 AM Page 44
