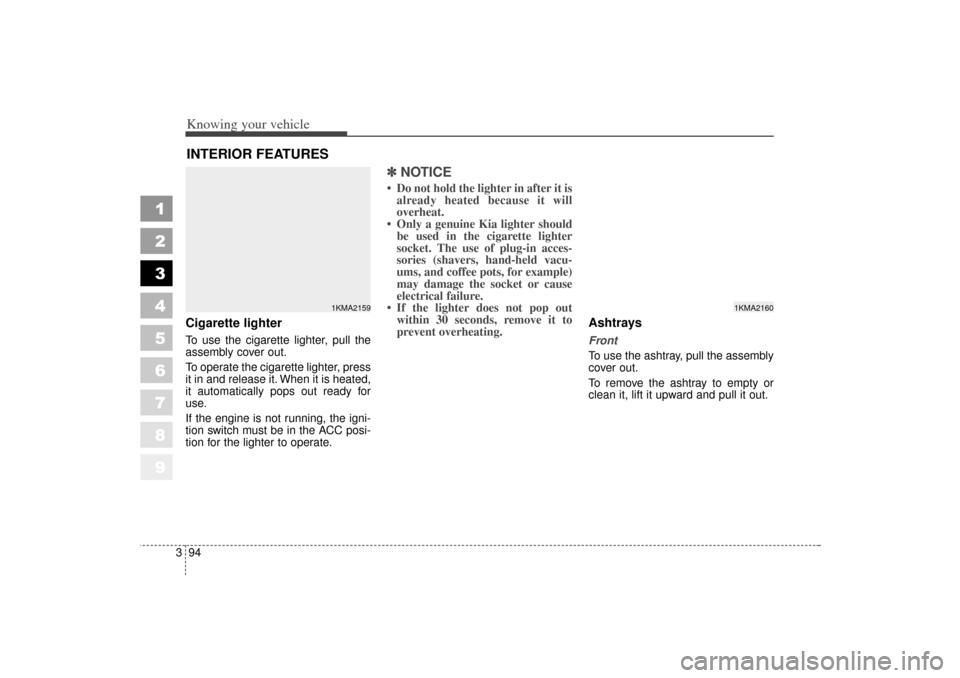

Cigarette lighterTo use the cigarette lighter, pull the
assembly cover out.
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
✽ ✽
NOTICE Do not hold the lighter in after it is
already heated because it will
overheat.
 Only a genuine Kia lighter should be used in the cigarette lighter
socket. The use of plug-in acces-
sories (shavers, hand-held vacu-
ums, and coffee pots, for example)
may damage the socket or cause
electrical failure.
 If the lighter does not pop out within 30 seconds, remove it to
prevent overheating.
Ashtrays Front
To use the ashtray, pull the assembly
cover out.
To remove the ashtray to empty or
clean it, lift it upward and pull it out.
INTERIOR FEATURES
1KMA2159
1KMA2160
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 94

395
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Rear
You can open the rear ashtray by
pulling it out by its top edge. To
remove the ashtray to empty or clean
it, push the tab (
➀) inside and pull it
all the way out.
Cup holder
WARNING
- Ashtray use
 Do not use the vehicle’s ash- trays as waste receptacles.
 Putting lit cigarettes or match- es in an ashtray with other
combustible materials may
cause a fire.
1KMA2161
WARNING
- Hot liquids
 Do not place uncovered cups of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills, you
could be burned. Such a burn
to the driver could cause a
loss of control of the vehicle.
 To reduce the risk of personal injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 95

Knowing your vehicle96
3
1
2
3
4
5
6
7
8
9
Front
Cups or small beverage cans may be
placed in the cup holders. Rear
To use the cup holders in rear seat,
pull the rear cup holder cover (
➀)
out. Push the cover to close after
use.
✽ ✽ NOTICE Do not place heavy cups or cans in
cup holders. Cup holders could be
damaged.
 Be careful not to step on the rear cup holder.
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
➀) and swing it to the side.
Adjust the sunvisor forward or back-
ward.
To use the vanity mirror, pull down
the visor and pull up the mirror cover
(
➁).
1KMA2171
1KMB2170
➀
1KMN2158
➀
➁
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 96

397
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICEClose the vanity mirror cover
securely and return the sunvisor to
its original position after use.
Power socketThe power outlets are designed to
provide power for mobile telephones
or other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
✽ ✽NOTICE Use when the engine is running,
and remove a plug from the power
outlet after using the electric
appliance. Using when the engine
stops or remaining the electric
appliance with plugged in for
many hours may cause the battery
to be discharged.
 Only use 12V electric appliances which are less than 10A in electric
capacity.
 Adjust the air-conditioner or heater to the lowest operating
level when you have to use the
power socket.
 Close the cover when not in use.
 Some electronic devices can cause electronic interference when
plugged into a vehicle’s power out-
let. These devices may cause exces-
sive audio static and malfunctions
in other electronic systems or
devices used in your vehicle.
1KMA21631KMB2162
FrontRear
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 97

Knowing your vehicle98
3
1
2
3
4
5
6
7
8
9
Digital clockWhenever the battery terminals,
ROOM LP fuse, or Power Connect
are disconnected, you must reset the
time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operates as follows:
HOUR:
Pressing the “H” button with your
finger, a pencil or similar object will
advance the time displayed by one
hour.
 MINUTE: Pressing the “M” button with your
finger, a pencil or similar object will
advance the time displayed by one
minute.  RESET:
To clear away minutes, press the
“R” button with your finger, a pencil
or similar object. Then the clock will
be set precisely on the hour.
For example, if the “R” button is
pressed while the time is between
9:01 and 9:29, the display will be
reset to 9:00.
9:01 ~ 9:29 ➾ 9:00
9:30 ~ 9:59 ➾ 10:00
To change the 12 hour format to the
24 hour format, press the “R” button
for more than 4 seconds.
For example, if the “R” button is
pressed for more than 4 seconds
while the time is 10:15 p.m., the dis-
play will be changed to 22:15.
1KMN2157
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 98

399
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Shopping bag holderFront
To use the holder, push the lower
portion.Rear
To use the holder, pull out the top
edge.
✽ ✽
NOTICE Do not hang a bag beyond 3 kg (7
lbs.). It may cause damage to the
shopping bag holder.
 Return it to the original position after using the shopping bag hold-
er.
1KMA2174
1KMA2173
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 99

Knowing your vehicle100
3
1
2
3
4
5
6
7
8
9
If your vehicle is equipped with this
feature, you can slide or tilt your sun-
roof with the sunroof control buttons
located on the overhead console.
The sunroof can only be opened,
closed, or tilted when the ignition
switch is in the ON position.➀\f
SLIDE OPEN (slide) button
➁\f
TILT UP (tilt) button
➂\f
CLOSE (close) button
✽ ✽
NOTICEDo not continue to press the sunroof
control button(s) after the sunroof is
in the fully open, closed, or tilt posi-
tion(s). Damage to the motor or sys-
tem components could occur.
Sliding the sunroof
SUNROOF (IF EQUIPPED)
1KMA2024
➀➁➂
1KMA20261KMA2025
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 100

3 101
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Open
Autoslide
To use the autoslide feature,
momentarily (less than 0.5 second)
press the SLIDE OPEN button on the
overhead console.
The sunroof will slide all the way
open. To stop the sunroof sliding at
any point, press any sunroof control
button.
Manual slide
Press the SLIDE OPEN button on
the overhead console and hold it
until the sunroof is opened to the
desired position.
Close
To close the sunroof, press the
CLOSE button on the overhead con-
sole and hold it until the sunroof is
closed.
Tilting the sunroof
Open
Autotilt
To use the autotilt feature, momen-
tarily (less than 0.5 second) press
the TILT UP button on the overhead
console. The sunroof will tilt all the
way open. To stop the sunroof tilting
at any point, press any sunroof con-
trol button.
Manual tilt
Press the TILT UP button on the
overhead console and hold it until
the sunroof is opened to the desired
position.
Close
To close the sunroof, press the
CLOSE button on the overhead con-
sole and hold it until the sunroof is
closed.
1KMA20281KMA2027
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 101

Knowing your vehicle102
3
1
2
3
4
5
6
7
8
9
Sunshade The sunshade will be opened with
the glass panel automatically when
the glass panel is slid. You will have
to close it manually if you want it
closed.
✽ ✽
NOTICE Do not press any sunroof control
button longer than necessary.
Damage to the motor or system
components could occur.
 Periodically remove any dirt that may accumulate on the guide rail.
 If you try to open the sunroof when the temperature is below
freezing or when the sunroof is
covered with snow or ice, the glass
or the motor could be damaged.
 The sunroof is made to slide together with sunshade. Do not
leave the sunshade closed while
the sunroof is open.
In case of an emergency If the sunroof does not open electri-
cally:
1. Remove the interior light lens by
using a flat blade screwdriver.
1KMA2030
1KMA2033
WARNING -
Sunroof
 Do not extend face or arms outside through the sunroof
opening while driving.
 Make sure hand and face are safely out of the way before
closing a sunroof.
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 102

3 103
1
2
3
4
5
6
7
8
9
Knowing your vehicle
2. Remove the two (2) screws, andthen remove the overhead con-
sole. 3. Insert the emergency handle (pro-
vided with the vehicle) and turn
the handle clockwise to open or
counterclockwise to close.
Resetting the sunroofWhenever the vehicle battery is dis-
connected or discharged, or you use
the emergency handle to operate the
sunroof, you have to reset your sun-
roof system as follows:
1. Turn the ignition key to the ON position.
2. According to the position of the sunroof, do as follows.
1) in case that the sunroof hasclosed completely or been tilt-
ed :
Press the TILT UP button until
the sunroof has tilted upward
completely.
2) in case that the sunroof has slide-opened:
Press and hold the CLOSE
button for more than 5 seconds
until the sunroof has closed
completely. Press the TILT UP
button until the sunroof has tilt-
ed upward completely.
1KMA2031
1KMA2032
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 103
