KIA Sportage 2007 JE_ / 2.G Owner's Manual

Knowing your vehicle102
3
1
2
3
4
5
6
7
8
9

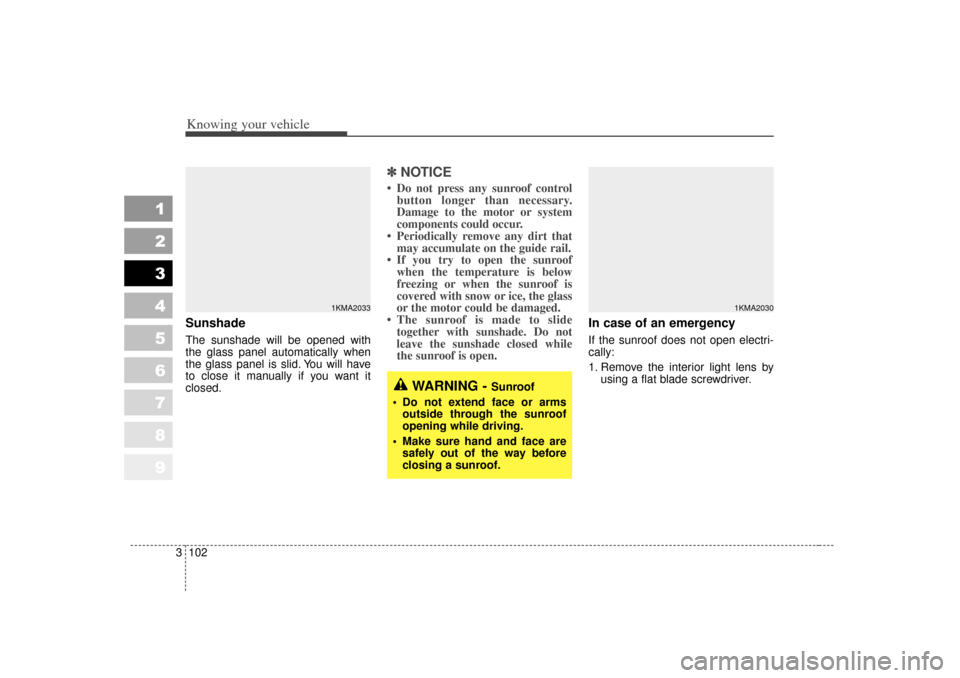

Sunshade The sunshade will be opened with
the glass panel automatically when
the glass panel is slid. You will have
to close it manually if you want it
closed.
✽ ✽
NOTICE• Do not press any sunroof control
button longer than necessary.
Damage to the motor or system
components could occur.
• Periodically remove any dirt that may accumulate on the guide rail.
• If you try to open the sunroof when the temperature is below
freezing or when the sunroof is
covered with snow or ice, the glass
or the motor could be damaged.
• The sunroof is made to slide together with sunshade. Do not
leave the sunshade closed while
the sunroof is open.
In case of an emergency If the sunroof does not open electri-
cally:
1. Remove the interior light lens by
using a flat blade screwdriver.
1KMA2030
1KMA2033
WARNING -
Sunroof
 Do not extend face or arms outside through the sunroof
opening while driving.
 Make sure hand and face are safely out of the way before
closing a sunroof.

3 103
1
2
3
4
5
6
7
8
9
Knowing your vehicle

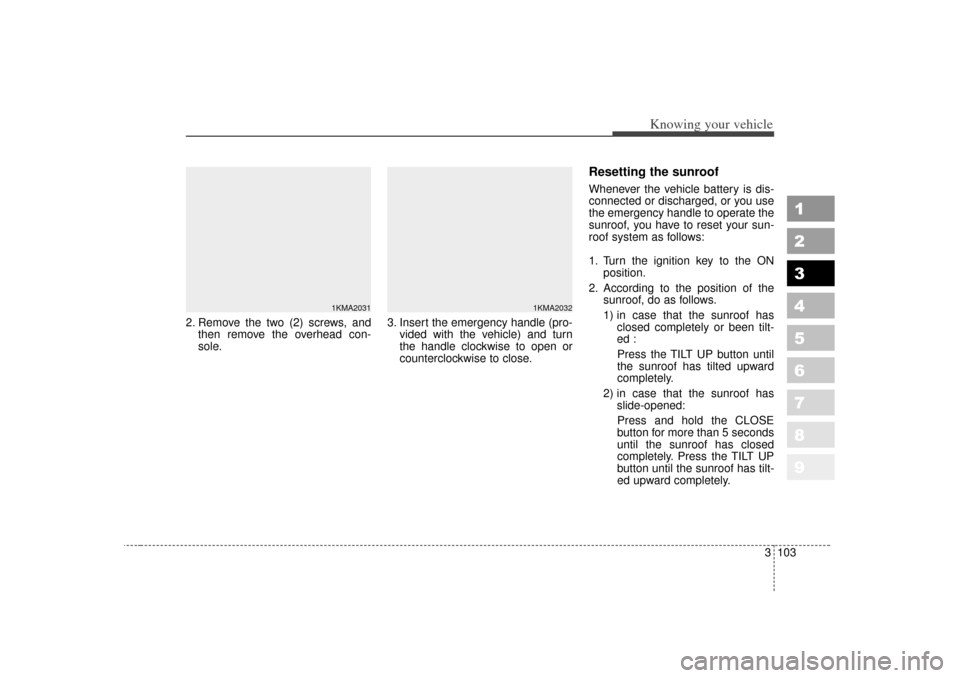

2. Remove the two (2) screws, andthen remove the overhead con-
sole. 3. Insert the emergency handle (pro-
vided with the vehicle) and turn
the handle clockwise to open or
counterclockwise to close.
Resetting the sunroofWhenever the vehicle battery is dis-
connected or discharged, or you use
the emergency handle to operate the
sunroof, you have to reset your sun-
roof system as follows:
1. Turn the ignition key to the ON position.
2. According to the position of the sunroof, do as follows.
1) in case that the sunroof hasclosed completely or been tilt-
ed :
Press the TILT UP button until
the sunroof has tilted upward
completely.
2) in case that the sunroof has slide-opened:
Press and hold the CLOSE
button for more than 5 seconds
until the sunroof has closed
completely. Press the TILT UP
button until the sunroof has tilt-
ed upward completely.
1KMA2031
1KMA2032

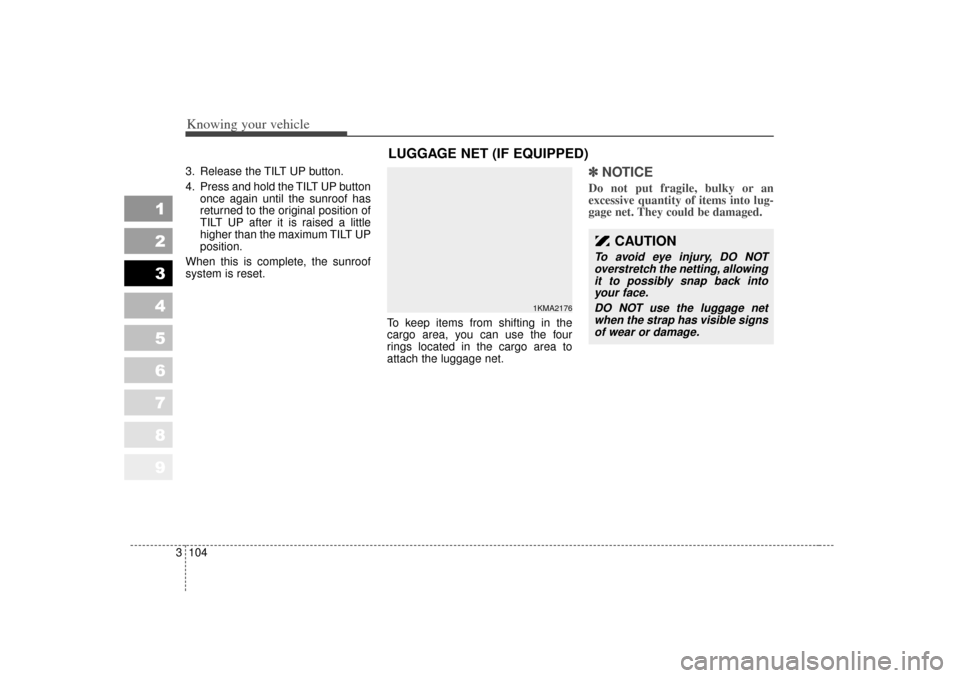

Knowing your vehicle104
3
1
2
3
4
5
6
7
8
9
3. Release the TILT UP button.
4. Press and hold the TILT UP button
once again until the sunroof has
returned to the original position of
TILT UP after it is raised a little
higher than the maximum TILT UP
position.
When this is complete, the sunroof
system is reset.
To keep items from shifting in the
cargo area, you can use the four
rings located in the cargo area to
attach the luggage net.
✽ ✽NOTICEDo not put fragile, bulky or an
excessive quantity of items into lug-
gage net. They could be damaged.
1KMA2176
LUGGAGE NET (IF EQUIPPED)
CAUTION
To avoid eye injury, DO NOT
overstretch the netting, allowingit to possibly snap back intoyour face.
DO NOT use the luggage netwhen the strap has visible signsof wear or damage.

3 105
1
2
3
4
5
6
7
8
9
Knowing your vehicle

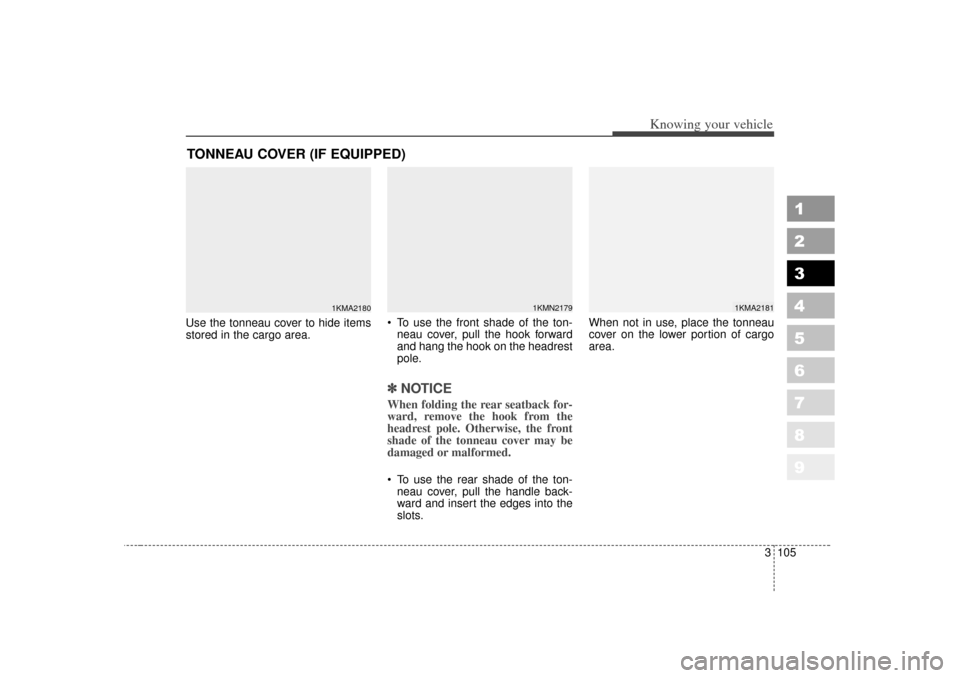

Use the tonneau cover to hide items
stored in the cargo area. To use the front shade of the ton-
neau cover, pull the hook forward
and hang the hook on the headrest
pole.
✽ ✽ NOTICEWhen folding the rear seatback for-
ward, remove the hook from the
headrest pole. Otherwise, the front
shade of the tonneau cover may be
damaged or malformed. To use the rear shade of the ton-
neau cover, pull the handle back-
ward and insert the edges into the
slots. When not in use, place the tonneau
cover on the lower portion of cargo
area.
TONNEAU COVER (IF EQUIPPED)
1KMA2180
1KMN2179
1KMA2181

Knowing your vehicle106
3
1
2
3
4
5
6
7
8
9
✽ ✽

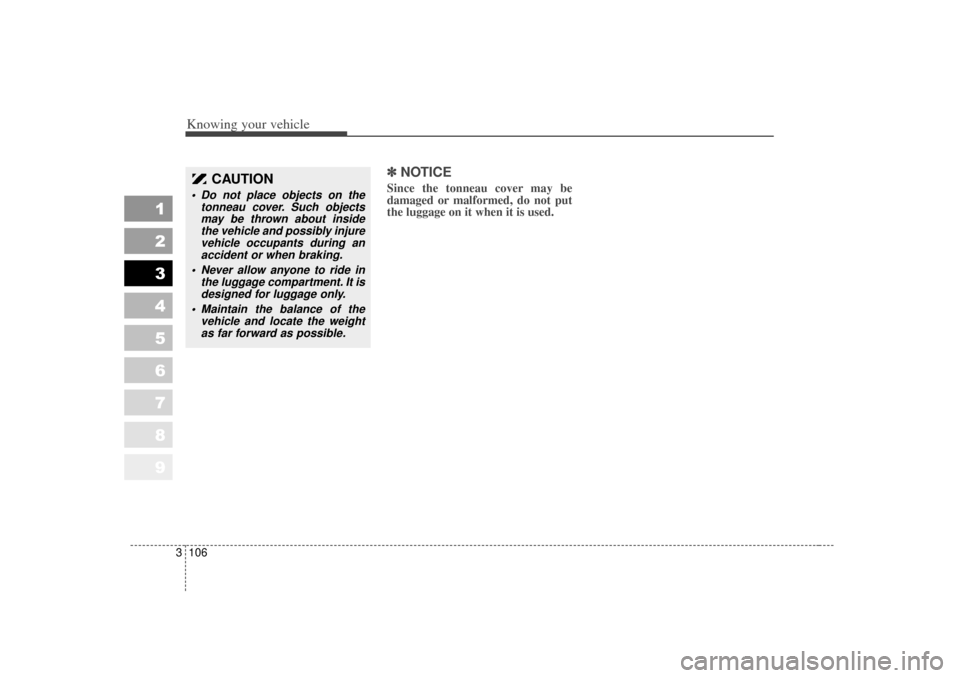

NOTICESince the tonneau cover may be
damaged or malformed, do not put
the luggage on it when it is used.
CAUTION
 Do not place objects on the
tonneau cover. Such objectsmay be thrown about insidethe vehicle and possibly injurevehicle occupants during anaccident or when braking.
 Never allow anyone to ride in the luggage compartment. It isdesigned for luggage only.
 Maintain the balance of the vehicle and locate the weightas far forward as possible.

3 107
1
2
3
4
5
6
7
8
9
Knowing your vehicle

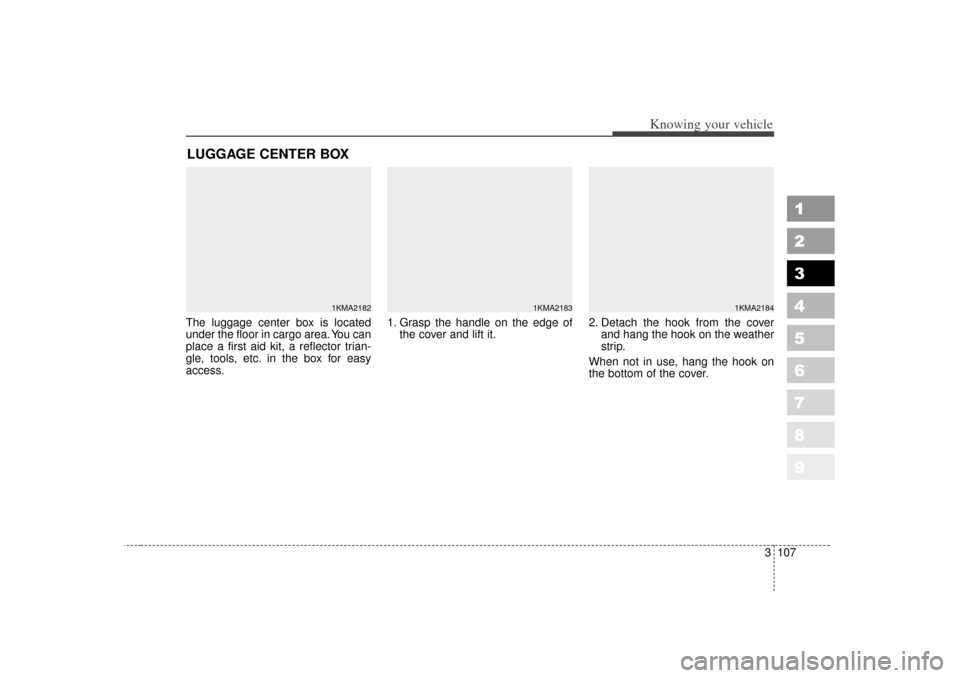

The luggage center box is located
under the floor in cargo area. You can
place a first aid kit, a reflector trian-
gle, tools, etc. in the box for easy
access.1. Grasp the handle on the edge of
the cover and lift it. 2. Detach the hook from the cover
and hang the hook on the weather
strip.
When not in use, hang the hook on
the bottom of the cover.LUGGAGE CENTER BOX
1KMA2182
1KMA2183
1KMA2184

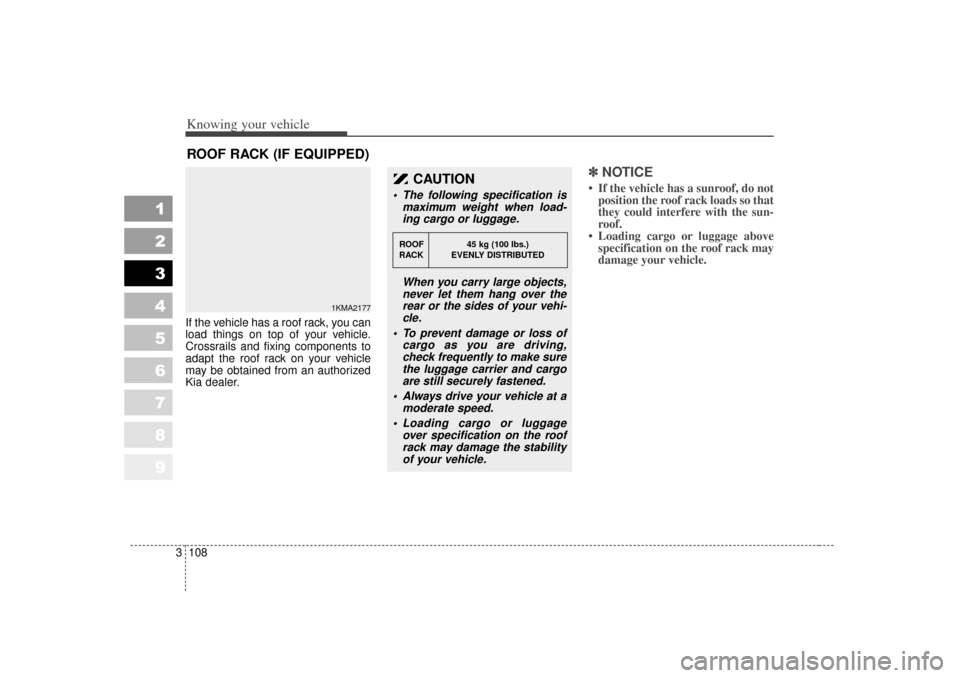

Knowing your vehicle108
3
1
2
3
4
5
6
7
8
9
If the vehicle has a roof rack, you can
load things on top of your vehicle.
Crossrails and fixing components to
adapt the roof rack on your vehicle
may be obtained from an authorized
Kia dealer.
✽ ✽
NOTICE• If the vehicle has a sunroof, do not
position the roof rack loads so that
they could interfere with the sun-
roof.
• Loading cargo or luggage above specification on the roof rack may
damage your vehicle.
ROOF RACK (IF EQUIPPED)
1KMA2177
CAUTION
 The following specification is
maximum weight when load-ing cargo or luggage.
When you carry large objects,never let them hang over therear or the sides of your vehi-cle.
 To prevent damage or loss of cargo as you are driving,check frequently to make surethe luggage carrier and cargoare still securely fastened.
 Always drive your vehicle at a moderate speed.
 Loading cargo or luggage over specification on the roofrack may damage the stabilityof your vehicle.ROOF 45 kg (100 lbs.)
RACK EVENLY DISTRIBUTED

3 109
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Roof type antennaIf your vehicle has an audio system,
an amplifying antenna is installed in
your vehicle.
This antenna can be removed from
the vehicle when you wash your
vehicle.
✽ ✽NOTICE• Be sure to remove the antenna
before washing the car in an auto-
matic car wash or it may be dam-
aged.
• When reinstalling your antenna, it is important that it is fully tight-
ened to ensure proper reception.
ANTENNA
OCM052140
Type A
Type B

1
2
3
4
5
6
7
8
9
Ignition switch / 4-2
Starting the engine / 4-4
Manual transaxle / 4-5
Automatic transaxle / 4-6
Four wheel drive (4WD) / 4-12
Brake system / 4-18
Steering wheel / 4-25
Cruise control system / 4-28
Traction control system / 4-33
Electronic stability control / 4-36
Instrument cluster / 4-39
Gauges / 4-40
Warnings and indicators / 4-46
Compass / 4-54
Lighting / 4-57
Wipers and washers / 4-61
Defroster / 4-64
Hazard warning flasher / 4-65
Manual climate control system / 4-66
Automatic climate control system / 4-75
Windshield defrosting and defogging / 4-88
Driving your vehicle
10

Driving your vehicle24
1
2
3
4
5
6
7
8
9

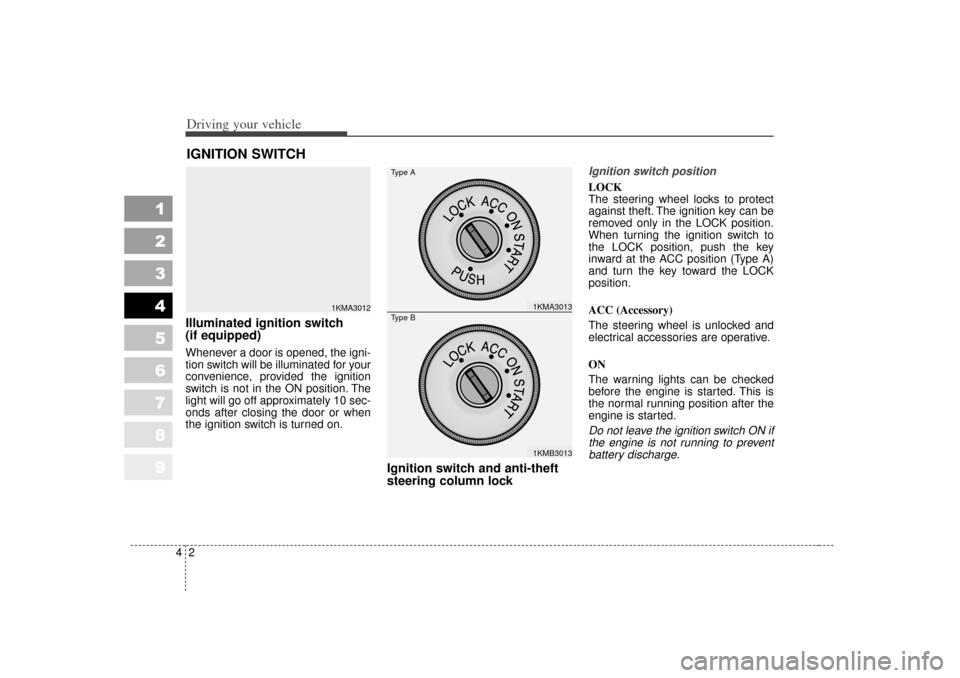

Illuminated ignition switch
(if equipped)Whenever a door is opened, the igni-
tion switch will be illuminated for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off approximately 10 sec-
onds after closing the door or when
the ignition switch is turned on.
Ignition switch and anti-theft
steering column lock
Ignition switch positionLOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position (Type A)
and turn the key toward the LOCK
position.
ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative.
ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.Do not leave the ignition switch ON ifthe engine is not running to preventbattery discharge.
IGNITION SWITCH
1KMA3012
1KMA30131KMB3013
Type AType B
