KIA Sportage 2007 JE_ / 2.G Owner's Guide

Knowing your vehicle22
3
1
2
3
4
5
6
7
8
9
Adjusting the height of seat cush-
ion (for driver’s seat)To change the height of the seat
cushion, rotate the knob located on
the outside of the seat cushion.
 To adjust the front height of the seat cushion, rotate the knob (
➀).
 To adjust the rear height of the seat cushion, rotate the knob (
➁).
Warming the front seats
(if equipped)The front seats can be electrically
heated individually when the ignition
switch is ON. When you depress the
seat warmer switch, a thermostat
regulates seat temperature. To deac-
tivate the heating system, depress
the switch once again.
WARNING
- Driver
responsibility for front seat
passenger
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined
during an accident, the occu-
pant’s hips may slide under the
lap portion of the safety belt
applying great force to the
unprotected abdomen. Serious
or fatal internal injuries could
result. The driver must advise
the front passengers to keep the
seatback in a comfortably
upright position whenever the
vehicle is in motion.
1KMA2036
1KMA2039

323
Knowing your vehicle
1
2
3
4
5
6
7
8
9
✽ ✽NOTICE• The seat warmer will not operate
if ambient temperature is above
37±3°C (98.5±5.5°F).
• If the seat warmer doesn't work when the ambient temperature is
below 28±3.5°C (82.5±5.5°F), have
the system checked by an autho-
rized dealer.✽ ✽ NOTICE• When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and
gasoline. Doing so may damage
the surface of the heater or seats.
• To prevent overheating the seat warmer, do not place blankets,
cushions or seat covers on the
seats while the seat warmer is in
operation.
• Do not place heavy or sharp objects on seats equipped with
seat warmers. Damage to the seat
warming components could occur.
Front headrest adjustmentAdjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
➀). To lower the
headrest, push and hold the release
button (
➁) on the headrest support
and lower the headrest to the desired
position (➂). For best protection,
adjust the headrest so its center is as
high as your ears. Also adjust the
headrest so its distance from the
head is as wide as your fist.
WARNING
- Seat heater
burns
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. In par-
ticular, the driver must exercise
extreme care for the following
types of passengers:
1. Infants, children, elderly or handicapped persons, or hos-
pital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
1KMA2040

Knowing your vehicle24
3
1
2
3
4
5
6
7
8
9
Removal
To remove the headrest, raise it as far
as it can go then press the release
lever (
➀) while pulling upward (
➁).
Full flat seatWhen the vehicle is parked, you can
place the front seat in a reclined
position, nearly flat.
1. Remove the headrest.
2. Move the front seat to the farthest
forward position.
3. Recline the seatback as far as it can go to allow the rear seat pas-
senger to support their legs in the
reclined position.
1KMA2041
WARNING
- Headrest
positioning
To reduce the risk of head and
neck injuries, each occupant
headrest must be properly
adjusted. Do not drive the vehi-
cle with the headrest removed
or improperly positioned.
Do not adjust the driver's head-
rest while driving, or else loss of
control and an accident is pos-
sible.
1KMA2045
WARNING
- Full flat seat
Do not allow a passenger to use
the full flat seat feature while the
vehicle is in motion. Severe
injury or death could occur in
an accident.
CAUTION -
Uprighting
seat
When you return the seatback to its upright position, hold theseatback and return it slowly. Ifthe seatback is returned withoutholding it, the back of the seatcould spring forward resultingin accidental injury from beingstruck by the seatback.

325
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Seatback tableWhile parked, you can use the front
passenger seatback as a table by
folding the passenger seatback all
the way forward.To operate seatback table
1. Lower the headrest.
2. With the recliner control lever
pulled up, fold the seatback for-
ward to the flat position.
3. When returning the seatback to the upright position, ensure the
seatback is completely locked into
place.
1KMA2044
WARNING
- Seatback
table
 Do not sit on the seatback table.
 Do not use the seatback table when the vehicle is in motion.
 Do not leave items on the seatback table when the vehi-
cle is in motion.
 When returning the seatback to the upright position, ensure
the seatback is completely
locked into place.

Knowing your vehicle26
3
1
2
3
4
5
6
7
8
9
Seatback pocketA seatback pocket is provided on the
back of the front passenger and dri-
vers seatbacks.
Rear seat adjustmentAdjusting the seatback reclinerTo recline the seatback:
1. Pull the lock release lever located
on the top of the seatback.
2. Recline the seatback to the desired position.
3. Release the lever and make sure the seatback is locked in place.
Split folding rear seat The rear seatbacks fold forward to
provide additional cargo space and
to provide access to the cargo area.
 To fold the rear seatback(s) down,pull the lock release lever, then fold
the seatback forward and down.
 To raise the seatback, lift and push it firmly until it clicks into place.
 When you return the seatback to its upright position, reposition the
rear safety belts so that they can
be used by rear seat passengers.
1KMA2042
WARNING
- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and injure
vehicle occupants.
1KMA2049
CAUTION -
Rear seatback
locks
When reclining the seatback, you should adjust the lockrelease lever while standing andholding the seatback.

327
Knowing your vehicle
1
2
3
4
5
6
7
8
9
To fold the rear seat;
1. Lower the headrest to the lowestposition.
2. Pull the lock release lever located on the top of the seatback.
3. Fold the seatback forward and down firmly until it clicks into
place.
1KMA2052
1KMA2054
1KMA2054A
WARNING
- Damaging
rear safety buckles
When you fold the rear seatback
or put luggage on the rear seat
cushion, insert the buckle in the
pocket between the rear seat-
back and cushion. Doing so can
prevent the buckle from being
damaged by the rear seatback
or luggage.
WARNING
- Rear safety belts
When returning the rear seat-
backs to the upright position,
remember to return the rear
shoulder belts to their proper
position. Routing the safety belt
webbing through the rear safety
belt guides will help keep the
belts from being trapped behind
or under the seats.

Knowing your vehicle28
3
1
2
3
4
5
6
7
8
9

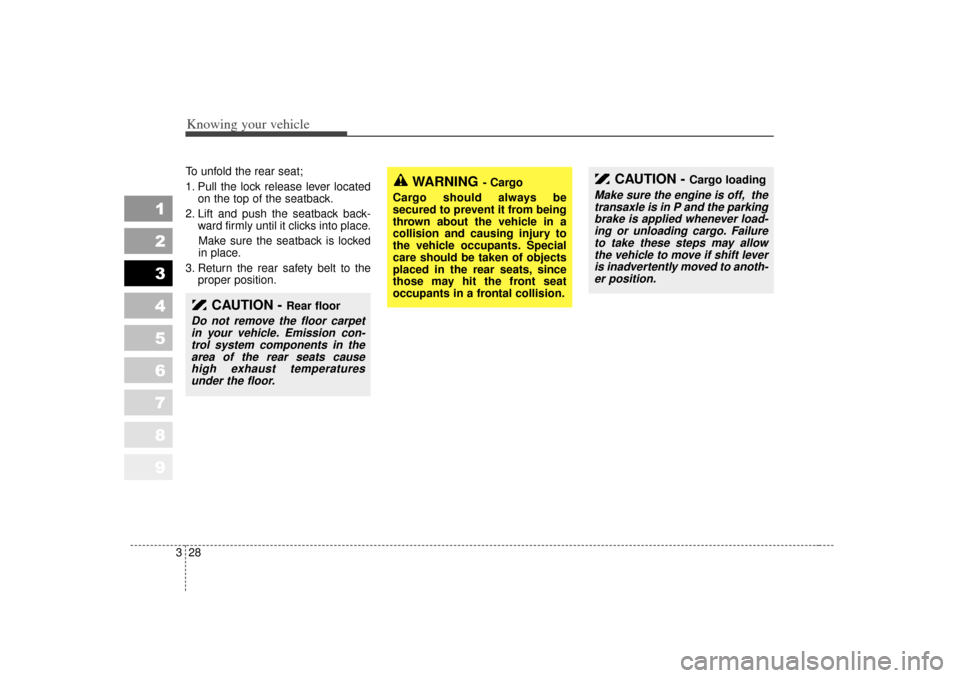

To unfold the rear seat;
1. Pull the lock release lever located
on the top of the seatback.
2. Lift and push the seatback back- ward firmly until it clicks into place.
Make sure the seatback is locked
in place.
3. Return the rear safety belt to the proper position.
WARNING
- Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Special
care should be taken of objects
placed in the rear seats, since
those may hit the front seat
occupants in a frontal collision.
CAUTION -
Cargo loading
Make sure the engine is off, the transaxle is in P and the parkingbrake is applied whenever load-ing or unloading cargo. Failureto take these steps may allowthe vehicle to move if shift leveris inadvertently moved to anoth-er position.
CAUTION -
Rear floor
Do not remove the floor carpetin your vehicle. Emission con-trol system components in thearea of the rear seats causehigh exhaust temperaturesunder the floor.

329
Knowing your vehicle
1
2
3
4
5
6
7
8
9
ArmrestThe armrest is located in the center
of the rear seat. Pull the armrest
down from the seatback.
Rear headrest adjustmentAdjusting the height up and down
The headrest not only provides com-
fort for the rear passengers, but also
helps to protect the head and neck in
the event of a collision.
To raise the headrest, pull it up to the
desired position (
➀). To lower the
headrest, push and hold the release
button (
➁) on the headrest support
and lower the headrest to the desired
position (➂). For best protection,
adjust the headrest so its center is as
high as your ears. Also adjust the
headrest so its distance from the
head is as wide as your fist. Removal
To remove the headrest, raise it as
far as it can go then press the
release lever (
➀) while pulling
upward (
➁).
1KMA2046
1KMA2047
WARNING
- Rear head-
rests
To reduce the risk of head and
neck injuries to rear passen-
gers, do not operate the vehicle
with the rear headrests removed
or improperly positioned.
1KMA2048

Knowing your vehicle30
3
1
2
3
4
5
6
7
8
9

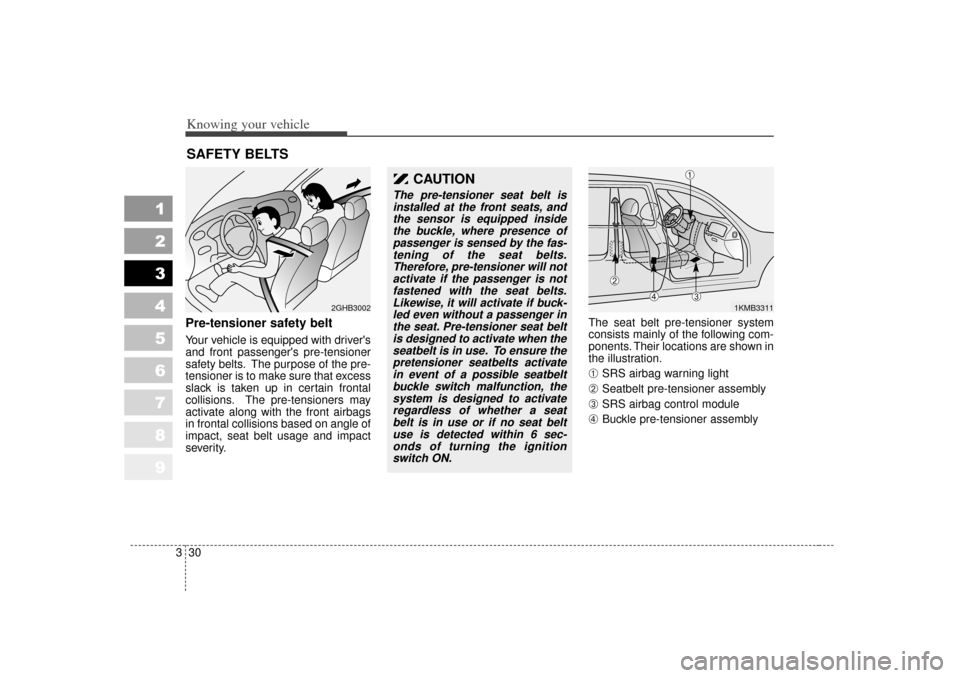

Pre-tensioner safety belt Your vehicle is equipped with driver's
and front passenger's pre-tensioner
safety belts. The purpose of the pre-
tensioner is to make sure that excess
slack is taken up in certain frontal
collisions. The pre-tensioners may
activate along with the front airbags
in frontal collisions based on angle of
impact, seat belt usage and impact
severity. The seat belt pre-tensioner system
consists mainly of the following com-
ponents. Their locations are shown in
the illustration.
➀
SRS airbag warning light
➁
Seatbelt pre-tensioner assembly
➂
SRS airbag control module
➃
Buckle pre-tensioner assembly
SAFETY BELTS
2GHB3002
1KMB3311
➀
➁
➂
➃
CAUTION
The pre-tensioner seat belt is
installed at the front seats, andthe sensor is equipped insidethe buckle, where presence ofpassenger is sensed by the fas-tening of the seat belts.Therefore, pre-tensioner will notactivate if the passenger is notfastened with the seat belts.Likewise, it will activate if buck-led even without a passenger inthe seat. Pre-tensioner seat beltis designed to activate when theseatbelt is in use. To ensure thepretensioner seatbelts activatein event of a possible seatbeltbuckle switch malfunction, thesystem is designed to activateregardless of whether a seatbelt is in use or if no seat beltuse is detected within 6 sec-onds of turning the ignitionswitch ON.

331
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Load limiterWhen the pre-tentioner activates, if
the system senses excessive seat
belt tension on the driver or passen-
ger’s seat belt, the load limiter inside
the pre-tensioner will release some
of the pressure on the affected seat
belt.
CAUTION -
Airbag/Pre-
tensioner dust
When the airbags and pre-ten- sioners are activated, a loudnoise may be heard and finedust, which may appear to besmoke, may be visible in thepassenger compartment. Thisdust is not toxic. The dust maycause skin irritation and shouldnot be breathed for prolongedperiods. Ventilate the vehicleafter impact and wash yourhands and face thoroughly afteran accident.
WARNING
- Airbag/pre-
tensioner warning light
If the SRS airbag warning light
does not illuminate when the
ignition key is turned to “ON” ,
or if it remains illuminated after
approximately 6 seconds, or if it
illuminates while the vehicle is
being driven, please have an
authorized Kia dealer inspect
the pre-tensioner and airbag
system as soon as possible.
WARNING
- Safety belt adjustment
To obtain maximum benefit from
a pre-tensioner seat belt:
 The safety belt must be worn correctly.
 The safety belt must be adjusted to the correct posi-
tion.
