Specifications & Consumer information
TIRES AND WHEELS
I020000AAM-EU
FrontRear
215/70R16 6.5J×16
225/60R17 6.5J×17
235/55R18 7.0J×18 420420
T155/90D16 4.0T×16 (60)(60)
Full size tire
Compact spare
tire (if equipped) Wheel lug nut torque
kg•m (lb N
9~11
(65~79, 88~107)
230
(33) 230
(33)
Item
Tire
size Wheel size
CAUTION
When replacing tires, use the same
size originally supplied with thevehicle.
Using tires of a different size candamage the related parts or make itwork irregularly.
Cold tire inflation pressure kPa (psi)
Page 372 of 385

8

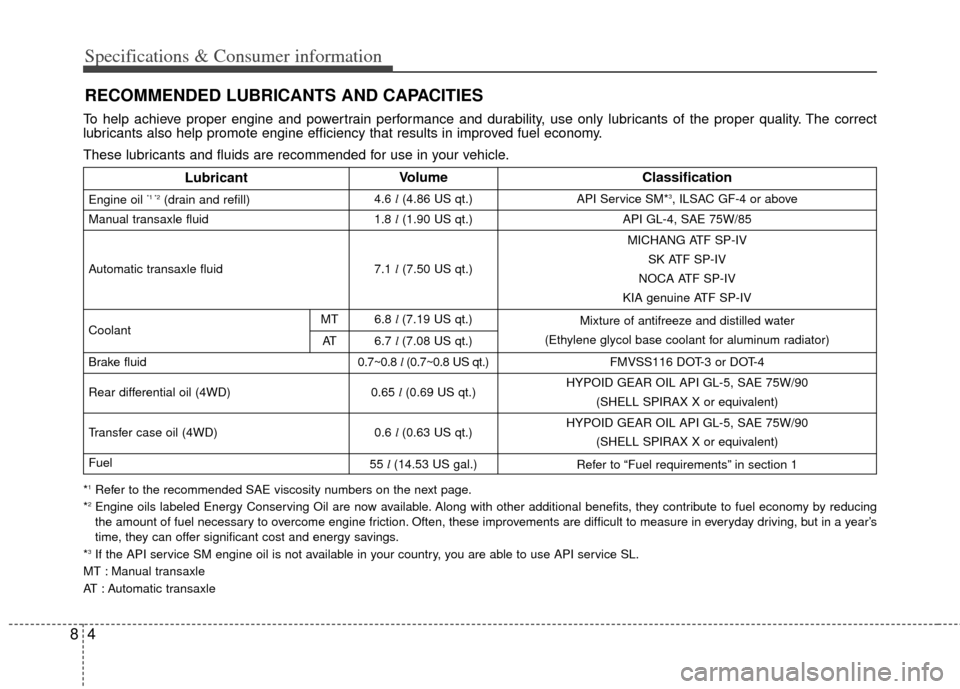

RECOMMENDED LUBRICANTS AND CAPACITIES
These lubricants and fluids are recommended for use in your vehicle.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
MT : Manual transaxle
AT : Automatic transaxle
4
Specifications & Consumer information
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)4.6 l(4.86 US qt.)API Service SM*3, ILSAC GF-4 or above
Manual transaxle fluid1.8 l(1.90 US qt.)API GL-4, SAE 75W/85
Automatic transaxle fluid7.1 l(7.50 US qt.)
MICHANG ATF SP-IV
SK ATF SP-IV
NOCA ATF SP-IV
KIA genuine ATF SP-IV
Coolant MT6.8 l (7.19 US qt.)Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
AT6.7 l (7.08 US qt.)
Brake fluid0.7~0.8 l (0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.65 l(0.69 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD)0.6 l(0.63 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel55 l (14.53 US gal.)Refer to “Fuel requirements” in section 1
Page 373 of 385

85
I040000AAM-EU

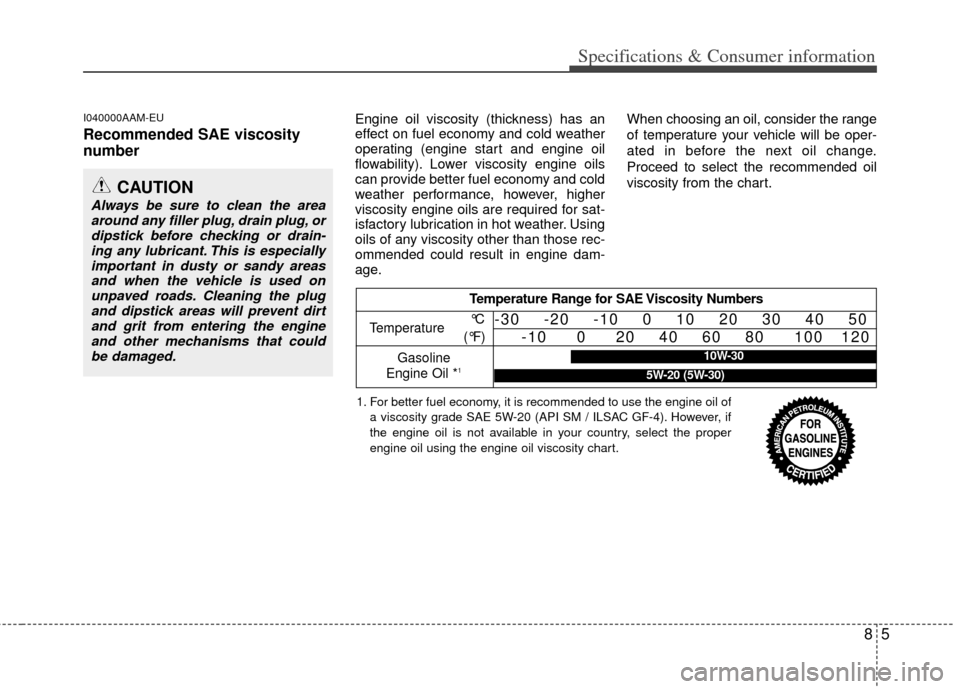

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
10W-30
5W-20 (5W-30)
Specifications & Consumer information
Page 374 of 385

Specifications & Consumer information
68
H010000AAM

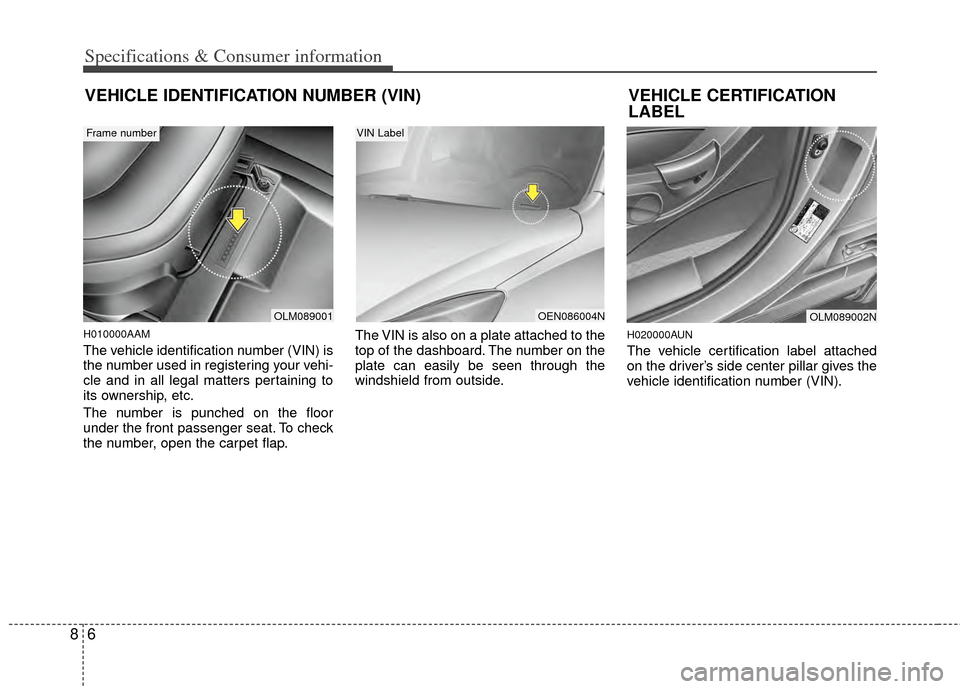

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the front passenger seat. To check
the number, open the carpet flap.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AUN
The vehicle certification label attached
on the driver’s side center pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OLM089002N
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN Label
OLM089001
Frame number
Page 375 of 385

87
Specifications & Consumer information
H030000APB
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
OLM089008N
TIRE SPECIFICATION AND
PRESSURE LABEL
OLM089003
■2.4L
Page 376 of 385

Gasoline
UNLEADED gasoline
AKI (Anti-Knock Index) 87 or higher
Fuel Tank Capacity
14.53 gal. (55 liters)
Recommended Engine Oil
API Service SM,
ILSAC GF-4 or above
Engine Oil Capacity with Filter
2.4L Engine : 4.86 qts. (4.6 liters)
Engine Coolant
2.4L Engine MT : 7.19 qts. (6.8 liters)
2.4L Engine AT : 7.08 qts. (6.7 liters)
Tire Pressure (measured cold)
215/70R16 : 33 psi
225/60R17 : 33 psi
235/55R18 : 33 psi
Automatic Transaxle Fluid
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, KIA genuine ATF SP-IV
or other brands meeting the SP-IV specifi-
cation approved by KIA Motors Corp.
Capacity - 2.4L Engine : 7.50
qts. (7.1 liters)
Manual Transaxle Fluid
API Service GL-4 (SAE 75W/85)
Capacity - 1.90 qts. (1.8 liters)
Brake Fluid
FMVSS116 DOT-3 or DOT-4

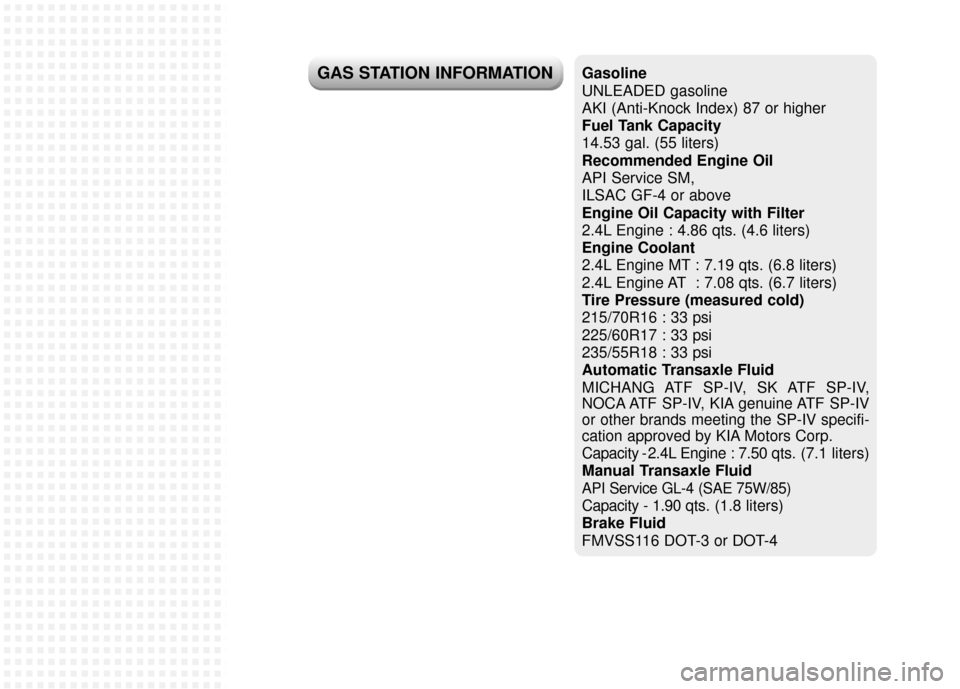

GAS STATION INFORMATION
Page 377 of 385

IIndex
