SPORTAGE FEATURES & FUNCTIONS GUIDE6*IF EQUIPPED
INSTRUMENT \fLUSTERTRIP A
Average Speed
E/T
-12°F324025mi.N
2489.4 mi.
64 MPH
23:47
72°F24025mi.N
030 60
Press the TRIP button A to cycle to the Instant
Fuel Consumption Mode to calculate fuel
consumption during the past few seconds.
1. Keep your vehicle in good condition with regular maintenance
2. Travel lightly, without carrying unnecessary weight in your vehicles
3. Don’t let the engine idle longer than necessary
REMINDERS:

 Not to be used in calculation or as a reference for
AVER AGE fuel economy

 If the vehicle speed exceeds 1 MPH (1.6 km/h) after being
refueled with more than 1.6 gallons (6 liters), the average
fuel economy will be cleared to zero (----)
Instant Fuel \fonsumption Mode*
Trip \fomputer* / Tripmeter
REMINDERS:

 Appearance of Tripmeter display may
differ, as equipped

 All stored driving information (except
Odometer and Range) is reset if the battery
is disconnected
The Trip Computer is a driver
information system that displays
information related to driving on the
display when the ignition switch is
in the ON position.
To cycle through the different Trip
Computer modes, press the TRIP
button
A.
To display the Tripmeter, press the
TRIP button
A, then select TRIP A
or TRIP B. Press the RESET button
B for more than 1 second to reset
the Tripmeter to zero.
(Located on left side of
instrument cluster dash panel)
TRIP
RESET
(Type B Cluster)
FUEL ECONOMY
• R ANGE
• Average MPG
• Instant MPG
TRIP A
• Tripmeter A
• Average MPH
• Elapsed Time (E / T )
TRIP B
• Tripmeter B
• Average MPH
• Elapsed Time (E / T )
Range234 mi .
A
B

7ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT \fLUSTER
Active E\fO System
For more information on the Active ECO indicator, refer to your Owner’s Manual or contact
your local dealership.
Active ECO helps improve fuel economy by controlling several vehicle components. When activated, it optimizes
drivetrain operations such as engine power and transmission to help improve fuel economy.
To turn ON, press the ACTIVE ECO button
A. The green ECO indicator light B in the instrument cluster will
illuminate, indicating that Active ECO is operating. The Active ECO System will remain on even when the
ignition is cycled.
To turn Active ECO OFF, press the button
A again .
TRIP A
Average Speed
E/T
72°F24025mi.N
2489.4 mi.
64 MPH
23:47
(Type A cluster)
(Buttons located on left side of Driver's Panel)
P


Active ECO System Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
Refer to page 2 for more
information .
www.KuTechVideos.com/sl13/2015
QR CODE


To help improve your fuel economy:

 Drive at a moderate speed, accelerating smoothly and at a moderate rate
 Keep tires inated to the recommended pressure
Be sure the wheels are properly aligned
QUICK TIPS
A
B

SPORTAGE FEATURES & FUNCTIONS GUIDE12*IF EQUIPPED
STEERING WHEEL \fONT\QROLS
Headlights & High Beams
AUTO Light* function — When the light switch is in the AUTO Light
position, the tail lights and headlights will turn ON/OFF automatically,
depending on the amount of light outside the vehicle. To o p e r a t e :

 Rotate lever to change the Headlight function

 Push lever to turn High Beams ON

 Pull lever to ash Headlights / High Beams
Turn Signals & Fog Lights*
To o p e r a t e :

 Turn Signals - Move lever Up/Down for Right /Left Turn Signal

 Rotate lever ring to turn Fog Lights ON/OFF
REMINDER: Headlights must be ON for Fog Light operation.
One-Touch Lane Change Signal is activated by moving the Turn
Signal Lever up/down slightly for less than 1 second and then
releasing. The lane change signal will blink 3 times.
AUTOAutomatic Headlights position*
Headlight position
Parking light position
OFFOFF position
AUTO
Daytime Running
Lights (DRL)*
DRL may help others to see the
front of your vehicle during the day.
The lights will be on automatically
when the ignition or ENGINE
START/STOP button is ON and
the headlight switch is in the
AUTO position, unless one of the
following occurs:

 Headlights are on

 Parking brake is applied

 Fog lights are on

 Engine is turned off

 Switch is in the OFF position
REMINDER: DRL only operates during the
daytime.
Sportage LED Daytime
Running Lights Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
www.KuTechVideos.com/sl13/2015
QR CODE

SPORTAGE FEATURES & FUNCTIONS GUIDE16*IF EQUIPPED
STEERING WHEEL \fONT\QROLS
C A N C E LO N
O F FRES +
SET +M O D E
M U T EM O D E
M U T E
A Audio Mode button: Press to cycle through FM/AM/Sirius®/CD/USB/
iPod/Aux /Bluetooth Audio Streaming/My Music modes
B Seek/Preset button
FM/AM/Sirius® Modes : Press to advance through Preset Stations.
Press and hold to Auto Seek
Media Modes : Press to move Track Up/Down. Press & hold to Fast
Forward / Rewind
C Volume button: Press up/down to raise/lower volume
D MUTE button : Press to mute all audio
E Cruise Control ON/OFF button: Press to turn the Cruise Control
ON/OFF
F Resume Cruising Speed button: Press up to resume or increase Cruising Speed
G SET Cruising Speed button: Press down to set or decrease
Cruising Speed
H Cruise Control CANCEL button: To cancel Cruise Control, do one of
the following:

 Press the brake pedal

 Press the CANCEL button
H
\fruise \fontrol
Audio \fontrols
For further audio system operations, refer to pages 17-20 REMINDER: Your vehicle’s steering wheel buttons may differ from those in the illustrations. See
your Owner’s Manual for more details.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to
driving and always exercise caution when using the steering-wheel-mounted controls while driving.


Pressing the Audio Mode button for more than 1 second will turn Audio Mode ON/OFF . QUICK TIPS




Cruise Control is designed to function above approximately 25 mph
The Cruise Control system will not activate until the brake pedal has been
depressed at least once after ignition ON or engine starting
QUICK TIPS
AB
C
D
EF
HG

SPORTAGE FEATURES & FUNCTIONS GUIDE20*IF EQUIPPED
\fENTER PANEL
Aux/USB/iPod® Port & Power Outlets
Digital \flock
Standard Audio System Clock Setup:
1. With Radio off, press and hold SETUP button
A
2. Rotate knob B to select Clock mode, then press to enter
3. Rotate knob
B to adjust Hour, then press to enter
4. Rotate knob
B to adjust Minute, then press to enter
UVO eServices System Clock Setup:
Press the CLOCK button to display the Clock setting screen. Then use the
on-screen buttons to navigate through setup.
Navigation System Clock Setup:
Press the SETUP key, then the CLOCK button to display the Clock setting
screen . Then use the on-screen buttons to navigate through setup.


USB Port Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
Refer to page 2 for more
information .
www.KuTechVideos.com/sl13/2015
QR CODE


The power outlets are inactive when ignition is in the OFF position. QUICK TIPS
SEEK
TRACK BACK MUTE
RPT RDM
RADIO
MEDIA
PHONE
POWERPUSHENTERVOLTUNE
FILE
SCAN
DISP
SETUPCLOCK
MENU
SEEK
TRACKCAT
FOLDER
(Standard audio system shown)
A
B

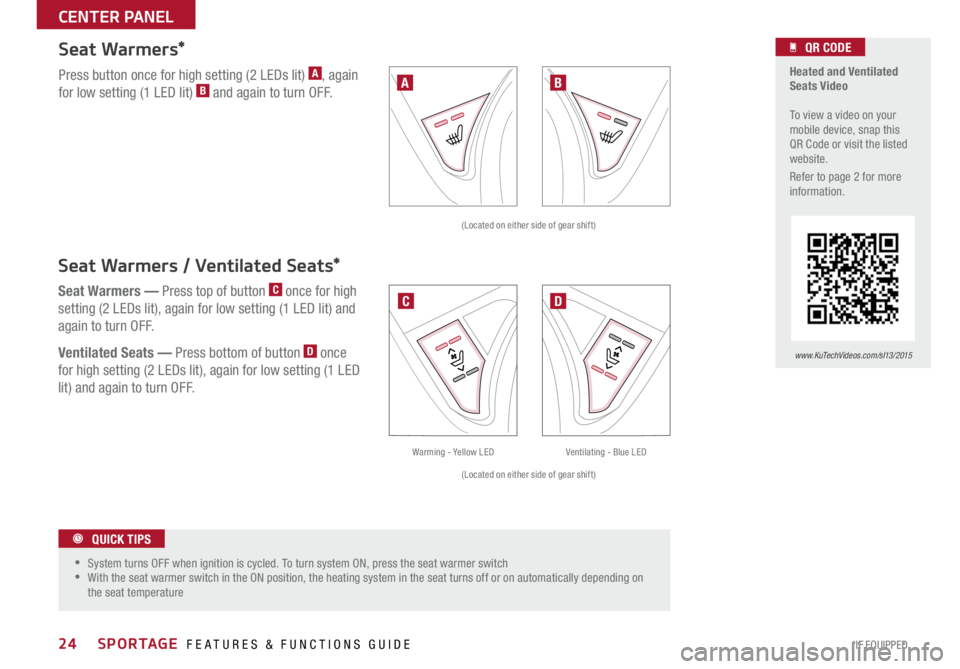

SPORTAGE FEATURES & FUNCTIONS GUIDE24*IF EQUIPPED
\fENTER PANEL


Heated and Ventilated
Seats Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
Refer to page 2 for more
information .
www.KuTechVideos.com/sl13/2015
QR CODESeat Warmers*
Seat Warmers / Ventilated Seats*
Press button once for high setting (2 LEDs lit) A, again
for low setting (1 LED lit) B and again to turn OFF.
Seat Warmers — Press top of button
C once for high
setting (2 LEDs lit), again for low setting (1 LED lit) and
again to turn OFF.
Ventilated Seats — Press bottom of button
D once
for high setting (2 LEDs lit), again for low setting (1 LED
lit) and again to turn OFF.


System turns OFF when ignition is cycled. To turn system ON, press the seat warmer switchWith the seat warmer switch in the ON position, the heating system in the seat turns off or on automatically depending on
the seat temperature
QUICK TIPS
(Located on either side of gear shift)
AB
(Located on either side of gear shift)
Warming - Yellow LED
C
Ventilating - Blue LED
D

31ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
How to Sync Transmitter with HomeLink®*
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the
ignition or ENGINE SYSTEM START/STOP button* is OFF.
Personal Lamp
Push the lens
A to turn the map lamp ON/OFF. This light produces a spot
beam for convenient use as a map lamp or as a personal lamp for the driver
or the front passenger.
Map/Room Lamp switch
DOOR - When pressed or in the DOOR position
B, the lamp turns on when
any door is opened.
ON - In the ON position
C, the lamp stays on continuously.
OFF - In the OFF position
C, the lamp is off even if the door is opened.
DOOR
ON OFF DOOR


When doors are unlocked by the Smart Key, the lamp turns ON for approximately
30 seconds
If your vehicle is equipped with the theft alarm system, the interior lights
automatically turn off approximately 3 seconds after the system is in armed stage
Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
BC
A
B
A
Sunvisor
Use the Sunvisor to shield direct light through the front or side windows.
REMINDERS:

Sunvisor may not shield all direct light

Do not operate the vehicle if the Sunvisor is impairing your visibility

The Sunvisor may impair visibility if not adjusted properly

SPORTAGE FEATURES & FUNCTIONS GUIDE32*IF EQUIPPED
OTHER KEY FEATURES
Panoramic Sunroof Operation*
The sunroof operation is controlled through a multidirectional switch/lever. The ignition
or ENGINE START/STOP button* needs to be in the ON position to operate the Sunroof.
The Sunshade is manually operated.
Slide the Sunshade:
Open/Close: Manually slide the Sunshade forward/backward to the desired position.
Slide the Sunroof:
Auto Open: Slide lever
A backward to the farthest position and release.
Auto Close: Slide the lever
A forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Slide the lever
A backward to the rst detent position and release.
Close: Slide the lever
A forward to the rst detent position or pull the lever downward.
Tilt the Sunroof:
Raise: Push lever
A upward.
Lower: Pull lever
A downward .
DOORON OFF
DOOR
REMINDERS:

Sunshade must be open before operating the sunroof

Sunshade needs to remain OPEN while Sunroof is open and vehicle is moving


To stop the Sunroof at any position, push or pull the sunroof control
lever in any direction. QUICK TIPS
A

SPORTAGE FEATURES & FUNCTIONS GUIDE34*IF EQUIPPED
OTHER KEY FEATURES
Back-Up Warning System
(Rear Parking Assist System)*
The Back-Up Warning System is not a safety device.
The Back-Up Warning System is a supplemental
system that assists the driver by chiming if any
object is detected within the sensing area to the rear
and side of the vehicle when backing up. When the
ignition is ON, the system is activated.
REMINDERS:

 If the vehicle is moving at speeds over 6 mph, the system may not activate correctly

 When more than two objects are sensed at the same time, the closest one will be recognized rst
The Back-Up Warning System is not a substitute for proper and safe backing-up procedures. Always drive safely
and use caution when backing up. The Back-Up Warning System may not detect every object behind the vehicle.
Rear Parking Assist
System Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
www.KuTechVideos.com/sl13/2015
QR CODE
Press the Back-Up Warning System OFF button to deactivate the system (See illustration on page 8).
QUICK TIPS
Located underneath the Rear Hatch. With Rear Hatch
unlocked, press the Rear Hatch Release Button and
pull the Rear Hatch up by the handle to open.
Rear Hatch Release Button


The Rear Hatch must be unlocked before it can be
opened by the Rear Hatch Release Button
The Rear Hatch unlocks automatically, and can then
be opened, when the Smart Key fob* is within close
proximity to the vehicle
QUICK TIPS

35ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES
Opening the Hood:
1. Pull the Hood Release Lever
A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary Latch
B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood about halfway and then press down to securely lock in place.
Hood Release Lever and Latch
Lift the Lever C upward to release the fuel door.
Fuel Door Release Lever
(Lever located on the driver’s floor near door sill)
AB
C
\fhild Safety Locks
Located on the rear edge of the rear passenger doors.
Insert the ignition key into the hole and turn the key to
the LOCK position to disable the inner door handles from
opening the rear doors .
REMINDER: Child Safety Lock is located on rear passenger’s door jamb.
