KIA Sportage 2017 QL / 4.G Owner's Manual
Manufacturer: KIA, Model Year: 2017, Model line: Sportage, Model: KIA Sportage 2017 QL / 4.GPages: 595, PDF Size: 16.22 MB
Page 581 of 595
97
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends 2.0 T-GDI4.8 L
ACEA A5 or above
SAE : C
2.4 GDI
4.8 L API SM or above
ILSAC GF-4 or above
ACEA A5 or above
SAE : A
Automatic transmission
fluid 2.0 T-GDI
7.8 L
- ATF SP-IV
• The list of transaxle fluid approved by KIA: SK ATF SP-IV,
MICHANG ATF SP-IV, NOCA ATF SP-IV
2.4 GDI
6.7 L - ATF SP-IV
SK ATF SP-IV,
MICHANG ATF SP-IV, NOCA ATF SP-IV
Coolant 2.0 T-GDI
7.2 L
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for cooling
device)
2.4 GDI
7.8 L
Brake fluid
385 ± 20 cc DOT 3 or DOT 4

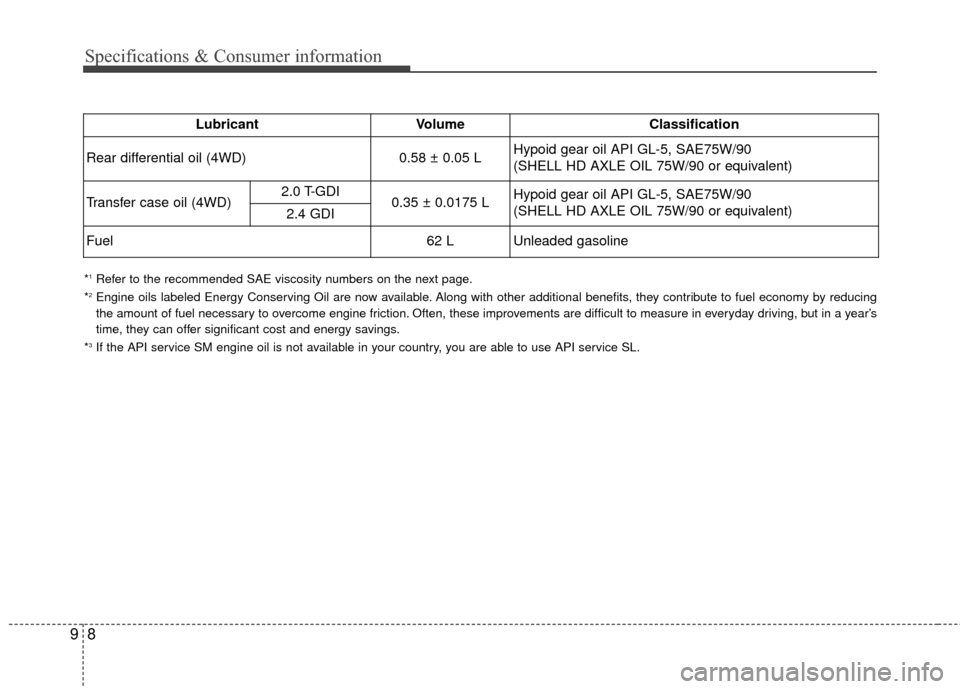

Page 582 of 595
89
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolume Classification
Rear differential oil (4WD)
0.58 ± 0.05 L Hypoid gear oil API GL-5, SAE75W/90
(SHELL HD AXLE OIL 75W/90 or equivalent)
Transfer case oil (4WD) 2.0 T-GDI
0.35 ± 0.0175 L
Hypoid gear oil API GL-5, SAE75W/90
(SHELL HD AXLE OIL 75W/90 or equivalent)
2.4 GDI
Fuel
62 L Unleaded gasoline

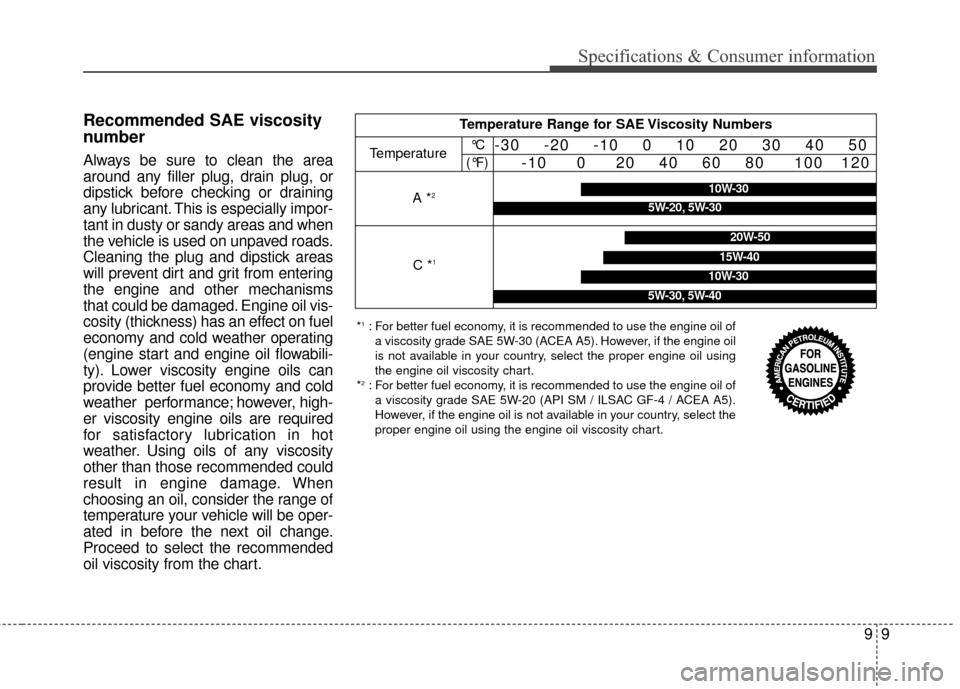

Page 583 of 595
99
Specifications & Consumer information
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially impor-
tant in dusty or sandy areas and when
the vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms
that could be damaged. Engine oil vis-
cosity (thickness) has an effect on fuel
economy and cold weather operating
(engine start and engine oil flowabili-
ty). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance; however, high-
er viscosity engine oils are required
for satisfactory lubrication in hot
weather. Using oils of any viscosity
other than those recommended could
result in engine damage. When
choosing an oil, consider the range of
temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
C *1
20W-50
10W-30
15W-40
5W-30, 5W-40
*1: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (ACEA A5). However, if the engine oil
is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
A *210W-30
5W-20, 5W-30

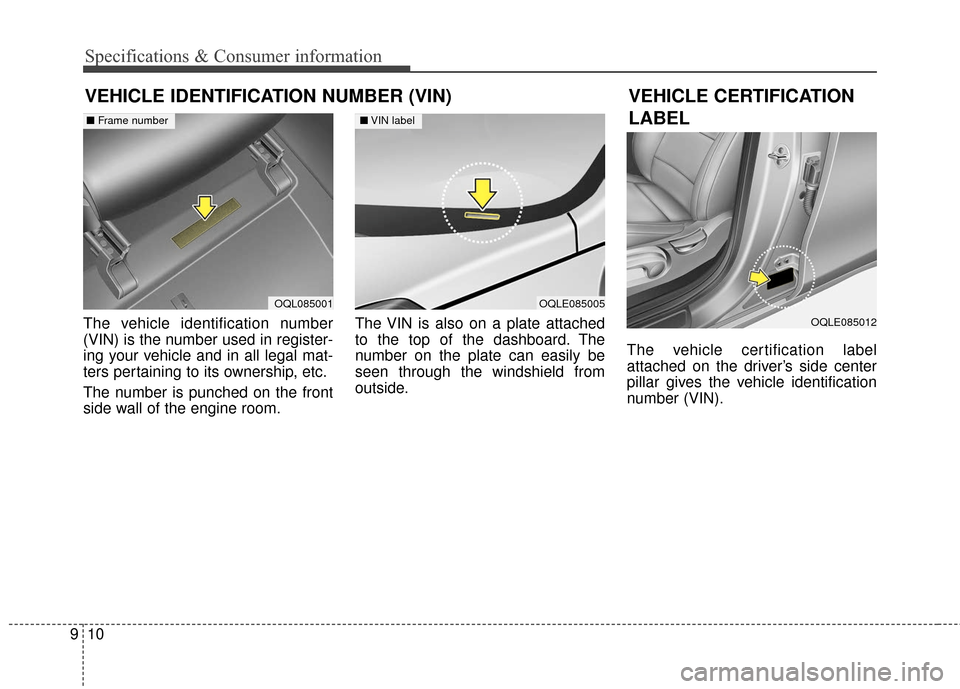

Page 584 of 595
10
9
Specifications & Consumer information
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the front
side wall of the engine room. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OQL085001
■
Frame number
OQLE085005
■VIN label
OQLE085012

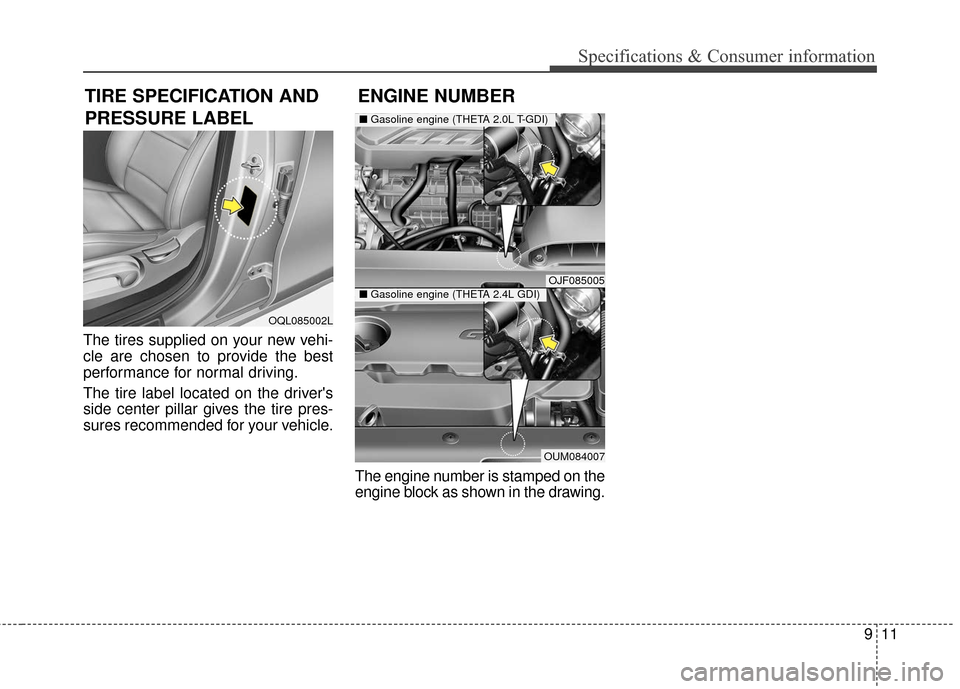

Page 585 of 595
911
Specifications & Consumer information
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
OQL085002L
OJF085005
OUM084007
■ Gasoline engine (THETA 2.0L T-GDI)
■Gasoline engine (THETA 2.4L GDI)
Page 586 of 595
Index
II

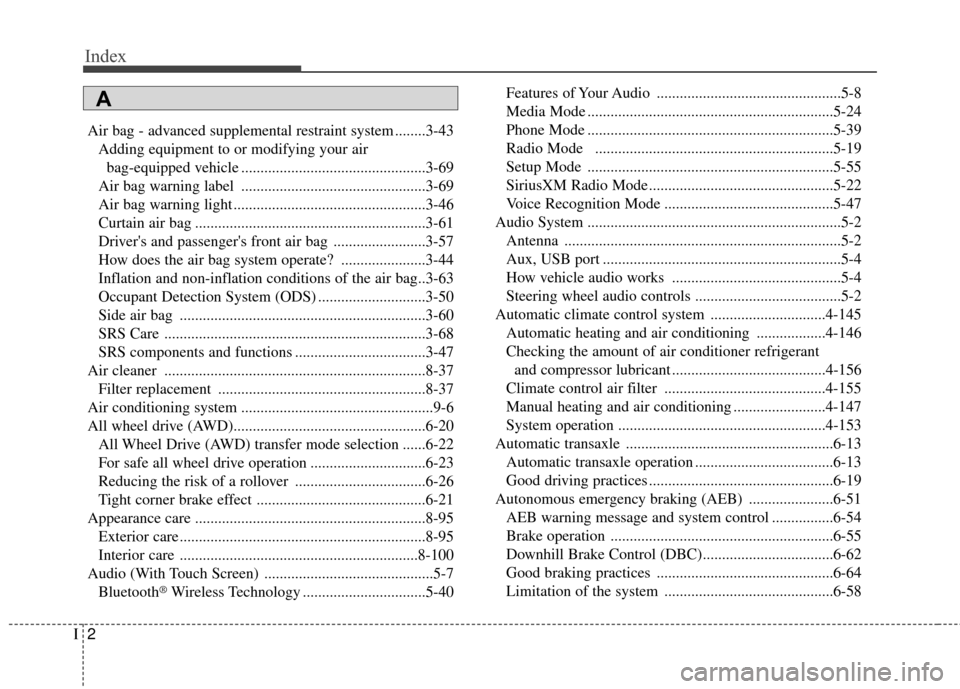

Page 587 of 595
Index
2I
Air bag - advanced supplemental restraint system ........3-43Adding equipment to or modifying your airbag-equipped vehicle ................................................3-69
Air bag warning label ................................................3-69
Air bag warning light ..................................................3-46
Curtain air bag ............................................................3-61
Driver's and passenger's front air bag ........................3-57
How does the air bag system operate? ......................3-44
Inflation and non-inflation conditions of the air bag..3-63
Occupant Detection System (ODS) ............................3-50
Side air bag ................................................................3-60
SRS Care ....................................................................3-68\
SRS components and functions ..................................3-47
Air cleaner ....................................................................8-37\
Filter replacement ......................................................8-37
Air conditioning system ..................................................9-6
All wheel drive (AWD)..................................................6-20 All Wheel Drive (AWD) transfer mode selection ......6-22
For safe all wheel drive operation ..............................6-23
Reducing the risk of a rollover ..................................6-26
Tight corner brake effect ............................................6-21
Appearance care ............................................................8-95 Exterior care ................................................................8-95
Interior care ..............................................................8-100
Audio (With Touch Screen) ............................................5-7 Bluetooth
®Wireless Technology ................................5-40 Features of Your Audio ................................................5-8
Media Mode ................................................................5-24
Phone Mode ................................................................5-39
Radio Mode ..............................................................5-19
Setup Mode ................................................................5-55
SiriusXM Radio Mode ................................................5-22
Voice Recognition Mode ............................................5-47
Audio System ..................................................................5-2 Antenna ........................................................................\
5-2
Aux, USB port ..............................................................5-4
How vehicle audio works ............................................5-4
Steering wheel audio controls ......................................5-2
Automatic climate control system ..............................4-145 Automatic heating and air conditioning ..................4-146
Checking the amount of air conditioner refrigerant and compressor lubricant ........................................4-156
Climate control air filter ..........................................4-155
Manual heating and air conditioning ........................4-147
System operation ......................................................4-153
Automatic transaxle ......................................................6-13 Automatic transaxle operation ....................................6-13
Good driving practices ................................................6-19
Autonomous emergency braking (AEB) ......................6-51 AEB warning message and system control ................6-54
Brake operation ..........................................................6-55
Downhill Brake Control (DBC)..................................6-62
Good braking practices ..............................................6-64
Limitation of the system ............................................6-58
A

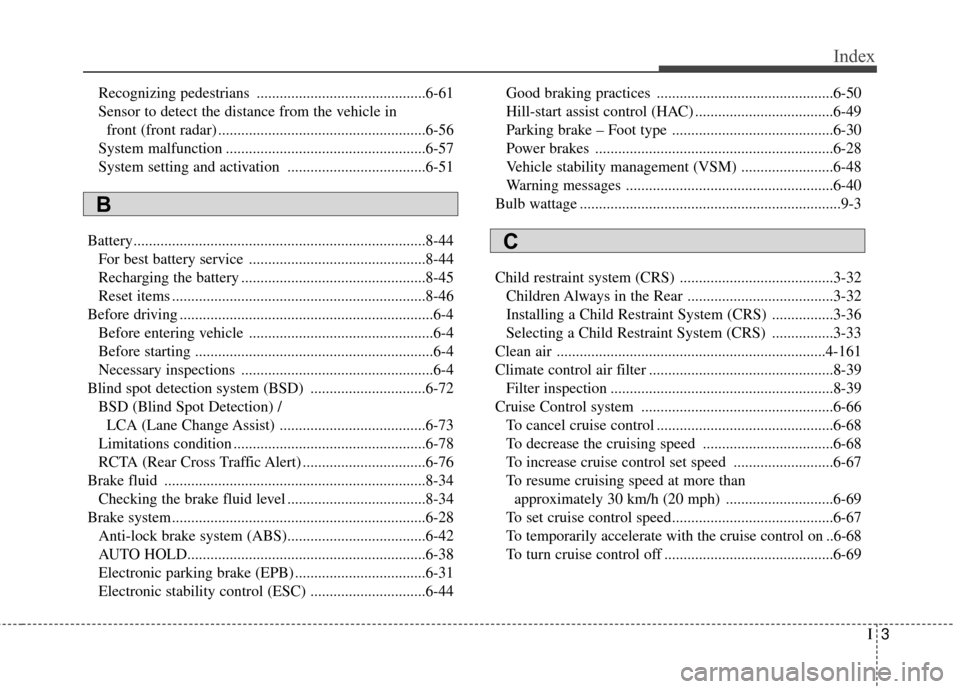

Page 588 of 595
I3
Index
Recognizing pedestrians ............................................6-61
Sensor to detect the distance from the vehicle in front (front radar) ......................................................6-56
System malfunction ....................................................6-57
System setting and activation ....................................6-51
Battery........................................................................\
....8-44 For best battery service ..............................................8-44
Recharging the battery ................................................8-45
Reset items ..................................................................8-46
Before driving ..................................................................6-4 Before entering vehicle ................................................6-4
Before starting ........................................................\
......6-4
Necessary inspections ..................................................6-4
Blind spot detection system (BSD) ..............................6-72 BSD (Blind Spot Detection) /LCA (Lane Change Assist) ......................................6-73
Limitations condition ..................................................6-78
RCTA (Rear Cross Traffic Alert) ................................6-76
Brake fluid ....................................................................8-34\
Checking the brake fluid level ....................................8-34
Brake system..................................................................6-28 Anti-lock brake system (ABS)....................................6-42
AUTO HOLD..............................................................6-38
Electronic parking brake (EPB) ..................................6-31
Electronic stability control (ESC) ..............................6-44 Good braking practices ..............................................6-50
Hill-start assist control (HAC) ....................................6-49
Parking brake – Foot type ..........................................6-30
Power brakes ..............................................................6-28
Vehicle stability management (VSM) ........................6-48
Warning messages ......................................................6-40
Bulb wattage ....................................................................9-3
Child restraint system (CRS) ........................................3-32 Children Always in the Rear ......................................3-32
Installing a Child Restraint System (CRS) ................3-36
Selecting a Child Restraint System (CRS) ................3-33
Clean air ......................................................................4-\
161
Climate control air filter ................................................8-39 Filter inspection ..........................................................8-39
Cruise Control system ..................................................6-66 To cancel cruise control ..............................................6-68
To decrease the cruising speed ..................................6-68
To increase cruise control set speed ..........................6-67
To resume cruising speed at more than approximately 30 km/h (20 mph) ............................6-69
To set cruise control speed..........................................6-67
To temporarily accelerate with the cruise control on ..6-68
To turn cruise control off ............................................6-69
B
C

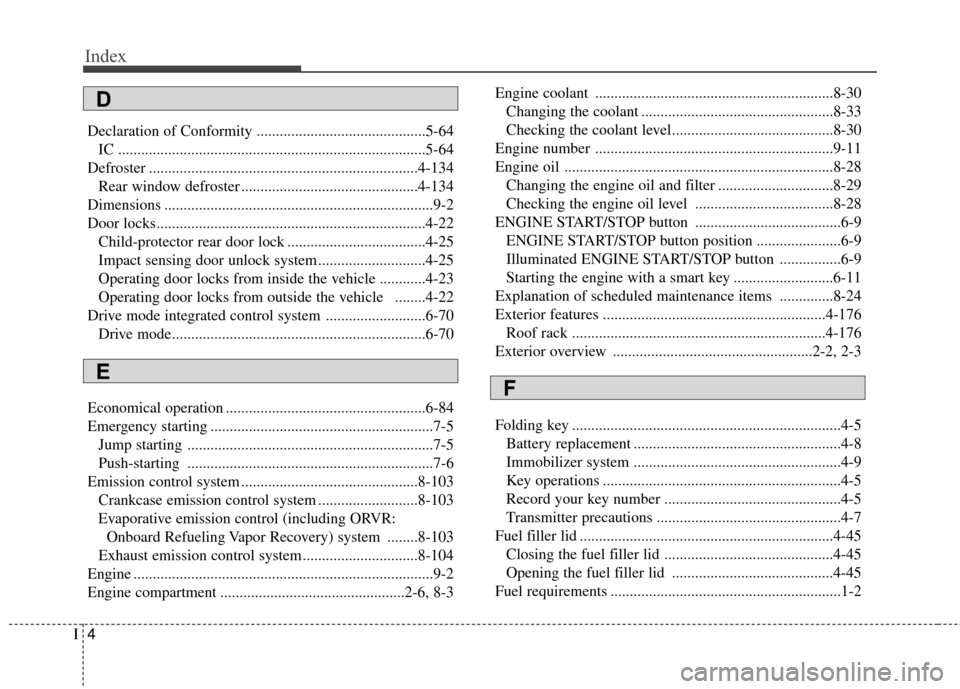

Page 589 of 595
Index
4I
Declaration of Conformity ............................................5-64IC ........................................................................\
........5-64
Defroster ......................................................................4-\
134 Rear window defroster ..............................................4-134
Dimensions ......................................................................9-\
2
Door locks......................................................................4-\
22 Child-protector rear door lock ....................................4-25
Impact sensing door unlock system ............................4-25
Operating door locks from inside the vehicle ............4-23
Operating door locks from outside the vehicle ........4-22
Drive mode integrated control system ..........................6-70 Drive mode..................................................................6-70
Economical operation ....................................................6-84
Emergency starting ..........................................................7-5 Jump starting ................................................................7-5
Push-starting ................................................................7-6
Emission control system ..............................................8-103 Crankcase emission control system ..........................8-103
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system ........8-103
Exhaust emission control system ..............................8-104
Engine ........................................................................\
......9-2
Engine compartment ................................................2-6, 8-3 Engine coolant ..............................................................8-30
Changing the coolant ..................................................8-33
Checking the coolant level..........................................8-30
Engine number ..............................................................9-11
Engine oil ......................................................................8-\
28 Changing the engine oil and filter ..............................8-29
Checking the engine oil level ....................................8-28
ENGINE START/STOP button ......................................6-9 ENGINE START/STOP button position ......................6-9
Illuminated ENGINE START/STOP button ................6-9
Starting the engine with a smart key ..........................6-11
Explanation of scheduled maintenance items ..............8-24
Exterior features ..........................................................4-176 Roof rack ..................................................................4-176
Exterior overview ....................................................2-2, 2-3
Folding key ......................................................................4-\
5 Battery replacement ......................................................4-8
Immobilizer system ......................................................4-9
Key operations ..............................................................4-5
Record your key number ..............................................4-5
Transmitter precautions ................................................4-7
Fuel filler lid ..................................................................4-45 Closing the fuel filler lid ............................................4-45
Opening the fuel filler lid ..........................................4-45
Fuel requirements ............................................................1-2
D
E
F
Page 590 of 595
I5
Index
Do not use methanol ....................................................1-4
Fuel Additives ..............................................................1-4
Gasoline containing alcohol and methanol ..................1-3
Operation in foreign countries ......................................1-5
Fuses ........................................................................\
......8-62 Engine compartment fuse replacement ......................8-65
Fuse/relay panel description ......................................8-68
Inner panel fuse replacement ......................................8-63
Gross vehicle weight........................................................9-6\
Hood ........................................................................\
......4-43 Closing the hood ........................................................4-44
Opening the hood ......................................................4-43
How to use this manual ..................................................1-2
If the engine overheats ....................................................7-7
If the engine will not start ..............................................7-4 If engine doesn't turn over or turns over slowly ..........7-4
If engine turns over normally but does not start ..........7-4
If you have a flat tire ....................................................7-15 Changing tires ............................................................7-17 Jack and tools ..............................................................7-15
Removing and storing the spare tire ..........................7-16
If you have a flat tire (With Tire Mobility Kit) ............7-24 Checking the tire inflation pressure ............................7-30
Components of the Tire Mobility Kit ........................7-26
Distributing the sealant ..............................................7-30
Introduction ................................................................7-24
Notes on the safe use of the Tire Mobility Kit ..........7-25
Technical Data ............................................................7-31
Using the Tire Mobility Kit ........................................7-27
Important safety precautions ..........................................3-2 Air bag hazards ............................................................3-2
Always wear your seat belt ..........................................3-2
Control your speed ......................................................3-3
Driver distraction ........................................................3-2
Keep your vehicle in safe condition ............................3-3
Restrain all children ....................................................3-2
In case of an emergency while driving ............................7-3 If the engine stalls at a crossroad or crossing ..............7-3
If the engine stalls while driving ..................................7-3
If you have a flat tire while driving ..............................7-3
Instrument cluster ..........................................................4-69 Gauges ........................................................................\
4-71
Instrument Cluster Control ........................................4-70
LCD Display Control ..................................................4-70
Transaxle Shift Indicator ............................................4-74
Instrument panel overview ..............................................2-5
Interior features............................................................4-165
G
H
I
