INSTRUMENT CLUSTER
3*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
0
1 2
3
4
x1000 rpm5
6
7
8
C HE F
km/h
MPH
2030
40
10 0
10 0
80 130
160
200
230
260
290
60
40
20
10 012 0
1 4 0
1 6 0
1 8 0
50
80
60
1 0
0
EPB
AUTOBB
F
D
E
EI
H
G
(Type A instrument cluster shown)
A
C
Light ON Indicator
Cruise Indicator
Lane Keeping Assist (LK A) Indicator*
EPBElectric Parking Brake
Immobilizer Indicator
High Beam Indicator
Low Beam Indicator*
LED Headlamp Warning Indicator*
Electronic Stability Control (ESC) Warning Indicator
Electronic Stability Control (ESC) OFF Indicator
Malfunction Indicator

Low Tire Pressure Indicator / Tire Pressure Monitoring System ( TPMS) Malfunction Indicator
Liftgate Open Warning Indicator
Seat Belt Warning Indicator
Parking Brake & Brake Fluid Warning Light
Door Ajar Warning Indicator
Airbag Warning Indicator
Low Windshield Washer Fluid
Turn Signal Indicators
Anti-Lock Braking System (ABS) Warning Indicator
Auto Hold Indicator
Charging System Warning Indicator
Cruise Set Indicator
Engine Oil Pressure Warning Indicator
Engine Coolant Temperature Warning Indicator
Low Fuel Level Warning Indicator
Instrument Cluster Overview
Indicators & Warning Lights
A Tachometer
B Turn Signal Indicators
C Temperature Gauge
D Speedometer
E Indicator & Warning Lights
F Gear Shift Position Indicator
G Odometer
H Trip Computer
I Fuel Gauge
Electronic Brake Force Distribution (EBD) System Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Forward Collision-Avoidance Assist (FCA) Warning (or OFF ) Indicator
ECO / SPORT / SMART Mode Indicator
Master Warning Indicator
Dynamic Bending Light (DBL)*
High Beam Assist Indicator*
Auto-Stop Indicator (ISG)
AWD System Warning Indicator*
Electric Power Steering (EPS) Warning Indicator
Your vehicle’s instrument cluster & indicator light locations may differ from those in the images. See your Owner’s Manual for more information.

*IF EQUIPPED
STEERING WHEEL CONTROLS
20
Headlight position
Parking light position
AUTO*Auto Light* / LBA position
DRL/OFFOFF or DRL OFF position
Headlight position
Tail Light position
AUTOAuto Light / LBA* / High Beam Assist*
DRLOFFDRL OFF position
Headlights & High Beams
AUTO Light – When the light switch is in the AUTO
Light position, the tail lights and headlights will turn
ON/OFF automatically depending on the amount of light
outside the vehicle.
Low Beam Assist-Dynamic (LBA) / Dynamic Bending Light
(DBL)* – LBA helps improve visibility during nighttime driving
by aiming the low-beam headlights in the direction the vehicle
is moving. LBA controls the aiming direction based on steering
angle and speed.
When the light switch is in the AUTO light position, LBA
will activate.
REMINDER: When the LBA indicator illuminates on the instrument cluster, the LBA is not working properly. See authorized Kia dealer for service.
High Beam Assist (HBA)* – High
Beam Assist automatically adjusts the
headlight range by switching between
high and low beams based on light from
other vehicles and road conditions.
To enable HBA, toggle the light switch
to the AUTO Light position and turn on
the high beams by pushing the lever
away from you. The High Beam Assist
indicator will illuminate.
REMINDERS:
-
HBA will operate when vehicle speed exceeds 25 mph
-
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously. If the lever is pulled toward you while HBA is operational, HBA will turn off
-
If the light switch is switched to the headlight position, HBA will turn off low beams will be on continuously
Daytime Running Lights (DRL) – DRL makes it easier for
others to see the front of your vehicle during the day. The
lights will be on automatically unless one of the following
occurs:
§ Headlights are on
§ Parking brake is applied
§ Switch is in the DRL
OFF position
§ Engine is turned off
Headlight / High Beam Lever Operation
§ Rotate lever switch to change the headlight function:
§ Press lever away from you to turn high beam
headlights ON
§ Pull lever to flash headlights/high beams
MY18 Stinger Inside Print.indd 2011/15/17 11:35 AM

*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

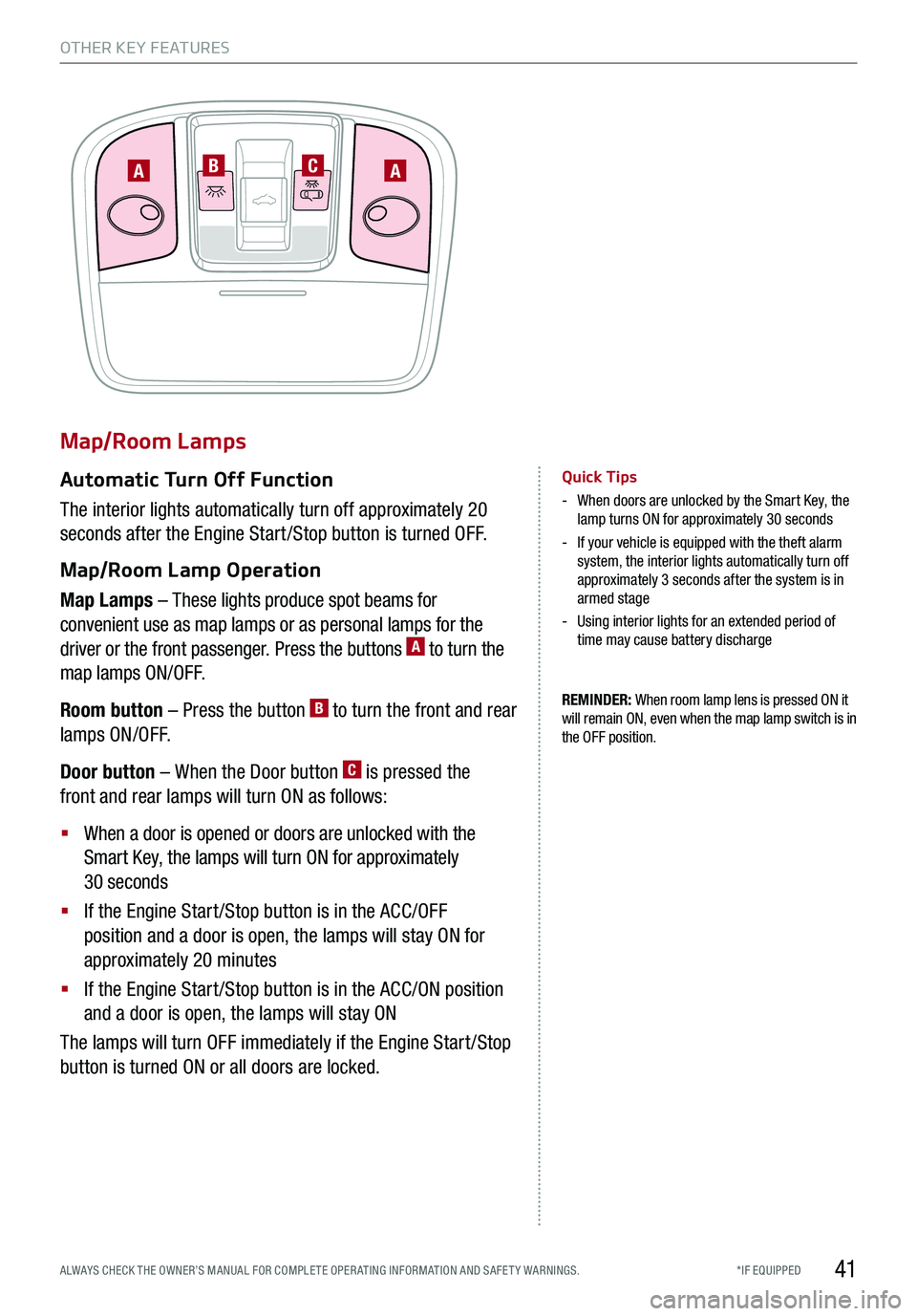

Map/Room Lamps
Automatic Turn Off Function
The interior lights automatically turn off approximately 20
seconds after the Engine Start /Stop button is turned OFF.
Map/Room Lamp Operation
Map Lamps – These lights produce spot beams for
convenient use as map lamps or as personal lamps for the
driver or the front passenger. Press the buttons A to turn the
map lamps ON/OFF.
Room button – Press the button B to turn the front and rear
lamps ON/OFF.
Door button – When the Door button C is pressed the
front and rear lamps will turn ON as follows:
§ When a door is opened or doors are unlocked with the
Smart Key, the lamps will turn ON for approximately
30 seconds
§ If the Engine Start /Stop button is in the ACC/OFF
position and a door is open, the lamps will stay ON for
approximately 20 minutes
§ If the Engine Start /Stop button is in the ACC/ON position
and a door is open, the lamps will stay ON
The lamps will turn OFF immediately if the Engine Start /Stop
button is turned ON or all doors are locked.
REMINDER: When room lamp lens is pressed ON it will remain ON, even when the map lamp switch is in the OFF position.
Quick Tips
- When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
- If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
- Using interior lights for an extended period of time may cause battery discharge
41
OTHER KEY FEATURES
AACB
