ignition KIA STINGER 2020 Features and Functions Guide

*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
AUTOSYNCOFFCLIMATE
A/C
REAR
FRONT
A
B
GHIJ
CDEF
K

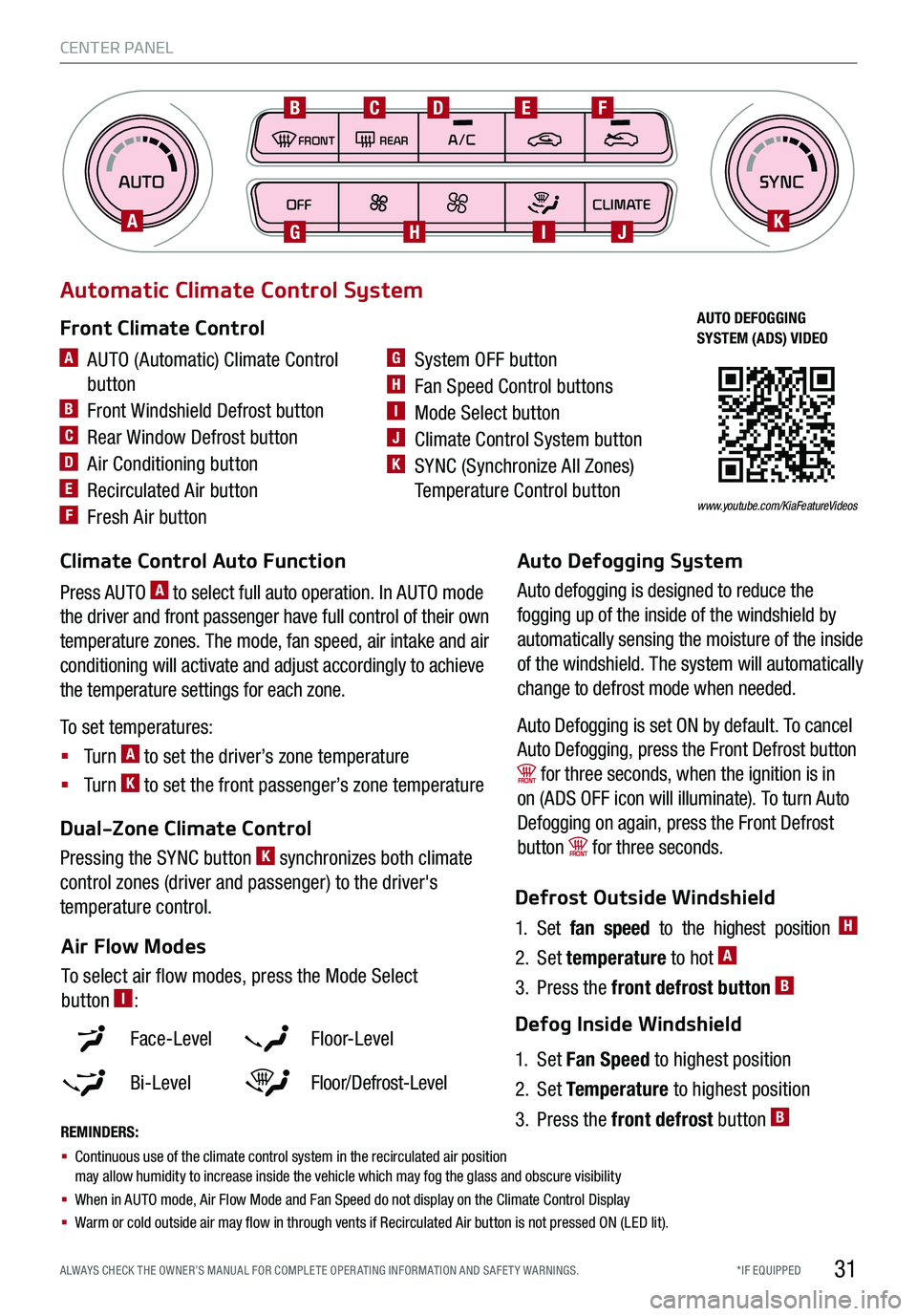

Climate Control Auto Function
Press AUTO A to select full auto operation. In AUTO mode
the driver and front passenger have full control of their own
temperature zones. The mode, fan speed, air intake and air
conditioning will activate and adjust accordingly to achieve
the temperature settings for each zone.
To set temperatures:
§ Tu r n A to set the driver’s zone temperature
§ Tu r n K to set the front passenger’s zone temperature
REMINDERS:
§ Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility
§ When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
§
Warm or cold outside air may flow in through vents if Recirculated Air button is not pressed ON (LED lit).
Defrost Outside Windshield
1. Set fan speed to the highest position H
2. Set temperature to hot A
3. Press the front defrost button B
Defog Inside Windshield
1. Set Fan Speed to highest position
2. Set Temperature to highest position
3. Press the front defrost button B
Face-Level F lo o r- L evel
Bi-Level Floor/Defrost-Level
Air Flow Modes
To select air flow modes, press the Mode Select
button I:
Dual-Zone Climate Control
Pressing the SYNC button K synchronizes both climate
control zones (driver and passenger) to the driver's
temperature control.
31
CENTER PANEL
A AUTO (Automatic) Climate Control
button
B Front Windshield Defrost button
C Rear Window Defrost button
D Air Conditioning button
E Recirculated Air button
F Fresh Air button
G System OFF button
H Fan Speed Control buttons
I Mode Select button
J Climate Control System button
K SYNC (Synchronize All Zones)
Temperature Control button
Automatic Climate Control System
Front Climate ControlAUTO DEFOGGING SYSTEM (ADS) VIDEO
www.youtube.com/KiaFeatureVideos
Auto Defogging System
Auto defogging is designed to reduce the
fogging up of the inside of the windshield by
automatically sensing the moisture of the inside
of the windshield. The system will automatically
change to defrost mode when needed.
Auto Defogging is set ON by default. To cancel
Auto Defogging, press the Front Defrost button
for three seconds, when the ignition is in
on (ADS OFF icon will illuminate). To turn Auto
Defogging on again, press the Front Defrost
button for three seconds.

*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
ELECTRIC PARKING BRAKE / AUTO HOLD VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
The Electric Parking Brake (EPB) system utilizes an electric
motor to engage the parking brake.
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A.
Ensure that the indicator light is illuminated on the
instrument cluster.
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed
in Reverse or Drive. To release EPB manually, depress the
brake pedal, then press the EPB switch A, with the ignition
switch in the ON position. Ensure that the indicator light
i s O F F.
Electric Parking Brake (EPB)*
Quick Tips
§
Pull up and hold EPB switch again to increase brake pressure if parked on a decline or incline.
§ When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB
§ If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
REMINDERS:
§ The EPB malfunction indicator will illuminate for approximately 3 seconds as a bulb check when the ignition switch is turned ON
§ If the warning light does not illuminate temporarily or remains continuously lit, take your vehicle to an authorized Kia dealer and have the system checked
§ The EPB should not be operated while the vehicle is moving
§ A click or electric brake motor sound may be heard while operating or releasing the EPB. These conditions are normal and indicate that the EPB is functioning properly
§ EPB will not release unless the hood, liftgate and all doors are closed and seat belts are fastened
33
CENTER PANEL
A
www.youtube.com/KiaFeatureVideos

Sunroof Operation*
The sunroof and sunshade operation is controlled by a
multi-directional switch/lever A. The ignition needs to be in
the ON position to operate the sunroof/sunshade.
Slide the sunshade and sunroof:
Auto Open – Slide lever backward to the farthest position
and release.
Auto Close – Slide the lever forward to the farthest position
and release.
Slide the sunshade:
Auto Open – Slide the lever backward to the first detent
position.
Auto Close – Slide the lever forward to the farthest position.
Slide the sunroof (with sunshade open):
Auto Open – Slide the lever backward and release.
Auto Close – Slide the lever forward to the first detent
position or pull the lever downward.
Tilt the sunroof:
Raise – Press lever upward.
Lower – Push lever forward.
Auto-close sunroof and sunshade:
Slide the lever forward to the farthest position.
REMINDERS:
§
Sunshade must remain OPEN while sunroof is open and vehicle is moving.
§
If the ignition is turned off with the Sunroof not fully closed, the Instrument Cluster LCD will display a warning message and a chime will sound for a few seconds.
§
Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle.
Quick Tip
To stop the sunroof/sunshade at any position, press or pull the sunroof control lever in any direction.
43
OTHER KEY FEATURES
A
SUNROOF OPERATION VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED
www.youtube.com/KiaFeatureVideos
