KIA STINGER 2020 Owners Manual

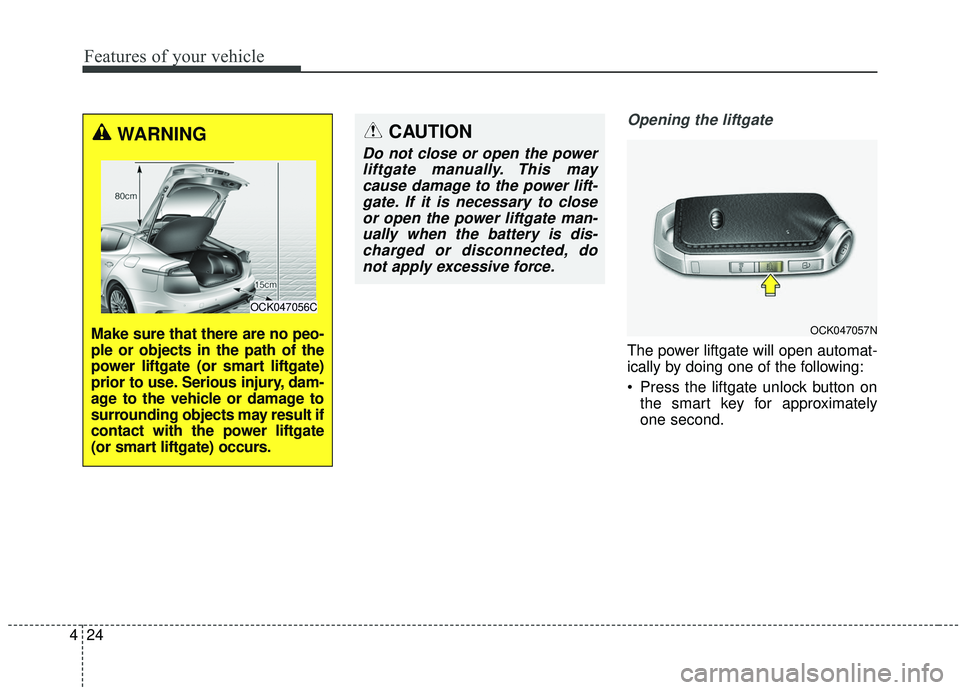

Features of your vehicle
24
4
Opening the liftgate
The power liftgate will open automat-
ically by doing one of the following:
Press the liftgate unlock button on
the smart key for approximately
one second.
OCK047057N
WARNING
Make sure that there are no peo-
ple or objects in the path of the
power liftgate (or smart liftgate)
prior to use. Serious injury, dam-
age to the vehicle or damage to
surrounding objects may result if
contact with the power liftgate
(or smart liftgate) occurs.
OCK047056C
CAUTION
Do not close or open the powerliftgate manually. This maycause damage to the power lift-gate. If it is necessary to closeor open the power liftgate man-ually when the battery is dis-charged or disconnected, donot apply excessive force.

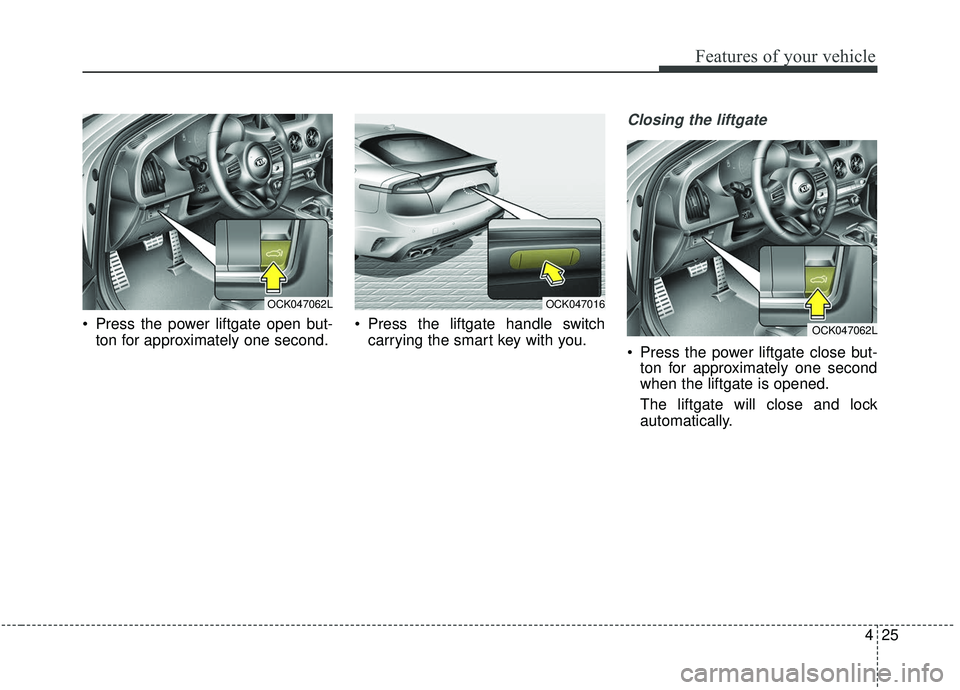

425
Features of your vehicle
Press the power liftgate open but-ton for approximately one second. Press the liftgate handle switch
carrying the smart key with you.
Closing the liftgate
Press the power liftgate close but-ton for approximately one second
when the liftgate is opened.
The liftgate will close and lock
automatically.
OCK047062LOCK047016
OCK047062L

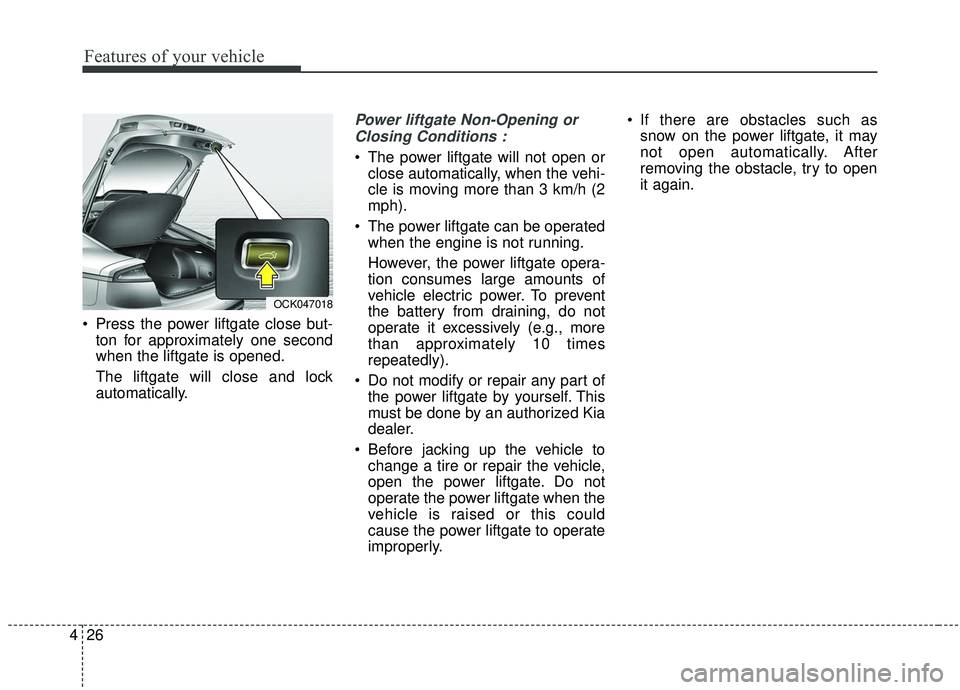

Features of your vehicle
26
4
Press the power liftgate close but-
ton for approximately one second
when the liftgate is opened.
The liftgate will close and lock
automatically.
Power liftgate Non-Opening or
Closing Conditions :
The power liftgate will not open or close automatically, when the vehi-
cle is moving more than 3 km/h (2
mph).
The power liftgate can be operated when the engine is not running.
However, the power liftgate opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from draining, do not
operate it excessively (e.g., more
than approximately 10 times
repeatedly).
Do not modify or repair any part of the power liftgate by yourself. This
must be done by an authorized Kia
dealer.
Before jacking up the vehicle to change a tire or repair the vehicle,
open the power liftgate. Do not
operate the power liftgate when the
vehicle is raised or this could
cause the power liftgate to operate
improperly. If there are obstacles such as
snow on the power liftgate, it may
not open automatically. After
removing the obstacle, try to open
it again.
OCK047018

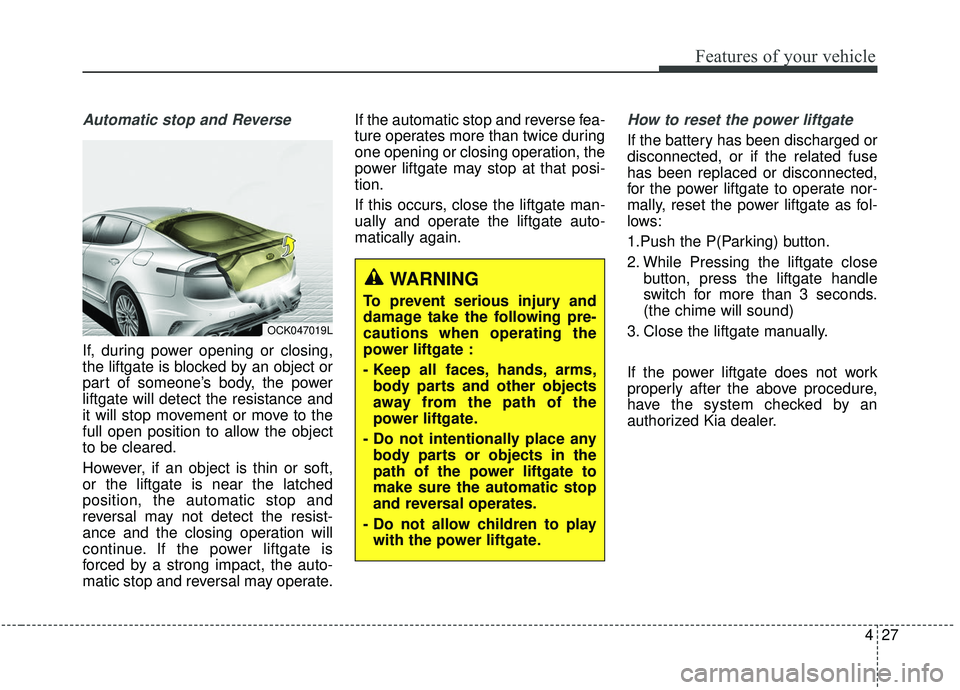

427
Features of your vehicle
Automatic stop and Reverse
If, during power opening or closing,
the liftgate is blocked by an object or
part of someone’s body, the power
liftgate will detect the resistance and
it will stop movement or move to the
full open position to allow the object
to be cleared.
However, if an object is thin or soft,
or the liftgate is near the latched
position, the automatic stop and
reversal may not detect the resist-
ance and the closing operation will
continue. If the power liftgate is
forced by a strong impact, the auto-
matic stop and reversal may operate.If the automatic stop and reverse fea-
ture operates more than twice during
one opening or closing operation, the
power liftgate may stop at that posi-
tion.
If this occurs, close the liftgate man-
ually and operate the liftgate auto-
matically again.
How to reset the power liftgate
If the battery has been discharged or
disconnected, or if the related fuse
has been replaced or disconnected,
for the power liftgate to operate nor-
mally, reset the power liftgate as fol-
lows:
1.Push the P(Parking) button.
2. While Pressing the liftgate close
button, press the liftgate handle
switch for more than 3 seconds.
(the chime will sound)
3. Close the liftgate manually.
If the power liftgate does not work
properly after the above procedure,
have the system checked by an
authorized Kia dealer.
OCK047019L
WARNING
To prevent serious injury and
damage take the following pre-
cautions when operating the
power liftgate :
- Keep all faces, hands, arms, body parts and other objects
away from the path of the
power liftgate.
- Do not intentionally place any body parts or objects in the
path of the power liftgate to
make sure the automatic stop
and reversal operates.
- Do not allow children to play with the power liftgate.

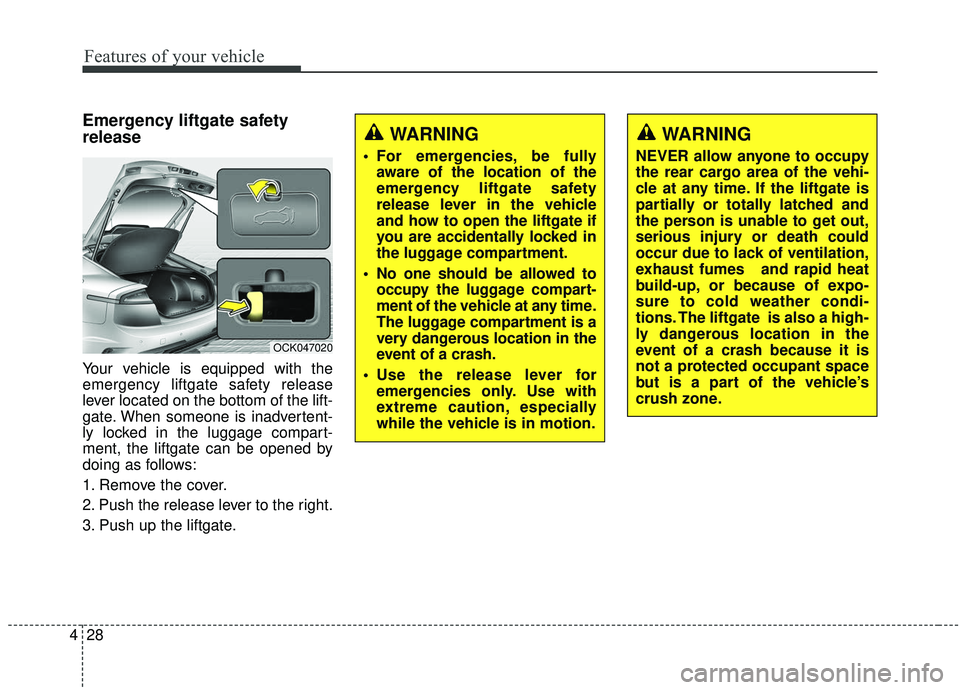

Features of your vehicle
28
4
Emergency liftgate safety
release
Your vehicle is equipped with the
emergency liftgate safety release
lever located on the bottom of the lift-
gate. When someone is inadvertent-
ly locked in the luggage compart-
ment, the liftgate can be opened by
doing as follows:
1. Remove the cover.
2. Push the release lever to the right.
3. Push up the liftgate.
OCK047020
WARNING
• For emergencies, be fully
aware of the location of the
emergency liftgate safety
release lever in the vehicle
and how to open the liftgate if
you are accidentally locked in
the luggage compartment.
No one should be allowed to occupy the luggage compart-
ment of the vehicle at any time.
The luggage compartment is a
very dangerous location in the
event of a crash.
Use the release lever for emergencies only. Use with
extreme caution, especially
while the vehicle is in motion.
WARNING
NEVER allow anyone to occupy
the rear cargo area of the vehi-
cle at any time. If the liftgate is
partially or totally latched and
the person is unable to get out,
serious injury or death could
occur due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold weather condi-
tions. The liftgate is also a high-
ly dangerous location in the
event of a crash because it is
not a protected occupant space
but is a part of the vehicle’s
crush zone.

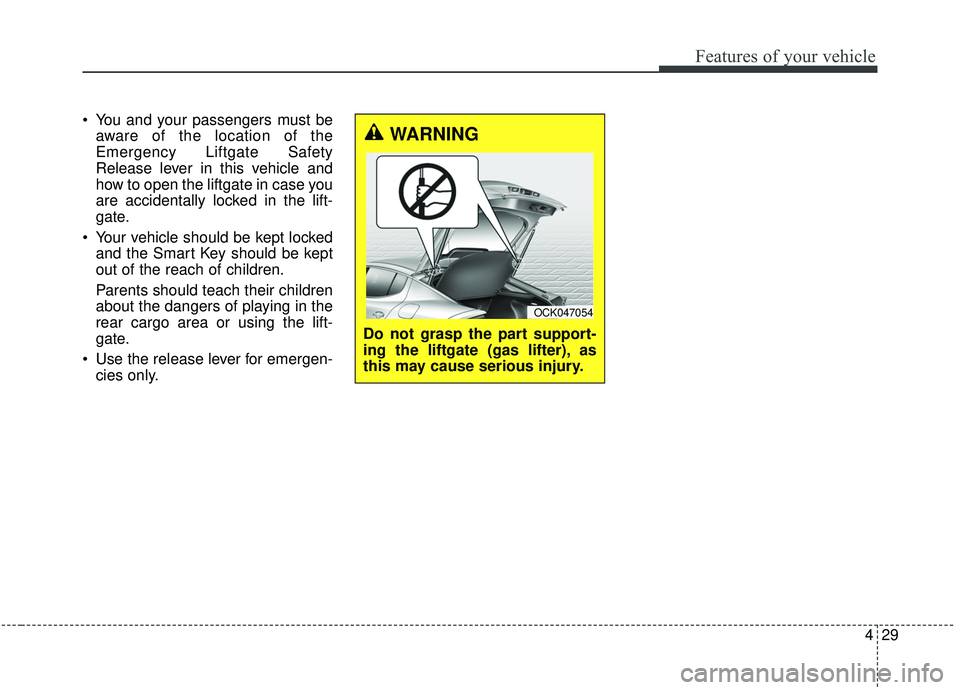

429
Features of your vehicle
You and your passengers must beaware of the location of the
Emergency Liftgate Safety
Release lever in this vehicle and
how to open the liftgate in case you
are accidentally locked in the lift-
gate.
Your vehicle should be kept locked and the Smart Key should be kept
out of the reach of children.
Parents should teach their children
about the dangers of playing in the
rear cargo area or using the lift-
gate.
Use the release lever for emergen- cies only.
WARNING
Do not grasp the part support-
ing the liftgate (gas lifter), as
this may cause serious injury.
OCK047054

Features of your vehicle
30
4

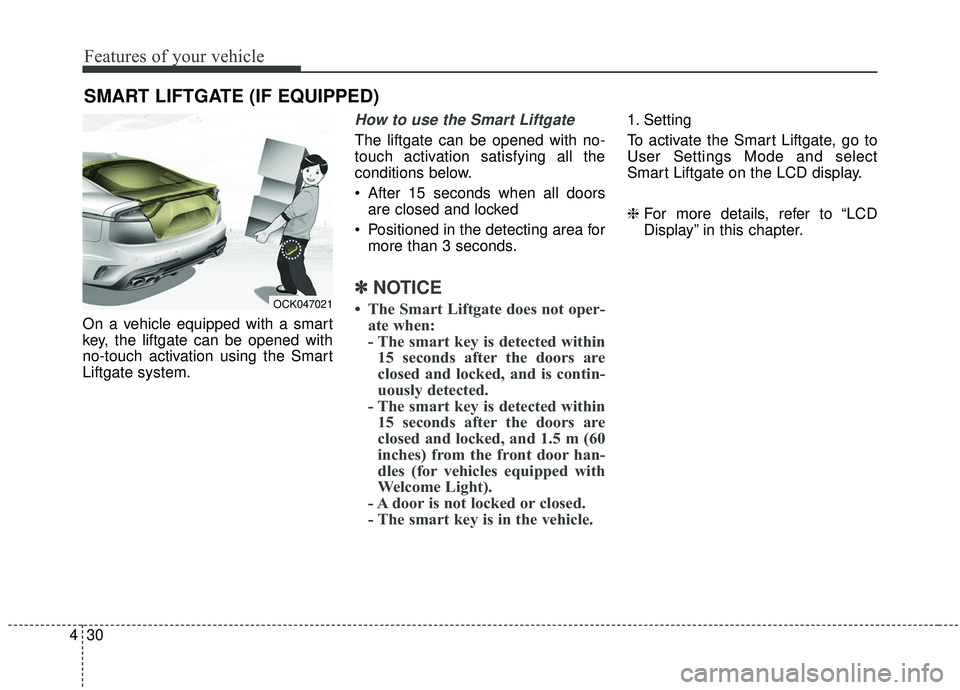

On a vehicle equipped with a smart
key, the liftgate can be opened with
no-touch activation using the Smart
Liftgate system.
How to use the Smart Liftgate
The liftgate can be opened with no-
touch activation satisfying all the
conditions below.
After 15 seconds when all doors
are closed and locked
Positioned in the detecting area for more than 3 seconds.
✽ ✽ NOTICE
• The Smart Liftgate does not oper-
ate when:
- The smart key is detected within15 seconds after the doors are
closed and locked, and is contin-
uously detected.
- The smart key is detected within 15 seconds after the doors are
closed and locked, and 1.5 m (60
inches) from the front door han-
dles (for vehicles equipped with
Welcome Light).
- A door is not locked or closed.
- The smart key is in the vehicle.
1. Setting
To activate the Smart Liftgate, go to
User Settings Mode and select
Smart Liftgate on the LCD display.
❈ For more details, refer to “LCD
Display” in this chapter.
SMART LIFTGATE (IF EQUIPPED)
OCK047021

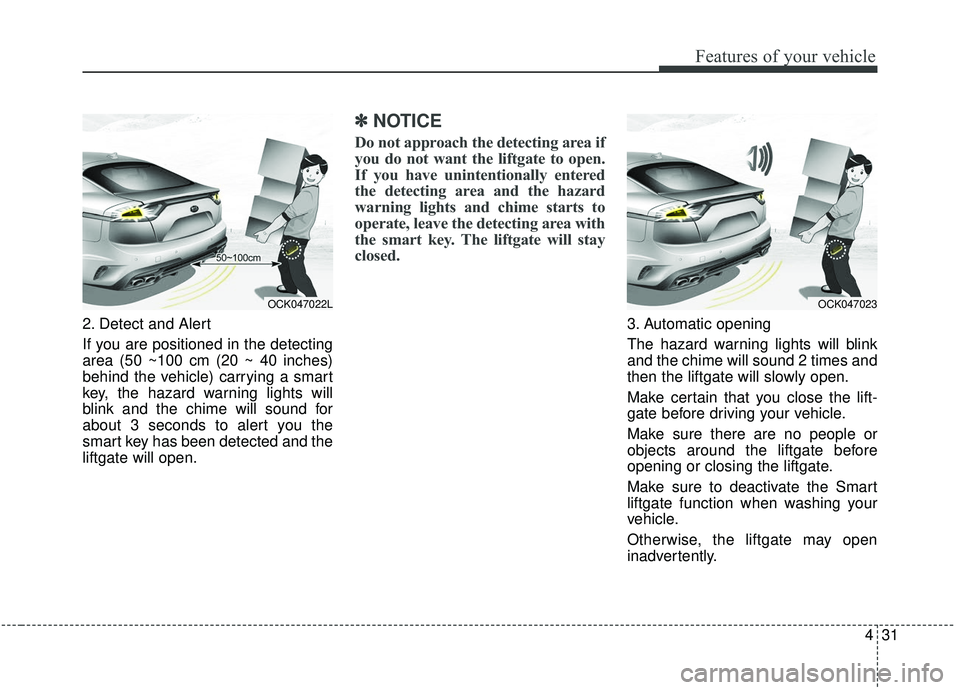

431
Features of your vehicle
2. Detect and Alert
If you are positioned in the detecting
area (50 ~100 cm (20 ~ 40 inches)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and the chime will sound for
about 3 seconds to alert you the
smart key has been detected and the
liftgate will open.
✽ ✽NOTICE
Do not approach the detecting area if
you do not want the liftgate to open.
If you have unintentionally entered
the detecting area and the hazard
warning lights and chime starts to
operate, leave the detecting area with
the smart key. The liftgate will stay
closed.
3. Automatic opening
The hazard warning lights will blink
and the chime will sound 2 times and
then the liftgate will slowly open.
Make certain that you close the lift-
gate before driving your vehicle.
Make sure there are no people or
objects around the liftgate before
opening or closing the liftgate.
Make sure to deactivate the Smart
liftgate function when washing your
vehicle.
Otherwise, the liftgate may open
inadvertently.
OCK047022LOCK047023

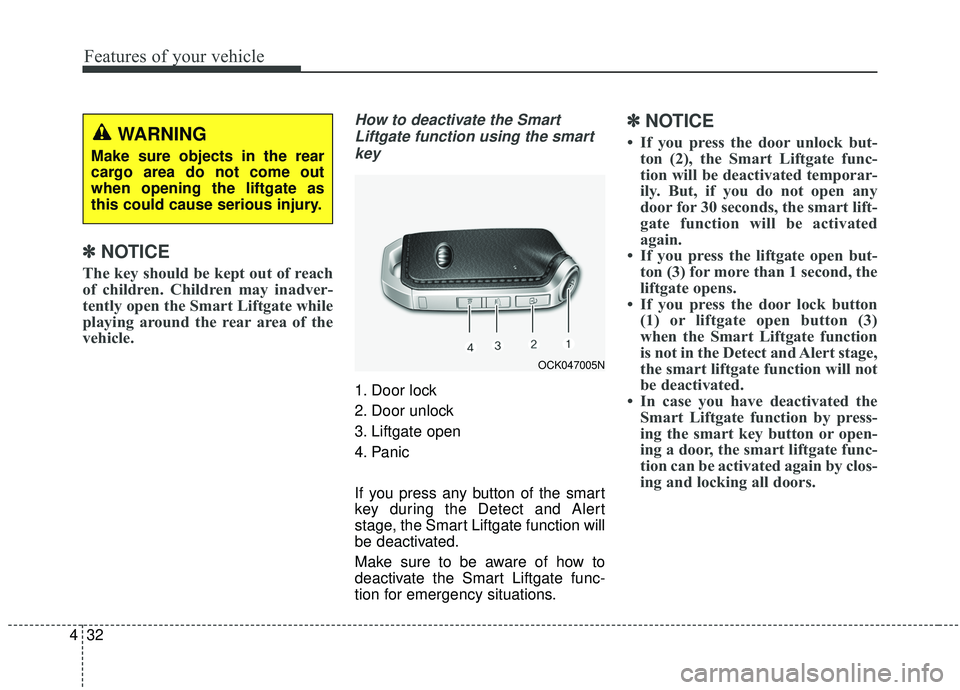

Features of your vehicle
32
4
✽ ✽
NOTICE
The key should be kept out of reach
of children. Children may inadver-
tently open the Smart Liftgate while
playing around the rear area of the
vehicle.
How to deactivate the Smart
Liftgate function using the smartkey
1. Door lock
2. Door unlock
3. Liftgate open
4. Panic
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Liftgate function will
be deactivated.
Make sure to be aware of how to
deactivate the Smart Liftgate func-
tion for emergency situations.
✽ ✽ NOTICE
• If you press the door unlock but-
ton (2), the Smart Liftgate func-
tion will be deactivated temporar-
ily. But, if you do not open any
door for 30 seconds, the smart lift-
gate function will be activated
again.
• If you press the liftgate open but- ton (3) for more than 1 second, the
liftgate opens.
• If you press the door lock button (1) or liftgate open button (3)
when the Smart Liftgate function
is not in the Detect and Alert stage,
the smart liftgate function will not
be deactivated.
• In case you have deactivated the Smart Liftgate function by press-
ing the smart key button or open-
ing a door, the smart liftgate func-
tion can be activated again by clos-
ing and locking all doors.WARNING
Make sure objects in the rear
cargo area do not come out
when opening the liftgate as
this could cause serious injury.
OCK047005N

433
Features of your vehicle

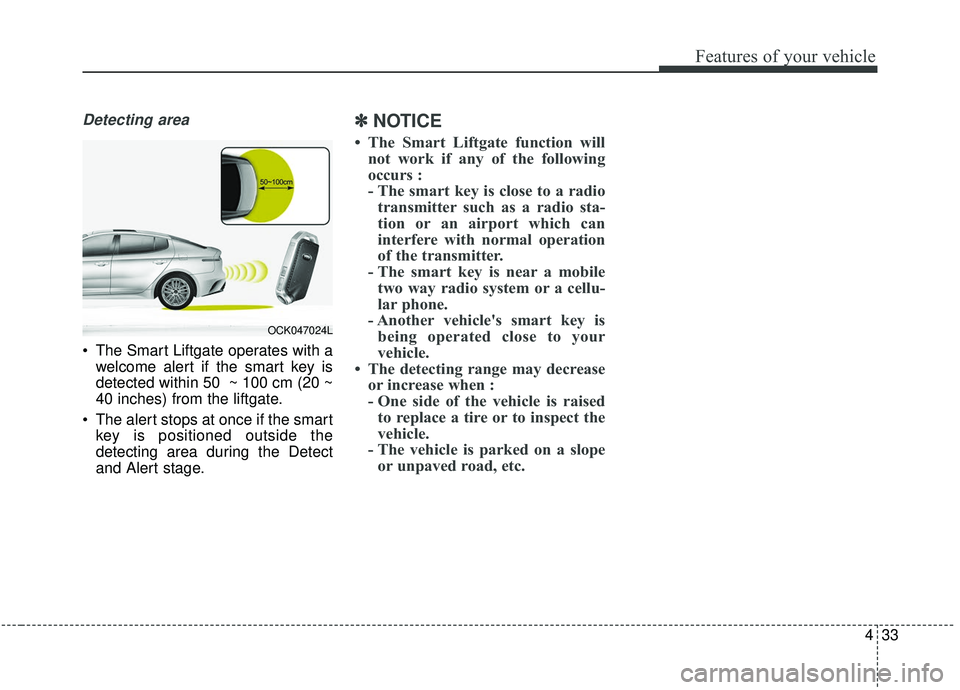

Detecting area
The Smart Liftgate operates with awelcome alert if the smart key is
detected within 50 ~ 100 cm (20 ~
40 inches) from the liftgate.
The alert stops at once if the smart key is positioned outside the
detecting area during the Detect
and Alert stage.
✽ ✽ NOTICE
• The Smart Liftgate function will
not work if any of the following
occurs :
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the transmitter.
- The smart key is near a mobile two way radio system or a cellu-
lar phone.
- Another vehicle's smart key is being operated close to your
vehicle.
• The detecting range may decrease or increase when :
- One side of the vehicle is raisedto replace a tire or to inspect the
vehicle.
- The vehicle is parked on a slope or unpaved road, etc.
OCK047024L
