34
CENTER PANEL
*IF EQUIPPED
CENTER PANEL
Idle, Stop and Go (ISG) System
The ISG system is designed to reduce fuel consumption by automatically
shutting down the engine when the vehicle is at a standstill.
When the ISG system is ON and the vehicle is at a standstill the engine will
stop, and the green AUTO STOP indicator A on the instrument cluster will
illuminate.
The engine will restart when the brake pedal is released or the shift lever is
moved from D (Drive) to the R (Reverse) position or to Manual Shift mode*.
When the engine restarts, the green AUTO STOP indicator on the instrument
cluster will turn off.
To deactivate the ISG System, press the ISG OFF button B. If you press again,
the system will be activated.
For more information on Idle, Stop and Go System, refer to section 5 in the Owner’s Manual or contact your local dealership.
REMINDERS:
§ ISG is active by default at vehicle start- up. When ignition is cycled, ISG will turn ON again
§ Under certain conditions, the engine will restart automatically even if the brake pedal is still depressed
§ If the AUTO STOP indicator is continuously blinking yellow and the ISG button LED is on, please contact an authorized Kia dealer
Images are for illustrative purposes only and may not reflect actual feature or operation
(Type B instrument cluster shown)
0
1 2
3
4
x1000 rpm5
6
7
8
C HE F
km/h
MPH
2030
40
10 0
10 0
80 130
160
200
230
260
290
60
40
20
10 012 0
1 4 0
1 6 0
1 8 0
50
80
60
1 0
0
EPB
AUTO
A
REMINDERS:
§ When launching, stop vehicle and keep steering wheel straight
§ Brake pedal, EPB and Auto Hold must be released for smooth launching
§ Always drive safely and use caution
Refer to section 5 in the Owner’s Manual for more information.
Launch control aids in controlling acceleration to help the vehicle
accelerate smoothly and quickly, while avoiding slipping of the
drive wheels and other engine, clutch and gearbox issues.
To turn on, press and hold the ESC OFF button C for more than
three seconds while DRIVE MODE D is in SPORT Mode.
To activate, with the left foot press brake firmly while gear shift is
in D (Drive) and then press the accelerator pedal fully to the floor.
The LCD will display a ready status.
Launch Control*
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFF
OFF
P
BC
D
To view videos on your mobile device, snap these QR Codes or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
IDLE, STOP AND GO VIDEO
LAUNCH CONTROL VIDEO
§ The ISG system is disabled when:
§ A seat belt is unfastened
§ The hood or a door is opened
§ Battery condition is poor
§ The front or rear defroster is turned on
§ Engine coolant temperature is low
§ The outside ambient temperature is too low/high
§ Emission control devices activate
§ The vehicle is on a steep slope
QUICK TIPS

51
(Button located on driver’s panel, left of the steering wheel)

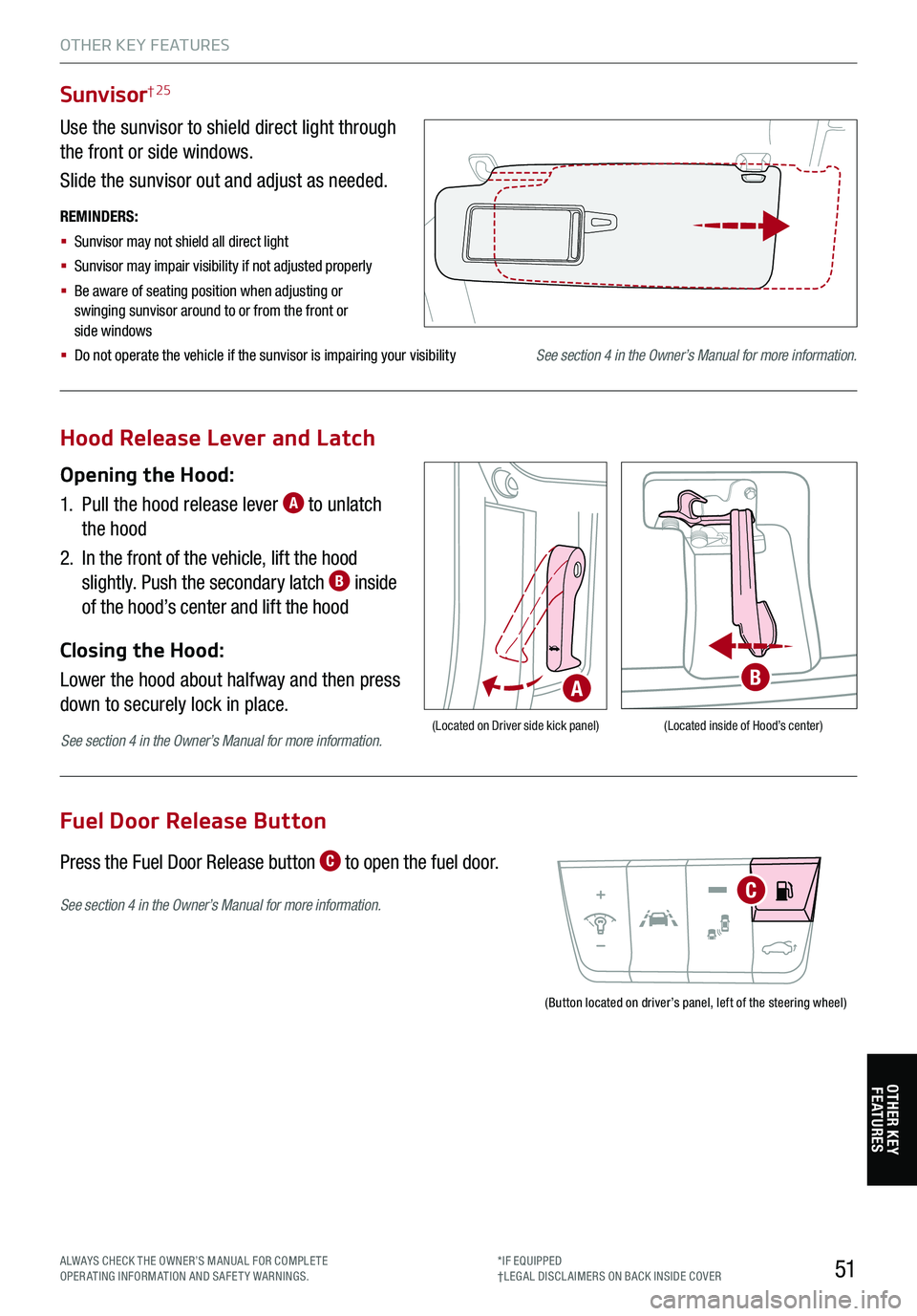

Fuel Door Release Button
Press the Fuel Door Release button C to open the fuel door.
See section 4 in the Owner’s Manual for more information.C
Sunvisor† 25
Use the sunvisor to shield direct light through
the front or side windows.
Slide the sunvisor out and adjust as needed.
REMINDERS:
§ Sunvisor may not shield all direct light
§ Sunvisor may impair visibility if not adjusted properly
§
Be aware of seating position when adjusting or swinging sunvisor around to or from the front or side windows
§
Do not operate the vehicle if the sunvisor is impairing your visibilitySee section 4 in the Owner’s Manual for more information.
Hood Release Lever and Latch
Opening the Hood:
1.
Pull the hood release lever A to unlatch
the hood
2.
In the front of the vehicle, lift the hood
slightly. Push the secondary latch B inside
of the hood’s center and lift the hood
Closing the Hood:
Lower the hood about halfway and then press
down to securely lock in place.(Located on Driver side kick panel)(Located inside of Hood’s center)
AB
See section 4 in the Owner’s Manual for more information.
OTHER KEY FEATURES
OTHER KEY FE AT URE S
