change time KIA STINGER 2022 Features and Functions Guide

Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
One-ClickFuelCapVideo
QRCODE
WelcometotheKiaFamily!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
UsingthisFeatures&FunctionsGuide
The information contained in this guide is a brief overview of the operation and features of your new Kia vehicle.
This Features & Functions Guide and the specific operational and safety information it provides are not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read the Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance of or after the fact and assumes no liability in connection with such changes.
VideosandQRCodes
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your mobile device using the built-in QR Code Reader or a downloaded QR Code Reader App.
After opening the QR Code Reader App on your mobile device, the app will utilize your device’s camera. Center the code in the camera viewing area — with some apps, as soon as the app recognizes the code, it will launch the corresponding video.
With other apps, you will have to snap or “take a picture” of the code. The app will then launch the corresponding video.
For operation specifics, refer to the instructions that come with the QR Code Reader App. You can also view the videos by visiting the following website: www.youtube.com/KiaFeatureVideos
Ifyou’rehavingtroublescanningcodes,checkthefollowing:
•
The code should be centered and focused in your mobile device’s camera screen
•
Consider moving your device closer to or far ther away from the code
•
The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•
Confirm that the device’s app suppor ts 2D QR Code scanning
•
Tr y another QR Code Reader App; not all apps are created equal
•
After scanning, you may experience a “connection error ” message or a “connecting” message with no subsequent response. These messages t ypically indicate that your device is having trouble connecting to the Internet
QUICKTIPS
REMINDER:When accessing videos on your mobile device, standard cellular data rates may apply.

LCD Instrument Cluster Modes*
The LCD Instrument Cluster modes can be changed by using the mode button A on the right side of the steering wheel .
Modes (Type B Instrument Cluster):
Sport Mode*: This mode displays Gauge, Lap Timer, G-Force
Trip Computer Mode: Displays driving information for fuel economy, accumulated info, etc .
Turn-by-Turn Mode*: Displays the route guidance and destination info
Driving Assist Mode: Displays the Lane Safety*, Driver Attention Warning*, Smart Cruise Control* and TPMS info
User Settings Mode: Change settings of the doors, lamps convenience, service interval and other features
Information: Displays digital speedometer, TPMS information
Master Warning Mode: Displays warning messages related to the vehicle when one or more systems is not operating normally
Your vehicle’s steering wheel buttons and LCD modes may differ from those in the illustrations .
Driving while distracted is dangerous and should be avoided . Drivers should remain attentive to driving and always exercise caution when using the steering wheel mounted controls while driving .
See section 4 in the Owner’s Manual for more information .
RESOKSET
VEHICLE SETTINGS
VEHICLE SETTINGS
Trip Information / Trip Computer
The Trip Computer is a driver information system that displays information related to driving when the Engine Start/Stop button is in the ON position .
To cycle through the LCD Instrument Cluster modes, press the Mode button A on the right side of the steering wheel .
When in the Trip Computer mode , press the Select/Reset (OK) button B to cycle through the screens . When displaying the TRIP screens, press and hold the OK button to reset the TRIP to zero .
REMINDERS:
•Appearance of Tripmeter display may differ as equipped
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnected
See section 4 in the Owner’s Manual for more information .
SINCE REFUELING
• Tripmeter • Fuel Economy • Instant Fuel Economy
DRIVE INFORMATION
• Tripmeter • Fuel Economy • Instant Fuel Economy
ACCUMULATED INFO
• Tripmeter • Fuel Economy • Instant Fuel Economy
AUTO STOP
(But ton layout on right of steering wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED9
A
B

ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
COLLISION WARNING
EMERGENCY BRAKING
Forward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle . Always drive safely and use caution .
Actual User Settings steps may vary by model . For illustrative purposes only . Your actual display, buttons and/or features may vary . Refer to section 5 in the Owner’s Manual for more information .
Forward Collision-Avoidance Assist (FCA)†6
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary,
temporarily apply emergency braking . If FCA detects a potential collision, FCA emits an audible warning and visual alert on the instrument cluster A .
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision .
FCA User Settings:
•FCA is ON by default in most Kia models . FCA can be activated or deactivated by going to the User Settings in the Instrument Cluster
•To go to User Settings , press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and the ignition on or the Engine Start/Stop button* in the ON position
•Press the OK button C up/down and select User Settings then Driver Assistance, go to Forward Safety and select Active Assist, Warning Only or Off
•Active Assist: Vehicle will provide a warning (audible & visual) and apply the brakes if needed
• Warning Only: Vehicle will provide a warning only (audible & visual)
• Off: FCA is off, no warnings or braking provided
•
To adjust FCA initial Warning Timing, go to User Settings , Driver Assistance, Warning Timing, then select an option:
–
Early/Normal/Standard: Maximizes the amount of distance between the vehicles before the initial warning occurs
– L a t e : Reduces the amount of distance between the vehicles before the initial warning occurs
The default settings for Warning Timing is set to Normal . If the Warning Timing is changed, the warning time of other Driver Assistance systems may also change .
FCA will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ONRESOKSET
(But ton layout on right of steering wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Forward Collision-Avoidance Assist (FCA) Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED12STINGER FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA is automatically turned off
•
When FCA is off, the FCA warning indicator is on in the Instrument Cluster
•
FCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume .
QUICK TIP
A
B
C

ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Smart Cruise Control is designed to maintain a predetermined distance from vehicles detected ahead by automatically adjusting the driving speed as needed . When traffic is detected, the vehicle will slow down to maintain a
set distance behind traffic without depressing the accelerator or brake pedal .
With SCC on and activated, the vehicle distance set, and the system detects a vehicle slowing or stopping, the system can bring the vehicle to a complete stop . When the vehicle ahead starts to move forward, SCC re-engages . If the vehicle ahead stops for more than 3 seconds, the accelerator pedal or the RES+ button must be pressed to start moving the vehicle .
Smart Cruise Control will adjust acceleration based on the drive mode selected in the Drive Mode Integrated Control system .
Press the Driving Assist button* on the Steering Wheel A to activate and the speed will be set to the current vehicle speed . SCC may decrease the speed to maintain the distance with the vehicle in front .
To set/adjust the SCC speed:
•Press the Driving Assist button A to turn the system ON . The CRUISE indicator will illuminate on the instrument cluster
•Accelerate/decelerate to the desired speed
•Press the R E S + / S E T– button B to set the speed . Press the R E S + / S E T– button B up/down to increase/decrease the set speed
To set the vehicle distance:
•Press the Vehicle Distance button C on the steering wheel
•
Each time you press C the vehicle distance will change D, indicated by the number of bars that appear on the display E
To pause/resume SCC operation: Depress the brake pedal or press the Pause/Resume button* B . The
cruise indicator on the instrument cluster will change .
To turn SCC OFF: Press the Driving Assist button A . The CRUISE indicator on the instrument cluster will turn OFF .
To adjust the sensitivity of SCC: Press the mode button F on the Steering Wheel . With the OK button H, select Drive Assistance, then SCC Response . Then select Fast, Normal or Slow .
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 5 in the Owner’s Manual for more information .
CRUISE
CANCEL
RESOKSET
RESOKSETCRUISE60MPH
(Distances are approximate and var y depending on vehicle speed)
(Display on LCD screen)
172ft130ft
82ft
106ft
Smart Cruise Control (SCC)†6
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Smart Cruise Control with Stop & Go Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED18STINGER FEATURES & FUNCTIONS GUIDE
AD
E
F
HB
CF

ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
116mi
R5643mi80°F
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) is designed to warn the driver under certain conditions . It may activate the Electronic Stability Control (ESC) and temporarily apply braking if it detects cross traffic
approaching the vehicle when the vehicle is in reverse .
When the RCCA rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A, RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B and the audio head unit .* If RCCA detects that the collision risk has increased, RCCA automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision .
RCCA is designed to operate under the following conditions:
•When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA User Settings:
•To go to the User Settings menu in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To turn RCCA on when in User Settings , press the Move (OK) button D up/down, select Driver Assistance, Parking Safety, Rear Cross-Traffic Safety and then press OK D
•
To set the warning timing, go to User Settings , press the Move (OK) button D up/down, then go to Driver Assistance, Warning Timing and press the OK button D
•Select one of the settings:
–
Early/Normal/Standard: Maximizes the amount of distance between the vehicles before the initial warning occurs
– L a t e : Reduces the amount of distance between the vehicles before the initial warning occurs
•The default Warning Timing is set to Normal . If the Warning Timing is changed, the warning time of other Driver Assistance systems may also change
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)†6
RESOKSET
See section 5 in the Owner’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED22STINGER FEATURES & FUNCTIONS GUIDE
A
B
C
D
REMINDERS:
•
The RCCA feature can be activated or deactivated in User Set tings, under Driver Assistance, Parking Safet y
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
•
RCCA is a supplemental system . Do not solely rely on this system and always pay at tention to the road and its conditions
•RCCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP

Headlight position
Parking light position
AUTO*Auto Light* / LBA position
DRL/OFFOFF or DRL OFF position
Headlight position
Tail Light position
AUTOAuto Light / LBA-D* / High Beam Assist*
OFFOFF position
Headlights & High Beams
AUTO Light – When the light switch is in the AUTO Light position, the tail lights and headlights will turn ON/OFF automatically depending on the amount of light outside the vehicle .
Low Beam Assist-Dynamic (LBA-D) / Dynamic Bending Light (DBL)* – LBA can help improve visibility during nighttime driving by aiming the low-beam headlights toward the direction the vehicle is moving . LBA controls the aiming direction based on steering angle and speed .
When the light switch is in the AUTO light position, LBA will activate .
High Beam Assist (HBA) – High Beam Assist is designed to automatically adjust the headlight range by switching between high and low beams based on light detected from other vehicles and road conditions .
To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you . The High Beam Assist indicator will illuminate .
Daytime Running Lights (DRL) – DRL can make it easier for others to see the front of your vehicle during the day . The lights will be on automatically unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Switch is in the DRL OFF position
•Engine is turned off
Headlight / High Beam Lever Operation
•
Rotate lever switch to change the headlight function:
•
Press lever away from you to turn high beam headlights ON
•
Pull lever to flash headlights/high beams
See section 4 in the Owner’s Manual for more information .
STEERING WHEEL
CONTROLS
STEERING WHEEL CONTROLS
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED29
REMINDERS:
•
High Beam Assist does not operate below cer tain speeds, or in some lighting and driving conditions . Please be aware of your surroundings and exercise proper road etiquet te when operating a vehicle using the high beams .
•
HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
•
If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
•
DRL only operates during the day time
REMINDER: When the LBA indicator illuminates on the instrument cluster, the LBA is not working properly . See authorized Kia dealer for ser vice .

STEERING WHEEL CONTROLS
STEERING WHEEL
CONTROLS

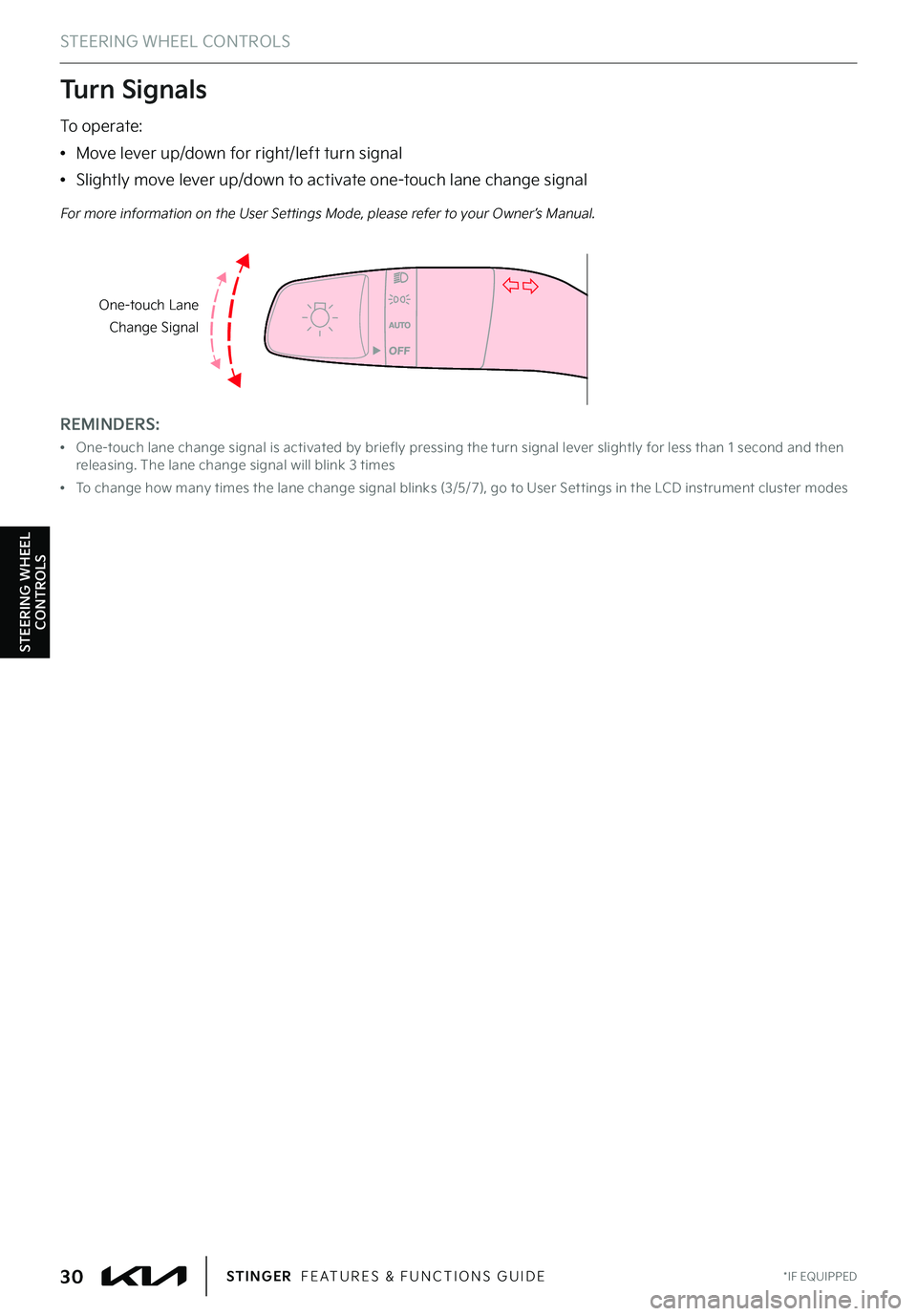

One-touch Lane Change Signal
To operate:
•Move lever up/down for right/left turn signal
•Slightly move lever up/down to activate one-touch lane change signal
Turn Signals
For more information on the User Settings Mode, please refer to your Owner’s Manual .
*IF EQUIPPED30STINGER FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
One-touch lane change signal is activated by briefly pressing the turn signal lever slightly for less than 1 second and then releasing . The lane change signal will blink 3 times
•
To change how many times the lane change signal blinks (3/5/7), go to User Set tings in the LCD instrument cluster modes

Pairing a Phone
For instructions on how to pair a phone, refer to the audio system’s user ’s
guide .
How to Place a Call
There are two options for placing a call:
•Option 1: Press the Receive/Place Call button C to place a call using the touchscreen
•Option 2: Press on the Talk button B . Then say the command “Call {name}” or “Dial {number}”
When using the voice command feature, wait for the system BEEP before speaking the command .
Voice Recognition and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names . Improve the per formance by making a few simple changes to your phone contacts, listed below . To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips .
•Use full names (first and last names) vs . short or single-syllable names (“John Smith” vs .“Dad,” “Smith Residence” vs .“Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc .)
•Avoid using acronyms (“In Case of Emergency” vs .“ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs .“Dr . Smith”)
Bluetooth® Wireless Technology†5 (Continued)
AUDIO SYSTEMS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODE
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED35
AUDIO SYSTEMS •
The system can register or pair multiple Bluetooth® devices . See the Car Multimedia System User ’s Manual for more information on setup and limitations
•
During the pairing process, be sure to accept the connection requests on the phone for phone book download and to allow acceptance of all future Bluetooth® connection requests
•When placing a call, speak in a natural, moderate tone, with clear pronunciation . The system may have trouble recognizing commands if you speak too softly or too loudly
•
Always wait for the beep before speaking any commands
•
Close windows and sunroof and turn off A /C; open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•
Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS

AUDIO SYSTEMS
UVO link†1 with Navigation†1 5 — FM/AM/SiriusXM®†2 3/Media (Multimedia
USB, Bluetooth® Audio)
Your vehicle’s audio system may differ from that in the illustration .
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachusetts . See UVO Terms of Service at owners .kia .com for more information .
For further UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide .
For other audio system information, see pages 33-38 .
Sound Settings – To adjust the sound settings:
1 . Press the SETUP key on the audio head unit
2 . Select the on-screen SOUND button
3 . Select the menu item (Position, Volume Levels, Tone, Priority, Navigation, Advanced, Default)
4 . Use the onscreen buttons to adjust settings
Radio Presets – You can listen to FM, AM and SiriusXM radio and save frequently used stations .
How to Save a Preset - Press and hold the desired slot . This saves the current station in the selected slot
SiriusXM Smart Favorites - For the first 10 favorite SiriusXM channels, you may play live or repeat from the beginning of a song or a program segment . In Radio mode, choose SiriusXM, then select any of the first ten favorites . During song or program play, tap the Skip Backward icon to start from the beginning of the song or program . Tap the Play Live icon to return to the live broadcast .
Custom Key H
JT
B
QSPHSBNNBCMF
LFZ
UP
QSPWJEF
RVJDL
BDDFTT
UP
POF
PG
TFWFSBM
BWBJMBCMF
TZTUFN
GFBUVSFT

To Program the Custom Key: Press and hold the Custom Key . Select one of the available features you would like the Custom Key to open .
MAPN AV RADIO
MEDIA SETUP
Press to select FM/AM/SiriusXM® modes Press to Power ON/OFF . Rotate to adjust VolumePress to go to Custom (Set) Menu
Press to display the MAP screen for the current position mode
Press to display the NAV screen to set destination and route
Press to display SETUP/Settings mode
Press to select MEDIA mode
Rotate to change Radio/SiriusXM® Station/Media tracks/files
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
UVO link with Navigation Video
QR CODE
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED39
AUDIO SYSTEMS
•Volume level bet ween different audio modes: When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc .), the audio system saves the previous volume level you were listening to . For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
•
When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•
This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
•
A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•
At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
QUICK TIPSREMINDERS:
•
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
•
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y

CENTER PANEL
P
R
N
D
AUTO
HOLD
DRIVE MODEOFFOFF
P
To shift into any gear from Park, depress the brake pedal, then press the
Unlock button A , located on the side of the gear shift lever, and shift .
P: Park – To shift into Park from any gear, press the P button B on the gear shift while vehicle is stationary and the brake pedal is depressed (Shift by Wire only) .
R: Reverse – To shift into Reverse from Drive, depress the brake pedal, press the Unlock button A , and move the shift lever forward twice to skip over Neutral and into Reverse .
N: Neutral
D: Drive
Paddle Shifters: With the gear shift in Drive, pull the paddle shifter to manually change gears .
[+]: Manual Mode Upshift*
[–]: Manual Mode Downshift*
P
R
N D
+
-
4IJGU
CZ
8JSF
U ZQF
TIPXO
4IJGU
CZ
$BCMF
U ZQF
TIPXO

Automatic Transmission (Shift by Cable* / Shift by Wire*)
and Manual Shift Mode (Shift by Cable only)
(Paddles on rear side of steering wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic Transmission Control (Shift by Wire) Video
QR CODE
*IF EQUIPPED44STINGER FEATURES & FUNCTIONS GUIDE
CENTER PANEL •Press the Unlock but ton A when shifting from P (Park) to any gear
•The instrument cluster and the light on top of the shift lever identifies the gear the vehicle is currently in
QUICK TIPS
REMINDERS:
•
Press and hold the [+} right paddle shifter to return to Automatic mode (Shift by Wire* only)
•
When in Manual Shift mode, pulling the left and right paddle shifters at the same time will NOT shift gears
•
When in P (Park), if the Unlock but ton is not pressed while shifting, the transmission does not shift
•
If the vehicle is turned off while in Neutral without shifting into Park, it will remain in Neutral until the driver ’s door is opened . At that point it will automatically shift into Park
•
If going through a car wash, remind the at tendant to keep the vehicle in Neutral (N) and keep the engine running . Also, disable the power liftgate lid control, turn off the auto rain sensing wipers and fold in the mirrors
See section 5 in the Owner’s Manual for more information .
AA
B
