climate control KIA STINGER 2022 Features and Functions Guide

AUDIO SYSTEM
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Kia Access with UVO link App Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Kia Access with UVO link App Features Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CENTER PANEL
Multimedia USB Ports, Power Outlets & USB Charger Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Wireless Smartphone Charging System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Idle, Stop and Go (ISG) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Launch Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Automatic Transmission (Shift by Cable* / Shift by Wire*) & Manual Shift Mode (Shift by Cable only) . . . 44
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
SEATING
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Power Adjustable Driver ’s Seat* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Front Seat Headrest Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Driver Position Memory System* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
OTHER KEY FEATURES
HomeLink® with Auto-Dimming Rearview Mirror* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Smart Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fuel Door Release Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fuel Cap/Malfunction Indicator (Check Engine Light) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
SAFETY FEATURES
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Occupant Detection System (ODS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
NORMAL MAINTENANCE SCHEDULE - TURBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
LEGAL DISCLAIMERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover
TABLE OF CONTENTS
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED3

DRIVER’S PANEL
DRIVER’S PANEL

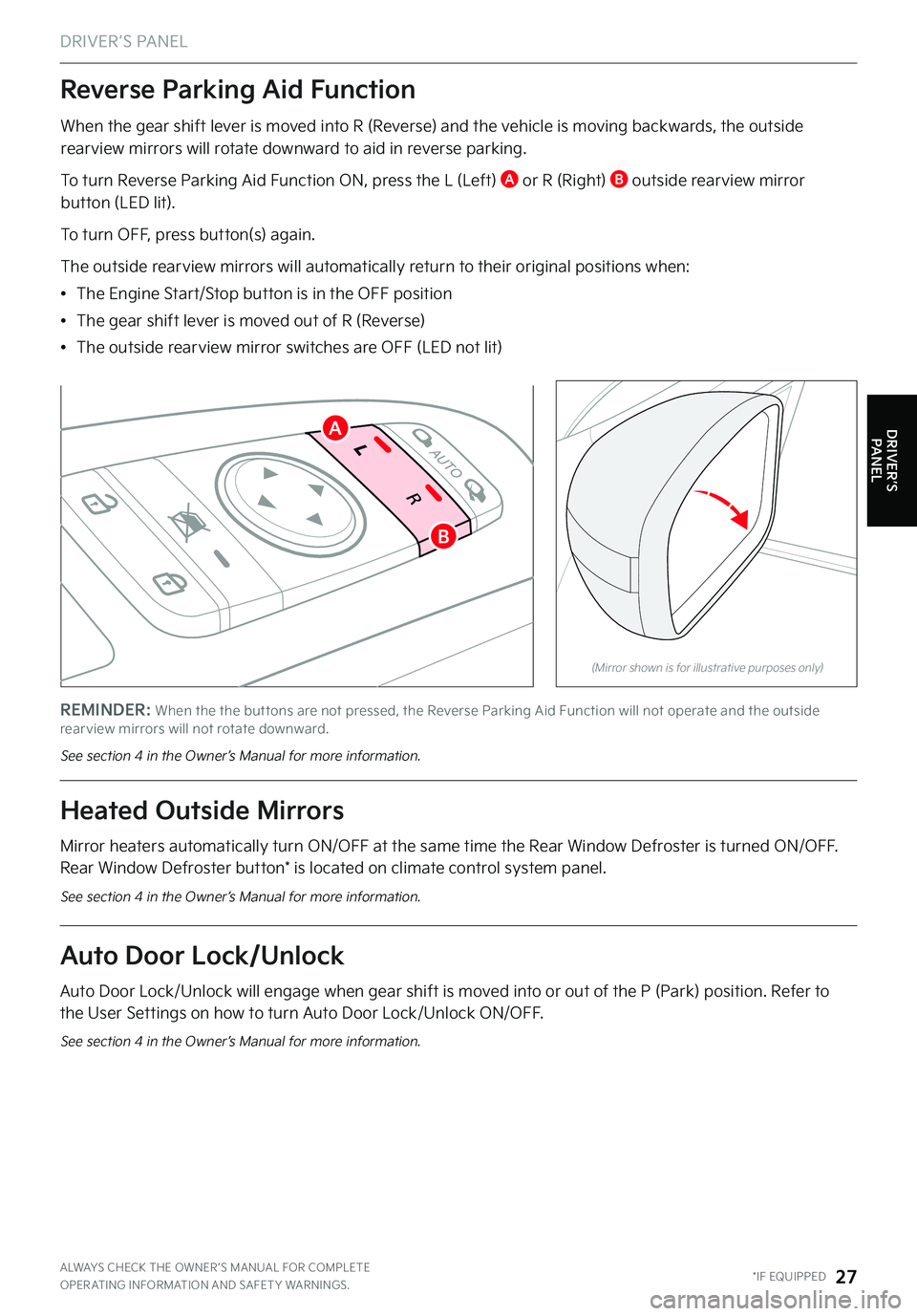

Reverse Parking Aid Function
When the gear shift lever is moved into R (Reverse) and the vehicle is moving backwards, the outside rearview mirrors will rotate downward to aid in reverse parking .
To turn Reverse Parking Aid Function ON, press the L (Left) A or R (Right) B outside rearview mirror button (LED lit) .
To turn OFF, press button(s) again .
The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop button is in the OFF position
•The gear shift lever is moved out of R (Reverse)
•
The outside rearview mirror switches are OFF (LED not lit)
REMINDER: When the the but tons are not pressed, the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward .
See section 4 in the Owner’s Manual for more information .
(Mirror shown is for illustrative purposes only)
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF . Rear Window Defroster button* is located on climate control system panel .
See section 4 in the Owner’s Manual for more information .
Auto Door Lock/Unlock
Auto Door Lock/Unlock will engage when gear shift is moved into or out of the P (Park) position . Refer to the User Settings on how to turn Auto Door Lock/Unlock ON/OFF .
See section 4 in the Owner’s Manual for more information .
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED27
A
B

AUDIO SYSTEMS
Kia Access with UVO link App Download
Kia Access with UVO link App Features Guide
Go to an app marketplace to download the new Kia Access with UVO link App . Once you download, make sure you register your vehicle and start an account (refer to UVO link Activation page) .
Get to know your new Kia and the available convenient features on the app .
The Kia Access with UVO link App Features Guide is a step-by-guide helping you utilize the app to its full potential by detailing how to set up and use each feature and adjust various settings . Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Service
Download the Kia Access with UVO link App by clicking this dynamic QR code . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
Kia Access with UVO link App Features Guide. Click this dynamic QR code to access the guide . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
Kia App Screen for illustrative purposes only . Actual App screen and functionality may vary .
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachusetts . See UVO Terms of Service at owners .kia .com for more information .
For further UVO link operations, refer to the Car Infotainment System Quick Reference Guide .
QR CODES
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED37
AUDIO SYSTEMS
•
The smar tphone and vehicle need to be connected to a cellular net work with good wireless signal strength in order to use UVO . If these conditions are not met, remote command may not execute or takes a long time . It will also effect voice commands
•
To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
Activate Remote Star t or Remote Star t with Climate Control feature at least 10 minutes before get ting into the vehicle, which will allow vehicle interior to reach a desired temperature . If the driver does not enter the vehicle within the 10 minutes, the Remote Star t will turn off the engine
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•
In order to preser ve the vehicle bat ter y, UVO will not turn on seven days after the last ignition was on . You will need to restar t the vehicle with a key fob in order to use UVO again
QUICK TIPS

CENTER PANEL
AUTOSYNCOFFCLIMATE
A/C
REAR
FRONT
Face-Level Floor-Level
Bi-Level Floor/ Defrost-Level
Auto Defogging System
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate) . To turn Auto Defogging on again, press the Front Defrost button for three seconds .
Defrost Outside Windshield
1 . Set fan speed to the highest position H
2 . Set temperature to hot A
3 . Press the front defrost button B
Defog Inside Windshield
1 . Set Fan Speed to highest position
2 . Set Temperature to highest position
3 . Press the front defrost button B
See section 4 in the Owner’s Manual for more information .
Automatic Climate Control System
Front Climate Control
A AUTO (Automatic) Climate Control
button
B Front Windshield Defrost button
C Rear Window Defrost button
D Air Conditioning button
E Recirculated Air button
F Fresh Air button
G System OFF button
H Fan Speed Control buttons
I Mode Select button
J Climate Control System button
K SYNC (Synchronize All Zones) Temperature Control button
Climate Control Auto Function
Press AUTO A to select full auto operation . In AUTO mode the driver and front passenger have full control of their own temperature zones . The mode, fan speed, air intake and air conditioning will activate and adjust accordingly to achieve the temperature settings for each zone .
To set temperatures:
•Tu r n A to set the driver ’s zone temperature
•Tu r n K to set the front passenger ’s zone temperature
Dual-Zone Climate Control
Pressing the SYNC button K synchronizes both climate control zones (driver and passenger) to the driver ’s temperature control .
Air Flow Modes
To select air flow modes, press the Mode Select button I :
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODES
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED43
AK
B
G
C
H
D
I
EF
J
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•
Warm or cold outside air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
CENTER PANEL

P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
P
Front Seats
Seat Warmers:
•Press button A up once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Ventilated Seats:
•Press button B down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers† 22 / Ventilated Seats*
See section 4 in the Owner’s Manual for more information .
S E AT I N G
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Seat Warmers and Ventilated Seats Video
QR CODE
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED47
•
With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•
When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
QUICK TIPSREMINDER: Use extreme caution when using the seat warmers to avoid burns . See section 4 in the Owner ’s Manual for more information .
SEATING
A
A
A
B
B
B

MAINTENANCE
STINGER SMARTSTREAM G2.5L TURBO-GDI
‡ If equipped .A . See the Owner ’s Manual for complete maintenance schedule .B . (next page) . If necessar y, adjust, correct, clean or replaceC . Kia recommends that you use unleaded gasoline which has an octane rating of RON (Research Octane Number) 95/AKI (Anti Knock Index) 91 or higher . For owners who do not use good qualit y gasolines including fuel additives regularly, and have problems star ting or the engine does not run smoothly, one bot tle of additives should be added to the fuel tank at ever y 8,000 miles . Additives are available from an authorized Kia dealer . Do not mix with other additives .
D . Check the engine oil level and leaks when stopping for fuel or before star ting a long trip . As it is normal for engine oil to be consumed during driving, the engine oil level should be checked on regular basis . The engine oil change inter val for normal operating conditions is based on the use of the recommended engine specification . If the recommended engine oil specification is not used, then replace the engine oil according to the maintenance schedule under severe operating conditions .
*IF EQUIPPED60STINGER FEATURES & FUNCTIONS GUIDE
(up to , miles)AMAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS,,,,
Add fuel additiveCPPPP
Rotate tiresPPPP
Engine oil and filter (Full Synthetic)DRRRR
#attery conditionIIII
#rake lines, hoses and connectionsIIII
#rake discs and padsIIII
Vacuum hosesIIII
Steering gear rack, linkage  bootsIIII
Suspension ball KointsIIII
Air conditioner compressorrefrigerantIIII
Exhaust systemIIII
Air cleaner filter (engine)IIRI
Climate control air filterIRIR
#rake fluidIIII
Drive shafts and bootsII
Propeller shaftII
Air intake hoseII
Fuel tank air filter

62STINGER FEATURES & FUNCTIONS GUIDE
‡ If equipped .A . See the Owner ’s Manual for complete maintenance schedule .B . (next page) . If necessar y, adjust, correct, clean or replaceC . Kia recommends that you use unleaded gasoline which has an octane rating of RON (Research Octane Number) 95/AKI (Anti Knock Index) 91 or higher . For owners who do not use good qualit y gasolines including fuel additives regularly, and have problems star ting or the engine does not run smoothly, one bot tle of additives should be added to the fuel tank at ever y 8,000 miles . Additives are available from an authorized Kia dealer . Do not mix with other additives .
D . Check the engine oil level and leaks when stopping for fuel or before star ting a long trip . As it is normal for engine oil to be consumed during driving, the engine oil level should be checked on regular basis . The engine oil change inter val for normal operating conditions is based on the use of the recommended engine specification . If the recommended engine oil specification is not used, then replace the engine oil according to the maintenance schedule under severe operating conditions .
STINGER 3.3L TURBO-GDI
MAINTENANCE
(up to 60,000 miles)AMAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS6,00012,00018,00024,000
Add fuel additiveCPPPP
Rotate tiresPPPP
Engine oil and filter (Full Synthetic)DRRRR
Battery conditionIIII
Brake lines, hoses and connectionsIIII
Brake discs and padsIIII
Vacuum hosesIIII
Steering gear rack, linkage & bootsIIII
Suspension ball jointsIIII
Air conditioner compressor/refrigerantIIII
Exhaust systemIIII
Climate control air filterIRIR
Brake fluidIIII
Air cleaner filterIR
Drive shafts and bootsII
Propeller shaftII
Intercooler, in/out hose, air intake hoseII
Fuel tank air filter

P
R
N D
+
-
AUTOSYNCOFF CLIMATE
A/C
REAR
FRONT
Confirm “Good Bat tery” with bat tery tester
Verify all tire pressures are to spec (see driver ’s door label) LF LR
RF RR
Verify proper operation of Smar t Key* lock/unlock
Ensure floormats are snapped into place (if applicable)
Verify vehicle is clean (interior and exterior), in good condition, free of chips and scratches
Ensure all key documents are in the vehicle (Owner ’s Manual, Warranty and Consumer Information
booklet, Tire Warranty booklet, Features & Functions Guide and any supplemental audio/video/navigation user ’s guides)
AutomaticTransmission/
ManualShiftMode* – page 44
Automatic Climate Control – page 43
Demonstrate Air Flow Modes, Defog and
Defrosting Windshield Fan Speed.
UVOlinkwithNavigation – page 39
For further system operation, refer
to the Car Multimedia System User’s
Manual.
UVOlinkActivation* – page 36
AndroidAuto™/AppleCarPlay®S et up*
– pages 38
KiaAccesswithUVOlinkAppDownload –
page 37
KiaAccesswithUVOlinkAppFeatures
Guide – page 37
Before Delivery
KeyFeatureWalkthrough
Owner’s Name: _________________________________ VIN:
Mileage: __________________ Dealership Name: ______________________
Sales Consultant: _________________________________ Date: __________
MAP N AV RADIO
MEDIA SETUP
CUSTOMERDELIVERYCHECKLIST
