WARNING
•No modifications or additionsshould be made by the user whichwill either prevent the seat beltadjusting devices from operatingto remove slack, or prevent theseat belt assembly from being ad‐justed to remove slack.
•When you fasten the seat belt, becareful not to latch the seat belt inbuckles of other seat. It's verydangerous and you may not beprotected by the seat belt proper‐ly.
•Do not unfasten the seat belt anddo not fasten and unfasten theseat belt repeatedly while driving.This could result in loss of control,and an accident causing death, se‐rious injury, or property damage.
•When fastening the seat belt,make sure that the seat belt doesnot pass over objects that are hardor can break easily.
•Make sure there is nothing in thebuckle. The seat belt may not befastened securely.

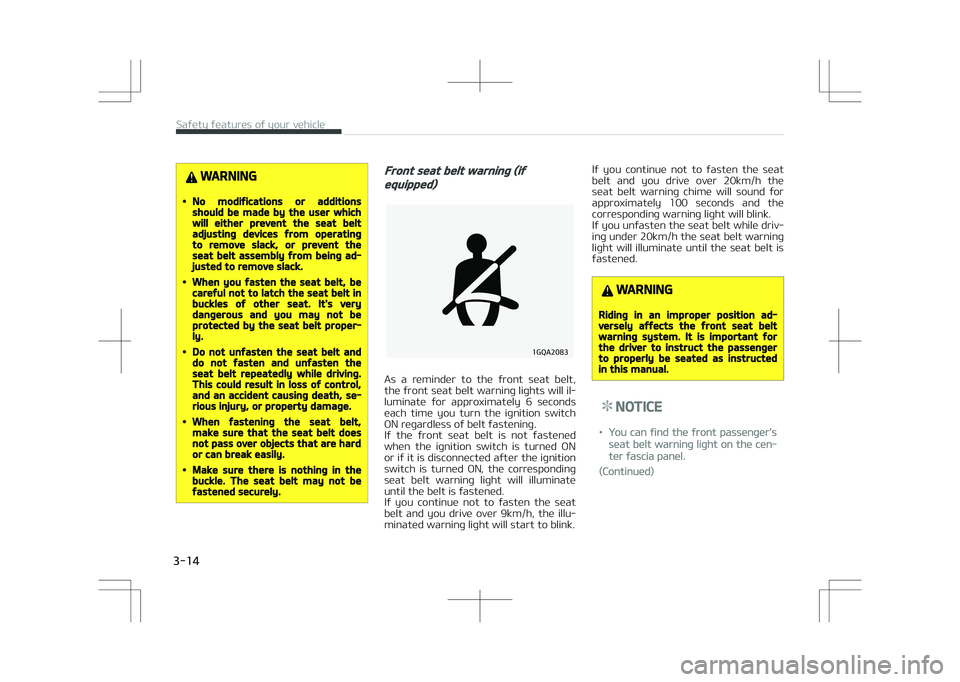

Front seat belt warning (if
equipped)
(2"
As a reminder to the front seat belt,
the front seat belt warning lights will il‐ luminate for approximately 6 seconds
each time you turn the ignition switch
ON regardless of belt fastening.
If the front seat belt is not fastened when the ignition switch is turned ON
or if it is disconnected after the ignition
switch is turned ON, the corresponding seat belt warning light will illuminate
until the belt is fastened.
If you continue not to fasten the seat
belt and you drive over 9km/h, the illu‐ minated warning light will start to blink. If you continue not to fasten the seat
belt and you drive over 20km/h the
seat belt warning chime will sound for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driv‐
ing under 20km/h the seat belt warning light will illuminate until the seat belt is
fastened.
WARNING
Riding in an improper position ad‐versely affects the front seat beltwarning system. It is important forthe driver to instruct the passengerto properly be seated as instructedin this manual.
NOTICE
•You can find the front passenger’s
seat belt warning light on the cen‐
ter fascia panel.
(Continued)
Safety features of your vehicle
3-14

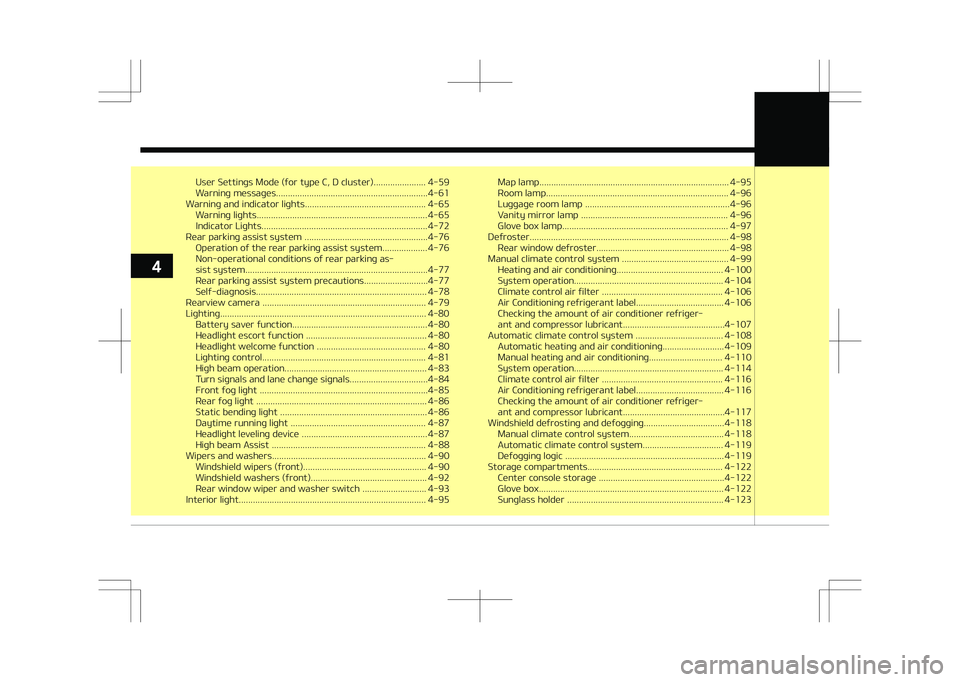

User Settings Mode (for type C, D cluster)...................... 4-59
Warning messages................................................................4-61
Warning and indicator lights................................................... 4-65 Warning lights........................................................................ 4-65
Indicator Lights...................................................................... 4-72
Rear parking assist system ....................................................4-76 Operation of the rear parking assist system................... 4-76
Non-operational conditions of rear parking as‐
sist system.............................................................................4-77
Rear parking assist system precautions...........................4-77
Self-diagnosis........................................................................ 4-78
Rearview camera ..................................................................... 4-79
Lighting....................................................................................... 4-80 Battery saver function......................................................... 4-80
Headlight escort function ................................................... 4-80
Headlight welcome function .............................................. 4-80
Lighting control..................................................................... 4-81
High beam operation............................................................ 4-83
Turn signals and lane change signals.................................4-84
Front fog light .......................................................................4-85
Rear fog light ........................................................................ 4-86
Static bending light .............................................................. 4-86
Daytime running light ......................................................... 4-87
Headlight leveling device ..................................................... 4-87
High beam Assist ................................................................. 4-88
Wipers and washers................................................................. 4-90 Windshield wipers (front).................................................... 4-90
Windshield washers (front)................................................. 4-92
Rear window wiper and washer switch ........................... 4-93
Interior light............................................................................... 4-95 Map lamp................................................................................ 4-95
Room lamp............................................................................. 4-96
Luggage room lamp ............................................................. 4-96
Vanity mirror lamp .............................................................. 4-96
Glove box lamp...................................................................... 4-97
Defroster.................................................................................... 4-98 Rear window defroster........................................................ 4-98
Manual climate control system ............................................. 4-99 Heating and air conditioning............................................. 4-100
System operation............................................................... 4-104
Climate control air filter ................................................... 4-106
Air Conditioning refrigerant label..................................... 4-106
Checking the amount of air conditioner refriger‐
ant and compressor lubricant...........................................4-107
Automatic climate control system ..................................... 4-108 Automatic heating and air conditioning.......................... 4-109
Manual heating and air conditioning............................... 4-110
System operation............................................................... 4-114
Climate control air filter ................................................... 4-116
Air Conditioning refrigerant label..................................... 4-116
Checking the amount of air conditioner refriger‐
ant and compressor lubricant...........................................4-117
Windshield defrosting and defogging..................................4-118 Manual climate control system........................................ 4-118
Automatic climate control system.................................. 4-119
Defogging logic ................................................................... 4-119
Storage compartments......................................................... 4-122 Center console storage .....................................................4-122
Glove box.............................................................................. 4-122
Sunglass holder .................................................................. 4-123


4

REMOTE KEYLESS ENTRY (IF EQUIPPED)
Remote keyless entry system
operations
¥
'PMEJOH
LFZ
¥
4NBSU
,FZ
Lock (1)
All doors (and tailgate) are locked if thelock button is pressed while all doors
are closed.
The hazard warning lights will blink
once to indicate that all doors are locked.
However, if any door, engine hood or
tailgate remains open, the hazard
warning lights will not operate. If all doors, engine hood and tailgate are
closed after the lock button is pressed,
the hazard warning lights will blink once.
Unlock (2)
All doors (and tailgate) are unlocked if
the unlock button is pressed.
The hazard warning lights will blink
twice to indicate that all doors are un‐
locked.
After pressing this button, the doors
will lock automatically unless you open any door within 30 seconds.
Tailgate unlock (3) (if equipped)
The tailgate is unlocked if the button is
pressed for more than 1 second.
The hazard warning lights will blink twice to indicate that the tailgate is un‐
locked. However, after pressing this button,
the tailgate will lock automatically un‐ less you open the tailgate within
30 seconds.
Also, once the tailgate is opened and
then closed, the tailgate will lock auto‐ matically.
With the tailgate locked and the smart
key in your possession, press the tail‐
gate open switch. Then, the tailgate will be opened. ❈ The word L

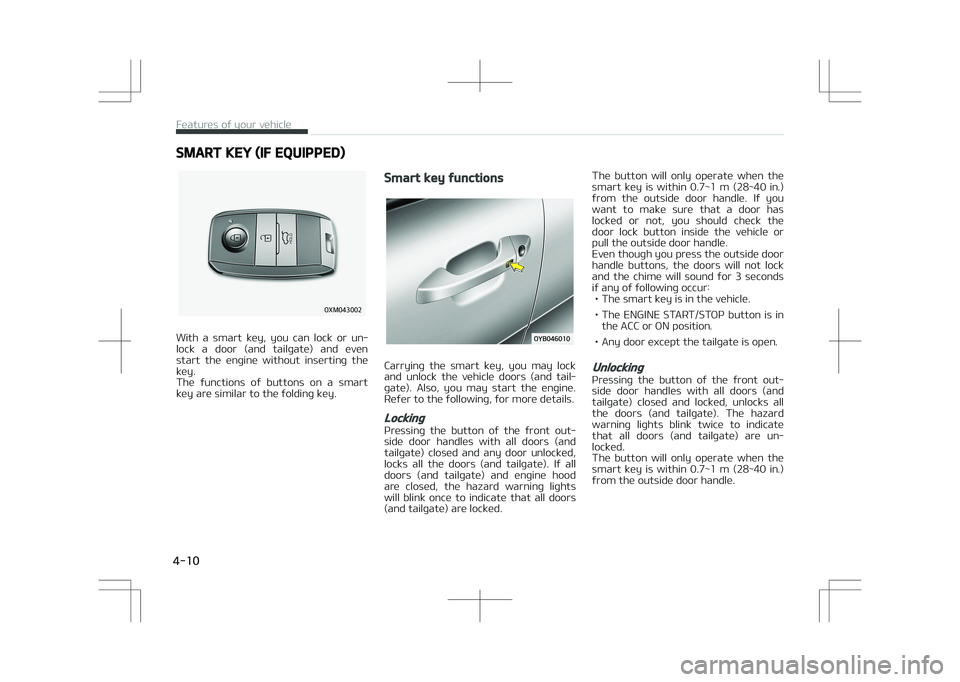

SMART KEY (IF EQUIPPED)
09.
With a smart key, you can lock or un‐
lock a door (and tailgate) and even start the engine without inserting the
key.
The functions of buttons on a smart
key are similar to the folding key.
Smart key functions
Carrying the smart key, you may lock
and unlock the vehicle doors (and tail‐ gate). Also, you may start the engine.
Refer to the following, for more details.
Locking
Pressing the button of the front out‐
side door handles with all doors (and tailgate) closed and any door unlocked,
locks all the doors (and tailgate). If all
doors (and tailgate) and engine hood are closed, the hazard warning lights
will blink once to indicate that all doors
(and tailgate) are locked. The button will only operate when the
smart key is within 0.7~1 m (28~40 in.)
from the outside door handle. If you
want to make sure that a door has locked or not, you should check the
door lock button inside the vehicle or
pull the outside door handle.
Even though you press the outside door
handle buttons, the doors will not lock and the chime will sound for 3 seconds
if any of following occur: • The smart key is in the vehicle.
• The ENGINE START/STOP button is in the ACC or ON position.
• Any door except the tailgate is open.
Unlocking
Pressing the button of the front out‐
side door handles with all doors (and tailgate) closed and locked, unlocks all
the doors (and tailgate). The hazard
warning lights blink twice to indicate that all doors (and tailgate) are un‐
locked.
The button will only operate when the
smart key is within 0.7~1 m (28~40 in.) from the outside door handle.
Features of your vehicle
4-10

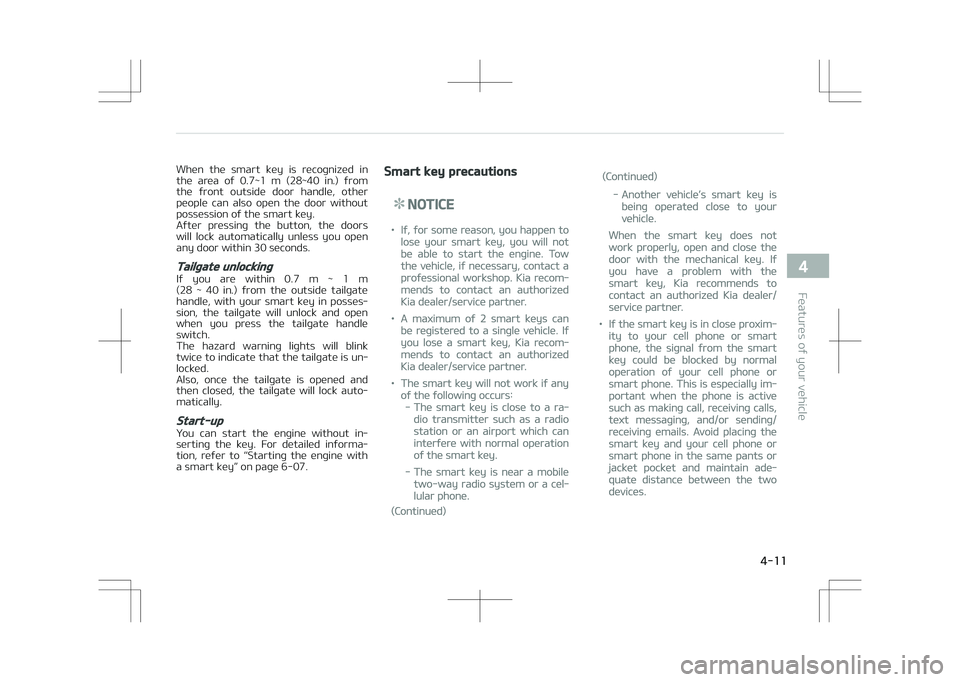

When the smart key is recognized in
the area of 0.7~1 m (28~40 in.) from the front outside door handle, other
people can also open the door without
possession of the smart key.
After pressing the button, the doors will lock automatically unless you open
any door within 30 seconds.
Tailgate unlocking
If you are within 0.7 m ~ 1 m
(28 ~ 40 in.) from the outside tailgate handle, with your smart key in posses‐
sion, the tailgate will unlock and open
when you press the tailgate handle switch.
The hazard warning lights will blink
twice to indicate that the tailgate is un‐
locked.
Also, once the tailgate is opened and then closed, the tailgate will lock auto‐
matically.
Start-up
You can start the engine without in‐
serting the key. For detailed informa‐ tion, refer to L

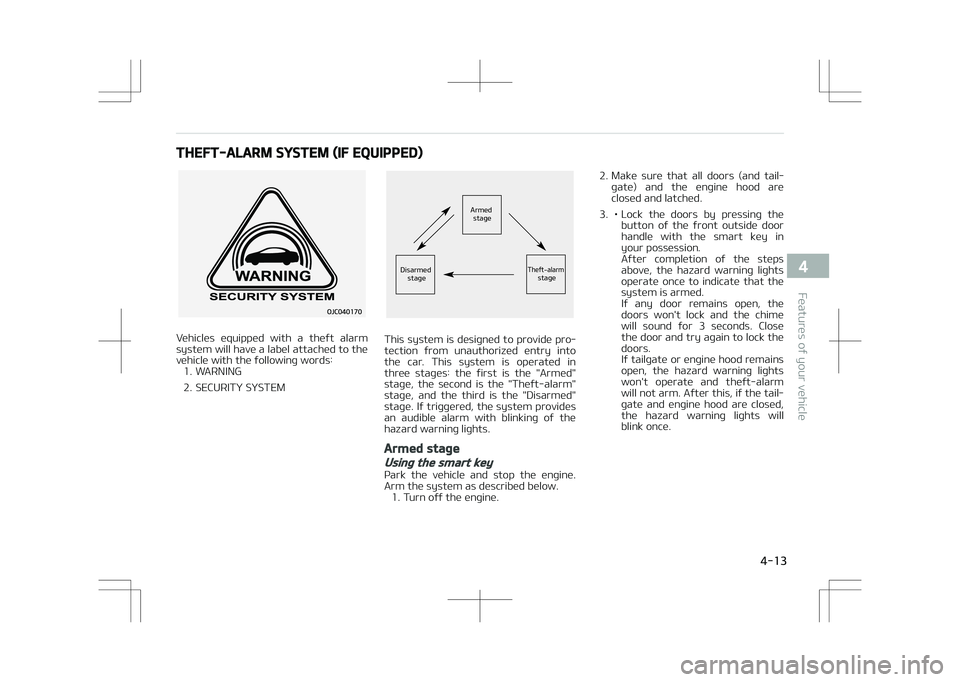

THEFT-ALARM SYSTEM (IF EQUIPPED)
Vehicles equipped with a theft alarm
system will have a label attached to the vehicle with the following words: 1. WARNING
2. SECURITY SYSTEM
"SNFE
TUBHF
%JTBSNFE

TUBHF5IFGUBMBSN

TUBHF
This system is designed to provide pro‐
tection from unauthorized entry into the car. This system is operated in
three stages: the first is the "Armed"
stage, the second is the "Theft-alarm" stage, and the third is the "Disarmed"
stage. If triggered, the system provides
an audible alarm with blinking of the hazard warning lights.
Armed stage
Using the smart key
Park the vehicle and stop the engine.
Arm the system as described below. 1. Turn off the engine. 2. Make sure that all doors (and tail‐
gate) and the engine hood are
closed and latched.
3. • Lock the doors by pressing the button of the front outside door
handle with the smart key in
your possession.
After completion of the steps
above, the hazard warning lights
operate once to indicate that thesystem is armed.
If any door remains open, the
doors won't lock and the chime
will sound for 3 seconds. Close
the door and try again to lock thedoors.
If tailgate or engine hood remains
open, the hazard warning lights
won't operate and theft-alarmwill not arm. After this, if the tail‐
gate and engine hood are closed,
the hazard warning lights willblink once.

4-13
4
Features of your vehicle

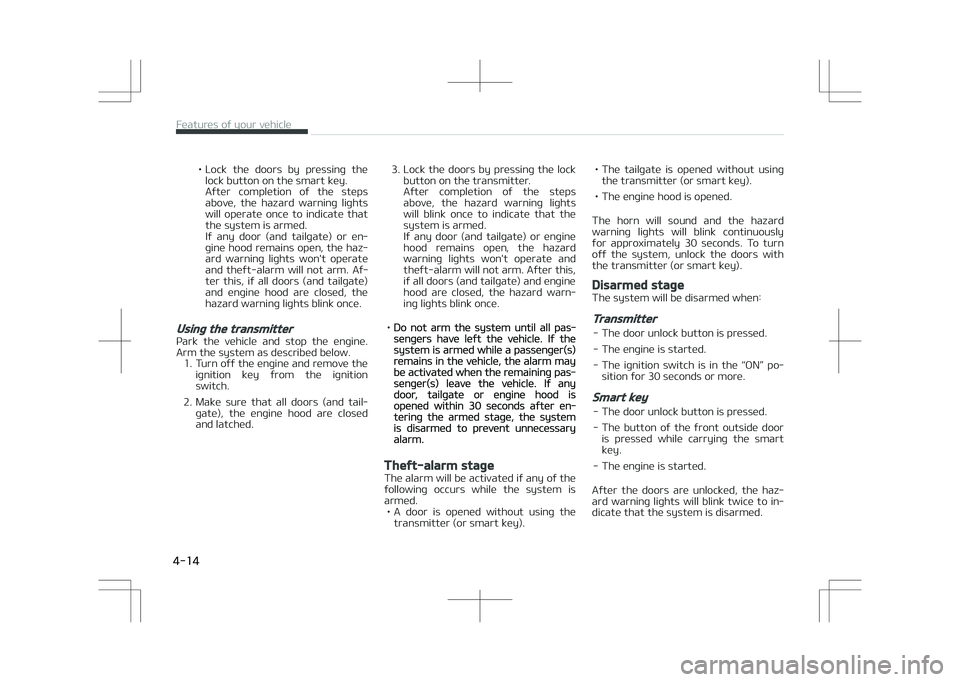

• Lock the doors by pressing thelock button on the smart key.
After completion of the steps
above, the hazard warning lights
will operate once to indicate thatthe system is armed.
If any door (and tailgate) or en‐
gine hood remains open, the haz‐
ard warning lights won't operate
and theft-alarm will not arm. Af‐
ter this, if all doors (and tailgate)
and engine hood are closed, thehazard warning lights blink once.
Using the transmitter
Park the vehicle and stop the engine.
Arm the system as described below. 1. Turn off the engine and remove the ignition key from the ignition
switch.
2. Make sure that all doors (and tail‐ gate), the engine hood are closed
and latched. 3. Lock the doors by pressing the lock
button on the transmitter.
After completion of the steps
above, the hazard warning lights
will blink once to indicate that the
system is armed.
If any door (and tailgate) or engine
hood remains open, the hazard
warning lights won't operate and
theft-alarm will not arm. After this,if all doors (and tailgate) and engine
hood are closed, the hazard warn‐
ing lights blink once.
•
Do not arm the system until all pas‐sengers have left the vehicle. If thesystem is armed while a passenger(s)remains in the vehicle, the alarm maybe activated when the remaining pas‐senger(s) leave the vehicle. If anydoor, tailgate or engine hood isopened within 30 seconds after en‐tering the armed stage, the systemis disarmed to prevent unnecessaryalarm.
Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is armed. • A door is opened without using the transmitter (or smart key). • The tailgate is opened without using
the transmitter (or smart key).
• The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously for approximately 30 seconds. To turn
off the system, unlock the doors with
the transmitter (or smart key).
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started.
- The ignition switch is in the L

(Continued)

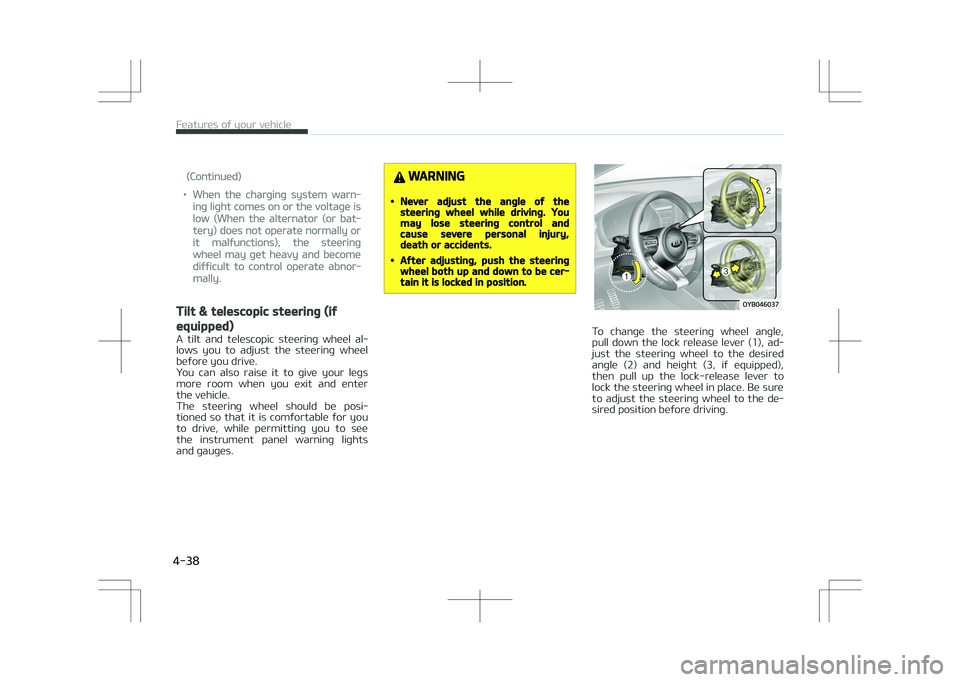

•When the charging system warn‐
ing light comes on or the voltage is
low (When the alternator (or bat‐
tery) does not operate normally or
it malfunctions), the steering
wheel may get heavy and become
difficult to control operate abnor‐
mally.
Tilt & telescopic steering (if
equipped)
A tilt and telescopic steering wheel al‐
lows you to adjust the steering wheel before you drive.
You can also raise it to give your legs
more room when you exit and enter
the vehicle.
The steering wheel should be posi‐ tioned so that it is comfortable for you
to drive, while permitting you to see
the instrument panel warning lights and gauges.
WARNING
•Never adjust the angle of thesteering wheel while driving. Youmay lose steering control andcause severe personal injury,death or accidents.
•After adjusting, push the steeringwheel both up and down to be cer‐tain it is locked in position.
To change the steering wheel angle,
pull down the lock release lever (1), ad‐ just the steering wheel to the desired
angle (2) and height (3, if equipped),
then pull up the lock-release lever to lock the steering wheel in place. Be sure
to adjust the steering wheel to the de‐
sired position before driving.
Features of your vehicle
4-38

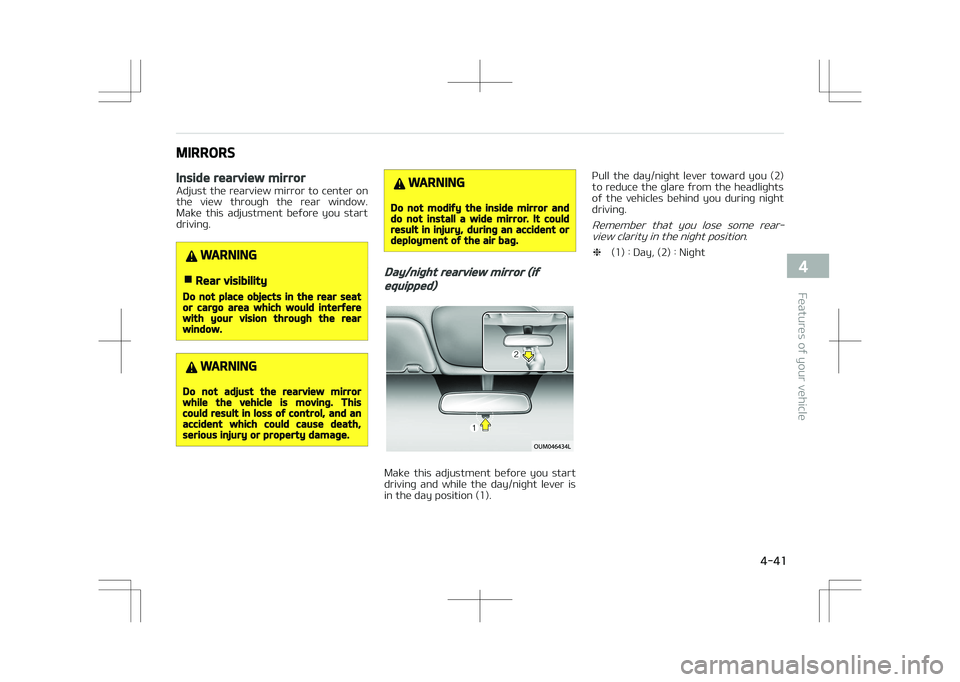

MIRRORS
Inside rearview mirror
Adjust the rearview mirror to center onthe view through the rear window.
Make this adjustment before you start
driving.
WARNING
nRear visibility
Do not place objects in the rear seator cargo area which would interferewith your vision through the rearwindow.
WARNING
Do not adjust the rearview mirrorwhile the vehicle is moving. Thiscould result in loss of control, and anaccident which could cause death,serious injury or property damage.
WARNING
Do not modify the inside mirror anddo not install a wide mirror. It couldresult in injury, during an accident ordeployment of the air bag.
Day/night rearview mirror (if
equipped)
Make this adjustment before you start
driving and while the day/night lever is in the day position (1). Pull the day/night lever toward you (2)
to reduce the glare from the headlights
of the vehicles behind you during night driving.
Remember that you lose some rear‐
view clarity in the night position.
❈ (1) : Day, (2) : Night

4-41
4
Features of your vehicle

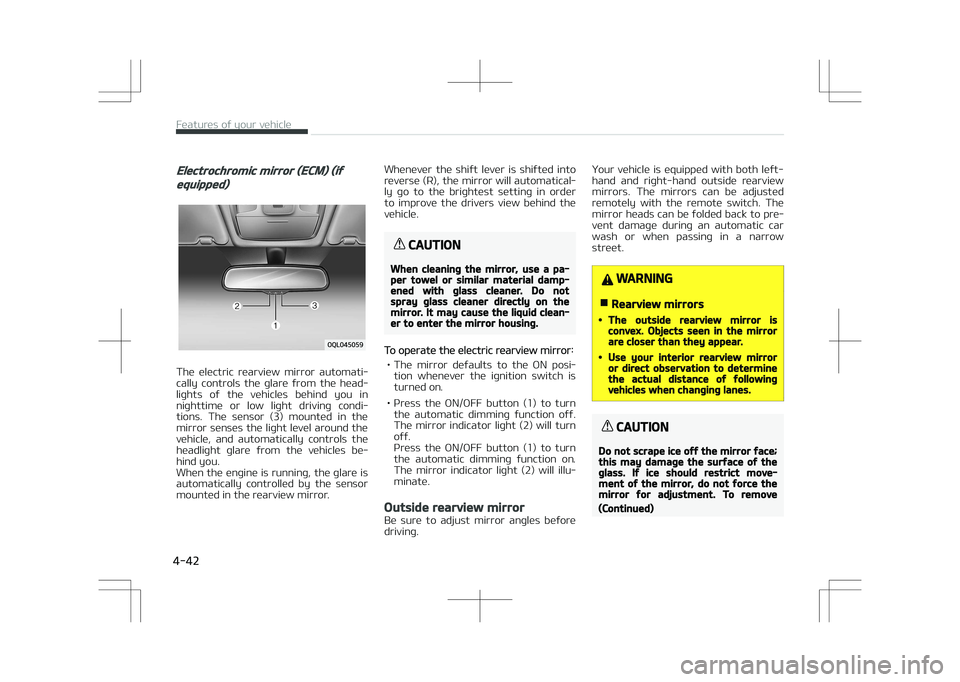

Electrochromic mirror (ECM) (if
equipped)
The electric rearview mirror automati‐
cally controls the glare from the head‐ lights of the vehicles behind you in
nighttime or low light driving condi‐
tions. The sensor (3) mounted in the mirror senses the light level around the
vehicle, and automatically controls the
headlight glare from the vehicles be‐ hind you.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. Whenever the shift lever is shifted into
reverse (R), the mirror will automatical‐
ly go to the brightest setting in order
to improve the drivers view behind the vehicle.
CAUTION
When cleaning the mirror, use a pa‐per towel or similar material damp‐ened with glass cleaner. Do notspray glass cleaner directly on themirror. It may cause the liquid clean‐er to enter the mirror housing.
To operate the electric rearview mirror:
• The mirror defaults to the ON posi‐ tion whenever the ignition switch is
turned on.
• Press the ON/OFF button (1) to turn the automatic dimming function off.
The mirror indicator light (2) will turn
off.
Press the ON/OFF button (1) to turn
the automatic dimming function on.
The mirror indicator light (2) will illu‐ minate.
Outside rearview mirror
Be sure to adjust mirror angles before
driving. Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switch. The mirror heads can be folded back to pre‐
vent damage during an automatic car
wash or when passing in a narrow street.
WARNING
nRearview mirrors
•The outside rearview mirror isconvex. Objects seen in the mirrorare closer than they appear.
•Use your interior rearview mirroror direct observation to determinethe actual distance of followingvehicles when changing lanes.
CAUTION
Do not scrape ice off the mirror face;this may damage the surface of theglass. If ice should restrict move‐ment of the mirror, do not force themirror for adjustment. To remove
(Continued)
Features of your vehicle
4-42
