service reset KIA STONIC 2018 Owners Manual

Keys............................................................................................. 4-04Record your key number..................................................... 4-04
Key operations...................................................................... 4-04
Immobilizer system.............................................................. 4-05
Remote keyless entry ............................................................. 4-07 Remote keyless entry system operations....................... 4-07
Transmitter precautions...................................................... 4-07
Battery replacement............................................................ 4-09
Smart key .................................................................................. 4-10 Smart key functions............................................................. 4-10
Smart key precautions......................................................... 4-11
Theft-alarm system ............................................................... 4-13 Armed stage.......................................................................... 4-13
Theft-alarm stage................................................................ 4-14
Disarmed stage..................................................................... 4-14
Door locks................................................................................... 4-16 Operating door locks from outside the vehicle................ 4-16
Operating door locks from inside the vehicle................... 4-17
Impact sensing door unlock system ................................. 4-19
Speed sensing door lock system ....................................... 4-19
Child-protector rear door lock............................................ 4-19
Tailgate....................................................................................... 4-21 Opening the tailgate............................................................. 4-21
Closing the tailgate............................................................... 4-21
Emergency tailgate safety release....................................4-22
Windows..................................................................................... 4-23 Power windows .................................................................... 4-23
Manual windows (if equipped)............................................ 4-27
Hood............................................................................................ 4-28 Opening the hood.................................................................. 4-28 Hood open warning .............................................................. 4-28
Closing the hood.................................................................... 4-29
Fuel filler lid................................................................................ 4-30 Opening the fuel filler lid......................................................4-30
Closing the fuel filler lid........................................................4-30
Sunroof ...................................................................................... 4-33 Sliding the sunroof................................................................ 4-34
Tilting the sunroof................................................................ 4-35
Sunshade................................................................................ 4-36
Resetting the sunroof.......................................................... 4-36
Steering wheel........................................................................... 4-37 Electric power steering........................................................ 4-37
Tilt & telescopic steering .................................................... 4-38
Heated steering wheel ........................................................ 4-39
Horn......................................................................................... 4-39
Mirrors........................................................................................ 4-41 Inside rearview mirror.......................................................... 4-41
Outside rearview mirror.......................................................4-42
Instrument cluster.................................................................... 4-45 Instrument Cluster Control..................................................4-46
LCD Window Control............................................................. 4-47
Gauges.................................................................................... 4-48
Transaxle Shift Indicator......................................................4-51
LCD windows ............................................................................. 4-53 Overview................................................................................. 4-53
Trip information (Trip computer)....................................... 4-53
Digital speedometer............................................................. 4-57
LCD Modes (for type C,D cluster)....................................... 4-58
Lane Departure Warning (LDW) System mode ...............4-58
Service Mode.......................................................................... 4-58
Features of your vehicle

4

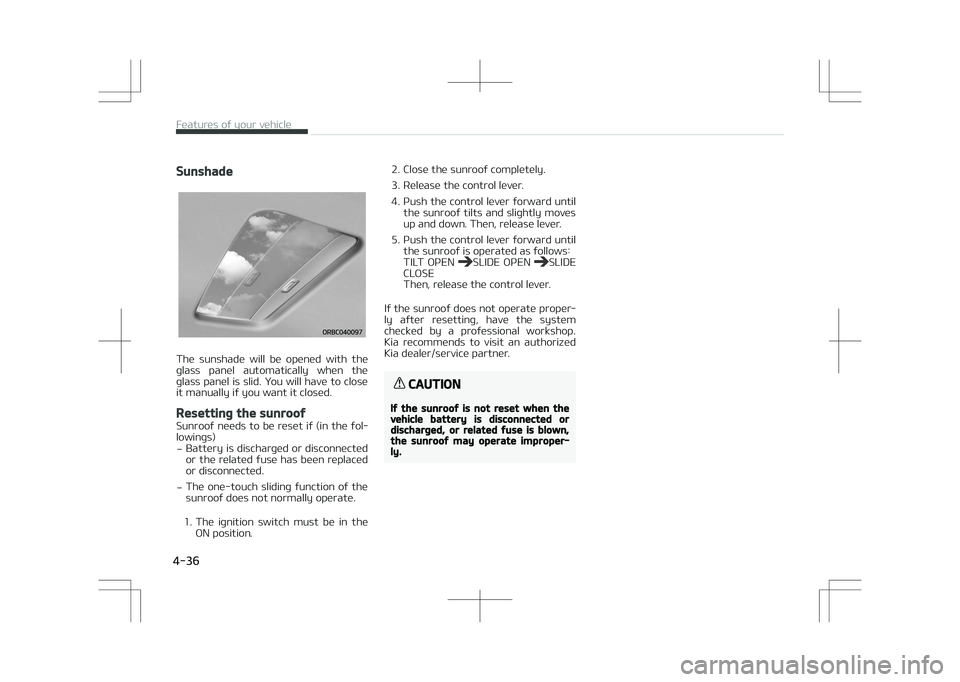

Sunshade
The sunshade will be opened with the
glass panel automatically when the glass panel is slid. You will have to close
it manually if you want it closed.
Resetting the sunroof
Sunroof needs to be reset if (in the fol‐
lowings)
- Battery is discharged or disconnected
or the related fuse has been replaced
or disconnected.
- The one-touch sliding function of the
sunroof does not normally operate.
1. The ignition switch must be in the ON position. 2. Close the sunroof completely.
3. Release the control lever.
4. Push the control lever forward until
the sunroof tilts and slightly moves
up and down. Then, release lever.
5. Push the control lever forward until the sunroof is operated as follows:
TILT OPEN
SLIDE OPEN SLIDE
CLOSE
Then, release the control lever.
If the sunroof does not operate proper‐
ly after resetting, have the system checked by a professional workshop.
Kia recommends to visit an authorized
Kia dealer/service partner.
CAUTION
If the sunroof is not reset when thevehicle battery is disconnected ordischarged, or related fuse is blown,the sunroof may operate improper‐ly.
Features of your vehicle
4-36

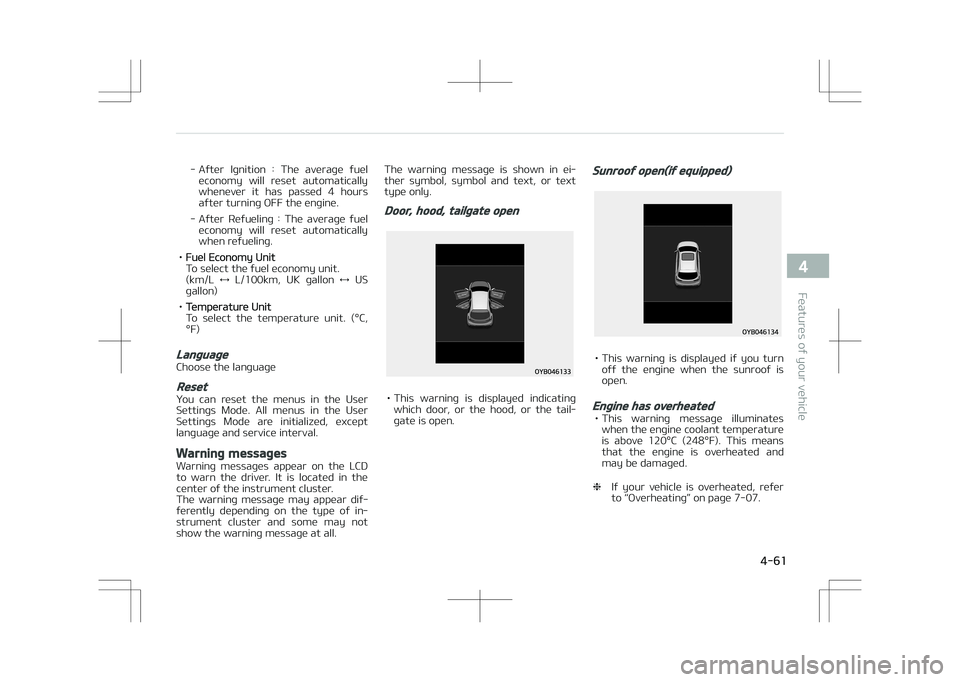

- After Ignition : The average fueleconomy will reset automatically
whenever it has passed 4 hours after turning OFF the engine.
- After Refueling : The average fuel economy will reset automatically
when refueling.
•
Fuel Economy Unit
To select the fuel economy unit.
(km/L ↔ L/100km, UK gallon ↔ US
gallon)
•
Temperature Unit
To select the temperature unit. (°C, °F)
Language
Choose the language
Reset
You can reset the menus in the User
Settings Mode. All menus in the User Settings Mode are initialized, except
language and service interval.
Warning messages
Warning messages appear on the LCD
to warn the driver. It is located in the center of the instrument cluster.
The warning message may appear dif‐
ferently depending on the type of in‐
strument cluster and some may not show the warning message at all. The warning message is shown in ei‐
ther symbol, symbol and text, or text
type only.
Door, hood, tailgate open
• This warning is displayed indicating which door, or the hood, or the tail‐
gate is open.
Sunroof open(if equipped)
• This warning is displayed if you turn off the engine when the sunroof is
open.
Engine has overheated
• This warning message illuminates
when the engine coolant temperature
is above 120°C (248°F). This means
that the engine is overheated and may be damaged.
❈ If your vehicle is overheated, refer
to L

Changing the engine oil and filter...................................... 8-45
Engine oil (Diesel)...................................................................... 8-46 Checking the engine oil level................................................8-46
Changing the engine oil and filter...................................... 8-46
Engine coolant........................................................................... 8-48 Checking the coolant level................................................... 8-48
Changing the coolant............................................................ 8-51
Brake/Clutch fluid .....................................................................8-52 Checking the brake/clutch fluid level................................. 8-52
Automatic transaxle fluid ....................................................... 8-53 Checking the automatic transaxle fluid level .................. 8-53
Changing the automatic transaxle fluid............................ 8-54
Washer fluid............................................................................... 8-55 Checking the washer fluid level.......................................... 8-55
Parking brake............................................................................. 8-56 Checking the parking brake................................................. 8-56
Fuel filter (for diesel)................................................................ 8-57 Draining water from the fuel filter.................................... 8-57
Fuel filter cartridge replacement....................................... 8-57
Air cleaner.................................................................................. 8-58 Filter replacement.................................................................8-58
Climate control air filter........................................................... 8-59 Filter inspection..................................................................... 8-59
Wiper blades...............................................................................8-60 Blade inspection.................................................................... 8-60
Blade replacement................................................................ 8-60
Battery........................................................................................8-63 For best battery service...................................................... 8-63
Battery capacity label.......................................................... 8-64
Battery recharging................................................................8-65 Reset items............................................................................ 8-65
Tires and wheels....................................................................... 8-67 Tire care.................................................................................. 8-67
Recommended cold tire inflation pressures..................... 8-67
Checking tire inflation pressure.......................................... 8-68
Tire rotation........................................................................... 8-69
Wheel alignment and tire balance...................................... 8-70
Tire replacement................................................................... 8-70
Wheel replacement............................................................... 8-72
Tire traction........................................................................... 8-72
Tire maintenance.................................................................. 8-72
Tire sidewall labeling............................................................ 8-72
Low aspect ratio tire ........................................................... 8-75
Fuses........................................................................................... 8-77 Inner panel fuse replacement............................................. 8-79
Engine compartment fuse replacement........................... 8-80
Fuse/relay panel description............................................... 8-82
Light bulbs................................................................................8-104 Bulb replacement precaution............................................8-104
Light bulb position (Front).................................................8-106
Light bulb position (Rear).................................................. 8-107
Light bulb position (Side)................................................... 8-108
Side repeater lamp (LED type) bulb Replacement........ 8-108
Side repeater lamp (bulb type) bulb Replacement....... 8-109
Headlamp (Low/High beam) bulb replacement
(Headlamp Type A)............................................................. 8-109
Front turn signal lamp bulb replacement (Head‐
lamp Type A)........................................................................8-110
Position lamp / Day time running lamp bulb re‐
placement (Headlamp Type A)......................................... 8-110


8

❈The actual battery label in the vehi‐
cle may differ from the illustration.
1. AGM90L-DIN : The Kia model name
of battery
2. 90Ah(20HR) : The nominal capacity (in Ampere hours)
3. 170RC : The nominal reserve ca‐ pacity (in min.)
4. 12V : The nominal voltage
5. 850CCA (SAE) : The cold-test cur‐ rent in amperes by SAE
6. 680A : The cold-test current in am‐ peres by EN
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery. • If the battery becomes discharged in a short time (because, for example,the headlights or interior lights were
left on while the vehicle was not in
use), recharge it by slow charging
(trickle) for 10 hours.
• If the battery gradually discharges because of high electric load while
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
nRecharging battery
When recharging the battery, ob‐serve the following precautions:•The battery must be removedfrom the vehicle and placed in anarea with good ventilation.
•Do not allow cigarettes, sparks, orflame near the battery.
•Watch the battery during charg‐ing, and stop or reduce the charg‐ing rate if the battery cells begingassing (boiling) violently or if thetemperature of the electrolyte ofany cell exceeds 49°C (120°F).
•Wear eye protection when check‐ing the battery during charging.
•Disconnect the battery charger inthe following order.1.Turn off the battery chargermain switch.
2.Unhook the negative clampfrom the negative battery ter‐minal.
3.Unhook the positive clamp fromthe positive battery terminal.
WARNING
•Before performing maintenance orrecharging the battery, turn off allaccessories and stop the engine.
•The negative battery cable mustbe removed first and installed lastwhen the battery is disconnected.
•Operation related to the battery isrecommended to be done by aprofessional workshop. Kia recom‐mends to visit an authorized Kiadealer/service partner.
CAUTION
•Keep the battery away from wa‐ter or any liquid.
•For your safety, use parts for re‐placement from a professionalworkshop. Kia recommends to visitan authorized Kia dealer/servicepartner.
Reset items
Items should be reset after the battery
has been discharged or the battery has been disconnected. • Auto up/down window

8-65
8
Maintenance
