technical data KIA VENGA 2013 Owners Manual

619

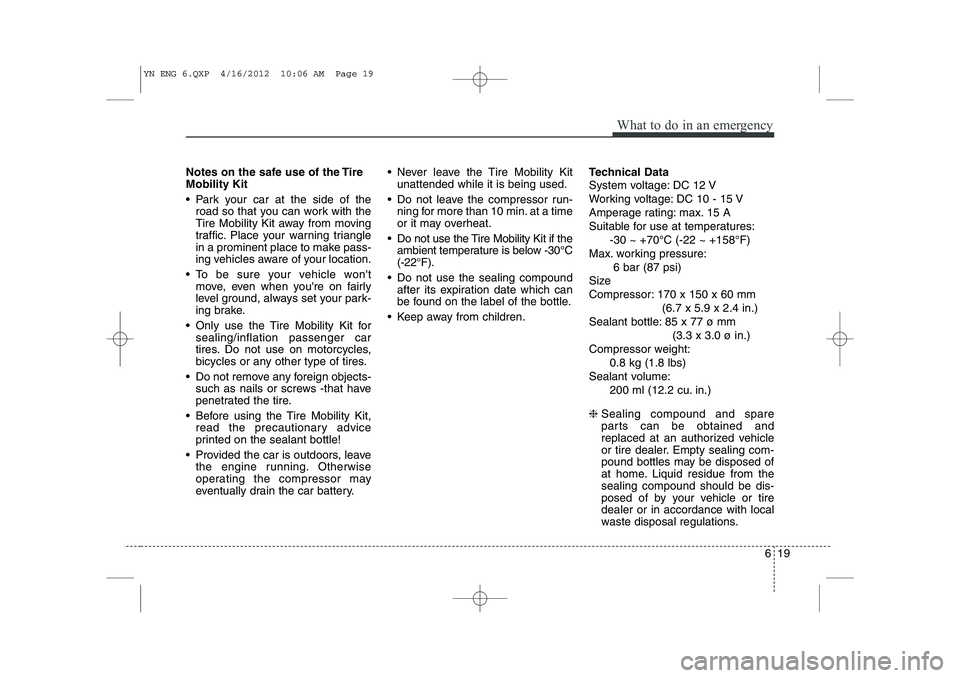

What to do in an emergency
Notes on the safe use of the Tire Mobility Kit
 Park your car at the side of theroad so that you can work with the
Tire Mobility Kit away from moving
traffic. Place your warning triangle
in a prominent place to make pass-
ing vehicles aware of your location.
 To be sure your vehicle won't move, even when you're on fairly
level ground, always set your park-
ing brake.
 Only use the Tire Mobility Kit for sealing/inflation passenger car
tires. Do not use on motorcycles,
bicycles or any other type of tires.
 Do not remove any foreign objects- such as nails or screws -that have
penetrated the tire.
 Before using the Tire Mobility Kit, read the precautionary advice
printed on the sealant bottle!
 Provided the car is outdoors, leave the engine running. Otherwise
operating the compressor may
eventually drain the car battery.  Never leave the Tire Mobility Kit
unattended while it is being used.
 Do not leave the compressor run- ning for more than 10 min. at a time
or it may overheat.
 Do not use the Tire Mobility Kit if the ambient temperature is below -30°C(-22°F).
 Do not use the sealing compound after its expiration date which can
be found on the label of the bottle.
 Keep away from children. Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi)
Size
Compressor: 170 x 150 x 60 mm (6.7 x 5.9 x 2.4 in.)
Sealant bottle: 85 x 77 ø mm (3.3 x 3.0 ø in.)
Compressor weight: 0.8 kg (1.8 lbs)
Sealant volume: 200 ml (12.2 cu. in.)
❈ Sealing compound and spare
parts can be obtained and
replaced at an authorized vehicle
or tire dealer. Empty sealing com-
pound bottles may be disposed of
at home. Liquid residue from thesealing compound should be dis-
posed of by your vehicle or tiredealer or in accordance with local
waste disposal regulations.
YN ENG 6.QXP 4/16/2012 10:06 AM Page 19

619
What to do in an emergency
Notes on the safe use of the Tyre Mobility Kit
 Park your car at the side of theroad so that you can work with the
Tyre Mobility Kit away from moving
traffic. Place your warning triangle
in a prominent place to make pass-
ing vehicles aware of your location.
 To be sure your vehicle won't move, even when you're on fairly
level ground, always set your park-
ing brake.
 Only use the Tyre Mobility Kit for sealing/inflation passenger car
tyres. Do not use on motorcycles,
bicycles or any other type of tyres.
 Do not remove any foreign objects- such as nails or screws -that have
penetrated the tyre.
 Before using the Tyre Mobility Kit, read the precautionary advice
printed on the sealant bottle!
 Provided the car is outdoors, leave the engine running. Otherwise
operating the compressor may
eventually drain the car battery.  Never leave the Tyre Mobility Kit
unattended whilst it is being used.
 Do not leave the compressor run- ning for more than 10 min. at a time
or it may overheat.
 Do not use the Tyre Mobility Kit if the ambient temperature is below -30°C (-22°F).
 Do not use the sealing compound after its expiration date which can
be found on the label of the bottle.
 Keep away from children. Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi)
Size
Compressor: 170 x 150 x 60 mm (6.7 x 5.9 x 2.4 in.)
Sealant bottle: 85 x 77 ø mm (3.3 x 3.0 ø in.)
Compressor weight: 0.8 kg (1.8 lbs)
Sealant volume: 200 ml (12.2 cu. in.)
❈ Sealing compound and spare
parts can be obtained and
replaced at an authorised vehicle
or tyre dealer. Empty sealing com-
pound bottles may be disposed of
at home. Liquid residue from thesealing compound should be dis-
posed of by your vehicle or tyredealer or in accordance with local
waste disposal regulations.
YN RHD 6.QXP 3/31/2012 4:10 PM Page 19
