KIA VENGA 2014 Owners Manual

4 119
Features of your vehicle

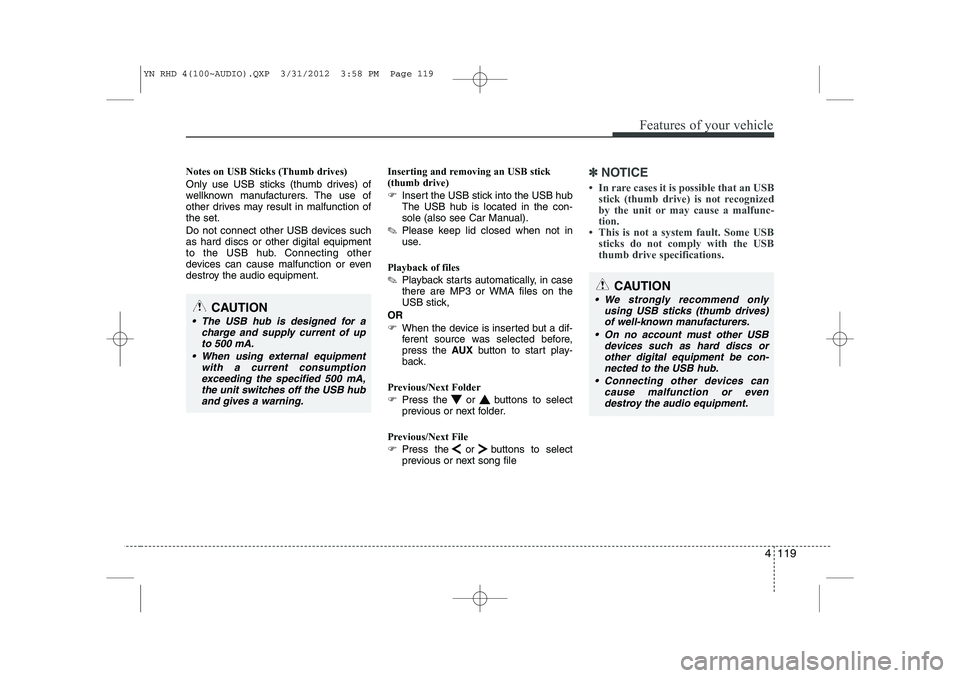

Notes on USB Sticks (Thumb drives)
Only use USB sticks (thumb drives) of
wellknown manufacturers. The use of
other drives may result in malfunction ofthe set.
Do not connect other USB devices such as hard discs or other digital equipment
to the USB hub. Connecting other
devices can cause malfunction or even
destroy the audio equipment.Inserting and removing an USB stick(thumb drive)
)
Insert the USB stick into the USB hub The USB hub is located in the con-
sole (also see Car Manual).
✎ Please keep lid closed when not in
use.
Playback of files ✎ Playback starts automatically, in case
there are MP3 or WMA files on the
USB stick,
OR
) When the device is inserted but a dif-
ferent source was selected before,press the AUXbutton to start play-
back.
Previous/Next Folder
) Press the or buttons to select
previous or next folder.
Previous/Next File
) Press the or buttons to select
previous or next song file✽✽
NOTICE

Features of your vehicle
120
4

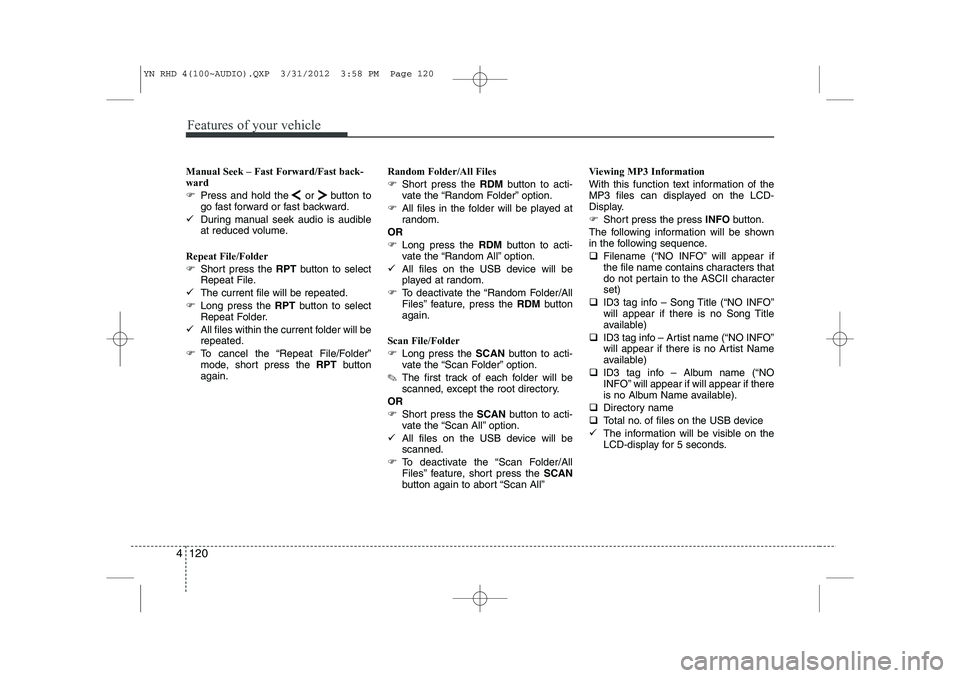

Manual Seek – Fast Forward/Fast back- ward
) Press and hold the or button to
go fast forward or fast backward.
9 During manual seek audio is audible
at reduced volume.
Repeat File/Folder
) Short press the RPTbutton to select
Repeat File.
9 The current file will be repeated.
) Long press the RPTbutton to select
Repeat Folder.
9 All files within the current folder will be repeated.
) To cancel the “Repeat File/Folder”
mode, short press the RPTbutton
again. Random Folder/All Files
)
Short press the RDMbutton to acti-
vate the “Random Folder” option.
) All files in the folder will be played at
random.
OR
) Long press the RDMbutton to acti-
vate the “Random All” option.
9 All files on the USB device will be
played at random.
) To deactivate the “Random Folder/All
Files” feature, press the RDMbutton
again.
Scan File/Folder
) Long press the SCANbutton to acti-
vate the “Scan Folder” option.
✎ The first track of each folder will be
scanned, except the root directory.
OR
) Short press the SCANbutton to acti-
vate the “Scan All” option.
9 All files on the USB device will be scanned.
) To deactivate the “Scan Folder/All
Files” feature, short press the SCAN
button again to abort “Scan All” Viewing MP3 Information
With this function text information of the
MP3 files can displayed on the LCD-
Display.
)
Short press the press INFObutton.
The following information will be shown
in the following sequence. ‰ Filename (“NO INFO” will appear if
the file name contains characters that
do not pertain to the ASCII characterset)
‰ ID3 tag info – Song Title (“NO INFO”
will appear if there is no Song Title
available)
‰ ID3 tag info – Artist name (“NO INFO”
will appear if there is no Artist Name
available)
‰ ID3 tag info – Album name (“NO
INFO” will appear if will appear if there
is no Album Name available).
‰ Directory name
‰ Total no. of files on the USB device
9 The information will be visible on the
LCD-display for 5 seconds.
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 120

4 121
Features of your vehicle

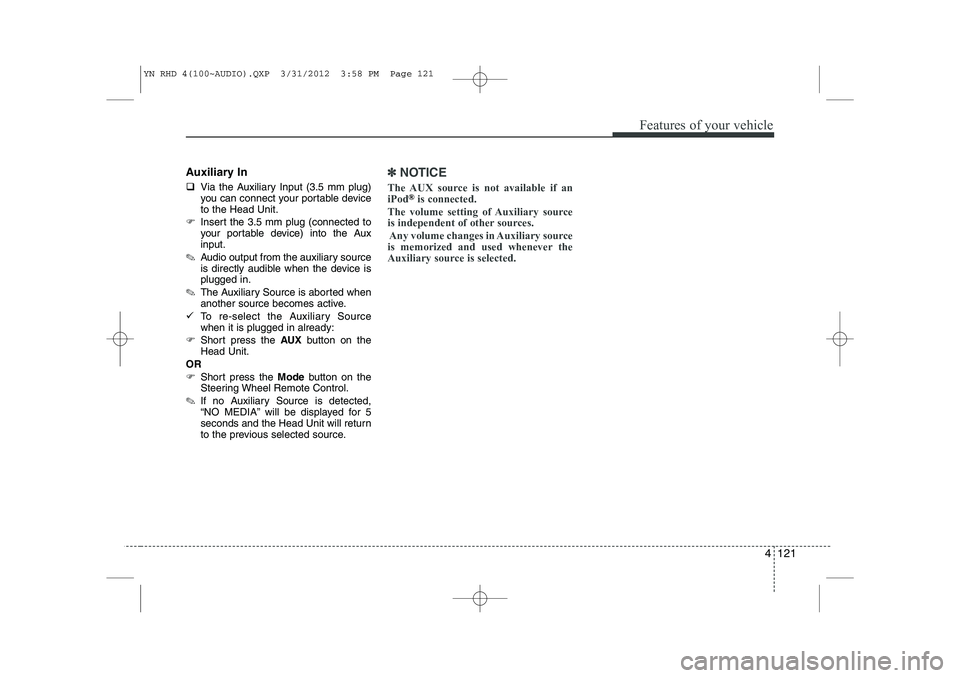

Auxiliary In ‰Via the Auxiliary Input (3.5 mm plug)
you can connect your portable deviceto the Head Unit.
) Insert the 3.5 mm plug (connected to
your portable device) into the Auxinput.
✎ Audio output from the auxiliary source
is directly audible when the device isplugged in.
✎ The Auxiliary Source is aborted when
another source becomes active.
9 To re-select the Auxiliary Sourcewhen it is plugged in already:
) Short press the AUXbutton on the
Head Unit.
OR
) Short press the Modebutton on the
Steering Wheel Remote Control.
✎ If no Auxiliary Source is detected,
“NO MEDIA” will be displayed for 5
seconds and the Head Unit will return
to the previous selected source.✽✽
NOTICE
The AUX source is not available if an iPod
®is connected.
The volume setting of Auxiliary source
is independent of other sources. Any volume changes in Auxiliary source
is memorized and used whenever the
Auxiliary source is selected.
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 121

Features of your vehicle
122
4

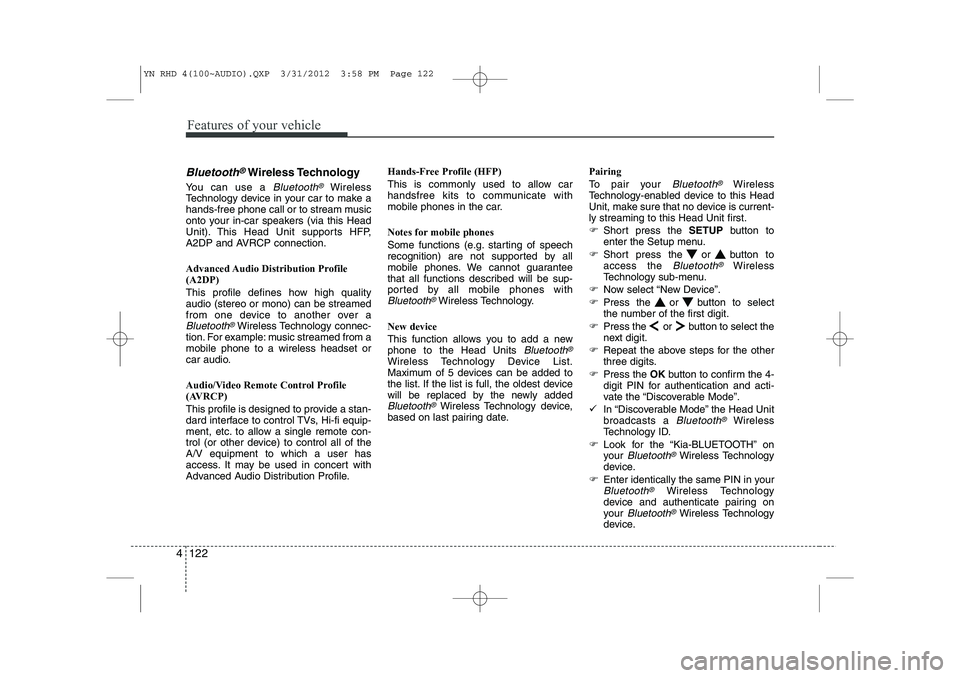

Bluetooth®Wireless Technology
You can use a
Bluetooth®Wireless
Technology device in your car to make a
hands-free phone call or to stream music
onto your in-car speakers (via this Head
Unit). This Head Unit supports HFP,
A2DP and AVRCP connection.
Advanced Audio Distribution Profile (A2DP)
This profile defines how high quality audio (stereo or mono) can be streamed
from one device to another over a
Bluetooth®Wireless Technology connec-
tion. For example: music streamed from amobile phone to a wireless headset or
car audio.
Audio/Video Remote Control Profile
(AVRCP)
This profile is designed to provide a stan-
dard interface to control TVs, Hi-fi equip-
ment, etc. to allow a single remote con-
trol (or other device) to control all of theA/V equipment to which a user has
access. It may be used in concert with
Advanced Audio Distribution Profile. Hands-Free Profile (HFP)
This is commonly used to allow car
handsfree kits to communicate with
mobile phones in the car.
Notes for mobile phones
Some functions (e.g. starting of speech
recognition) are not supported by all
mobile phones. We cannot guarantee
that all functions described will be sup-
ported by all mobile phones with
Bluetooth®Wireless Technology.
New device
This function allows you to add a new phone to the Head Units
Bluetooth®
Wireless Technology Device List.
Maximum of 5 devices can be added to
the list. If the list is full, the oldest device
will be replaced by the newly added
Bluetooth®Wireless Technology device,
based on last pairing date. Pairing
To pair your
Bluetooth®Wireless
Technology-enabled device to this Head
Unit, make sure that no device is current-ly streaming to this Head Unit first.
) Short press the SETUPbutton to
enter the Setup menu.
) Short press the or button to access the
Bluetooth®Wireless
Technology sub-menu.
) Now select “New Device”.
) Press the or button to select
the number of the first digit.
) Press the or button to select the
next digit.
) Repeat the above steps for the other
three digits.
) Press the OKbutton to confirm the 4-
digit PIN for authentication and acti-
vate the “Discoverable Mode”.
9 In “Discoverable Mode” the Head Unitbroadcasts a
Bluetooth®Wireless
Technology ID.
) Look for the “Kia-BLUETOOTH” on
your
Bluetooth®Wireless Technology
device.
) Enter identically the same PIN in your
Bluetooth®Wireless Technology
device and authenticate pairing on
your
Bluetooth®Wireless Technology
device.
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 122

4 123
Features of your vehicle
9When pairing is established, the ID of the Bluetooth®Wireless Technology
device and the service list info will bestored in the Head Unit
Bluetooth®
Wireless Technology Device List.
Device List
With this function you can browse through and select
Bluetooth®Wireless
Technology devices that are stored in theHead Unit
Bluetooth®Wireless
Technology Device List.
) Short press the SETUPbutton to enter
the Setup menu.
) Short press the or button to access the
Bluetooth®Wireless
Technology sub-menu.
) Press the button to browse the
Device List to select the required
device.
) Press the OKbutton to start pairing
between the selected device and theHead Unit.
✎ Note: Whenever there is at least one
connected device active, in the displaythe
Bluetooth®Wireless Technology
icon is visible. Delete Device
This function allows you to delete a
Bluetooth®Wireless Technology device
ID from the Head Unit Bluetooth®
Wireless Technology Device List.
) Short press the SETUPbutton to
enter the Setup menu.
) Short press the or button to access the
Bluetooth®Wireless
Technology sub-menu.
) Press the button to select Delete
Device.
) Press the OKbutton to delete the
selected device from the Head Unit
Bluetooth®Wireless Technology
Device List
Phone Volume
) Short press the SETUPbutton to
enter the Setup menu.
) Short press the or button to access the
Bluetooth®Wireless
Technology sub-menu.
) Select the option “Phone Volume”.
) Press the or button to decrease
or increase the phone volume setting.
‰ Default setting: 12
‰ Setting range: 0 ... 35
‰ During an ongoing call, user is
allowed to adjust the BT Phone vol-
ume. The adjusted volume is memo-
rized into Phone Volume setting. Answering a Call
)
Press the Callbutton on the Steering
Wheel Remote Control to accept an incoming call.
Terminate / Reject Call
) Press the End Callbutton on the
Steering Wheel Remote Control to
terminate or reject a call.
Last Call Re-dial
) Short press the Callbutton on the
Steering Wheel Remote Control to re-
dial last dialled number (one attempt).
) Long press the Callbutton on the
Steering Wheel Remote Control to re-
dial last dialled number (twoattempts).
Private Call
This function allows you to have a private
call even if the phone is connected to theHead Unit.
) Press the Callbutton on your phone
to start a private call.
OR
) Press the End Callbutton on your
phone to end a private call.
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 123

Features of your vehicle
124
4

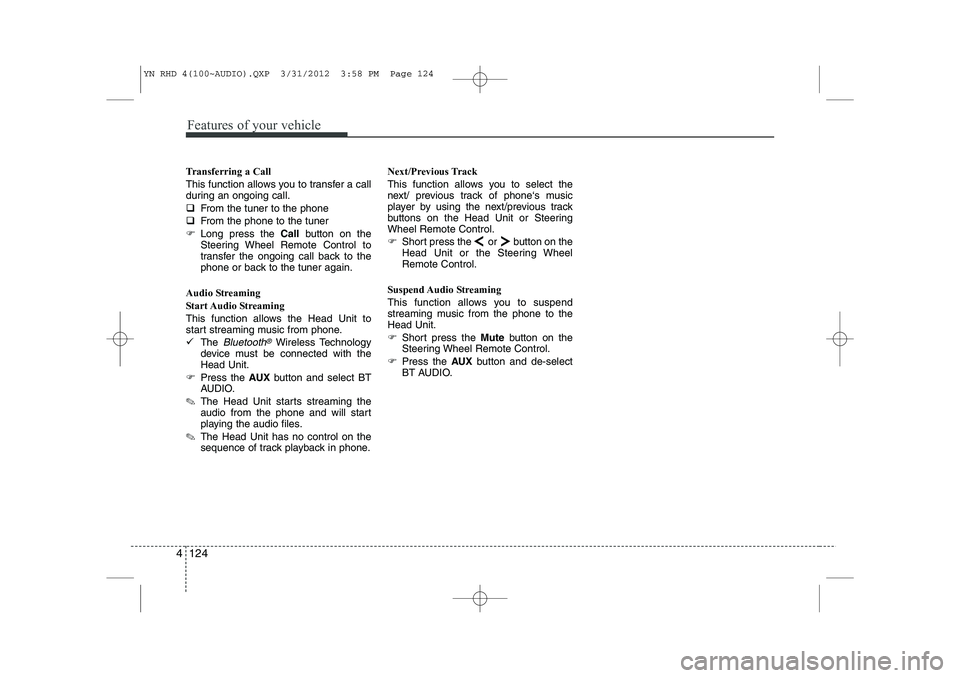

Transferring a Call
This function allows you to transfer a call
during an ongoing call. ‰ From the tuner to the phone
‰ From the phone to the tuner
) Long press the Callbutton on the
Steering Wheel Remote Control to
transfer the ongoing call back to the
phone or back to the tuner again.
Audio Streaming
Start Audio Streaming
This function allows the Head Unit to
start streaming music from phone.
9 The
Bluetooth®Wireless Technology
device must be connected with the Head Unit.
) Press the AUXbutton and select BT
AUDIO.
✎ The Head Unit starts streaming the
audio from the phone and will start
playing the audio files.
✎ The Head Unit has no control on the
sequence of track playback in phone. Next/Previous Track
This function allows you to select the
next/ previous track of phone‘s music
player by using the next/previous track
buttons on the Head Unit or SteeringWheel Remote Control.
)
Short press the or button on the
Head Unit or the Steering WheelRemote Control.
Suspend Audio Streaming
This function allows you to suspend
streaming music from the phone to theHead Unit.
) Short press the Mutebutton on the
Steering Wheel Remote Control.
) Press the AUXbutton and de-select
BT AUDIO.
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 124

4 125
Features of your vehicle

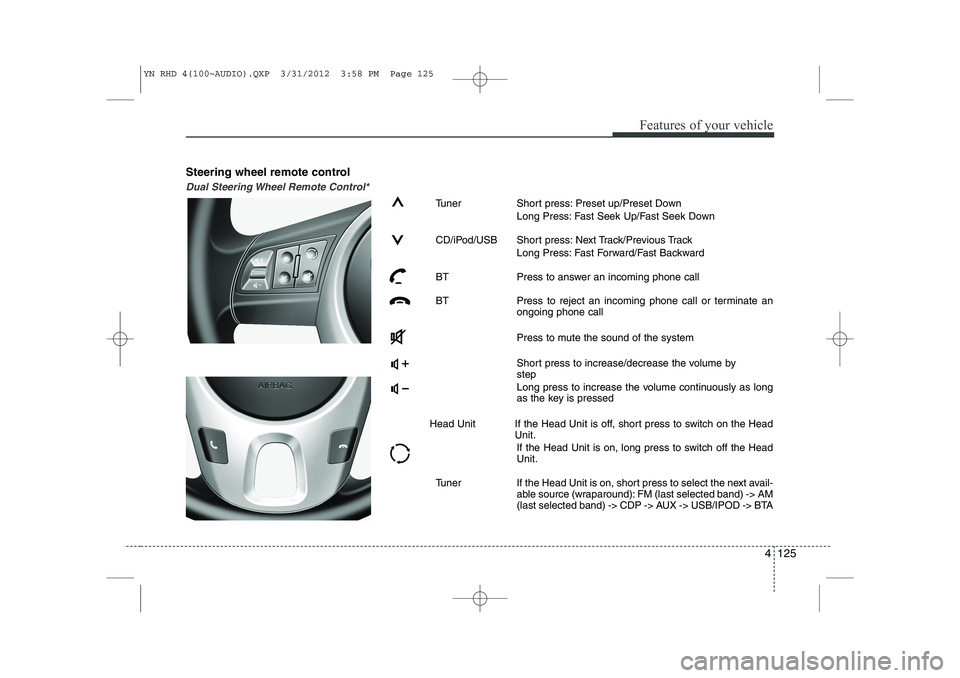

Steering wheel remote control
Dual Steering Wheel Remote Control*
Tuner Short press: Preset up/Preset DownLong Press: Fast Seek Up/Fast Seek Down
CD/iPod/USB Short press: Next Track/Previous Track Long Press: Fast Forward/Fast Backward
BT Press to answer an incoming phone call
BT Press to reject an incoming phone call or terminate an ongoing phone call
Press to mute the sound of the system
Short press to increase/decrease the volume by step
Long press to increase the volume continuously as long
as the key is pressed
Head Unit If the Head Unit is off, short press to switch on the Head Unit.
If the Head Unit is on, long press to switch off the HeadUnit.
Tuner If the Head Unit is on, short press to select the next avail- able source (wraparound): FM (last selected band) -> AM
(last selected band) -> CDP -> AUX -> USB/IPOD -> BTA
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 125

Features of your vehicle
126
4
Single Steering Wheel Remote Control*
Tuner Short press: Preset up/Preset Down
Long Press: Fast Seek Up/Fast Seek Down
CD/iPod/USB Short press: Next Track/Previous Track Long Press: Fast Forward/Fast Backward
Short press to increase/decrease the volume by 1 step
Long press to increase the volume continuously as long
as the key is pressed
Head Unit If the Head Unit is off, short press to switch on the Head Unit.
If the Head Unit is on, long press to switch off the Head Unit.
Tuner If the Head Unit is on, short press to select the next avail- able source (wraparound): FM (last selected band) -> AM
(last selected band) -> CDP -> AUX -> USB/IPOD -> BTA
Press to mute the sound of the system
Note: To enable the following functions to be controlled by the steering wheel keys,
ensure there is CD inserted and USB/iPod/AUX is connected.
* Only when the car is equipped with a Steering Wheel Remote Control
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 126

4 127
Features of your vehicle

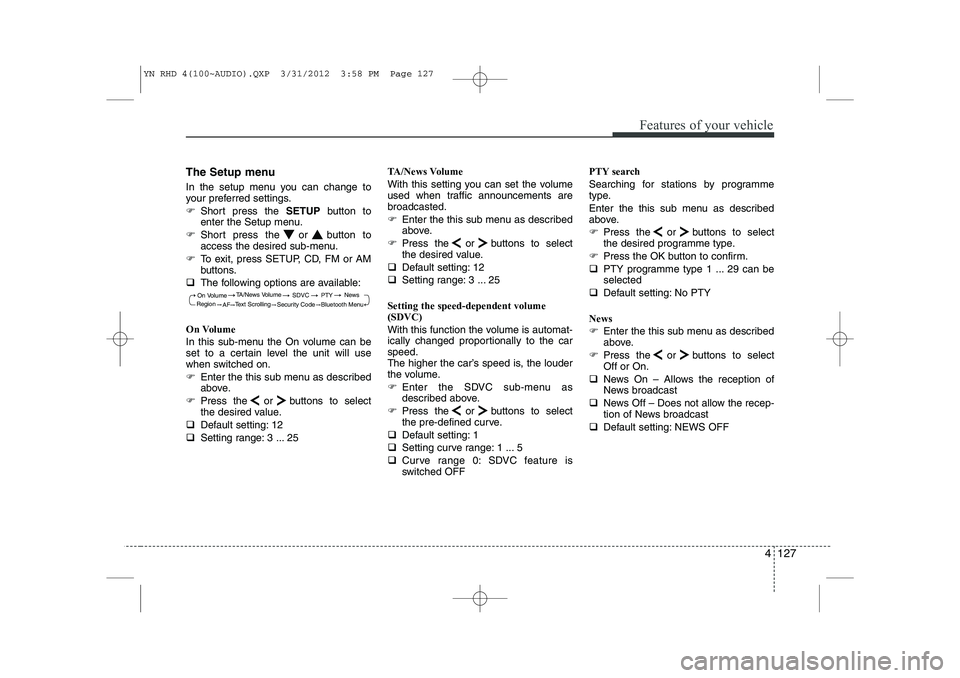

The Setup menu
In the setup menu you can change to
your preferred settings.
)Short press the SETUPbutton to
enter the Setup menu.
) Short press the or button to
access the desired sub-menu.
) To exit, press SETUP, CD, FM or AM
buttons.
‰ The following options are available:
On Volume
In this sub-menu the On volume can be
set to a certain level the unit will use
when switched on.
) Enter the this sub menu as described
above.
) Press the or buttons to select
the desired value.
‰ Default setting: 12
‰ Setting range: 3 ... 25 TA/News Volume
With this setting you can set the volume
used when traffic announcements arebroadcasted.
)
Enter the this sub menu as described
above.
) Press the or buttons to select
the desired value.
‰ Default setting: 12
‰ Setting range: 3 ... 25
Setting the speed-dependent volume(SDVC)
With this function the volume is automat-
ically changed proportionally to the carspeed.
The higher the car’s speed is, the louder
the volume.
) Enter the SDVC sub-menu as
described above.
) Press the or buttons to select
the pre-defined curve.
‰ Default setting: 1
‰ Setting curve range: 1 ... 5
‰ Curve range 0: SDVC feature is
switched OFF PTY search
Searching for stations by programme
type.
Enter the this sub menu as described
above.
)
Press the or buttons to select
the desired programme type.
) Press the OK button to confirm.
‰ PTY programme type 1 ... 29 can beselected
‰ Default setting: No PTY
News
) Enter the this sub menu as described
above.
) Press the or buttons to selectOff or On.
‰ News On – Allows the reception of
News broadcast
‰ News Off – Does not allow the recep-
tion of News broadcast
‰ Default setting: NEWS OFF
On Volume
Text Scrolling SDVC
Region TA/News Volume
News
AF Security Code
Bluetooth Menu
PTY
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 127

Features of your vehicle
128
4

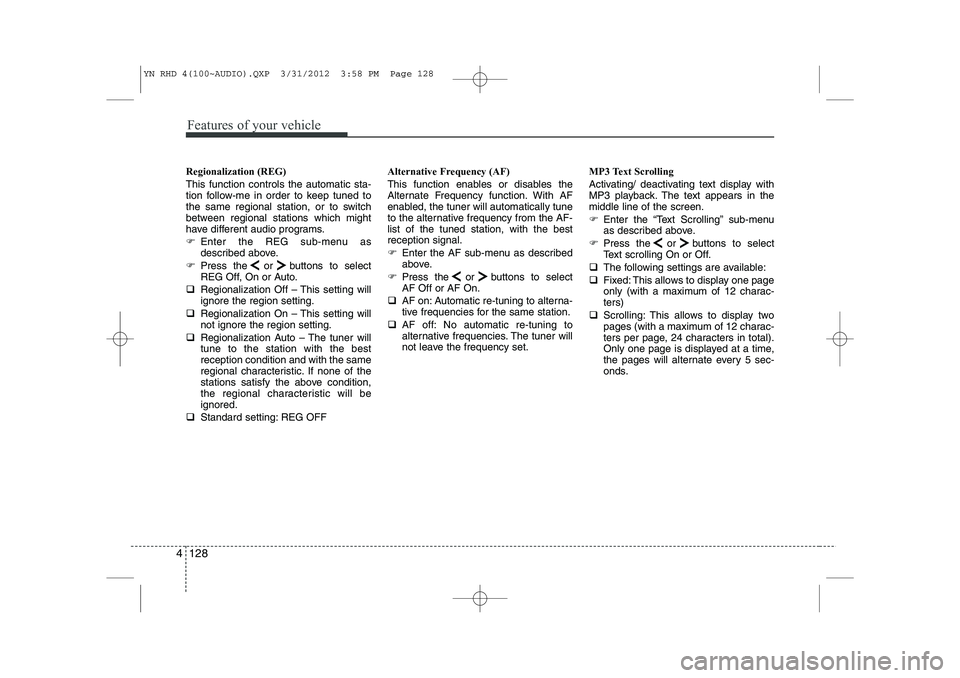

Regionalization (REG) This function controls the automatic sta-
tion follow-me in order to keep tuned to
the same regional station, or to switch
between regional stations which might
have different audio programs.
) Enter the REG sub-menu as
described above.
) Press the or buttons to select
REG Off, On or Auto.
‰ Regionalization Off – This setting willignore the region setting.
‰ Regionalization On – This setting willnot ignore the region setting.
‰ Regionalization Auto – The tuner willtune to the station with the bestreception condition and with the same
regional characteristic. If none of the
stations satisfy the above condition,
the regional characteristic will beignored.
‰ Standard setting: REG OFF Alternative Frequency (AF)
This function enables or disables the
Alternate Frequency function. With AF
enabled, the tuner will automatically tune
to the alternative frequency from the AF-list of the tuned station, with the bestreception signal.
)
Enter the AF sub-menu as described
above.
) Press the or buttons to selectAF Off or AF On.
‰ AF on: Automatic re-tuning to alterna-
tive frequencies for the same station.
‰ AF off: No automatic re-tuning to
alternative frequencies. The tuner will
not leave the frequency set. MP3 Text Scrolling
Activating/ deactivating text display with
MP3 playback. The text appears in themiddle line of the screen.
)
Enter the “Text Scrolling” sub-menu
as described above.
) Press the or buttons to select
Text scrolling On or Off.
‰ The following settings are available:
‰ Fixed: This allows to display one page
only (with a maximum of 12 charac-ters)
‰ Scrolling: This allows to display two
pages (with a maximum of 12 charac-
ters per page, 24 characters in total).
Only one page is displayed at a time,
the pages will alternate every 5 sec-
onds.
YN RHD 4(100~AUDIO).QXP 3/31/2012 3:58 PM Page 128
