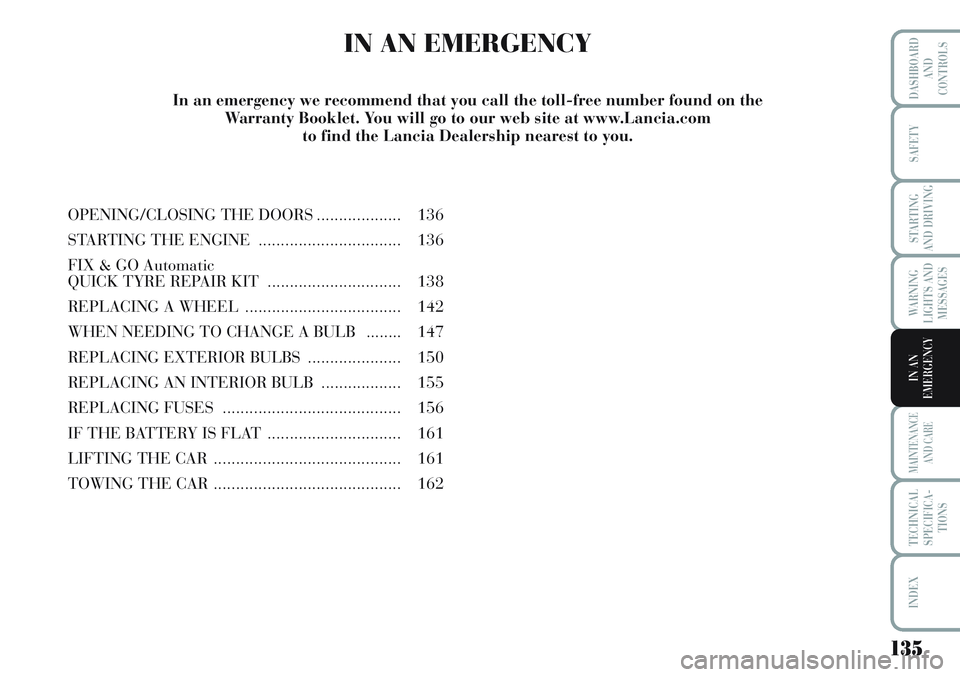

OPENING/CLOSING THE DOORS................... 136
STARTING THE ENGINE................................ 136
FIX & GO Automatic
QUICK TYRE REPAIR KIT .............................. 138
REPLACING A WHEEL ................................... 142
WHEN NEEDING TO CHANGE A BULB ........ 147
REPLACING EXTERIOR BULBS ..................... 150
REPLACING AN INTERIOR BULB .................. 155
REPLACING FUSES ........................................ 156
IF THE BATTERY IS FLAT .............................. 161
LIFTING THE CAR.......................................... 161
TOWING THE CAR.......................................... 162 In an emergency we recommend that you call the toll-free number found on the
Warranty Booklet. You will go to our web site at www.Lancia.com
to find the Lancia Dealership nearest to you.

156
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
BOOT LIGHT fig. 34
To change the bulb, proceed as fol-
lows:
❒open the tailgate;
❒remove the light Alevering in the
point shown by the arrow.
❒open the protection Band replace
the snap-fitted bulb;
❒re-close the protective cover Bon
the lens;
❒refit the light Ainserting it in its
correct position firstly on one end
and then on the other until it
clicks into place.
fig. 34L0D0197m
REPLACING FUSES
INTRODUCTION fig. 35
The fuse is a protective device for the
electric system: it comes into action
(i.e. it cuts off) mainly due to a fault
or improper action on the system.
Check the efficiency of the corre-
sponding fuse when a device does not
work: the conducting element Amust
not be interrupted. If it is, replace the
blown fuse with another with the
same amperage (same colour).
B: intact fuse
C: fuse with damaged filament.
Use the tongs Din the fusebox on the
dashboard to change a fuse.
fig. 35L0D0198m
If a fuse blows again, con-
tact a Lancia Dealership.
WARNING
Never replace a fuse with
another of higher amper-
age: FIRE RISK.
If a general protection fuse
(MEGA-FUSE, MIDI-
FUSE, MAXI-FUSE) blows, con-
tact your Lancia Dealership
WARNING
Remove the key from the
ignition switch and switch
off all loads before replacing a
fuse.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power
unit systems (engine system, trans-
mission system) or steering system
is triggered, contact a Lancia
Dealership.
WARNING

157
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
FUSE LOCATION
The fuses are contained in two dash-
boards, one on the dashboard on the
left hand of the steering column and
one in the engine compartment next
to the battery.
Dashboard fusebox fig. 37
To access the dashboard fusebox, loosen
the fastening screws A-fig. 36and then
remove the protection panel B.
L0D0200m
fig. 36L0D0424m
fig. 37

158
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
Fusebox next to the battery
fig. 39
To gain access to the fuses in the fuse-
box next to the battery, remove the
protection cover B-fig. 38.
L0D0409m
fig. 38L0D0201m
fig. 39
If you need to wash the en-
gine compartment, take
care not to directly hit the
engine compartment control
unit with the water jet.
