GENERAL NOTES
Do not apply stickers or
other objects to the steer-
ing wheel, to the passen-
ger's airbag cover or to the roof
side cover. Do not place objects
(like mobile phones) on the dash-
board on passenger side since
they could interfere with proper
passenger's airbag deployment
and cause severe injuries.
If the ¬warning light
does not turn on when
turning the ignition key to
MAR or if it stays on when travel-
ling (together with message on dis-
play), this could indicate a failure
in safety retaining systems; under
this condition air bags or preten-
sioners could not trigger in the
event of collision or, in a restricted
number of cases, they could trig-
ger accidentally. Stop the car and
contact Lancia Dealership to have
the system checked immediately.
Do not cover the back
rest of front and rear seats
with trims or covers there
are not set for the use of side bags.
Do not travel with
objects on your lap or in
front of you nor with a
pipe, pencil or similar between
your lips. You could seriously
hurt yourself if the airbag inflates
in a collision.
Always drive with both
hands on the rim of the
steering wheel so that the
airbag is free to inflate during a
head-on collision and protect you
from serious injury. Do not drive
with your body bending towards
the steering wheel, but sit in an
upright position with your back
resting against the seat.If an attempt has been
made to steal the car, or if
it has actually been stolen
or has been vandalised in anyway
or subjected to flooding, have the
airbag system checked over at a
Lancia Dealership.
It is important to
remember that the airbag
can be fired even when
the car is stationary if it is hit by
another vehicle travelling at suit-
able speed. As a consequence,
never sit children in the front
seat, even if the car is not moving.
On the contrary, the airbags will
not be fired if the car is crashed
into when the key is not inserted
or turned. Consequently, in this
case, the fact that the system is
not fired does not indicate a fault.

256
Make sure that any mats
are appropriate in size:
any hindrance, even
slight, to the braking system may
require a higher pedal stroke
than normal.
Water, ice and salt on
the road may deposit on
brake disks, reducing
braking efficiency the first time
they are used.Driving while drunk or
under the influence of
drugs or certain medi-
cines is dangerous both for you
and other road users.
Always fasten both front
and back seat belts,
including child restraint
systems if there are children trav-
elling with you. Travelling with
seat belts unfastened increases
the risk of injury or death if you
are involved in a collision. Take care when fitting
additional spoilers, alloy
rims and wheel caps: they
might reduce ventilation of the
brakes, thus their efficiency dur-
ing abrupt braking or long down-
hill slopes.
Never drive with objects
on the floor in front of the
driver’s seat: they might
get stuck under the pedals mak-
ing it impossible to accelerate or
brake.

274
Signal the presence of
the stopped car according
to the laws in force: haz-
ard lights, reflecting triangle, etc.
Passengers should get out of the
car and stay clear from oncoming
traffic while the wheel is being
changed.
IF A TYRE
IS PUNCTURED
Follow the instructions on this and
the following pages to use the jack
and the spare wheel correctly.If the wheel is being
changed on a steep or
badly surfaced road,
place wedges or other suitable
material under the wheels to stop
the car from moving.
Have the punctured tyre
repaired and fitted back as soon
as possible. Do not lubricate the
bolt threads before fitting them
back: they could come loose.
Wheel bolts are specific
for the type of rim (alloy
or steel) fitted. Never use,
also if in an emergency, wheel
bolts for another type of rim.
When changing rims (alloy rims
instead of steel ones or vice
versa), also the whole wheel bolt
set shall be changed with other
bolts specific for the new type of
rim adopted.The jack should only be
used to change a wheel on
the car for which it was
designed. It should not be put to
other uses or employed to raise
other models of car. Under no
circumstances should it be used
when carrying out repairs under
the car.
An incorrectly positioned jack
may cause the car to fall.
Do not use the jack to lift loads
exceeding those indicated on the
label attached to the jack itself.
The wheel cap may fly off when
the car is moving if it is not fas-
tened correctly. Never tamper
with the inflation valve. Do not
insert tools between the rim and
the tyre.
Check the tyre and spare wheel
pressure regularly. Tyre pressure
is shown in the “Technical
Specifications” chapter.

276
8) Unscrew manually the jack han-
dle A(fig. 7) and remove it from the
container B.9) Open the tool bag and take out
the tools to be used (fig. 8):
1 – tow ring
2 – flat/cross-head screwdriver
3 – ratchet wrench
4 – ratchet wrench bush
5 – wheel bolt (for versions with
alloy rims)
6 – tool for removing the hub cap
(for versions with alloy rims)
7 – bush for unscrewing/screwing
the wheel bolts by hand8 – wrench for power steering re-
servoir cap screws
9 – wrench for actuating the sun-
roof in an emergency (where fitted)
10) On versions with alloy rims,
remove the press-fit wheel hub cap
A(fig. 9), pulling it by tool Bfitted
into C. On versions with steel rims,
remove the press-fit wheel cap A
(fig. 10).
fig. 8
L0A0326b
fig. 7
L0A0038b
fig. 9
L0A0327b
fig. 10
L0A0367b

279
19) On versions with alloy rims, to
make the wheel fitting easier, screw
the pin A(fig. 16), provided in the
tool kit, to the hub and then place
the wheel and tighten up the four
bolts in the free holes. Finally,
unscrew pin Aand screw the last
bolt.
On versions with steel rims, fit the
wheel making pin A(fig. 17) coin-
cide with one of the holes B.
IMPORTANTTo make bolt tight-
ening easier, use the proper bolt
bush A(fig. 15).Wheel bolts are specific
for the type of rim (alloy
or steel) fitted. Never use,
also if in an emergency, wheel
bolts for another type of rim.
When changing rims (alloy rims
instead of steel ones or vice
versa), also the whole wheel bolt
set shall be changed with other
bolts specific for the new type of
rim adopted.20) Lower the car and remove the
jack (fig. 18).
fig. 16
L0A0043b
fig. 17
L0A0366b
fig. 18
L0A0044b

280
Bolt tightening torque
must be 98 Nm (10 kgm).
After replacing the
wheel, you are advised to have
the wheel bolt tightening checked
at a Lancia Dealership as soon as
possible.
Insufficient tightening could
actually make the wheel bolts
loosen too much, with clearly
dangerous consequences. If the
bolts are tightened too much, they
could be damaged and their
resistance might be compro-
mised.23) Place the removed wheel, the
jack and the tools in the boot and
fasten appropriately.
IMPORTANTPut the jack back
into B(fig. 8) and clamp it by
screwing handle A(fig. 8) manually
in order to prevent vibrations during
travelling.
fig. 19
L0A0045b
fig. 20
L0A0365b
fig. 21
L0A0368b
21) Tighten up the wheel bolts in a
criss-cross fashion, following the
sequence shown:
- fig. 19= versions with alloy rims
- fig. 20= versions with steel rims.
22) On versions with alloy rims,
refit the wheel hub cap pressing it
slightly. On versions with steel rims,
approach the wheel cap making the
inflating valve A(fig. 21) coincide
with flaring B. Press the cap circum-
ference starting near the inflating
valve and proceeding until fitting
the cap completely.
IMPORTANTThe wheel hub cap
(alloy rims) or the wheel cap (steel
rims) may fly off when the car is
moving if it is not fastened correctly.

354
2.4
7Jx16 H2-39
215/60 R16 (95W)
215/60 ZR16 (95W)
7Jx17 H2-41
225/50 R17 (94W)
225/50 ZR17 (94W)
215/60 R16 (95H) M+S
2.0 TB
7Jx16 H2-39
215/60 R16 (95W)
215/60 ZR16 (95W)
7Jx17 H2-41
225/50 R17 (94W)
225/50 ZR17 (94W)
215/60 R16 (95H) M+S
2.4 CAE
7Jx16 H2-39
215/60 R16 (95W)
215/60 ZR16 (95W)
7Jx17 H2-41
225/50 R17 (94W)
225/50 ZR17 (94W)
215/60 R16 (95H) M+S
2.0 TB
2.3
2.32.4
2.3
2.32.4 CAE
2.3
2.3

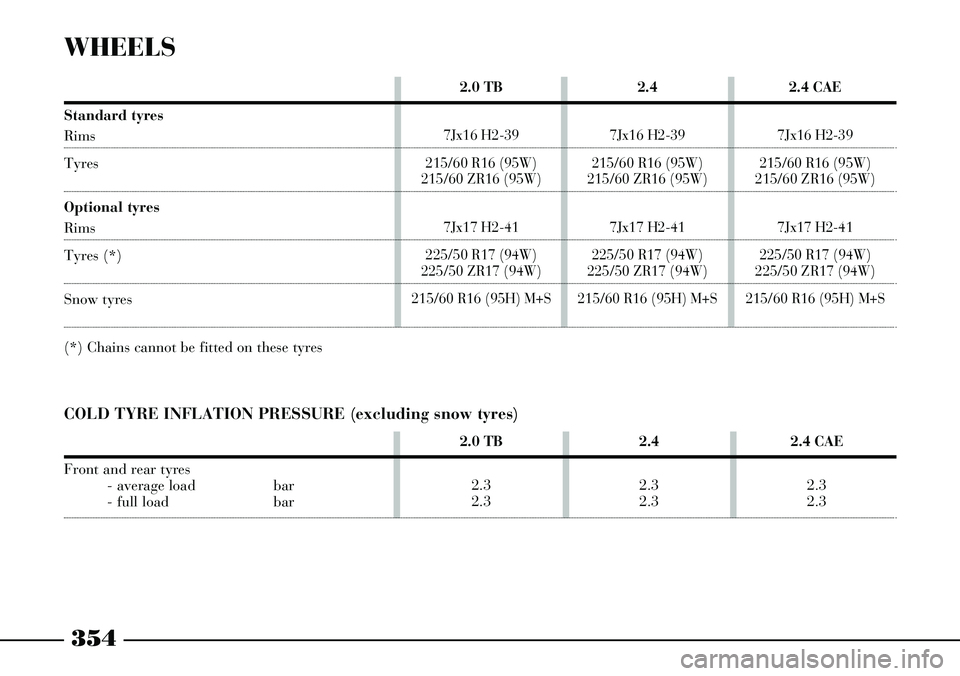

WHEELS
Standard tyres
Rims
Tyres
Optional tyres
Rims
Tyres (*)
Snow tyres
(*) Chains cannot be fitted on these tyres
COLD TYRE INFLATION PRESSURE (excluding snow tyres)
Front and rear tyres
- average load bar
- full load bar

355

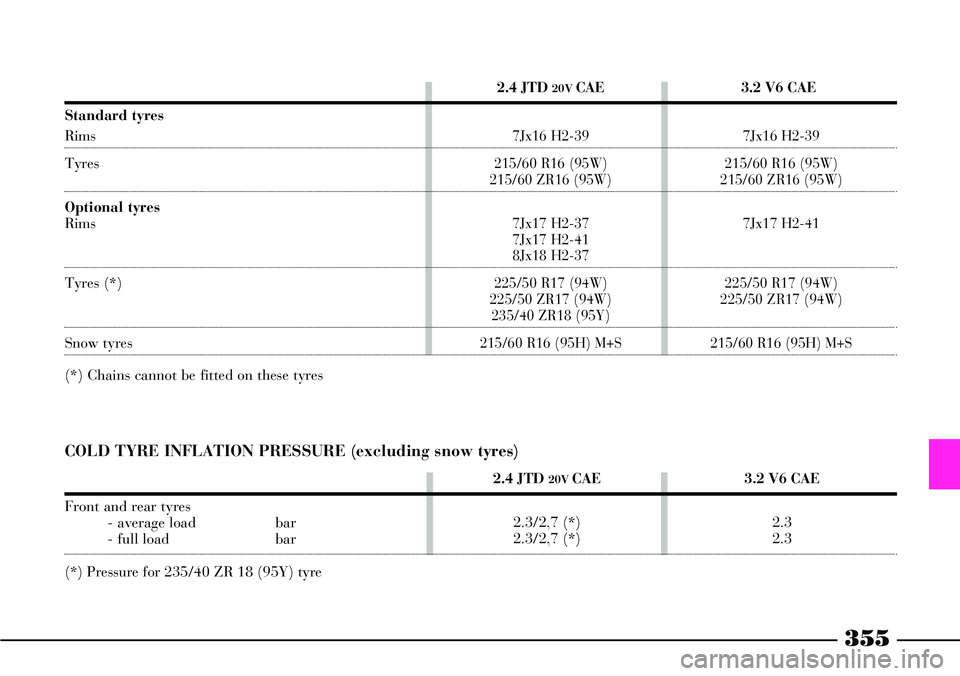

3.2 V6 CAE
2.3
2.3 2.4 JTD 20V CAE
2.3/2,7 (*)
2.3/2,7 (*)
2.4 JTD 20V CAE 3.2 V6 CAE
Standard tyres
Rims7Jx16 H2-39 7Jx16 H2-39
Tyres215/60 R16 (95W) 215/60 R16 (95W)215/60 ZR16 (95W) 215/60 ZR16 (95W)
Optional tyres
Rims7Jx17 H2-37 7Jx17 H2-41
7Jx17 H2-41
8Jx18 H2-37
Tyres (*)225/50 R17 (94W) 225/50 R17 (94W)
225/50 ZR17 (94W) 225/50 ZR17 (94W)
235/40 ZR18 (95Y)
Snow tyres215/60 R16 (95H) M+S 215/60 R16 (95H) M+S
(*) Chains cannot be fitted on these tyres
COLD TYRE INFLATION PRESSURE (excluding snow tyres)
Front and rear tyres
- average load bar
- full load bar
(*) Pressure for 235/40 ZR 18 (95Y) tyre

356
RIMS AND TYRES
Alloy rims or steel.
Tubeless tyres with radial carcass.
The homologated tyres are listed in
the log book.
IMPORTANTIn the event of dis-
crepancies between information
given in the Owner Handbook and
that shown in the Log Book, refer to
the latter one.
To ensure safety of the car in
movement, it must be fitted with
tyres of specified size and of the
same make and type on all wheels.
IMPORTANTDo not use inner
tubes with tubeless tyres. CORRECT TYRE READING
Below, please find the instructions
needed to understand the meaning
of the code stamped on the tyre, as
shown in fig. 6.
The code may be in one of the ways
given in the example.
Example:
225/50 R 17 94 W
or
225/50 ZR 17 94W
fig. 6
L0A0257b
225= Nominal width (S, distance
in mm between sides)
50= Percentage height/width
ratio (H/S)
R= Radial tyre
ZR= Radial tyre, with speed over
240 km/h
17= Rim diameter in inches (Ø)
94= Load index (capacity)
W= Maximum speed index.

377
- Comfort Seats ................... 68
- head restraints .................. 66
- heating ............................. 67
Rearview mirror lights ............ 214
Rearview mirrors
- external ............................ 72
- internal ............................. 71
Recognition system
(Keyless System) ................. 44
- Autoclose function ............ 51
- bonnet opening ................. 50
- central locking/opening
of windows and sunroof ..... 52
- CID device ........................ 44
- CID device battery
replacement ....................... 54
- door unlocking to
access car........................... 49
- knob for activating
instrument panel and
engine start-up .................. 47- locking the door and
leaving the car ................... 50
- failure indication .............. 53
- “Garage” position
(emergency actuation) ...... 46
- locking the door and
leaving the car ................... 50
- ministerial homologation .. 53
- request for additional CID
devices .............................. 53
- system settings .................. 52
Remote control (CONNECT) .. 19
Rev counter ............................ 107
Reverse lights
- bulb replacement .............. 286
Rims ....................................... 354
- correct rim reading ............ 357
- important ......................... 356
Roof rack/ski rack................... 240
- anchorage points................ 240
Rubber tubing
(maintenance) ..................... 333Safe driving ........................... 255
- before getting behind the
wheel ................................... 255
- driving at night .................. 257
- driving in the fog ............... 258
- driving in the mountains .... 258
- driving in the rain .............. 257
- driving on snow and ice ..... 259
- driving with ABS ................ 259
- when travelling .................. 255
Seat belts
- front seat belt height
adjustment .......................... 77
- general instructions ............ 79
- how to keep seat belts
in proper working order ...... 80
- load limiting devices ........... 79
- pretensioners ...................... 78
- use ...................................... 76
Side/taillights
- control ................................ 97
