273
7) Start the engine.
8) When the engine has started,
remove the leads in the reverse order
to before: D,C,Band finally A.
IMPORTANTIf the engine fails to
start after a few attempts, do not keep
turning the key but have the car seen
to at aLancia Dealership.
9) Put the cover back on the bat-
tery positive terminal by fitting the
lock flanges in.
10) Put the cover back and retight-
en the knob.
11) Close the boot tailgate.IMPORTANTWhen the tailgate is
closed, the boot latch is not locked.
To lock it, turn the metal insert of
the key anticlockwise in the latch.
Do not carry out this
procedure if you lack
experience: if it is not
done correctly it can cause very
intense electrical discharges and
the battery might even explode.
Do not to put naked flames or
lighted cigarettes near the battery
and do not cause sparks: risk of
explosion and fire.
Never use a battery
charger to jump start the
engine: you could damage
the electronic system, with spe-
cial reference to ignition and
injection control unit.
BUMP STARTING
Do not bump start by pushing,
towing or coasting downhill. This
way of starting could cause a rush of
fuel into the catalytic converter and
damage it beyond repair.
Remember that ifthe engine is not
running, the brake booster and the
power steering will not work. You
therefore have to use considerably
more effort on both the brake pedal
and the steering wheel.
Never connect the nega-
tive terminals of the two
batteries directly: sparks
could ignite the flammable gas
from the battery. If the auxiliary
battery is installed on another
car, prevent accidental contact
between the metal parts of the
two vehicles.
286

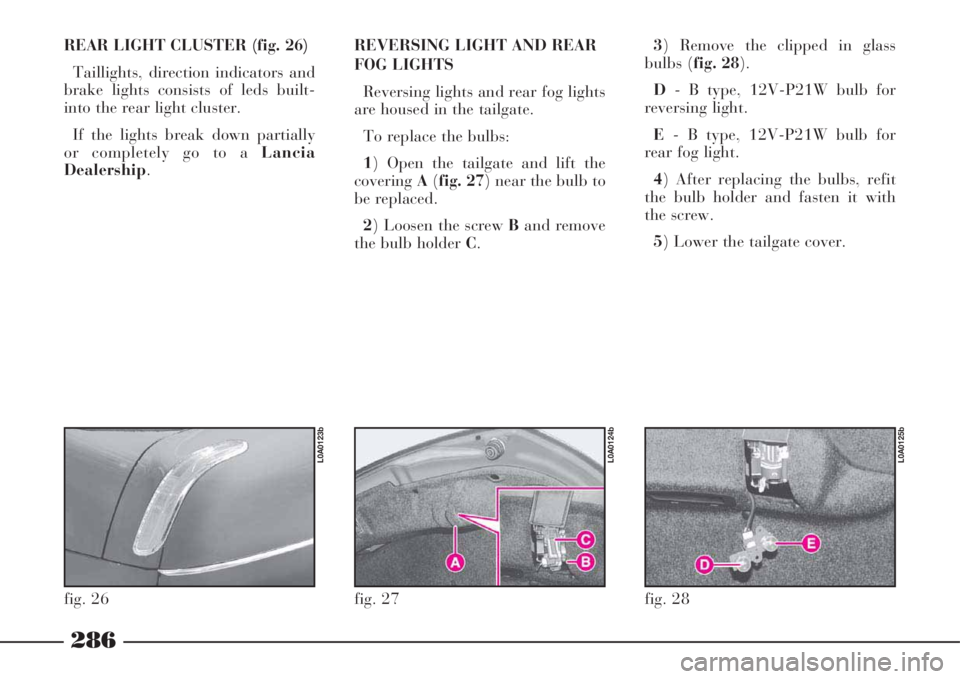

REAR LIGHT CLUSTER (fig. 26)
Taillights, direction indicators and
brake lights consists of leds built-
into the rear light cluster.
If the lights break down partially
or completely go to a Lancia
Dealership.REVERSING LIGHT AND REAR
FOG LIGHTS
Reversing lights and rear fog lights
are housed in the tailgate.
To replace the bulbs:
1) Open the tailgate and lift the
coveringA(fig. 27) near the bulb to
be replaced.
2) Loosen the screw Band remove
the bulb holder C.3) Remove the clipped in glass
bulbs (fig. 28).
D- B type, 12V-P21W bulb for
reversing light.
E- B type, 12V-P21W bulb for
rear fog light.
4) After replacing the bulbs, refit
the bulb holder and fasten it with
the screw.
5) Lower the tailgate cover.
fig. 26
L0A0123b
fig. 27
L0A0124b
fig. 28
L0A0125b
293
FUSE LOCATION
The main fuses of THESIS are con-
tained into four fuse boxes, to be
found on the left side of the dash-
board, in the engine compartment,
on the battery and in the right side
compartment of the boot.
GENERAL FUSES
(MIDI-FUSE and MEGA-FUSE)
The car is fitted with a set of gen-
eral fuses (MIDI-FUSE and MEGA-
FUSE) which separately protect the
various electrical system functions in
addition to the individual device
fuses.
The general fuses are located in the
left side of the boot in a fusebox direct-
ly connected to the positive battery
terminal.To reach the fuses:
1) Open the tailgate.
2) Loosen knob A(fig. 68) and
remove the battery cover B.
3) Press tabs A(fig. 69) and
remove the cover B.The systems and devices protected
by the general fuses (fig. 70) are
listed on the following pages.
fig. 68
L0A0030b
fig. 69
L0A0031b
fig. 70
L0A0142b
