Lancia Thesis 2009 Owner handbook (in English)

170
CONTROLS
HAZARD LIGHTS (fig. 124)
These come on when switch Ais
pressed, regardless of the position of
the ignition key.
When these lights are on, the switch
and the direction indicator warning
lights on the instrument panel flash.
Press the switch again to turn the
lights off.
IMPORTANTThe use of hazard
lights is governed by the traffic regu-
lations of the country where the car is
being driven. These laws should be
complied with.
fig. 124
L0A0103b
Maximum heat power
Reduced heat power
Rated voltage
Operating current
Idle current
Operating voltage
Operating temperature
Fuel consumption
Weight
Noiseabout 5 kW
about 2,5 kW
12 V
45W to 13.5V; 34W to 12V
1mA (5mA with radio receiver)
10,25V ± 0,25V ÷ 15,50V ± 0,25V
- 40º C ± 2K to 70º C ± 2K
with reduced power 0,25 Kg/h
with maximum power 0,5 Kg/h
2,9 Kg
51 db.
TECHNICAL SPECIFICATIONS

171
FRONT FOG LIGHTS (fig. 125)
(where provided)
Press button Ato switch the fog
lights5on (when the outside lights
are on).
When front fog lights are on, the
warning light 5 on the instrument
panel turns on.
When driving, if side lights are
turned off while front fog lights are
on, the fog lights turn off as well and
will be lighted up again after side
lights have been turned on again.
The fog lights will be automatically
switched off when the ignition key is
turned to STOPand will not come on
again when the engine is started un-
less button Ais pressed.Press again button Ato switch the
lights off.
IMPORTANTThe use of front fog
lights is governed by the Highway
code. The front fog light system com-
plies with EEC/ECE standards.
REAR fog lights (fig. 126)
These lights are switched on by
pressing button A, when the dipped
beam headlights and/or front fog
lights are on.
When rear fog lights 4are turned
on, panel warning light 4 will come
on.
fig. 125
L0A0200b
fig. 126
L0A0201b
The rear fog lights will automatically
be switched off when the engine is
stopped or when switching off the
dipped beam headlights or the front
fog lights. Press the button again to
switch the lights on after starting the
engine again or switching on the
dipped headlights or the front fog
lights.
IMPORTANTThe rear fog lights
may annoy the drivers following you
when visibility is good.Conse-
quently, use the light only when re-
quired.
IMPORTANTFollow the local pre-
scriptions governing the use of rear
fog lights. The rear fog light system
complies with EEC/ECE standards.

172
INSTRUMENT
DIMMER (fig. 127)
Turn ring Aupwards or downwards
when the outside lights are on to re-
spectively decrease or increase instru-
ment brightness.HEATED REAR WINDOW
(fig. 128)
Press button Ato switch the heated
rear window on/off. The led on the
button will come on.
The heated rear window will be au-
tomatically switched off after about
20 minutes.
The electrical rearview mirror
demister will also be switched on au-
tomatically.
fig. 127
L0A0202b
fig. 128
L0A0198b
FUEL CUT-OFF SWITCH AND
CIRCUIT BREAKER
The car is fitted with two safety
switches that come into operation in
the case of an accident to block fuel
supply and power, thereby stopping
the engine and the car electric utili-
ties. It also prevents fuel spilling if the
lines are broken in the accident or
sparks and flashover due to electric
component damages.
After the crash, remember to turn
the ignition key to STOPto prevent
the battery running down.

173
If, after an accident, you
can smell petrol or see
that the fuel feed system is
leaking, do not reset the switches
to avoid the risk of fire.Mechanical connections
of outside handles are
active only if the doors
are locked. In case the driver has
activated the central door locking
from the inside and, after an
accident, the inertial switch was
not able to activate the automatic
door unlocking as a result of bat-
tery loss or damage, it will not be
possible to reach the passenger
compartment from the outside.Anyway, door opening
from the outside depends
on their conditions after
the accident: if a door is distorted
it might be impossible to open it
even if it is unlocked. In this case
try to open the other car doors.
Before resetting the fuel
cut-off switch, carefully
check for any fuel leaks or
damages to the car electric devices
(e.g.: headlights).
fig. 129
L0A0273b
If, after an accident, you cannot see
any fuel leaks or damages to the car
electric devices (e.g.: headlights) and
the car is in a fit state to continue its
journey, reset the fuel cut-off switch
and the circuit breaker according to
the following instructions.
Door unlocking in case of
accident
In case of accident with activation of
the inertial switch as a consequence,
door locks are automatically unlocked
to let rescuers reach the passenger
compartment from the outside.Resetting the fuel cut-off switch
(fig. 129)
fig. 130
L0A0030b

174
Lift cover Aset at the driver's left
and press button Bto reset the fuel
cut-off switch.
Resetting the circuit breaker
Before resetting the cir-
cuit breaker, carefully
check for any fuel leaks or
damages to the car electric devices
(e.g.: headlights).Circuit breaker is located on the left
side of the boot, inside a box directly
set and connected to the battery pos-
itive terminal.
To reach the circuit breaker:
1) Open the tailgate.
2) Loosen knob A(fig. 130) and re-
move the battery cover B.
3) Press tabs A(fig. 131) and re-
move cover B.
4) Press button A(fig. 132) to reset
the circuit breaker.Initialising the control units of
the door locks, air conditioner
and ESP system
After resetting the circuit breaker, to
restore correct door locking, air con-
ditioning and ESP system, perform
the following operations:
1) Close the doors and the tailgate,
fit the key into the lock of one of the
front doors and perform a door cen-
tralised opening/closing cycle.
2) Start the engine and turn on the
compressor of the conditioner, setting
a lower temperature value than that
of the environment and check
whether the led on the disconnection
push button of the conditioner com-
pressoròis lit.
3) Turn the steering wheel one
fourth turn at least (the car can be at
standstill but the engine shall be run-
ning) and start running the car for a
few metres in a straight line until the
ESP warning light
áis off.
fig. 131
L0A0031b
fig. 132
L0A0347b

ELECTRIC PARKING BRAKE
(EPB) (fig. 133)
The car is fitted with the EPB
(Electric Parking Brake) that cuts in
when switching the engine off and
will cut out when starting the engine
and pressing the accelerator pedal
(for manual gearbox versions when
releasing the clutch pedal at the
same time). The EPB can also be
disengaged manually by pressing
buttonAset on the central console
with engine running or ignition key
toMAR.
After disengaging the EPB manual-
ly, when opening the driver’s door
the EPB will re-engage automatical-
ly, press button Aagain to disengage
it.The button shape is rather large so
the brake can be engaged rapidly,
even by the passenger, in case of
emergency.
The advantages of this system, com-
pared to the usual lever, are several:
– no effort should be made to
engage and disengage the parking
brake
– the parking brake efficiency is
always at top level in any using con-
dition, contrary to the lever which
guarantees the car complete stop only
when fully lifted
– the EPB is controlled by electric
wires, therefore all problems regard-
ing transmission cables, such as
adjustments, freezing or tears, no
longer exist
– improved safety as a result of the
sophisticated electronic control sys-
tem, similar to the ABS one, prevent-
ing wheels from blocking if the park-
ing brake is engaged during driving
– improved safety when the car is
stationary and children are left
inside the car; in this case the brake
cannot be disengaged if the ignition
key is at STOPor removed– it has automatic functions that
other systems lack.
When the parking brake is engaged
and the ignition key is at MAR, the
instrument panel warning light x
turns on.
This warning light turns on when
the parking brake reaches its highest
working level, and it turns off when
the brake is disengaged and com-
pletely released. Unlike usual park-
ing brakes, whose warning light
turns on even when the lever is lift-
ed a little bit, the EPB system warn-
ing light turns on only when the car
has come to a complete stop.
When the brake is engaged, a typi-
cal noise can be heard by the driver;
the parking brake is completely
engaged or disengaged when the
operating noise stops.
fig. 133
L0A0197b
When engaging the park-
ing brake keep the brake
pedal always depressed.
175

176
Automatic engagement
The parking brake is automatically
engaged whenever the engine is
turned off and afterwards it cannot
be disengaged even if button Ais
pressed. Only after turning the igni-
tion key to MARit is possible to dis-
engage the parking brake by press-
ing the same button.
The EPB will also engage automat-
ically when opening the driver’s door
with the engine running. In this way
the car is completely safe even when
the driver leaves it with the engine
running (to open the gate, the garage
etc.
The operation of the automatic
handbrake function procedure when
the engine stops or when the driver’s
side door is open, is disabled when
the car is running; should hence the
engine be stopped or the driver’s side
door be opened when the car is not at
a full standstill, to operate the hand-
brake, it is necessary to perform the
operation manually.Automatic disengagement
If a gear is engaged, the parking
brake is released automatically
when pressing the accelerator pedal
and (for manual transmission ver-
sions) releasing the clutch pedal at
the same time. The control unit with
built-in gradient sensor, will release
the brake gradually according to the
road slope, thus preventing jumping
or unrequired reverse movements.
This is very useful during uphill
starting: simply engage the parking
brake (if not previously engaged
automatically as described before)
and press the accelerator pedal
(releasing the clutch pedal at the
same time, for manual transmission
versions) without having to gradual-
ly release the lever as required with
traditional parking brakes.IMPORTANTIn certain cases, e.g.
the car is approaching an obstacle, it
could be necessary to disengage the
parking brake manually without
making use of the automatic func-
tion and to brake the car by the ser-
vice brake, as it is usually done on
cars equipped with the traditional
parking brake lever.
Deactivating the automatic
operation
When it is required to leave the car
parked with engine running and
parking brake on (e.g. in car wash
tunnels), press button Aafter open-
ing the driver’s door.
If it is necessary to deactivate the
parking brake automatic engage-
ment with the engine off in order to
move the car manually (e.g. in the
garage or in car wash tunnels), it is
possible to deactivate the related
function through the CONNECT
menu. Deactivation of automatic
operation must be made with the
key at MARand only with the car
stationary. Press the SETUP key,
select “Other setting”, deactivate the In order to guarantee the
automatic operation of the
handbrake, cut off the en-
gine or open the driver’s side door
only when the car is at a standstill.

177
“Automatic parking brake” function
and the press “OK”. Deactivation of
automatic operation can be achieved
also in the following way:
– turn the key to STOP(the park-
ing brake is engaged)
– turn the key back to MAR,
depress the brake pedal and at the
same time keep button Apressed for
at least 2 seconds. Warning light x
flashes thrice to indicate the auto-
matic operation deactivation.
When the key is turned again to
STOPthe parking brake will not be
engaged. The parking brake auto-
matic operation will be automatical-
ly restored when the key is turned
again to MAR.IMPORTANTIf, after the parking
brake has been disengaged, the car
starts moving at a speed higher than
the usual manual movement, deacti-
vation of the automatic mode is
immediately cancelled and the park-
ing brake is engaged.
If, after the parking
brake has been disen-
gaged, the car starts mov-
ing at a speed higher than the
usual manual movement, deacti-
vation of the automatic mode is
immediately cancelled and the
parking brake is engaged.Proceed as follows: release the
accelerator pedal, press and keep
buttonA(fig. 133) pressed for the
whole manoeuvre: the system elec-
tronic control unit will come imme-
diately into action with alternate
braking on/off cycles on the rear
wheels (thus preventing wheel lock-
ing). Braking cycles are applied
alternately on right and left wheel to
guarantee roadholding, braking
continuity and to reduce braking
distance.
Wheel locking could take place
under the safety speed threshold
(lower than 10 km/h).
A buzzer will sound during the
whole manoeuvre to indicate that
the dynamic mode shall only be used
in an emergency, but this is also use-
ful to warn the driver if the parking
brake has been inadvertently
engaged by other passengers.
Use in an emergency
In particular cases (e.g. fault in the
whole hydraulic brake system, both
service and emergency brake), the
parking brake can be used to stop
the car running (“dynamic mode”).

178
fig. 135
L0A0275b
fig. 134
L0A0274b

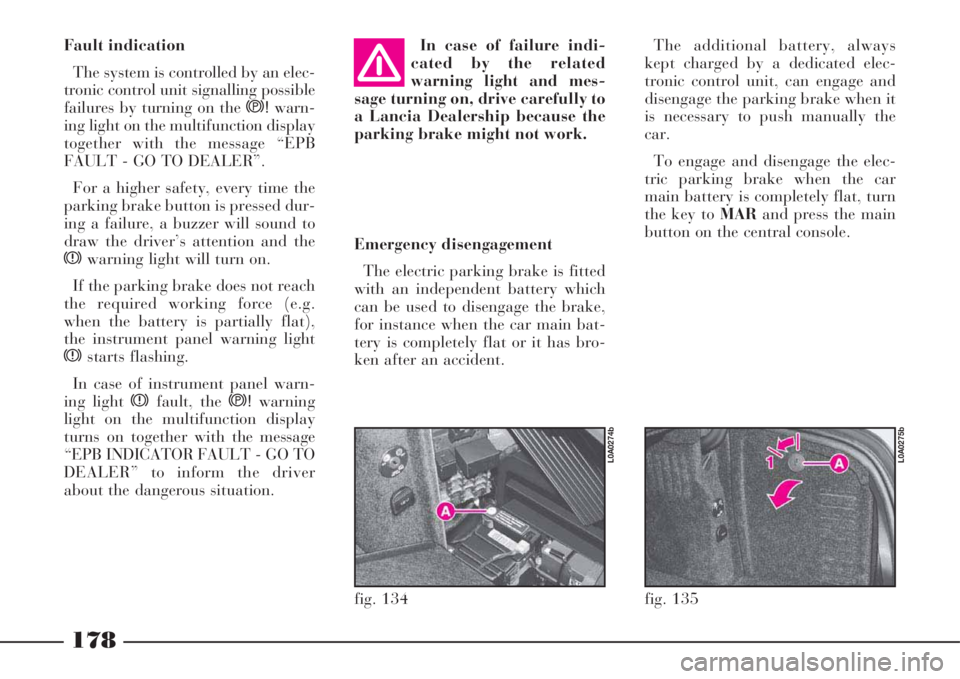

Fault indication
The system is controlled by an elec-
tronic control unit signalling possible
failures by turning on the s!warn-
ing light on the multifunction display
together with the message “EPB
FAULT - GO TO DEALER”.
For a higher safety, every time the
parking brake button is pressed dur-
ing a failure, a buzzer will sound to
draw the driver’s attention and the
xwarning light will turn on.
If the parking brake does not reach
the required working force (e.g.
when the battery is partially flat),
the instrument panel warning light
xstarts flashing.
In case of instrument panel warn-
ing light xfault, the s!warning
light on the multifunction display
turns on together with the message
“EPB INDICATOR FAULT - GO TO
DEALER” to informthe driver
about the dangerous situation. In case of failure indi-
cated by the related
warning light and mes-
sage turning on, drive carefully to
a Lancia Dealership because the
parking brake might not work.
Emergency disengagement
The electric parking brake is fitted
with an independent battery which
can be used to disengage the brake,
for instance when the car main bat-
tery is completely flat or it has bro-
ken after an accident.The additional battery, always
kept charged by a dedicated elec-
tronic control unit, can engage and
disengage the parking brake when it
is necessary to push manually the
car.
To engage and disengage the elec-
tric parking brake when the car
main battery is completely flat, turn
the key to MARand press the main
button on the central console.

179
The car is fitted also with an emer-
gency button A(fig. 134), placed in
the boot right compartment, which
can be used to unblock the car if it has
been stopped on the road for a break-
down or an accident and the key can-
not be turned to MAR(accident with
fire risk). To reach the button remove
the compartment cover turning the
catchA(fig. 135) to 1with the igni-
tion key.
To disengage the parking brake
through the emergency button pro-
ceed as follows:
– press and release the main button
on the central console
– press and release the emergency
button in the boot
– press again and release the main
button on the central console.
The time elapsed between these
operations should be lower than 30
seconds.MANUAL GEARBOX
To engage the gears, press down
the clutch and put the gear lever into
one of the positions shown in the
diagram (fig. 136); the diagram is
also on the gear lever knob.
To engage reverse (R), wait for the
car to come to a standstill and lift
the ring Aunder the knob (with the
fingers of the hand operating the
lever).
Release the ring after engaging
reverse gear. You do not need to lift
the ring to disengage reverse.To change gear properly
you must push the clutch
pedal fully down. It is
therefore essential that there is
nothing under the pedals: make
sure mats are lying flat and do
not get in the way of the pedals.
Reverse can only be
engaged when the car is at
a standstill. Wait for two
seconds or longer with the clutch
fully pressed before engaging
reverse when the engine is run-
ning to prevent scraping and
damaging the gears.
Do not drive with your
hand resting on the gear
stick as the force exerted,
even if only slight, could lead to
premature wearing of the gear-
box internal components.
fig. 136
L0A0357b
