GETTING TO KNOW YOUR CAR
DRIVING YOUR CAR
IN AN EMERGENCY
CAR MAINTENANCE
TECHNICAL SPECIFICATIONS
ACCESSORY INSTALLATION
INDEX
CONTENTS
G
4C001-067 ING 11-03-2008 11:57 Pagina 9

51
G
BOOT
OPENING/CLOSING
THE TAILGATE
To open the boot from the outside,
unlock it with the ignition key A
(fig. 72).
To open it from inside the car, pull
leverA (fig. 73)at the side of the dri-
ver’s seat.
To lift the tailgate, use the grip lo-
cated between the two number plate
lights.When the tailgate is closed, it will
lock automatically, and can only be
reopened by using the key or pulling
leverA (fig. 73)inside the car.
IMPORTANTNever leave the keys
in the boot.
Use the handle situated in the inte-
rior trim of the tailgate A (fig. 74)to
lower it without getting your hands
dirty.
To close the tailgate, lower it and
press in the centre until you hear it
lock.
fig. 72
P4C00021
fig. 73
P4C00015
Do not work boot release
lever when the car is in
motion.
The addition of objects to
the rear parcel shelf or
tailgate (loudspeakers,
spoiler, etc.) may prevent the gas-
filled struts at the sides of the tail-
gate working properly. Items
arranged on the rear window shelf
could be thrown forwards and in-
jure passengers should you brake
sharply.
fig. 74
P4C00037
When using the boot,
make sure the load you are
carrying does not exceed
the permitted weight (see the
“Technical specifications” sec-
tion). Also ensure the items in the
boot are arranged properly to pre-
vent them being thrown forward
and injurying passengers should
you brake sharply.
4C001-067 ING 11-03-2008 11:57 Pagina 51

55
G

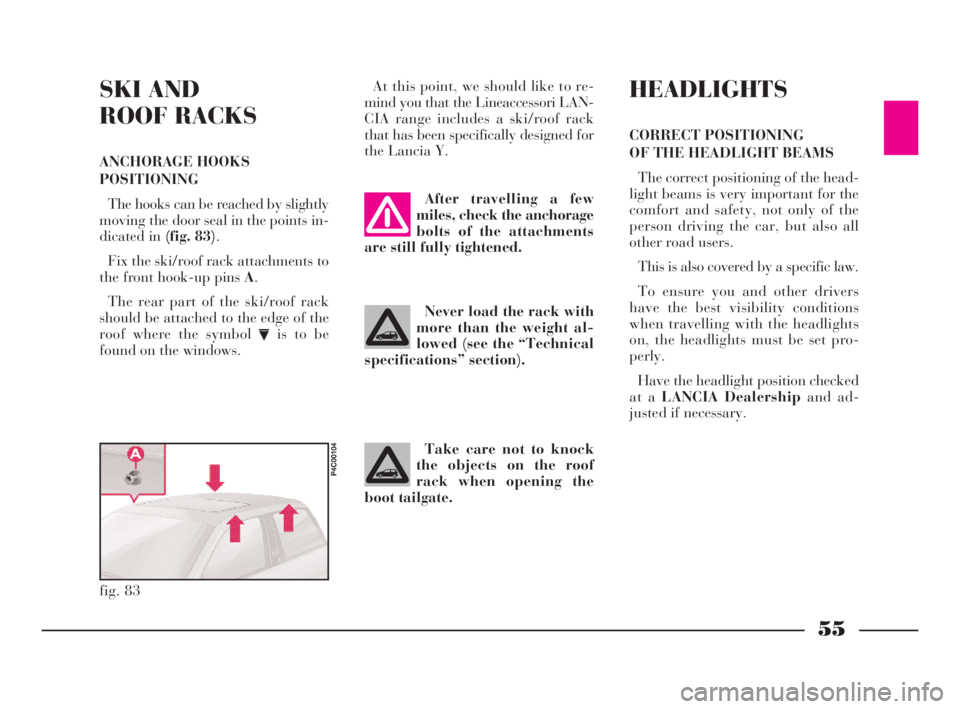

SKI AND
ROOF RACKS
ANCHORAGE HOOKS
POSITIONING
The hooks can be reached by slightly
moving the door seal in the points in-
dicated in (fig. 83).
Fix the ski/roof rack attachments to
the front hook-up pins A.
The rear part of the ski/roof rack
should be attached to the edge of the
roof where the symbol
Vis to be
found on the windows.At this point, we should like to re-
mind you that the Lineaccessori LAN-
CIA range includes a ski/roof rack
that has been specifically designed for
the Lancia Y.
fig. 83
P4C00104
After travelling a few
miles, check the anchorage
bolts of the attachments
are still fully tightened.
Never load the rack with
more than the weight al-
lowed (see the “Technical
specifications” section).
Take care not to knock
the objects on the roof
rack when opening the
boot tailgate.
HEADLIGHTS
CORRECT POSITIONING
OF THE HEADLIGHT BEAMS
The correct positioning of the head-
light beams is very important for the
comfort and safety, not only of the
person driving the car, but also all
other road users.
This is also covered by a specific law.
To ensure you and other drivers
have the best visibility conditions
when travelling with the headlights
on, the headlights must be set pro-
perly.
Have the headlight position checked
at a LANCIA Dealershipand ad-
justed if necessary.
4C001-067 ING 11-03-2008 11:57 Pagina 55

62
G
It is important to remem-
ber that the airbag can be
fired even when the engine
is not running and the key is at
MAR if it is hit by another vehicle
travelling at suitable speed. As a
consequence, LANCIA recom-
mends sitting children in their
specific restraint systems on the
back seat, which is the most pro-
tected position possible. On the
contrary, the airbags will not be
fired if the car is crashed into
when the key is not inserted or
turned. Consequently, in this case,
the fact that the system is not fired
does not indicate a fault.Always drive with both
hands on the rim of the
steering wheel so that the
airbag is free to inflate during a
head-on collision, and protect you
from serious injury. Do not drive
with your body bending towards
the steering wheel, but sit in an
upright position with your back
resting against the seat.
If an attempt has been
made to steal the car, or if
it has actually been stolen
or has been vandalised in any way
or subjected to flooding, have the
airbag system checked over at a
LANCIA Dealership. Do not apply stickers or
other objects to the steering
wheel or to the dashboard
on the passenger’s side. Do not
travel with objects on your lap or in
front of you nor with a pipe, pencil
or similar between your lips; you
could seriously hurt yourself if the
airbag inflates in a collision.
The correct operation of
front airbags, side airbags
and pretensioners is en-
sured only if the car is not over-
loaded. Do not exceed the maximum
permitted loads (see “Weights” in
“Technical specifications”).When the passenger’s
front airbag is active (pas-
senger front airbag deacti-
vation switch at ON), the warn-
ing light will come on for approx-
imately four seconds and flash for
other four seconds when the igni-
tion key is turned to MAR to re-
mind the driver than the passen-
ger’s front and side airbags (where
fitted) will be fired in the event of
a crash. The warning light should
go out immediately afterwards.
The airbag does not re-
place seat belts but rather
increases their effective-
ness. Furthermore, the airbag is
not fired in the event of low speed
front collisions, side collisions,
rear-end shunts and roll-overs. In
these cases, the passengers are
only protected by the seat belts
which for this reason must always
be fastened.
4C001-067 ING 11-03-2008 11:57 Pagina 62

73
G
AT THE FILLING
STATION
FUEL
Fill petrol engine cars only with un-
leaded petrol with a minimum octane
number of 95.
Fuel tank capacity: 45 litres includ-
ing a reserve of 5 - 8 litres.Never put even the tiniest
amount of leaded fuel in
the tank, even in an emer-
gency. You would damage the cat-
alytic converter beyond repair.
ENGINE OIL
Check the level: see the “Car main-
tenance” section.
The distance between the MINand
MAXmarks on the dipstick is equiv-
alent to about one litre of oil.
Use SAE 10W-40 oil for tempera-
tures down to –25°C.
For temperatures lower than –20°C,
we recommend using SELENIA
PERFORMERSAE 5W-30.Refer to the “Technical specifica-
tions” section for other information.
SPARK PLUGS
1.2 versions:
– Champion ................... RC10YCC
– NGK ............................. BKR5EZ
1.2
16Vversions:
– NGK ......................... DCPR8E-N
ENGINE COOLANT
Top up with a 50% mixture of wa-
ter and PARAFLU
11. For other data,
refer to the “Technical specifications”
section.
An inefficient catalytic
converter will allow harm-
ful exhaust fumes to be
emitted and thus contribute to the
pollution of the air.
fig. 3
P4C00399
4C068-089 ING 11-03-2008 11:59 Pagina 73

92
G
8)The warning lamp will flash
rapidly for about 4 seconds to indicate
that the operation has been completed
correctly.
9)Start the engine by turning the ig-
nition key from MARtoAVV(with-
out turning it to STOP).
If, however, the warning lamp
remains lit, turn the ignition key
toSTOPand repeat the procedure
from step 1.
IMPORTANTAfter an emergency
start, you should contact a LANCIA
Dealershipimmediately, otherwise
you will have to repeat the procedure
described each time you want to start
the engine.JUMP STARTING
If the battery is flat, you can use an-
other battery to start the engine. Its
capacity must be the same or slightly
greater than the flat battery (see the
section “Technical Specifications”).
Do the following, (fig. 1):
1)Lift the protective cover on the
positive pole, then connect the posi-
tive terminals (+) of the two batteries
AandBwith a jump lead, which is
usually red.2)With a second lead (usually
black), connect the negative terminal
C(–) of the auxiliary battery to an
earth point Don the engine or
gearbox of the car to be started.
IMPORTANTDo not connect the
black lead to the negative pole of the
flat battery; any sparks could set the
gas coming out of the battery on fire.
If the other battery is fitted in a vehi-
cle, prevent accidental contacts be-
tween the metal parts of the two ve-
hicles.
3)Start the engine.
4)When the engine has
started, remove the leads in
the reverse order to before:
D,C,Band finally A.
If the engine fails to start after a few
attempts, do not keep turning the key
but have the car seen to at a LANCIA
Dealership.
fig. 1
P4C00411
4C090-119 ING 11-03-2008 12:00 Pagina 92

140
G

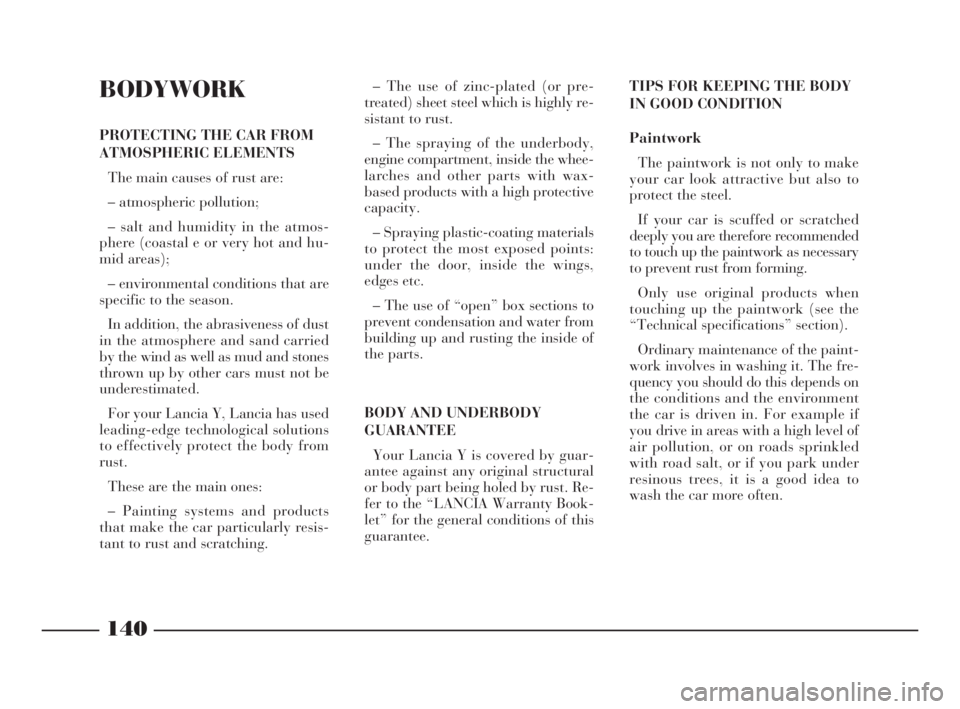

BODYWORK
PROTECTING THE CAR FROM
ATMOSPHERIC ELEMENTS
The main causes of rust are:
– atmospheric pollution;
– salt and humidity in the atmos-
phere (coastal e or very hot and hu-
mid areas);
– environmental conditions that are
specific to the season.
In addition, the abrasiveness of dust
in the atmosphere and sand carried
by the wind as well as mud and stones
thrown up by other cars must not be
underestimated.
For your Lancia Y, Lancia has used
leading-edge technological solutions
to effectively protect the body from
rust.
These are the main ones:
– Painting systems and products
that make the car particularly resis-
tant to rust and scratching.– The use of zinc-plated (or pre-
treated) sheet steel which is highly re-
sistant to rust.
– The spraying of the underbody,
engine compartment, inside the whee-
larches and other parts with wax-
based products with a high protective
capacity.
– Spraying plastic-coating materials
to protect the most exposed points:
under the door, inside the wings,
edges etc.
– The use of “open” box sections to
prevent condensation and water from
building up and rusting the inside of
the parts.
BODY AND UNDERBODY
GUARANTEE
Your Lancia Y is covered by guar-
antee against any original structural
or body part being holed by rust. Re-
fer to the “LANCIA Warranty Book-
let” for the general conditions of this
guarantee.TIPS FOR KEEPING THE BODY
IN GOOD CONDITION
Paintwork
The paintwork is not only to make
your car look attractive but also to
protect the steel.
If your car is scuffed or scratched
deeply you are therefore recommended
to touch up the paintwork as necessary
to prevent rust from forming.
Only use original products when
touching up the paintwork (see the
“Technical specifications” section).
Ordinary maintenance of the paint-
work involves in washing it. The fre-
quency you should do this depends on
the conditions and the environment
the car is driven in. For example if
you drive in areas with a high level of
air pollution, or on roads sprinkled
with road salt, or if you park under
resinous trees, it is a good idea to
wash the car more often.
4C120-143 ING 11-03-2008 12:01 Pagina 140

TECHNICAL SPECIFICATIONS
Motor and engineering enthusiasts as well as
those “in the trade” will probably start reading
from this point in the manual. This, in fact, is
where a section jam-packed with facts, figures,
formulae, measurements and tables begins. In a
sense, it is the Lancia Y’s identity card.
A document that introduces the car and explains
in technical jargon all the features that go together
to make it a model designed to give you superla-
tive driving satisfaction.VEHICLE IDENTIFICATION DATA ............... 145
ENGINE CODE - BODY VERSIONS............... 146
ENGINE......................................................... 147
TRANSMISSION............................................. 150
BRAKES......................................................... 151
SUSPENSION ................................................. 152
STEERING..................................................... 152
WHEELS........................................................ 153
WHEEL GEOMETRY ..................................... 155
ELECTRICAL SYSTEM ................................. 155
PERFORMANCE............................................ 156
WEIGHTS...................................................... 157
DIMENSIONS................................................. 158
CAPACITIES .................................................. 160
TYRE PRESSURE .......................................... 163
FLUIDS AND LUBRICANTS .......................... 164
FUEL CONSUMPTION -
CO
2EMISSIONS ............................................. 166
144
G
4C144-167 ING 11-03-2008 12:02 Pagina 144

149
G
– Injection pressure: ......... 3.5 bar.
– Air cleaner: dry-type with paper
filter element.
– Firing order: ................1-3-4-2.
– Engine idling speed: 700±50 rpm.
– Spark plugs:
NGK ..........................DCPR8E-N
(*) Analytic method, by electronically process-
ing data from the engine rpm (speed) sensor
and from the air temperature and absolute pres-
sure sensors in the intake manifold (density).
LUBRICATION
Forced-fed with gear pump with
pressure relief valve incorporated.
Oil purification through full-flow
cartridge filter.
COOLING
Cooling system with radiator, cen-
trifugal pump and expansion tank.
“Fixed by-pass” thermostat(1.2 en-
gine)” on the secondary circuit for the
recirculation of water from the engine
to the radiator.
Electric fan for radiator cooling on
the radiator with switching on/off
controlled by thermostatic switch lo-
cated on the radiator. Modifications or repairs
to the fuel feed system that
are not carried out prop-
erly or do not take the system’s
technical specifications into ac-
count can cause malfunctions with
the risk of fire.
4C144-167 ING 11-03-2008 12:02 Pagina 149

179
fdG
Plates
– model plate........................ 145
– paint plate ......................... 146
Pollen filter ............................. 132
Power steering fluid level......... 130
Pretensioners .......................... 22
Radio-navigator .............. 65-169
– component location .......... 171
Rear foglights
– bulb replacement .............. 105
– control .............................. 44
Rear window opening .............. 47
Rear window shelf removal...... 52
Rear window washer
– control .............................. 43
– fluid level ......................... 129
Rear window wiper
– blades ............................... 138
– control .............................. 43
– nozzles............................... 139
Rearview mirrors
– electrical ........................... 20
– external ............................. 20
– internal ............................. 19
Remote control
(radio-frequency) ................. 15
– battery replacement ........... 16
– homologation numbers ...... 175
Removing the rear window shelf 52
Replacing a wheel.................... 94Rev counter ............................ 33
Reversing lights ....................... 104
Roof rack/ski rack ................... 55
Rubber tubing ......................... 137
Safe driving
– before getting behind
the wheel ........................... 75
– driving at night.................. 77
– driving in fog ..................... 78
– driving in rain ................... 77
– driving in the mountains.... 79
– driving on snow and ice ..... 79
– driving with ABS .............. 80
– when travelling .................. 76
Seat adjustments ..................... 17
Seat belt height adjustment ..... 21
Seat belts
– height adjustment .............. 21
– maintenance .................... 25
– use .................................... 21
– warnings............................ 24
Seats
– accessing the rear seats ...... 19
– adjustments ....................... 17
– cleaning ............................ 142
Side/taillights
– control .............................. 41
– front bulb replacement ..... 102
– rear bulb replacement ....... 105
Signs to help you drive correctly 5Snow chain........................ 85-154
Snow tyres......................... 86-153
Sound system .................... 64-169
– component location ........... 171
Spark plugs ....................... 73-135
Speedometer............................ 31
Starter motor .......................... 155
Starting the engine
– bump starting ................ 70-93
– emergency startup ......... 70-91
– ignition switch ................... 16
– jump starting ..................... 92
– starting the engine ............. 69
– stopping the engine............ 70
– warming up a recently
started engine .................... 70
Steering .................................. 152
Steering column lock .............. 17
Steering column stalks
– right-hand lever................. 42
– left-hand lever ................... 41
Steering wheel adjustment ...... 19
Storing the car......................... 87
Sun visors................................ 47
Sunroof ................................... 48
Suspensions ............................ 152
Symbols ................................. 6
Tailgate opening .................... 51
Technical specifications....... 144
Third brake lights ................... 105
4C177-184 Indice ING 13-03-2008 13:31 Pagina 179
