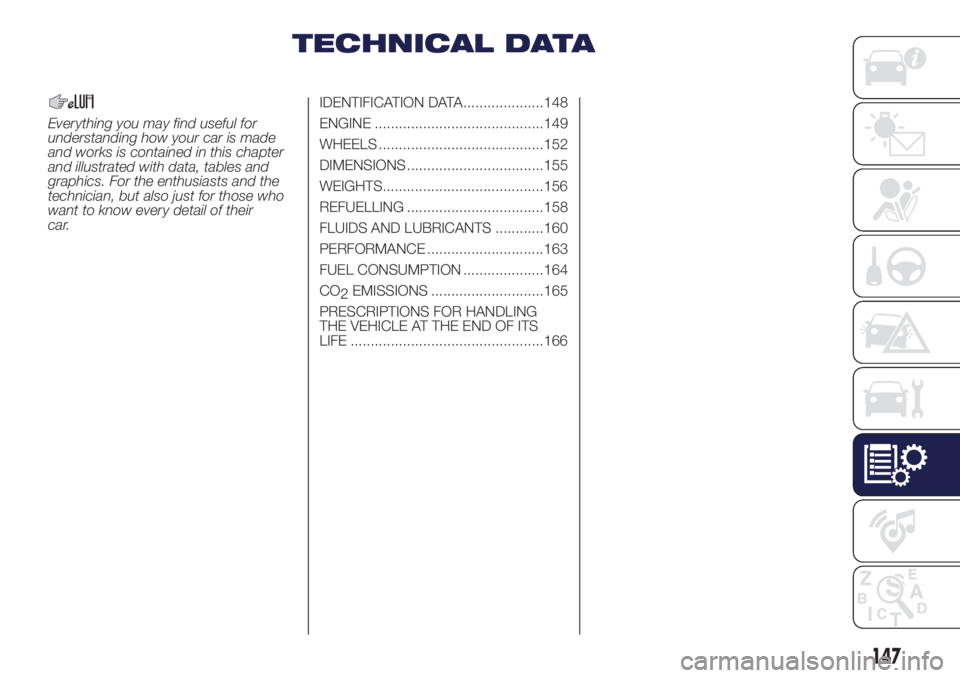

TECHNICAL DATA
Everything you may find useful for
understanding how your car is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their
car.IDENTIFICATION DATA....................148
ENGINE ..........................................149
WHEELS .........................................152
DIMENSIONS ..................................155
WEIGHTS........................................156
REFUELLING ..................................158
FLUIDS AND LUBRICANTS ............160
PERFORMANCE .............................163
FUEL CONSUMPTION ....................164
CO
2EMISSIONS ............................165
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................166
147

IDENTIFICATION
DATA
It is advisable to take note of the
identification codes. The following
identification codes are printed and
shown on the plates:
VIN plate.
Chassis marking.
Bodywork paint identification plate.
Engine marking.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
This is applied on the left side of the
boot (lift the mat for access) and bears
the following data fig. 122:
AName of Manufacturer
BType-approval number.
CVehicle type identification code.
DChassis manufacture progressive
number.EMaximum authorised weight of
vehicle fully laden.
FMaximum authorised weight of
vehicle when fully laden plus trailer.
GMaximum admitted weight on first
(front) axle.
HMaximum authorised weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NSmoke opacity index (for diesel
engines).
BODYWORK PAINT
IDENTIFICATION PLATE
This is applied on the external (left side)
boot post and bears the following
data fig. 123:
APaint manufacturer.
BColour name.
CLancia colour code.
DRespray and touch up code.CHASSIS MARKING
This is printed on the crossmember
under the passenger side seat and
bears the following data:
type of vehicle;
chassis serial number.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
123L0F0030C
148
TECHNICAL DATA
122L0F0444C

Versions 1.2 8V 69 HP 1.3 16V MultiJet
Engine code 169A4000 312B1000
Cycle Otto Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 70.8 × 78.86 69.6 × 82
Total displacement (cm³) 1242 1248
Compression ratio 11.1 16.8
Maximum power (EEC) (kW) 51 70
Maximum power (EEC) (HP) 69 95
corresponding engine speed (rpm) 5500 3750
Maximum torque (EEC) (Nm) 102 200
Maximum torque (EEC) (kgm) 10.4 20.4
corresponding engine speed (rpm) 3000 1500
Spark plugs NGK ZKR7A-10 or CHAMPION RA8MCX4 -
FuelUnleaded petrol 95 R.O.N. (EN228
specifications)Diesel for motor vehicles (EN590
Specification)
150
TECHNICAL DATA

WHEELS
170) 171)
RIMS AND TYRES PROVIDED
Versions Wheels Tyres Snow tyresSpace saver spare
wheel(*)
0.9 TwinAir5½Jx14 H2-ET30 175/65 R14 82H 175/65 R14 84Q (M+S)
135/80 B14 84M 6Jx15 H2-ET30 185/55 R15 82H 185/55 R15 82Q (M+S)
6JX15” H2 ET35 185/55 R15 82H 185/55 R15 82Q (M+S)
6½Jx16 H2-ET30
195/45 R16 84H
(**)195/45 R16 84Q (M+S)
0.9 TwinAir Turbo
Natural Power6Jx15 H2-ET30
175/65 R15 84T
(***)175/65 R15 84Q (M+S)
6JX15” H2 ET35 185/55 R15 82H 185/55 R15 82Q (M+S)
1.2 8V 69 HP5½Jx14 H2-ET30 175/65 R14 82H 175/65 R14 84Q (M+S)
135/80 B14 84M 6Jx15 H2-ET30 185/55 R15 82H 185/55 R15 82Q (M+S)
6JX15” H2 ET35 185/55 R15 82H 185/55 R15 82Q (M+S)
6½Jx16 H2-ET30
195/45 R16 84H
(**)195/45 R16 84Q (M+S)
1.3 16V MultiJet5½Jx14 H2-ET30 175/65 R14 82H 175/65 R14 84Q (M+S)
135/80 B14 84M 6Jx15 H2-ET30 185/55 R15 82H 185/55 R15 82Q (M+S)
6JX15” H2 ET35 185/55 R15 82H 185/55 R15 82Q (M+S)
6½Jx16 H2-ET30
195/45 R16 84H
(**)195/45 R16 84Q (M+S)
(*) For versions/markets, where provided
(**) Not suitable for snow chains
(***) Tyres to which reduced size snow chains can be fitted: 7 mm
152
TECHNICAL DATA

SNOW CHAINS
67) 68)
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with
code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
Snow chains can be fitted to the tyres of the front wheels (drive wheels) only.
Check the tension of the snow chains after the first few metres have been driven.
Using snow chains with tyres with non-original dimensions may damage the vehicle.
Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect car driveability, with the risk
of losing control of the car and resulting accidents.
IMPORTANT Snow chains cannot be fitted to the space-saver wheel. If a front tyre is punctured, replace a rear wheel with the
space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive wheels at the front, snow
chains can be fitted.
WARNING
170)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
171)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
WARNING
67)Keep the vehicle's speed down when snow chains are fitted; never exceed 50 km/h. Avoid potholes, steps and pavements and avoid
driving long distances on roads not covered with snow to avoid damaging the car and the road surface.
68)With snow chains, use the accelerator with extreme care to prevent, or to limit as much as possible, slipping of the drive wheels that
could cause chain breakage, resulting in damage to the car body or mechanical components.
154
TECHNICAL DATA

WEIGHTS
Versions0.9 TwinAir 80 HP / 85 HP(°)1.2 8V 69 HP 1.3 16V MultiJet
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment) (kg):980 965 1060
Payload including the driver (kg):
(*)480 (4-seater) /
535 (5-seater)480 (4-seater) /
535 (5-seater)470 (4-seater) /
525 (5-seater)
Maximum permitted loads (kg)
(**)
- front axle: 800 780 870
– rear axle: 810 810 810
- total:1460 (4-seater) /
1515 (5-seater)1445 (4-seater) /
1500 (5-seater)1530 (4-seater) /
1585 (5-seater)
Towable loads (kg)
– braked trailer: 750 750 800
– non-braked trailer: 400 400 400
Maximum load on roof: 55 55 55
Maximum load on the ball (braked trailer)
(kg):60 60 60
(°)Versions with Dual FuNction System Transmission
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
156
TECHNICAL DATA

REFUELLING
Petrol versions 0.9 TwinAir 1.2 8V 69 HPRecommended fuels and
original lubricants
Fuel tank (litres): 40 40Unleaded petrol with RON no
lower than 95 (EN228
specifications) including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system 5.3 4.9Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump (litres): 2.8 2.5
SELENIA K P.E.
Engine sump and filter (litres): 3.3 2.8
Gearbox casing/differential (kg): 1.55 1.55TUTELA TRANSMISSION
GEARFORCE
Dual FuNction System gearbox
hydraulic activation system:0.70 (litres) / (0.59) kg - TUTELA CS SPEED
Hydraulic brake circuit (litres): 0.55 0.55 TUTELA TOP 4 or TOP 4/S
Front and rear windscreen
washer tanks (litres):2.55 2.5Mixture of water and PETRONAS
DURANCE SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
158
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
69)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (1.2 8V 69
HP versions)SAE 5W-40 ACEA C3 /
API SN.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricant for petrol
engines (0.9 TwinAir
versions)SAE 0W-30 ACEA C2 /
API SN.955535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
If lubricants conforming to the required specifications are not available, products that meet the indicated specifications can be
used to top up; in this case optimal performance of the engine is not guaranteed.
For TwinAir engines only use lubricants with indicated SAE grade and specifications.
WARNING
69)The use of products with different specifications than those indicated above could cause damage to the engine not covered by the
warranty.
160
