1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CT200h_EE (OM76041E)
Adjusting the height of rear view mirror
Adjust the height of the rear
view mirror by moving it up
and down.
To prevent sensor error (vehicles with auto anti-glare inside rear view mir-
ror)
CAUTION
While driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

114
1-4. Adjustable components (seats, mirrors, steering wheel)
CT200h_EE (OM76041E)

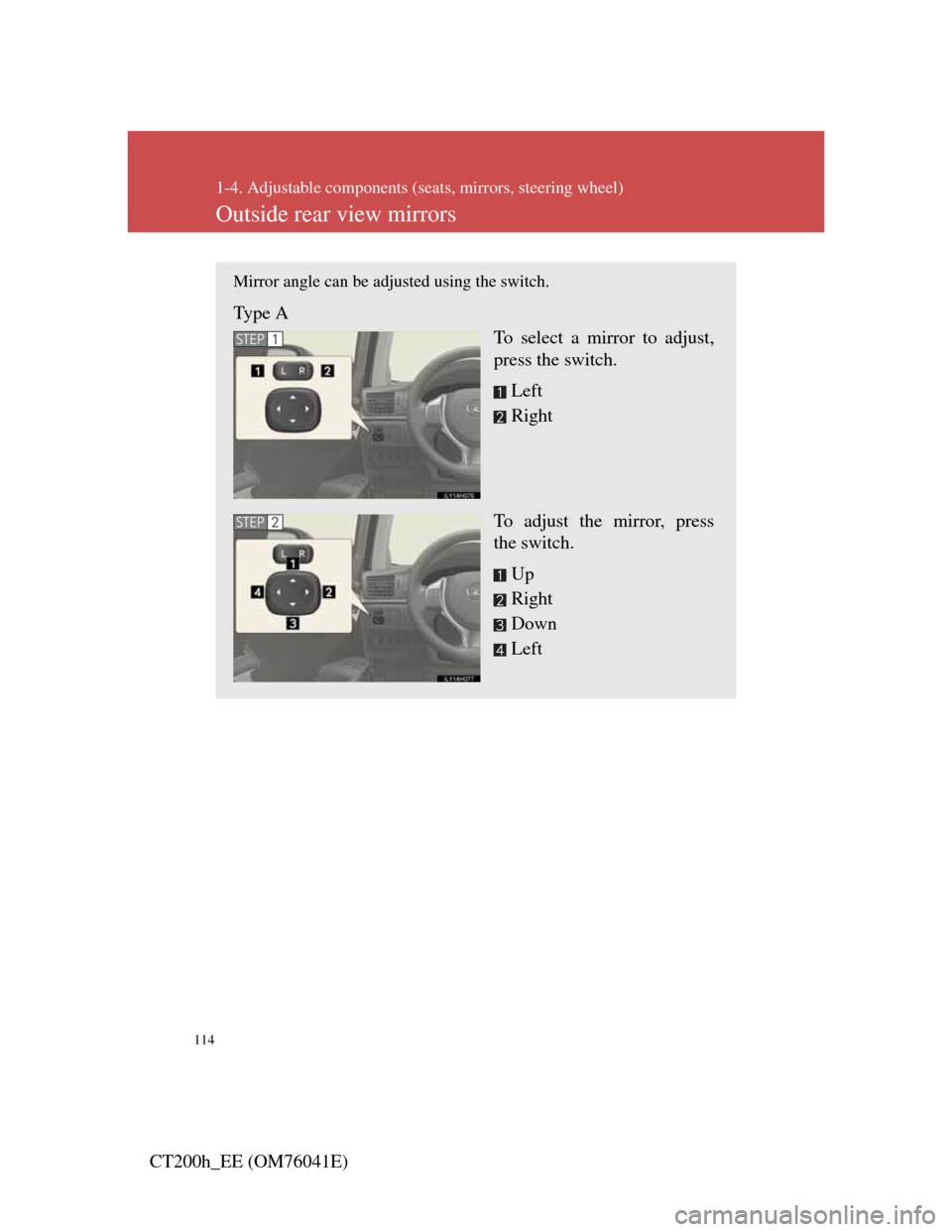

Outside rear view mirrors
Mirror angle can be adjusted using the switch.
Type A
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press
the switch.
Up
Right
Down
Left
STEP1
STEP2

116
1-4. Adjustable components (seats, mirrors, steering wheel)
CT200h_EE (OM76041E)
Folding and extending the mirrors (type B only)
Extends the mirrors
Folds the mirrors
Putting the outside rear view
mirror folding switch in the
neutral position sets the mirrors
to automatic mode. Automatic
mode allows the folding or
extending of the mirrors to be
linked to locking/unlocking of
the doors.

117
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CT200h_EE (OM76041E)
Mirror angle can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode.
Linked mirror function when reversing (vehicles with driving position
memory)
The outside rear view mirrors will automatically angle downwards when the
vehicle is reversing in order to give a better view of the ground. However,
this function will not operate when the mirror select switch is in the neutral
position (between “L” and “R”).
Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it
rains, the rain clearing (hydrophilic) effect of the mirrors causes the droplets
to be spread out into a film making the rear view clearer. In the following
cases, the rain clearing effect will be reduced temporarily, but will return
after 1 or 2 days’ exposure to direct sunlight.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an automatic car wash
After your vehicle has been parked for a long period in underground
parking lots etc. where there is no direct sunlight
When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (P. 323)
Automatic adjustment of the mirror angle (vehicles with driving position
memory)
A desired mirror face angle can be entered to memory and recalled automat-
ically by the driving position memory. (P. 9 8 )
Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the
outside rear view mirrors will activate in conjunction with the anti-glare
inside rear view mirror to reduce reflected light. (P. 1 1 2 )

118
1-4. Adjustable components (seats, mirrors, steering wheel)
CT200h_EE (OM76041E)
CAUTION
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
If the mirrors become iced up (vehicles with rain-clearing mirror)
In order to retain the rain-clearing properties of the mirror, do not attempt to
scrape the ice off. Instead, remove it by turning on the mirror defoggers or
by applying warm water.

188
2-1. Driving procedures
CT200h_EE (OM76041E)
CAUTION
Do not shift the shift position to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift position to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift position to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Moving the shift position to N while the vehicle is moving will disengage
the hybrid system. Engine braking is not available with the hybrid system
disengaged.
During normal driving, do not turn off the hybrid system. Turning the
hybrid system off while driving will not cause loss of steering or braking
control, but the power assist to these systems will be lost. This will make
it more difficult to steer and brake, so you should pull over and stop the
vehicle as soon as it is safe to do so. However, in the event of an emer-
gency, such as if it becomes impossible to stop the vehicle in the normal
way: P. 6 3 4
Use engine braking (shift position B instead of shift position D) to main-
tain a safe speed when driving down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (P. 204)
Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents,
resulting in death or serious injury.
Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle, as this may result in death or serious injury.

275
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)
Rear view monitor system
: If equipped
The rear view monitor system assists the driver by displaying an
image of the view behind the vehicle while reversing. The image is
displayed in reverse on the screen. This allows the image to appear in
the same manner as that of the rear view mirror.
The rear view image is dis-
played when the shift posi-
tion is in R and the
“POWER” switch is in ON
mode.
This reversed image is a sim-
ilar image to the one on the
inside rear view mirror.
If you shift the shift position
to any positions other than R,

276
2-4. Using other driving systems
CT200h_EE (OM76041E)
Switching the screen
When using the rear view monitor system
The anti-glare function of the inside rear view mirror will be canceled.
Automatic shut off
The display will be turned off automatically after 5 minutes.
Display mode
The rear view monitor display mode can be adjusted when the “POWER”
switch is in ON mode and the shift position is in R.
To permanently disable the monitor.
Push and hold the “AUTO” button for 12 to 15 seconds.
The monitor will turn off and on after 6 seconds. Continue holding the
button down until the display turns back off.
The indicator should flash orange.
The monitor will not automatically turn on again after the “POWER”
switch is turned OFF and ON.
To manually turn on the monitor when it is turned off.
Push the “AUTO” button. The indicator should turn green.
To temporarily turn off the monitor
when it is on.
Push the “AUTO” button. The indica-
tor should turn orange.
The monitor will automatically turn on
again after the “POWER” switch is
turned OFF and ON.
To manually turn on the monitor when
it is turned off.
Push the “AUTO” button. The indica-
tor should turn green.

281
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)
Rear view monitor system camera
The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
In the following cases, it may be diffi-
cult to see the images on the screen,
even when the system is functioning
correctly.
• In the dark (e.g. at night).
• If the temperature near the lens is
extremely high or low.
• If water droplets get on the camera,
or when humidity is high (e.g. when
it rains).
• If foreign matter (e.g. snow or mud)
get on the camera lens.
• If the sun or headlights are shining
directly into the camera lens.
• When the camera has scratches or
dirt on it.
• A bright object such as a white wall
is reflected in the mirror surface
over the monitor.
• When the camera is used under flu-
orescent light, sodium lights, or
li h h li h d

283
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)
CAUTION
When using the rear view monitor system
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
Never depend solely on the monitor system when reversing.
Always check visually and with the mirrors to confirm your intended path
is clear.
Depicted distances between objects and flat surfaces differ from actual
distances.
Do not use the system if the back door is not completely closed.
Never back up while looking only at the screen. The image on the screen
is different from actual conditions. Depicted distances between objects
and flat surfaces will differ from actual distance. If you back up while
looking only at the screen, you may hit a vehicle, a person or an object.
When backing up, be sure to check behind and all around the vehicle visu-
ally and with mirrors before proceeding.
Always check the vehicle surrounding area, because the guide lines are
ancillary.
The guide lines are ancillary lines and does not change even if the steering
wheel is turned.
