fuse box Lexus CT200h 2011 Owner's Manual (in English)

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Engine compartment
12-volt battery
P. 4 9 6
Engine coolant reservoir
(P. 491)
Engine oil level dipstick
(P. 487)
Engine oil filler cap (P.
487)
Power control unit coolantFuse box (P. 520)
Radiator (P. 494)
Condenser (P. 494)
Electric cooling fans
Washer fluid tank (P.
495)

520
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.STEP1
STEP2

522
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
STEP4
STEP5

523
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)

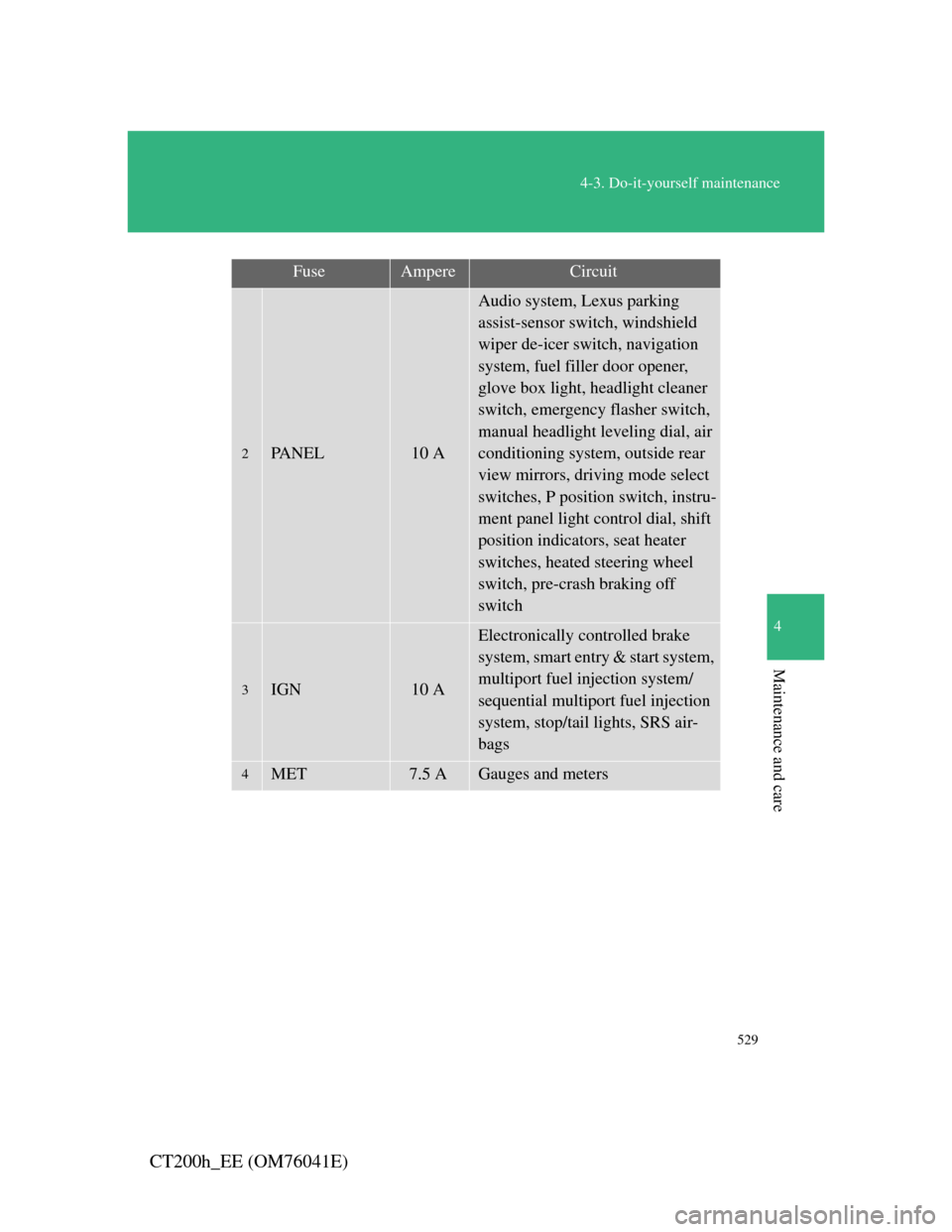

2PANEL10 A
Audio system, Lexus parking
assist-sensor switch, windshield
wiper de-icer switch, navigation
system, fuel filler door opener,
glove box light, headlight cleaner
switch, emergency flasher switch,
manual headlight leveling dial, air
conditioning system, outside rear
view mirrors, driving mode select
switches, P position switch, instru-
ment panel light control dial, shift
position indicators, seat heater
switches, heated steering wheel
switch, pre-crash braking off
switch
3IGN10 A
Electronically controlled brake
system, smart entry & start system,
multiport fuel injection system/
sequential multiport fuel injection
system, stop/tail lights, SRS air-
bags
4MET7.5 AGauges and meters
FuseAmpereCircuit

533
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
