TABLE OF CONTENTSIndex
2
CT200h_EE (OM76041E)
1-1. Hybrid system
Hybrid system features......... 34
Hybrid system precautions ... 39
Energy monitor/consumption
screen ................................. 45
Hybrid vehicle driving tips .. 51
1-2. Key information
Keys ..................................... 53
1-3. Opening, closing and locking
the doors
Smart entry & start system ... 59
Push-button start system ...... 75
Wireless remote control ....... 80
Side doors............................. 85
Back door ............................. 891-4. Adjustable components (seats,
mirrors, steering wheel)
Front seats ............................ 94
Rear seats ............................. 96
Driving position memory ..... 98
Head restraints.................... 101
Seat belts ............................ 104
Steering wheel .................... 111
Inside rear view mirror ....... 112
Outside rear view mirrors .. 114
1-5. Opening and closing the win-
dows and moon roof
Power windows .................. 119
Moon roof .......................... 123
1-6. Refueling
Opening the fuel tank cap .. 127
1Before driving
For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Windshield wiper de-icer
• Lexus parking assist monitor• Audio/video system
• Rear window and outside rear
view mirror defogging
• Climate control

32
CT200h_EE (OM76041E)
1-1. Hybrid system
Hybrid system features ...... 34
Hybrid system precautions 39
Energy monitor/
consumption screen ......... 45
Hybrid vehicle driving tips 51
1-2. Key information
Keys ................................... 53
1-3. Opening, closing and locking
the doors
Smart entry & start system 59
Push-button start system .... 75
Wireless remote control ..... 80
Side doors .......................... 85
Back door........................... 89

53
1
Before driving
CT200h_EE (OM76041E)
1-2. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry
& start system (if
equipped) (P. 5 9 )
• Operating the push-button
start system (if equipped)
(P. 7 5 )
• Operating the wireless
remote control function
(P. 8 0 )
Mechanical keys
Key number plate
Card key (electronic key)
(if equipped)
Operating the smart entry &
start system (P. 5 9 )
The configuration of the electronic key, the front door handle
lock sensors and the back door lock switch is the same regard-
less of whether the smart entry & start system is installed or not.
On vehicles without the smart entry & start system, the front
door handle lock sensors and the back door lock switch will not
operate. For the front door handle lock sensors and the back

65
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door. In
this case, take hold of the driver’s door handle, or use the wireless
remote control or the mechanical key, to unlock the doors.
Conditions affecting operation
P. 8 2
Note for the entry function
Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, luggage room, floor, or
in the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.
Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping
the electronic key inside the vehicle.
As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.
The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The door will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)

82
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
Alarm
Using the wireless remote control to lock the doors will set the alarm sys-
tem.
(P. 138)
Conditions affecting operation
The smart entry & start system, wireless remote control and immobilizer
system use weak radio waves. In the following situations, the communica-
tion between the electronic key and the vehicle may be affected, preventing
the smart entry & start system, wireless remote control and immobilizer sys-
tem from operating properly.
(Ways of coping: P. 617)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large
display, airport or other facility that generates strong radio waves or elec-
trical noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the follow-
ing metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless key (that emit radio waves) is being used nearby
When carrying the electronic key together with the following devices
that emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio
waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to
the rear window

83
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 617)
Electronic key battery depletion
The standard battery life is 1 to 2 years. (The card key battery life is
about a year and a half.)
If the battery becomes low, an alarm will sound in the cabin when the
hybrid system stops. (P. 577)
As the electronic key always receives radio waves, the battery will
become depleted even if the electronic key is not used. The following
symptoms indicate that the electronic key battery may be depleted.
Replace the battery when necessary. (P. 515)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic
field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Glass top ranges
• Table lamps
When the electronic key battery is fully depleted
P. 5 1 5
Customization
Settings (e.g. door unlocking function) can be changed.
(Customizable features P. 655)

138
1-7. Theft deterrent system
CT200h_EE (OM76041E)

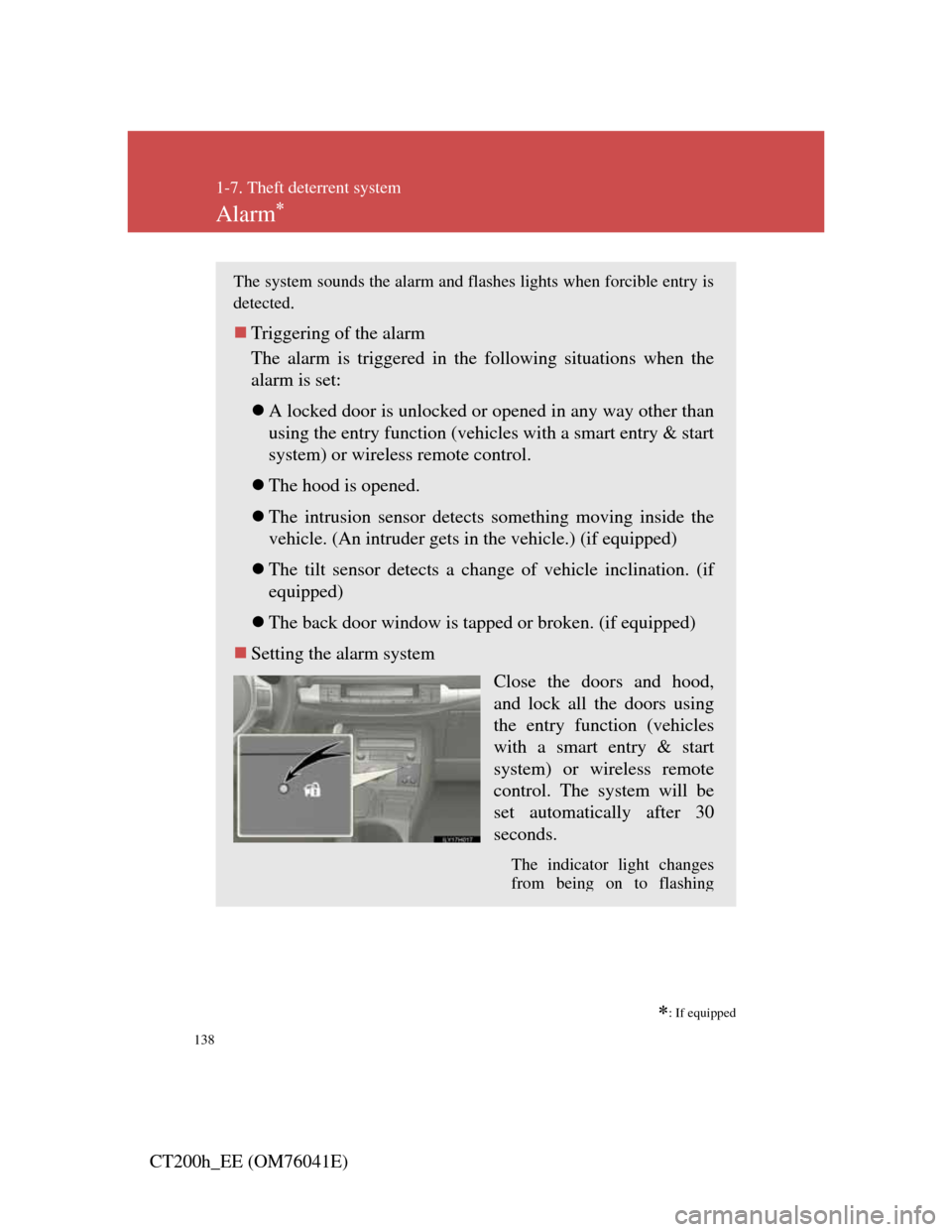

Alarm
: If equipped
The system sounds the alarm and flashes lights when forcible entry is
detected.
Triggering of the alarm
The alarm is triggered in the following situations when the
alarm is set:
A locked door is unlocked or opened in any way other than
using the entry function (vehicles with a smart entry & start
system) or wireless remote control.
The hood is opened.
The intrusion sensor detects something moving inside the
vehicle. (An intruder gets in the vehicle.) (if equipped)
The tilt sensor detects a change of vehicle inclination. (if
equipped)
The back door window is tapped or broken. (if equipped)
Setting the alarm system
Close the doors and hood,
and lock all the doors using
the entry function (vehicles
with a smart entry & start
system) or wireless remote
control. The system will be
set automatically after 30
seconds.
The indicator light changes
from being on to flashing

139
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)
Intrusion sensor and tilt sensor (if equipped)
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
The intrusion sensor detects intruders or movement in the vehi-
cle.
The tilt sensor detects changes in vehicle inclination, such as
when the vehicle is towed away.
The intrusion sensor and tilt sensor can be canceled using the can-
cel switch.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors using the entry function (vehicles with a
smart entry & start system) or wireless remote control.
Start the hybrid system. (The alarm will be deactivated or
stopped after a few seconds.)

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to
disconnect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
Unlocking the doors using the smart entry & start system may not be
possible immediately after reconnecting the 12-volt battery. If this hap-
pens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
Start the hybrid system with the “POWER” switch in ACCESSORY
mode. The hybrid system may not start with the “POWER” switch
turned OFF. However, the hybrid system will operate normally from the
second attempt.
The “POWER” switch mode is recorded by the vehicle. If the battery is
reconnected, the vehicle will return the “POWER” switch mode to the
status it was in before the battery was disconnected. Make sure to turn
off the power before disconnect the battery. Take extra care when con-
necting the battery if the “POWER” switch mode prior to discharge is
unknown.
Restart the hybrid system, depress the brake pedal, and confirm that it is
possible to shift into each shift position.
If the system will not start even after multiple attempts at all methods above,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.

518
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Use a CR1632 lithium battery
Batteries can be purchased at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, local electrical appli-
ance shops or camera stores.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to local laws.
When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealer. Your Lexus
dealer can replace the battery for you.
If the electronic key battery is depleted
The following symptoms may occur:
The smart entry & start system, push-button start system and wireless
remote control will not function properly.
The operational range will be reduced.
