Mode Lexus CT200h 2012 Owner's Manual (in English)

420
3-4. Using the hands-free phone system (for cellular phones)
CT200h_OM_OM76067E_(EE)
Using the hands-free phone system for the first time
Before using the hands-free phone system, it is necessary to regis-
ter a cellular phone in the system. The system will enter phone reg-
istration mode automatically when starting the system with no
cellular phone registered. Follow the procedure below to register
(pair) a cellular phone:
Press the off-hook switch and select “Pair phone” using
.
Select “Record Name” using , and say the name to
be registered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the
operation of the phone.
If the cellular phone has a Bluetooth® audio player, the audio
player can be registered at the same time.
When “Pair Audio?” is displayed, select “Yes” or “No”
using . (Bluetooth
® audio player P. 389)
STEP1
STEP2
STEP3
STEP4
STEP5

445
3
Interior features
CT200h_OM_OM76067E_(EE)
3-5. Using the interior lights
Interior lights list
Cup holder light (when the “POWER” switch is in ACCES-
SORY or ON mode)
Front personal/interior lights (P. 446)
Rear interior light (P. 447)
Footwell lights
Outer foot lights
When the instrument panel light control dial is turned fully down,
the cup holder light and the footwell lights will turn off. (P. 221)

447
3-5. Using the interior lights
3
Interior features
CT200h_OM_OM76067E_(EE)
Rear interior light
Turns the light on
Turns the door position on
*
*:
When the personal/interior
light main switch is in the off
position, the rear interior
light will not turn on even if
the door is opened with the
rear interior light switch in
door position.
Illuminated entry system
The lights automatically turn on/off according to “POWER” switch mode,
the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are opened/closed.
To prevent 12-volt battery discharge
If the interior lights remain on when the door is not fully closed and the inte-
rior light switch (door position on/off) is on, the lights will go off automati-
cally after 20 minutes.
Customization
Settings (e.g. the time elapsed before the lights turn off) can be changed.
(Customizable features P. 667)
Rear interior light

459
3-7. Other interior features
3
Interior features
CT200h_OM_OM76067E_(EE)
Clock
The clock is displayed when
The “POWER” switch is in ACCESSORY or ON mode.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without navigation system
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest
hour
*
*
:e.g.1:00 to 1:291:00
1:30 to 1:592:00

462
3-7. Other interior features
CT200h_OM_OM76067E_(EE)
The power outlet can be used when
The “POWER” switch is in ACCESSORY or ON mode.
Connecting power cables from the power outlet (auxiliary box)
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
To prevent 12-volt battery discharge
Do not use the power outlet longer than necessary when the hybrid system is
off.
The gap in the lid allows power cables to
be passed through even when the lid is
closed.

463
3-7. Other interior features
3
Interior features
CT200h_OM_OM76067E_(EE)
Heated steering wheel
: If equipped
The heated steering wheel can be used when
The “POWER” switch is in ON mode.
Timer
The heated steering wheel will automatically turn off after about 30 min-
utes.
If the indicator light flashes
Press the button to turn the heated steering wheel off and then press the but-
ton again. If the indicator light still flashes, a malfunction may be occurring.
Turn the heated steering wheel off and have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
The heated steering wheel heats the side grips of the steering wheel.
Turns the heater on/off
The indicator light comes on
when the heater is operating.

465
3-7. Other interior features
3
Interior features
CT200h_OM_OM76067E_(EE)
Seat heaters
: If equipped
The seat heaters can be used when
The “POWER” switch is in ON mode.
When not in use
Turn the knob fully counterclockwise. The indicator light goes off.
Press the knob into the recessed position.
Pops the knob out
Turns the seat heater on
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the
tb

467
3-7. Other interior features
3
Interior features
CT200h_OM_OM76067E_(EE)

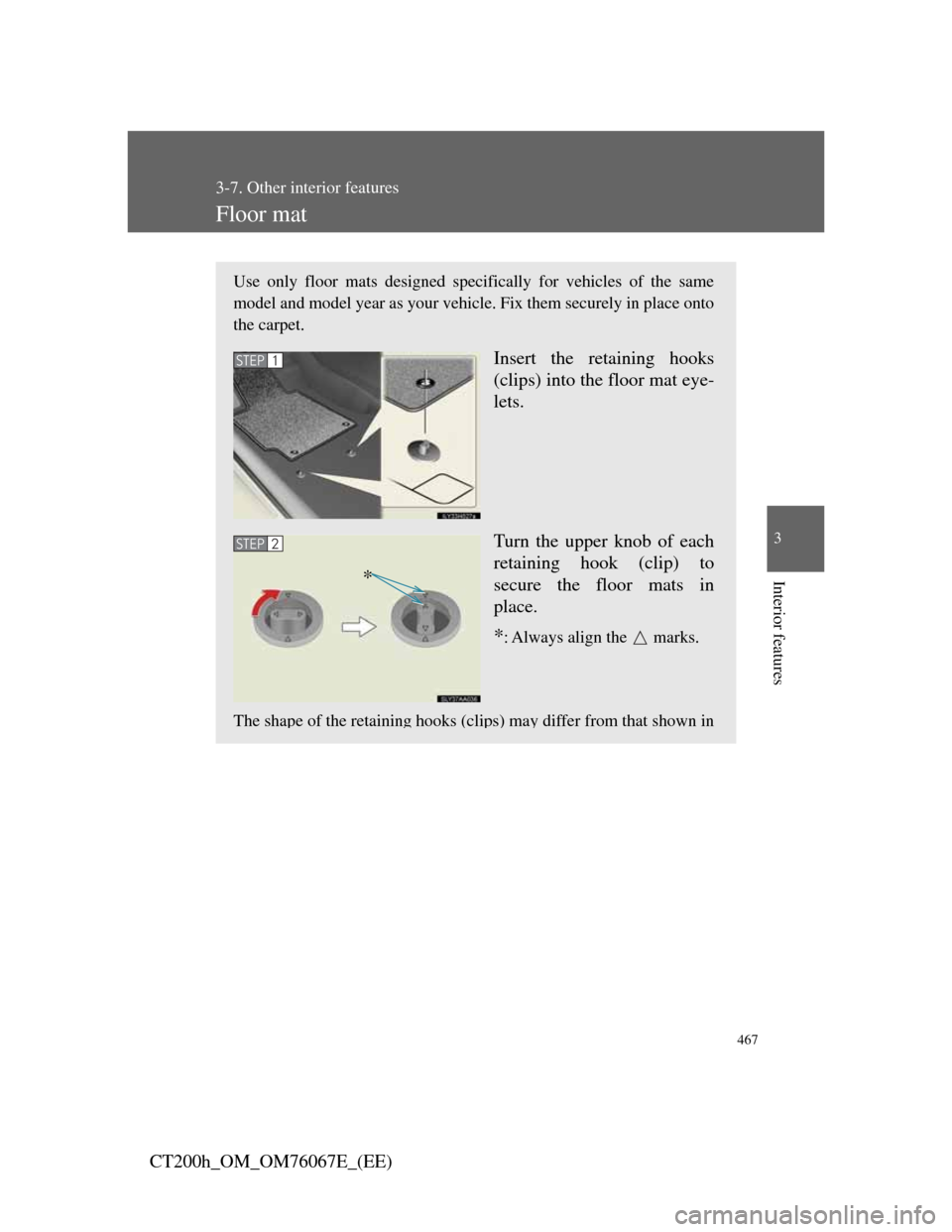

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place onto
the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to
secure the floor mats in
place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in
STEP1
STEP2
*

468
3-7. Other interior features
CT200h_OM_OM76067E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it
may become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

490
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Make sure that the indicator on the “POWER” switch and the “READY”
indicator are both off.
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
When working near the electric cooling fans or radiator grille
Be sure the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. (P. 506)
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
