315
2-5. Driving information
2
When driving
CT200h_OM_OM76067E_(EE)

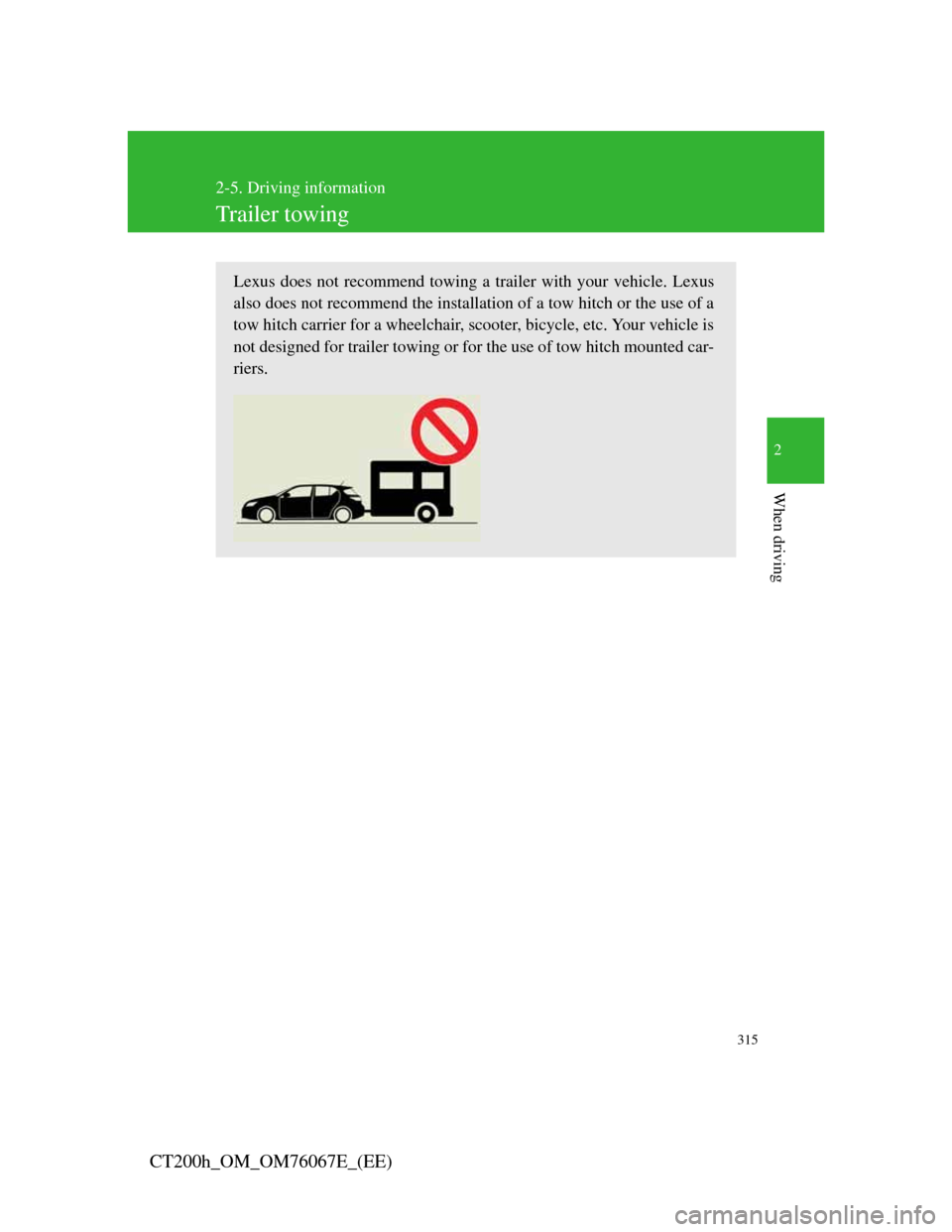

Trailer towing
Lexus does not recommend towing a trailer with your vehicle. Lexus
also does not recommend the installation of a tow hitch or the use of a
tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is
not designed for trailer towing or for the use of tow hitch mounted car-
riers.

412
3-4. Using the hands-free phone system (for cellular phones)
CT200h_OM_OM76067E_(EE)
Conditions under which the system will not operate
If using a cellular phone that does not support Bluetooth®
If the cellular phone is switched off
If you are outside service range
If the cellular phone is not connected
If the cellular phone’s battery is low
If the cellular phone is behind the seat or in the glove box or console box
If metal is covering or touching the phone
Signal status
This display may not correspond exactly with the cellular phone itself.
When using the hands-free system
The audio system and voice guidance are muted when making a call.
If both parties speak at the same time, it may be difficult to hear.
If the incoming call volume is overly loud, an echo may be heard.
Try to face toward the microphone as much as possible when speaking.
In the following circumstances, it may be difficult to hear the other
party:
• When driving on unpaved roads
• When driving at high speeds
• When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high

452
3-6. Using the storage features
CT200h_OM_OM76067E_(EE)
Bottle holders
When using the bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

472
3-7. Other interior features
CT200h_OM_OM76067E_(EE)
Stowing the luggage cover
Remove the side deck boards
and open the center auxiliary
box.
Adjust the cover so that the
information label is facing up.
Fold the rear edge of the cover
over, replace the side deck
boards and close the center aux-
iliary box.
STEP1
STEP2
STEP3

473
3-7. Other interior features
3
Interior features
CT200h_OM_OM76067E_(EE)
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
Deck boards
If the deck boards are removed, return them to their original positions before
driving. In the event of sudden braking, an accident may occur due to an
occupant being struck by the deck boards or the items stored in the auxiliary
box.
Caution for the luggage cover
Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
ItemsParts and tools
Engine oil level (P. 498)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 532)• Fuse with same amperage rating
as original
Light bulbs (P. 546)
• Bulb with same number and
wattage rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser (P. 5 0 6)
Tire inflation pressure (P. 519)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 507)
• Water or washer fluid contain-
ing antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)

498
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Engine oil
With the engine at operating temperature and turned off, check the
oil level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5
minutes for the oil to drain back into the bottom of the
engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully.
Non-flat dipstick: Reinsert the
dipstick fully with its protrud-
ing areas ( in the illustration)
pointing towards engine.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

5When trouble arises
561
CT200h_OM_OM76067E_(EE)
5-1. Essential information
Emergency flashers .......... 562
If your vehicle needs to
be towed ......................... 563
If you think something
is wrong ......................... 5705-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds ............................ 571
If a warning message is
displayed ........................ 578
If you have a flat tire
(vehicles with a
spare tire) ....................... 599
If you have a flat tire
(vehicles without a
spare tire) ....................... 613
If the hybrid system will
not start .......................... 627
If you lose your keys ....... 629
If the electronic key does
not operate properly....... 630
If the 12-volt battery
is discharged .................. 633
If your vehicle overheats . 639
If the vehicle becomes
stuck............................... 644
If your vehicle has to be
stopped in an
emergency...................... 646

5
563
5-1. Essential information
When trouble arises
CT200h_OM_OM76067E_(EE)
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your hybrid transmis-
sion. Contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional before towing.
The hybrid system is operating but the vehicle will not move.
The vehicle makes an abnormal sound.
If there is a malfunction in the P position control system, the smart
entry & start system or the immobilizer system, or if the 12-volt
battery is discharged, the vehicle cannot be towed with the front
wheels on the ground, as the front wheels may be locked. In this
case, transport the vehicle with both front wheels or all four wheels
lifted.
If towing is necessary, we recommend having your vehicle towed by
any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or a commercial towing service, using a lift-
type truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/provin-
cial and local laws.

564
5-1. Essential information
CT200h_OM_OM76067E_(EE)
Emergency towing
If a tow truck is not available in
an emergency, your vehicle
may be temporarily towed
using a cable or chain secured
to the emergency towing eye-
let(s). This should only be
attempted on hard surfaced
roads for short distances at
under 30 km/h (18 mph).
A driver must be in the vehicle
to steer and operate the brakes.
The vehicle’s wheels, drive
train, axles, steering and brakes
must be in good condition.
