Capacity Lexus CT200h 2012 Owner's Manual (in English)

132
1-6. Refueling
CT200h_OM_OM76067E_(EE)
Closing the fuel tank cap
After refueling, turn the fuel
tank cap until you hear a click.
Once the cap is released, it will
turn slightly in the opposite
direction.
When the fuel filler door cannot be opened by pressing the inside switch
Fuel types
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Fuel tank capacity
Approximately 45 L (11.9 gal., 9.9 lmp. gal.)
Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Remove the cover inside the luggage
compartment and pull the lever.

295
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)
CAUTION
TRC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC system is operating.
Do not drive the vehicle in conditions where stability and power may be
lost.
When the VSC is activated
The slip indicator light flashes. Always drive carefully. Reckless driving
may cause an accident. Exercise particular care when the indicator light
flashes.
Replacing tires
Make sure that all tires are of the specified size and of the same brand, tread
pattern and total load capacity. In addition, make sure that the tires are
inflated to the recommended tire inflation pressure level.
The ABS and VSC systems will not function correctly if different tires are
installed on the vehicle.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional for further information when replacing tires or
wheels.
Handling of tires and the suspension
Using tires with any kind of problem or modifying the suspension will
affect the driving assist systems, and may cause a system to malfunction.

308
CT200h_OM_OM76067E_(EE)
2-5. Driving information
Cargo and luggage
CAUTION
Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment:
Receptacles containing gasoline
Aerosol cans
Take notice of the following information about storage precautions,
cargo capacity and load:
Stow cargo and luggage in the luggage compartment when-
ever possible.
Be sure all items are secured in place.
To maintain vehicle balance while driving, position luggage
evenly within the luggage compartment.
For better fuel economy, do not carry unnecessary weight.

327
3-1. Using the air conditioning system and defogger
3
Interior features
CT200h_OM_OM76067E_(EE)
Window defogger feature
Recirculated air mode may automatically switch to (outside air)
mode in situations where the windows need to be defogged.
Pollen removal mode
In order to prevent the windshield from fogging up when the outside air
is cold, the following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
In rainy weather, the windows may fog up. Press .
When outside air temperature is below 0 C (32 F)
The cooling and dehumidification function may not operate even when
is pressed.
Operation of the air conditioning system in Eco drive mode
In the Eco drive mode, the air conditioning system is controlled as follows
to prioritize fuel efficiency:
Engine speed and compressor operation controlled to restrict heating/
cooling capacity
Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
Adjust the fan speed
Turn off Eco drive mode
Customize the air conditioning control of Eco drive mode. (P. 667)

519
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Tire inflation pressure
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
Reduced fuel efficiency
Reduced driving comfort and tire life
Reduced safety
Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven
for more than 1.5 km or 1 mile, you will get an accurate cold tire infla-
tion pressure reading.
Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation
pressure that is even just a few pounds off can affect ride quality and
handling.
Do not reduce tire inflation pressure after driving. It is normal for tire
inflation pressure to be higher after driving.
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is
balanced.
Make sure to maintain proper tire inflation pressure. Tire inflation
pressure should be checked at least once per month. However, Lexus
recommends that tire inflation pressure be checked once every two

521
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diame-
ter, rim width and inset
*.
Replacement wheels are available at any authorized Lexus
dealer or repairer, or another duly qualified and equipped pro-
fessional.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Aluminum wheel precautions
Use only Lexus wheel nuts and wrenches designed for use
with your aluminum wheels.
When rotating, repairing or changing your tires, check that
the wheel nuts are still tight after driving 1600 km (1000
miles).
Be careful not to damage the aluminum wheels when using
tire chains.

650
CT200h_OM_OM76067E_(EE)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicles with 16-inch and 17-inch tires
*3: Vehicles with 15-inch tires
Overall length4320 mm (170.1 in.)
Overall width1765 mm (69.5 in.)
Overall height*11440 mm (56.7 in.)*2
1430 mm (56.3 in)*3
Wheelbase2600 mm (102.4 in.)
Tread
Front1525 mm (60.0 in.)*2
1535 mm (60.4 in.)*3
Rear1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Gross vehicle mass1845 kg (4068 lb.)*2
1790 kg (3946 lb.)*3
Maximum
permissible
axle capacityFront1060 kg (2337 lb.)
Rear1010 kg (2227 lb.)*2
980 kg (2161 lb.)*3

653
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)
Fuel
Electric motor (traction motor)
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only.
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 lmp.gal.)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)

654
6-1. Specifications
CT200h_OM_OM76067E_(EE)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchang-
ing. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 lmp.qt.)
3.9 L (4.1 qt., 3.4 lmp.qt.)

657
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)

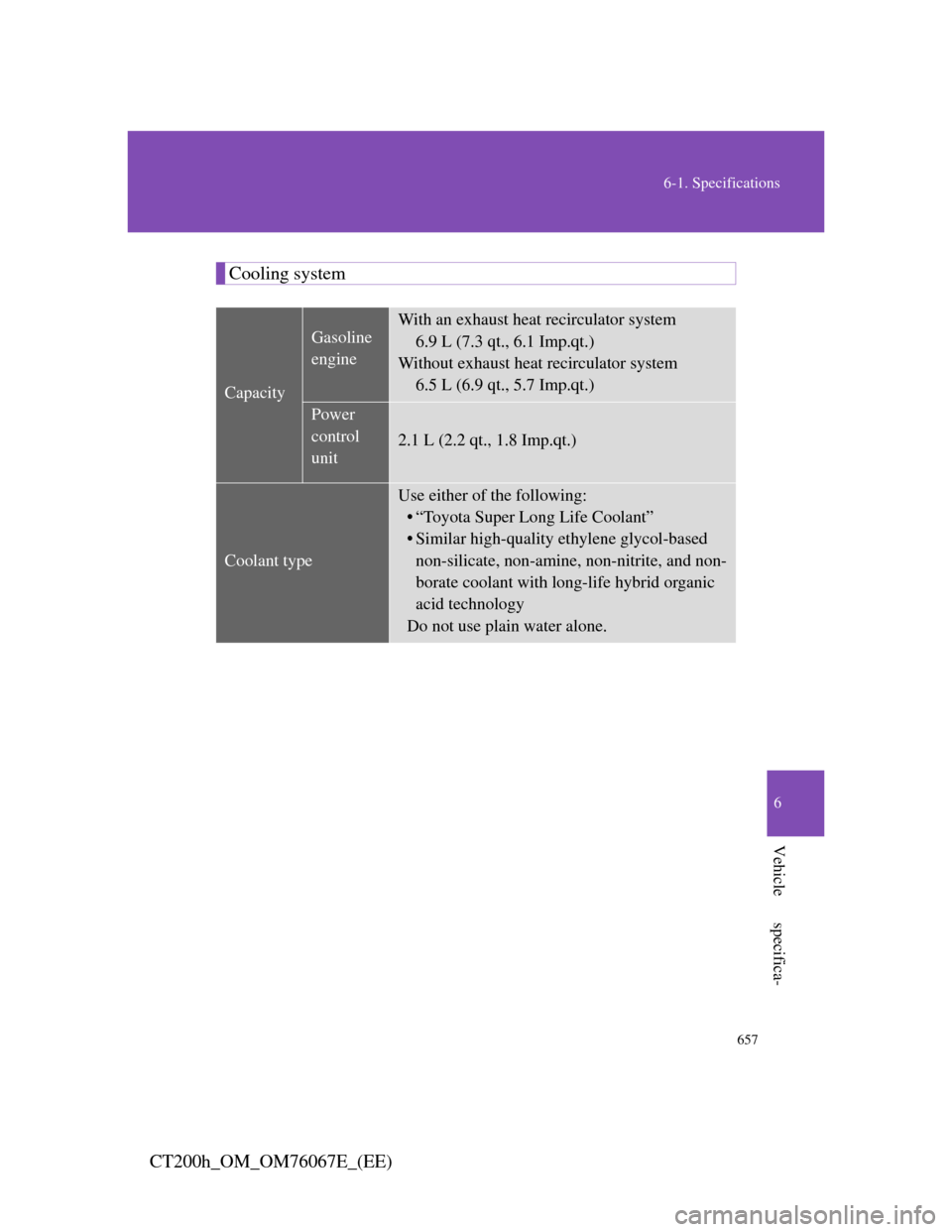

Cooling system
Capacity
Gasoline
engine
With an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Without exhaust heat recirculator system
6.5 L (6.9 qt., 5.7 Imp.qt.)
Power
control
unit
2.1 L (2.2 qt., 1.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
