CT200h_OM_OM76067E_(EE)
3-5. Using the interior lights
Interior lights list ................ 445
• Personal/interior light
main switch ...................... 446
• Front personal/interior
lights................................. 446
• Rear interior light ............. 447
3-6. Using the storage features
List of storage features ....... 448
• Glove box ......................... 449
• Console box ..................... 450
• Cup holders ...................... 451
• Bottle holders ................... 452
• Auxiliary boxes ................ 453
3-7. Other interior features
Sun visors ........................... 457
Vanity mirrors .................... 458
Clock .................................. 459
Power outlet ....................... 460
Heated steering wheel ........ 463
Seat heaters ........................ 465
Floor mat ............................ 467
Luggage compartment
features ............................. 4694-1. Maintenance and care
Cleaning and protecting
the vehicle exterior........... 476
Cleaning and protecting
the vehicle interior ........... 482
4-2. Maintenance
Maintenance
requirements..................... 485
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ....................... 488
Hood ................................... 492
Positioning a floor jack ...... 494
Engine compartment .......... 496
12-volt battery .................... 508
Tires ................................... 515
Tire inflation pressure ........ 519
Wheels................................ 521
Air conditioning filter ........ 523
Electronic key battery ........ 527
Checking and replacing
fuses ................................. 532
Light bulbs ......................... 546
4Maintenance and care

462
3-7. Other interior features
CT200h_OM_OM76067E_(EE)
The power outlet can be used when
The “POWER” switch is in ACCESSORY or ON mode.
Connecting power cables from the power outlet (auxiliary box)
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
To prevent 12-volt battery discharge
Do not use the power outlet longer than necessary when the hybrid system is
off.
The gap in the lid allows power cables to
be passed through even when the lid is
closed.

496
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Engine compartment
12-volt battery
P. 5 0 8
Engine coolant reservoir
(P. 503)
Engine oil level dipstick
(P. 498)
Engine oil filler cap (P.
498)
Power control unit coolantFuse box (P. 532)
Radiator (P. 506)
Condenser (P. 506)
Electric cooling fans
Washer fluid tank (P.
507)

532
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.STEP1
STEP2

534
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)

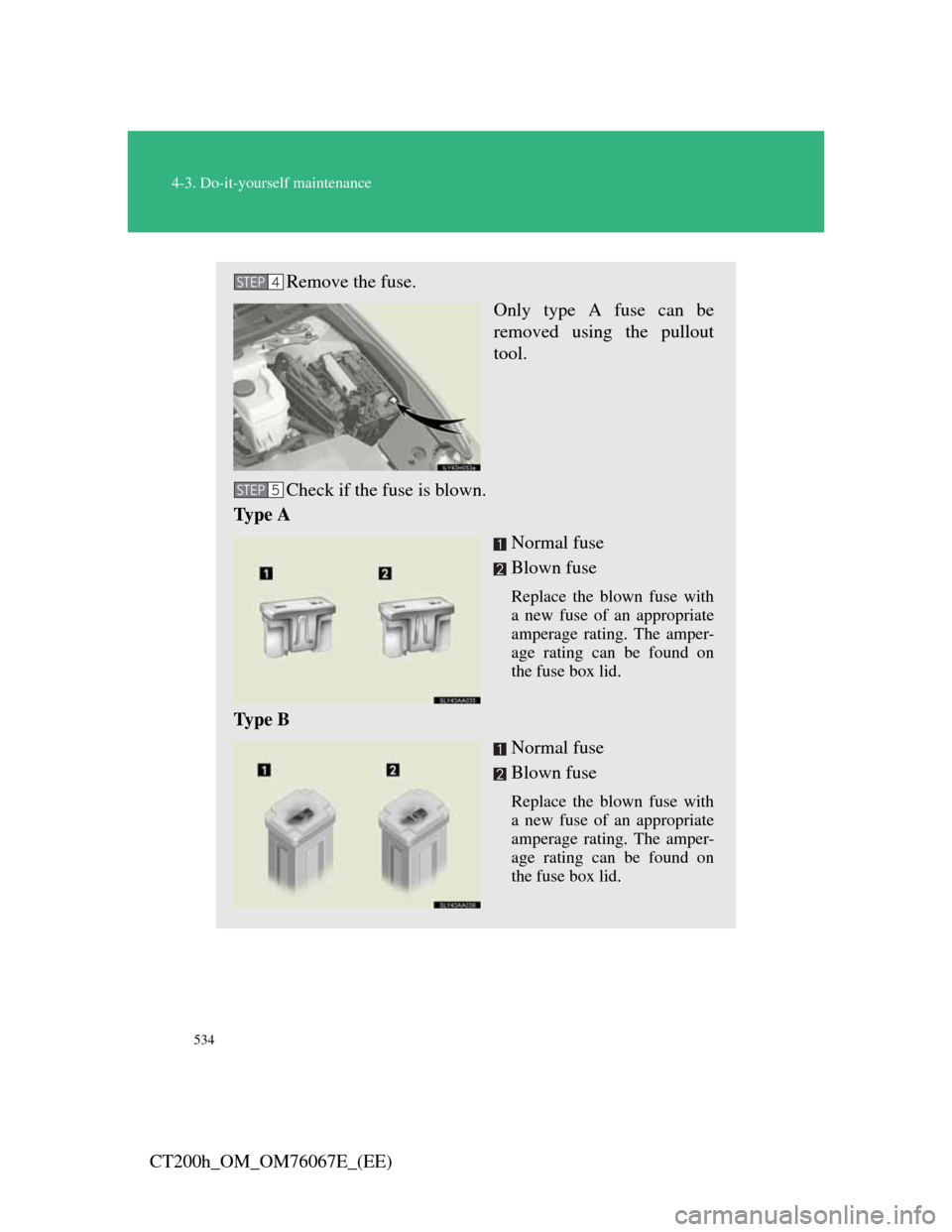

Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
STEP4
STEP5

535
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.

541
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
2PANEL10 A
Audio system, Lexus parking
assist-sensor switch, windshield
wiper de-icer switch, navigation
system, fuel filler door opener,
glove box light, headlight cleaner
switch, emergency flasher switch,
manual headlight leveling dial, air
conditioning system, outside rear
view mirrors, driving mode select
switch, P position switch, instru-
ment panel light control dial, shift
position indicators, seat heater
switches, heated steering wheel
switch, pre-crash braking off
switch
3IGN10 A
Electronically controlled brake
system, smart entry & start system,
multiport fuel injection system/
sequential multiport fuel injection
system, stop/tail lights, SRS air-
bags
4MET7.5 AGauges and meters
FuseAmpereCircuit

545
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
