SECTION 1 – 6
43
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seats44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk storage extension46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headrests48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror
50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMFORT ADJUSTMENT
44
FRONT SEATS
Seat adjustment precautions
Adjust the driver’s seat so that the foot pedals, steering wheel
and instrument panel controls are within easy reach of the
driver.
CAUTION:

Do not adjust the seat while the vehicle is moving as the
seat may unexpectedly move and cause the driver to
lose control of the vehicle.

Be careful not to hit the seat against a passenger,
luggage or the rear seat.
NOTICE:
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.
Adjusting front seats
Seatback angle
control switch
Seat position control switch,
seat cushion angle and height
control switch (driver’s seat only)

COMFORT ADJUSTMENT
48
HEADRESTS
Unlock
To raise the headrest, pull it up. To lower it, press the lock
release button and push the headrest down. To move the
headrest forward, pull on the top.
Pulling the top of the headrest forward as far as it can go will
return it to the upright position.
The headrest is most effective when it is close to your head, so
using a cushion on the seatback is not recommended.
CAUTION:

Adjust the top of the headrest so that it is closest to the
top of your ears.

After adjusting the headrest, make sure it is locked in
position.

Do not drive with the headrests removed.
TILT STEERING WHEEL
Unlock
Lock release lever
To change the steering wheel angle, hold the steering
wheel, pull up the lock release lever, tilt the steering wheel
to the desired angle and release the lever.
The steering wheel will spring up to the highest position when
the lock release lever is pulled up.
CAUTION:

This adjustment should not be made while the vehicle
is moving.

After adjusting the steering wheel, try moving it up and
down to make sure it is locked in position.

COMFORT ADJUSTMENT
57 When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender and store in the vehicle
for future use.
CAUTION:
After inserting the tab, make sure that the connection is
secure and the seat belt extender is not twisted.

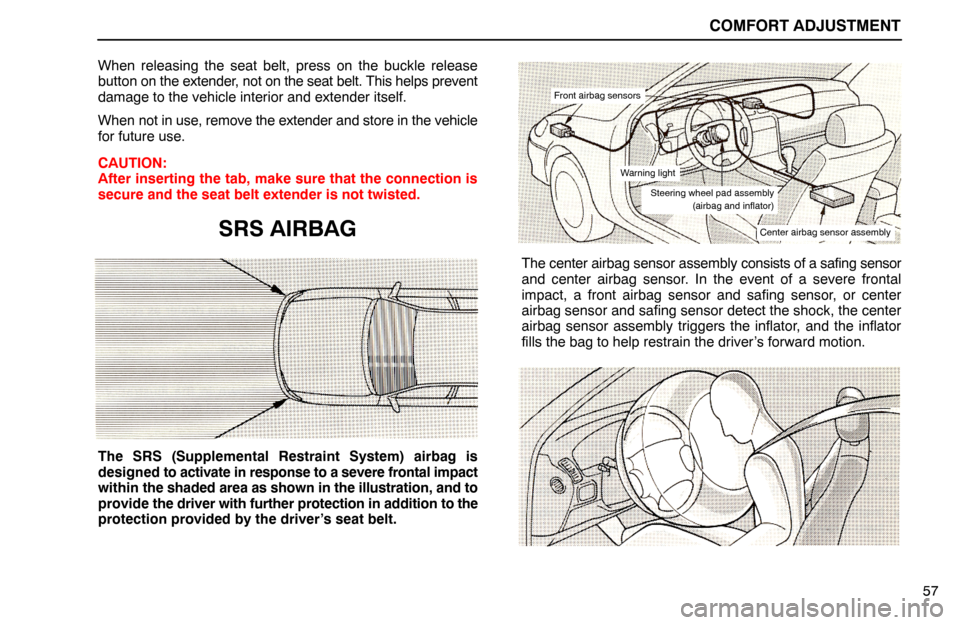

SRS AIRBAG
The SRS (Supplemental Restraint System) airbag is
designed to activate in response to a severe frontal impact
within the shaded area as shown in the illustration, and to
provide the driver with further protection in addition to the
protection provided by the driver’s seat belt.
Front airbag sensors
Warning light
Steering wheel pad assembly
(airbag and inflator)
Center airbag sensor assembly
The center airbag sensor assembly consists of a safing sensor
and center airbag sensor. In the event of a severe frontal
impact, a front airbag sensor and safing sensor, or center
airbag sensor and safing sensor detect the shock, the center
airbag sensor assembly triggers the inflator, and the inflator
fills the bag to help restrain the driver’s forward motion.

COMFORT ADJUSTMENT

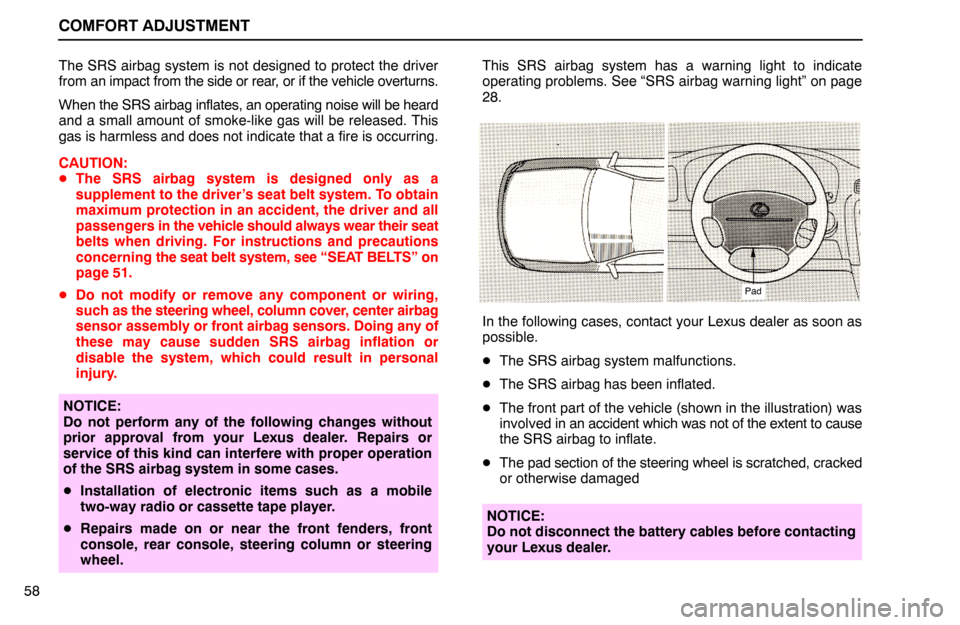

58The SRS airbag system is not designed to protect the driver
from an impact from the side or rear, or if the vehicle overturns.
When the SRS airbag inflates, an operating noise will be heard
and a small amount of smoke-like gas will be released. This
gas is harmless and does not indicate that a fire is occurring.
CAUTION:

The SRS airbag system is designed only as a
supplement to the driver’s seat belt system. To obtain
maximum protection in an accident, the driver and all
passengers in the vehicle should always wear their seat
belts when driving. For instructions and precautions
concerning the seat belt system, see “SEAT BELTS” on
page 51.

Do not modify or remove any component or wiring,
such as the steering wheel, column cover, center airbag
sensor assembly or front airbag sensors. Doing any of
these may cause sudden SRS airbag inflation or
disable the system, which could result in personal
injury.
NOTICE:
Do not perform any of the following changes without
prior approval from your Lexus dealer. Repairs or
service of this kind can interfere with proper operation
of the SRS airbag system in some cases.

Installation of electronic items such as a mobile
two-way radio or cassette tape player.

Repairs made on or near the front fenders, front
console, rear console, steering column or steering
wheel.This SRS airbag system has a warning light to indicate
operating problems. See “SRS airbag warning light” on page
28.
Pad
In the following cases, contact your Lexus dealer as soon as
possible.

The SRS airbag system malfunctions.

The SRS airbag has been inflated.

The front part of the vehicle (shown in the illustration) was
involved in an accident which was not of the extent to cause
the SRS airbag to inflate.

The pad section of the steering wheel is scratched, cracked
or otherwise damaged
NOTICE:
Do not disconnect the battery cables before contacting
your Lexus dealer.
