AIR CONDITIONING AND AUDIO
11 6
ªAutomatic program selectionº button: The automatic
program selection button feature allows you to program your
cassette player to skip forward or backward to locate the
song you want to hear. You can skip up to nine programs at
one time.
Push this button on the upper side to skip forward. ªFFº and
the number will appear on the display. Push the button until
the number you want to skip appears on the display. After
that, the player will automatically skip forward.
When the end of the tape is reached, the player
automatically reverses sides and resumes normal play.Push this button on the lower side to skip backwards. Push
the button until the ªREWº and the number you want to skip
appear on the display.
If you set ªREW 1º, the player will rewind to the beginning
of the current program.
When counting the number of prgrams you want to rewind,
remember to count the current program as well. For
example, if you want to rewind to a song that is two before
the song you are listening to, push the buttin until ªREW 3º
appears on the display.
When the beginning of the tape is reached, the player
automatically resumes normal play.
There must be at least 3 seconds of blank space between
programs for this feature to work correctly.
ªRPTº, ªSKIPº or ªAutomatoc program selectionº
features: These features may not work well woth some
spoken word, live or classical recordings.
Page 12 of 21
AIR CONDITIONING AND AUDIO
11 7
Compact disc player operation
The compact disc player is an optional accessory that your
vehicle is pre±wired to accept. Although your audio system
has a ªCDº button, your vehicle may or may not be equipped
with a CD player. Please contact your dealer for additional
details if you would like to have the optional CD player
installed.
(a) Inserting compact discs
1. Pull the lever and open the glovebox door.
2. Push this button to eject the magazine.
3. Pull on the tray while pushing the lock release
button.
Page 13 of 21
AIR CONDITIONING AND AUDIO
11 8
4. Put a disc on the tray with its label face down and
push the tray back into the magazine.
If the label faces up, the disc cannot be played. In this case,
ªErrº and the disc number appears on the display.
5. Insert the magazine into the player as indicated by
the arrow head on the magazine and close the glovebox
door.When the magazine is set completely, the system will be in
a ªLoadº cycle for approximately 20 seconds while the
system searches for discs in the magazine. Upon
completion of this cycle, the CD unit will be ready to play. If
the ªCDº button is pushed during the ªLoadº cycle, ªLOADº
appears on the display until the system had completed the
load cycle, after which the system will begin normal play.
CAUTION!
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the glovebox door
closed while driving.
Page 14 of 21
AIR CONDITIONING AND AUDIO
11 9 (b) Playing a compact disc
Push the ªCDº button if the magazine is already loaded
in the player.
ªCDº appears on the display.
The discs set in the magazine are played continuously,
starting with disc number 1. The disc number of the disc
currently being played, the track number and the time from
the beginning of the program appear on the display.
When play of one disc ends, the first track of the following
disc starts. When play of the final disc ends, play of the first
disc starts again.
The player will skip any empty disc trays.(c) Selecting a dsired discPush the ªDISCº button to select the disc number.
Push the button and hold it until the desired disc number
appears on the display. When you release the button, the
player will start playing the selected disc from the first track.
Page 15 of 21
AIR CONDITIONING AND AUDIO
120(d) Searching for a desired track
Push the ªSCANº button briefly.
ªSCANº will appear on the display. The compact disc player
will play the next track for 10 seconds, then scan again. To
select a track, push the ªSCANº button a second time. If the
player reaches the end of a disc, it will continue scanning at
track 1.
After all the tracks are scanned in one pass, normal play
resumes.(e) Searching for a desired discPush the ªSCANº button until you hear a beep.
With ªD.SCANº on the display, the program at the beginning
of each disc will be played for 10 seconds. To continue
listening to the program of your choice, push the ªSCANº
button a second time.
After all the discs in the magazine are scanned in one pass,
the scan function is cancelled.
Page 16 of 21
AIR CONDITIONING AND AUDIO
121 (f) Selecting a desired track
ªTRACKº button: Use for direct access to a desired track.
Push either side of the ªTRACKº button and hold it until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track
from the beginning.
ªFast forwardº button.
Push the ª
º button and hold it to fast forward the disc.
When you release the button, the compact disc player will
resume playing from that position.
ªReverseº button.
Push the ªº button and hold it to reverse the disc. When
you release the button, the compact disc player will resume
playing.(g) Other compact disc player functionsªRPTº button: Use it for automatic repeat of the track you
are currently listening to.
Push the button while the track is playing. When the track
is finished, the player will automatically go back to the
beginning of the track and play the track again. To cancel it,
push the button once again.
ªRANDº button: Use it for automatic track selection and
play by the system.
When the button is pushed, the system selects a track in the
discs which are set and plays it. To cancel it, push the button
once again.
When a track is skipped or the system is inoperative, push
the button to reset.
Page 17 of 21
AIR CONDITIONING AND AUDIO
122(h) If the player malfunctions
If ªWAITº appears on the display, audio signals of the disc
cannot be read or the system has trouble. Push the ªCDº
button once again.
If the player does not operate, check that the disc surface is
not soiled or damaged. If the disc is O.K., the following
cause is possible.
The temperature of the player's internal mechanism is
raised because of high external temperature. Remove the
magazine from the player to cool it.
If the player still does not operate, take it to your Lexus
dealer.
Car audio system operating hints
NOTICE
To ensure the correct audio system operation:
Be careful not to spill beverages over the audio
system.
Do not put anything other than a cassette tape or
CD magazine into the cassette tape slot or CD
changer.
Radio reception
Usually, the problem with radio reception does not mean
there is a problem with your radio ± it is just the normal result
of conditions outside the vehicle.
For example, nearby building s and terrain can interfere with
FM reception. Power lines or telephone wires can interfere
with AM signals. And of course, radio signals have a limited
range, and the farther you are from a station, the weaker its
signal will be. In addition, reception conditions change
constantly as your vehicle moves.
Here are some common reception problems that probably
do not indicate a problem with your radio.
FM
Fading and drifting stations±Generally, the effective
range of FM is about 40km (25 miles). Once outside this
range, you may notice and drifting, which increase with
distance from the distance from the radio transmitter. They
are often accompanied by distortion.
Multi±path±FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering±These occur when the signals are
blocked by buildings, trees, or other large objects.
Increasing the basis level may reduce static and fluttering.
Page 18 of 21
AIR CONDITIONING AND AUDIO
123 Station swapping±If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original can be picked up again.
AM
Fading±AM broadcasts are reflected by the upper
atmosphere ± especially at night. These reflected signals
can interfere with those received directly from the radio
station to sound alternately strong and weak.
Station interference±When a reflected signal and a signal
received directly from a radio station are very nearly the
same frequency, they can interfere with each other, making
it difficult to hear the broadcast.
Static±AM is easily affected by external sources of electrical
noise, such as high tension power lines, lightning, or eletrical
motors. This results in static.
Caring for your cassette player and tapes
For high performance from your cassette player and tapes:
Clean the tape head and other parts regularly.
A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is
recommended.)Use high±quality cassettes:
Low±quality cassette tapes can cause many problems
including poor sound, inconsistant playing speed, and
constant auto±reversing. They can also getstuck or
tangled in the cassette player.
Do not use a cassette if it had been damaged or tangled or
if its label is peeling off.
Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
Store cassettes in their cases and out of direct sunlight.
Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the
cassette player.
Page 19 of 21
AIR CONDITIONING AND AUDIO
124Caring for your compact disc player and discs
Use only compact discs labeled as shown. The player is
intended for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep your compact disc
player from working. On hot days, use air conditioning to
cool the vehicle interior before you listen to a disc.
Bumpy roads or other vibrations may make your compact
disc player skip.
If moisture gets into your compact disc player, you may not
hear any sound even though your compact disc player
appears to be working. Remove the magazine from the
player and wait until it dries.
Correct
Wrong
Handle compact discs carefully, especially when you set
them into the magazine. Hold them on the edge and do ot
bend them. Avoid getting fingerprints on them, particularly
on the shiny side.
Dirt, scrapes, warping, pin holes, or other disc damage
could cause the player to skip or to repeat a section of a
track. (To see a pin hole, hold the disc up to the light.)
Page 20 of 21
AIR CONDITIONING AND AUDIO
125

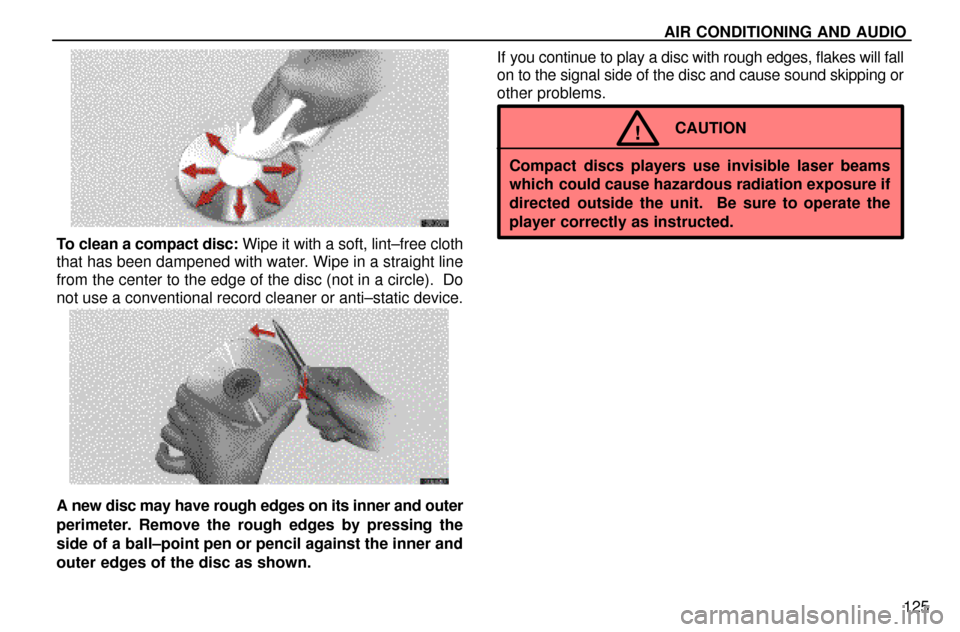

To clean a compact disc: Wipe it with a soft, lint±free cloth
that has been dampened with water. Wipe in a straight line
from the center to the edge of the disc (not in a circle). Do
not use a conventional record cleaner or anti±static device.
A new disc may have rough edges on its inner and outer
perimeter. Remove the rough edges by pressing the
side of a ball±point pen or pencil against the inner and
outer edges of the disc as shown.If you continue to play a disc with rough edges, flakes will fall
on to the signal side of the disc and cause sound skipping or
other problems.
CAUTION!
Compact discs players use invisible laser beams
which could cause hazardous radiation exposure if
directed outside the unit. Be sure to operate the
player correctly as instructed.
