Lexus ES300 1999 Owner's Manuals (in English)

COMFORT ADJUSTMENT
161
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of child restraint
systems for children small enough to use them.
The laws of all fifty states in the U.S.A. and Canada now
require the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child
should sit in the rear seat and must be restrained using
the vehicle's seat belt. See ºSeat beltsº on page 125 for
details.
CAUTION

COMFORT ADJUSTMENT
162

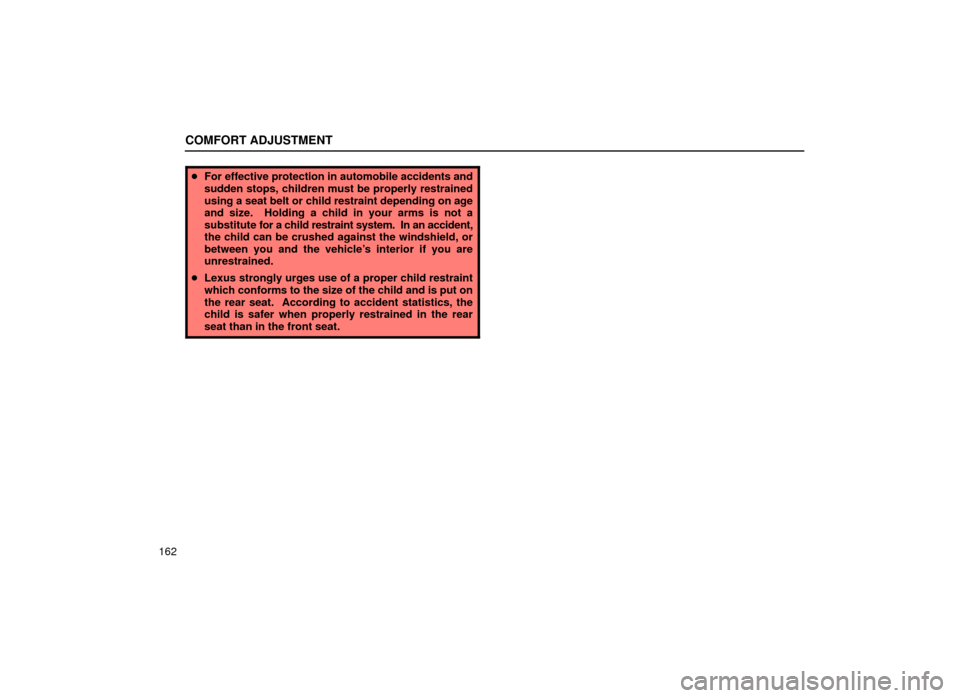

For effective protection in automobile accidents and
sudden stops, children must be properly restrained
using a seat belt or child restraint depending on age
and size. Holding a child in your arms is not a
substitute for a child restraint system. In an accident,
the child can be crushed against the windshield, or
between you and the vehicle's interior if you are
unrestrained.
 Lexus strongly urges use of a proper child restraint
which conforms to the size of the child and is put on
the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear
seat than in the front seat.

COMFORT ADJUSTMENT
163

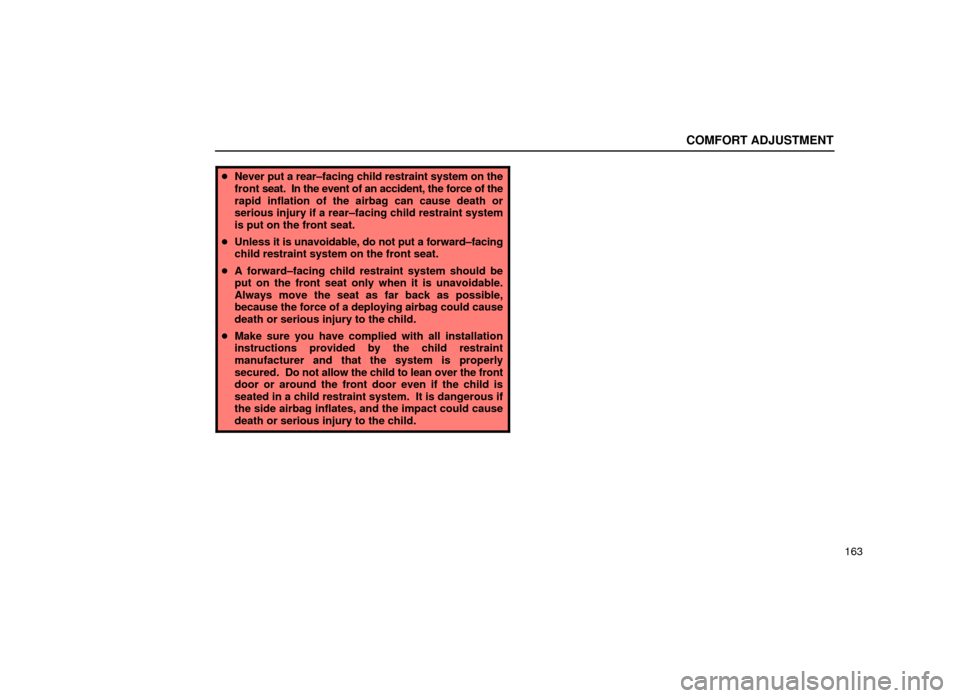

Never put a rear±facing child restraint system on the
front seat. In the event of an accident, the force of the
rapid inflation of the airbag can cause death or
serious injury if a rear±facing child restraint system
is put on the front seat.
 Unless it is unavoidable, do not put a forward±facing
child restraint system on the front seat.
 A forward±facing child restraint system should be
put on the front seat only when it is unavoidable.
Always move the seat as far back as possible,
because the force of a deploying airbag could cause
death or serious injury to the child.
 Make sure you have complied with all installation
instructions provided by the child restraint
manufacturer and that the system is properly
secured. Do not allow the child to lean over the front
door or around the front door even if the child is
seated in a child restraint system. It is dangerous if
the side airbag inflates, and the impact could cause
death or serious injury to the child.

COMFORT ADJUSTMENT
164
Child restraint system
A child restraint system for a small child or baby
must itself be properly restrained on the seat with
the lap portion of the lap/shoulder belt. You must
carefully consult the manufacturer's instructions
which accompany by your child restraint system.
To provide proper restraint, use a child restraint system
following the manufacturer's instructions about the
appropriate age and size of the child for the restraint
system.
Install the child restraint system correctly following the
instructions provided by its manufacturer of the system.
General directions are also provided under the following
illustrations.
The child restraint system should be installed on the rear
seat. According to accident statistics, the child is safer
when properly restrained in the rear seat than in the front
seat.

COMFORT ADJUSTMENT
165

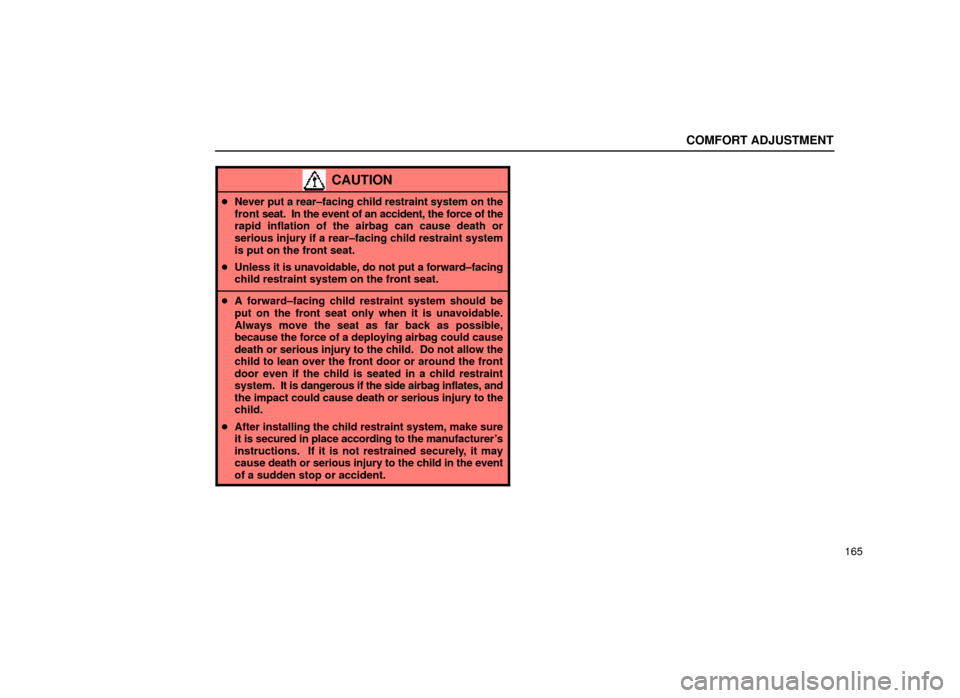

CAUTION
Never put a rear±facing child restraint system on the
front seat. In the event of an accident, the force of the
rapid inflation of the airbag can cause death or
serious injury if a rear±facing child restraint system
is put on the front seat.
 Unless it is unavoidable, do not put a forward±facing
child restraint system on the front seat.
A forward±facing child restraint system should be
put on the front seat only when it is unavoidable.
Always move the seat as far back as possible,
because the force of a deploying airbag could cause
death or serious injury to the child. Do not allow the
child to lean over the front door or around the front
door even if the child is seated in a child restraint
system. It is dangerous if the side airbag inflates, and
the impact could cause death or serious injury to the
child.
 After installing the child restraint system, make sure
it is secured in place according to the manufacturer's
instructions. If it is not restrained securely, it may
cause death or serious injury to the child in the event
of a sudden stop or accident.

COMFORT ADJUSTMENT
166When not using the child restraint system, keep it
secured with the seat belt or place it in the trunk or
somewhere other than in the passenger compartment.
This will prevent it from injuring passengers in the event
of a sudden stop or accident.
Your vehicle has anchors for securing the top strap of a
child restraint system. The anchor nuts are welded
beneath the sheet metal to permit installation of an
anchor bracket for a child restraint system.
To install an anchor bracket, use an 8 mm X 30 mm X
1.25 mm coarse thread metric bolt and a 15 mm (0.6 in.)
spacer. Note that the bolts accompanying many child
restraint systems are not metric. You can damage the
anchor nuts on your vehicle if you force bolts with
different thread into the anchor nuts.
For instructions about how to install the anchor bracket,
see ºTop strap anchors and locationsº.
If your child restraint system does not provide any of the
necessary parts, you can purchase the following items
from your Lexus dealer.

CRS installation kit (Part No. 04731±22012)
± contains 1 bolt, 3 types of spacer and 1 locking clip.
 Bolt (Part No. 91511±60830)

COMFORT ADJUSTMENT
167
Types of child restraint system
Child restraint systems are classified into the following
3 types depending on the child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following the
instructions provided by its manufacturer.
(A) Infant seat
16E103a

COMFORT ADJUSTMENT

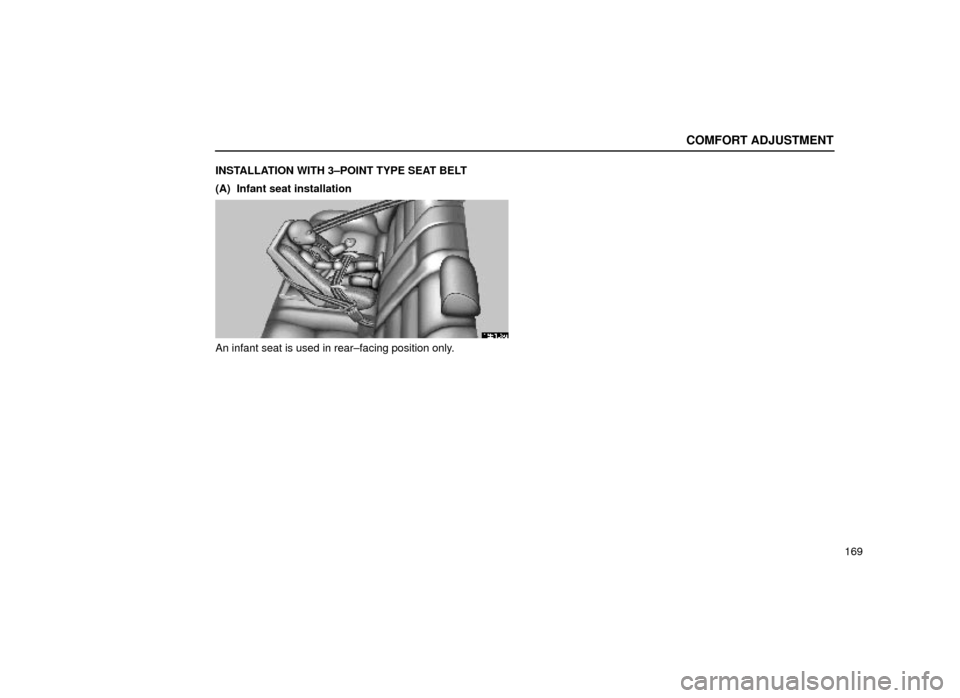

168(B) Convertible seat
16E104±2
(C) Booster seat
16E105±3

COMFORT ADJUSTMENT
169
INSTALLATION WITH 3±POINT TYPE SEAT BELT

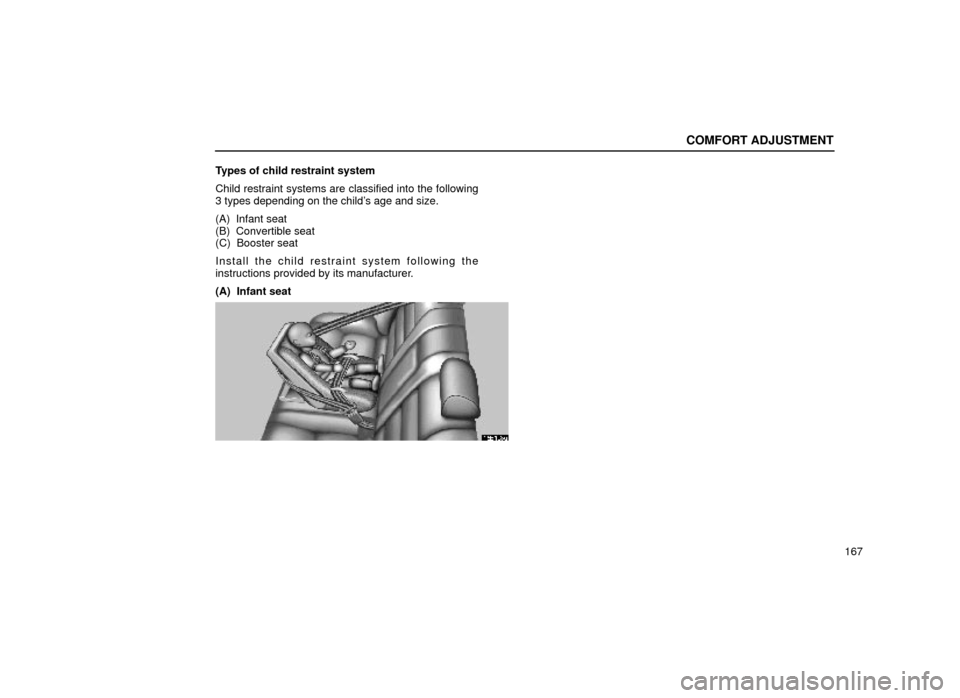

(A) Infant seat installation
16E103a
An infant seat is used in rear±facing position only.

COMFORT ADJUSTMENT
170
16E100a

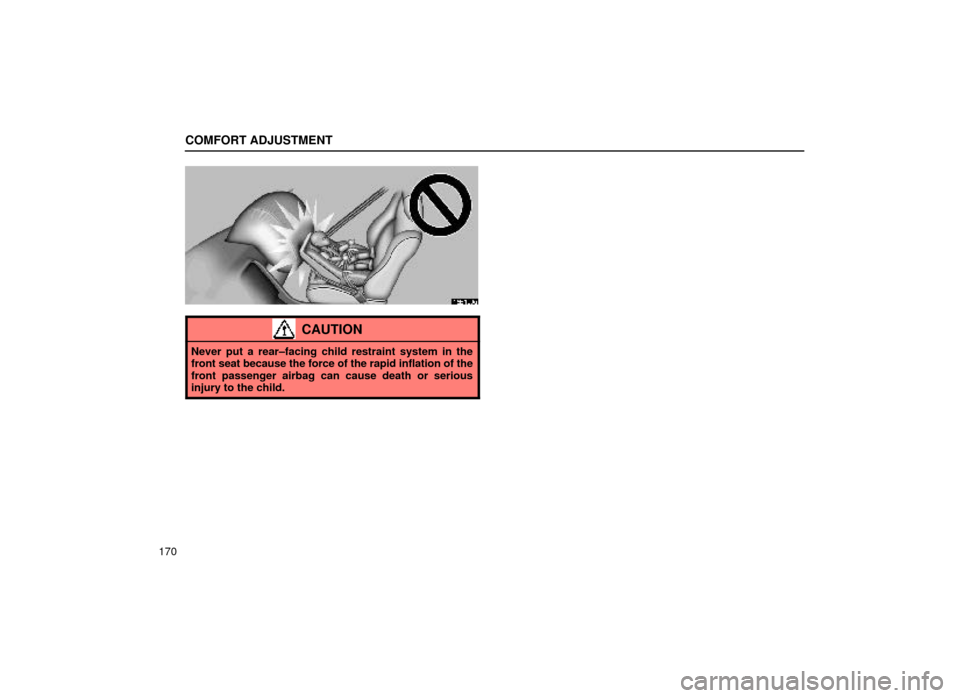

CAUTION
Never put a rear±facing child restraint system in the
front seat because the force of the rapid inflation of the
front passenger airbag can cause death or serious
injury to the child.
