Lexus ES300 1999 Owner's Manuals (in English)

IN CASE OF AN EMERGENCY
331
CAUTION
Never get under the vehicle when the vehicle is
supported by the jack alone.
40E009±1

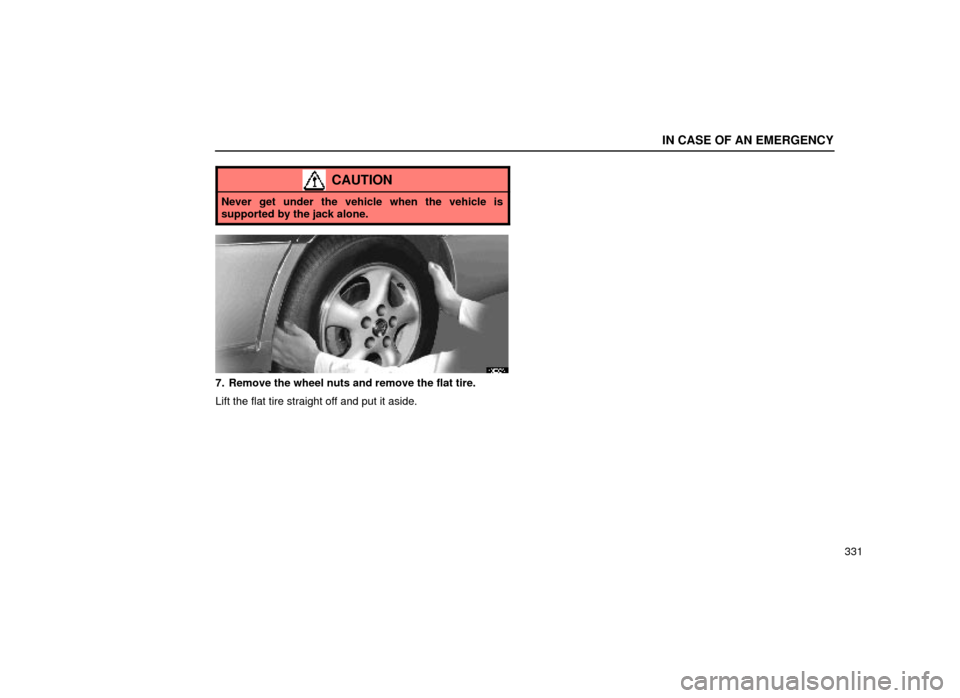

7. Remove the wheel nuts and remove the flat tire.
Lift the flat tire straight off and put it aside.

IN CASE OF AN EMERGENCY
332
40E010

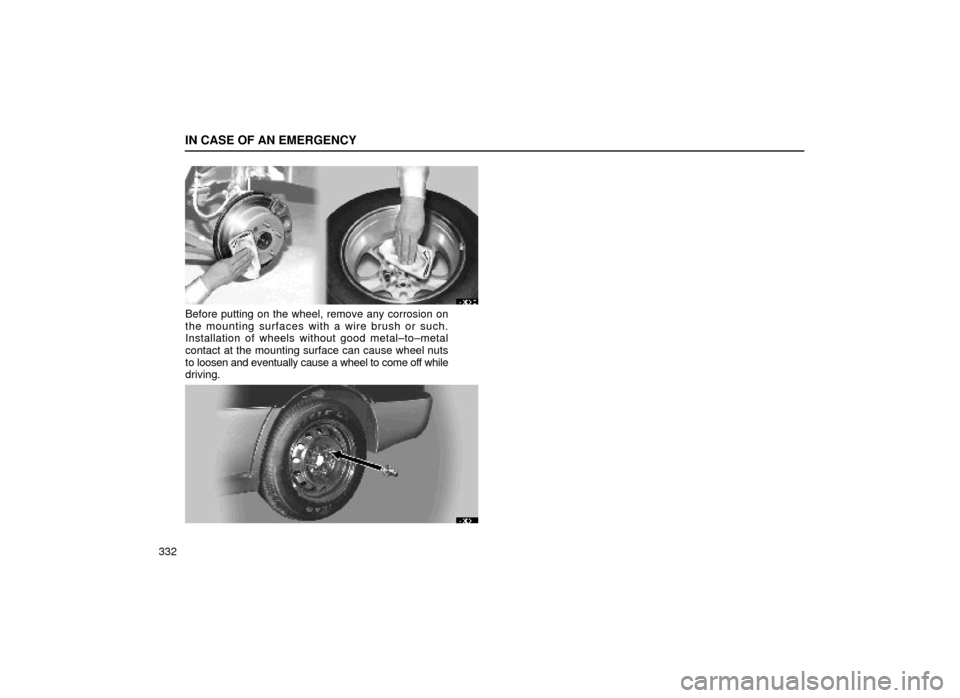

Before putting on the wheel, remove any corrosion on
the mounting surfaces with a wire brush or such.
Installation of wheels without good metal±to±metal
contact at the mounting surface can cause wheel nuts
to loosen and eventually cause a wheel to come off while
driving.
40E011

IN CASE OF AN EMERGENCY
333
8. Reinstall all the wheel nuts finger tight.
Align the holes in the wheel with the bolts. Then lift up
the wheel and get at least the top bolt started through its
hole. Wiggle the tire and press it back over the other
bolts.
Reinstall the wheel nuts and tighten them as much as
you can by hand. Press the tire back and see if you can
tighten them more.

IN CASE OF AN EMERGENCY
334
40E012
9. Lower the vehicle completely and tighten the
wheel nuts.
Turn the jack handle counterclockwise to lower the
vehicle.
Use only the wheel nut wrench to tighten the nuts. Do
not use other tools or any additional leverage other than
your hands, such as a hammer, pipe or your foot. Make
sure the wrench is securely engaged over the nut.

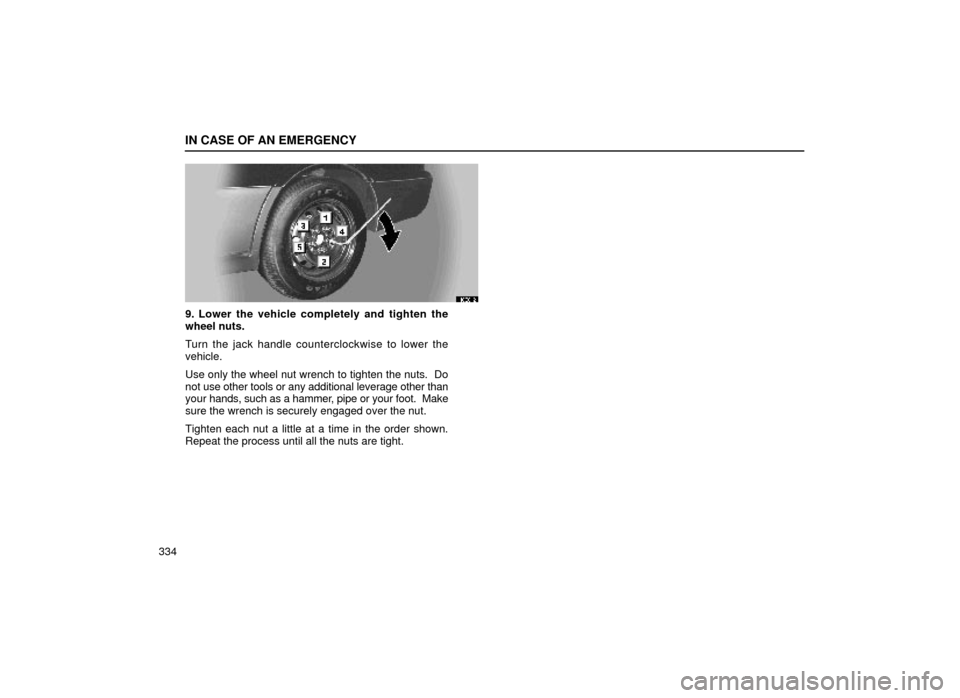

Tighten each nut a little at a time in the order shown.
Repeat the process until all the nuts are tight.

IN CASE OF AN EMERGENCY
335
CAUTION
When lowering the vehicle, make sure all portions of
your body and all other persons around will not be
injured as the vehicle is lowered to the ground.
 As soon as possible after changing wheels, have the
wheel nuts tightened by torque wrench at 103 N´m
(10.5 kgf´m, 76 ft´lbf.).

IN CASE OF AN EMERGENCY
33610. After changing the wheel, check the air pressure
of the replaced tire. Stow all the tools, jack and flat
tire securely.
If the pressure of the replaced tire is low, drive slowly to
the nearest service station and fill to the correct
pressure.
Do not forget to reinstall the tire valve cap as dirt and
moisture could get into the valve core and possible
cause air leakage. If the cap is missing, put a new one
on as soon as possible.
This is the same procedure for changing or rotating your
tires.
CAUTION
Before driving, make sure all the tools, jack and flat tire
are securely in place in their storage location to reduce
the possibility of personal injury during a collision or
sudden braking.

IN CASE OF AN EMERGENCY
337
IF YOUR VEHICLE NEEDS TOBE TOWED
If towing is necessary, we recommend you to have
it done by your Lexus dealer or a commercial tow
truck service. In consultation with them, have your
vehicle towed using either (a) or (b).
(a) Towing with a wheel lift type truck
(b) Using a flat bed truck
(c) Never tow with a sling type truck
Only when you cannot receive a towing service from
a Lexus dealer or commercial tow truck service, tow
your vehicle carefully in accordance with the
instructions given in º(d) Emergency towingº on
page 343.
Proper equipment will help ensure that your vehicle is
not damaged while being towed. Commercial operators
are generally aware of the state/provincial and local laws
pertaining to towing.
Your vehicle can be damaged if it is towed incorrectly.
Although most operators know the correct procedure, it
is possible to make a mistake. To avoid damage to your
vehicle, make sure the following few precautions are
observed. If necessary, show this page to the tow truck
driver.
TOWING PRECAUTIONS: Use a safety chain system for all towing, and abide by
the state/provincial and
local laws. The wheels and axle
on the ground must be in good condition. If they are
damaged, use a towing dolly.

IN CASE OF AN EMERGENCY
338
(a) Towing with a wheel lift type truck
From front
40E018±2
Release the parking brake.
NOTICE
When lifting wheels, take care to ensure adequate
ground clearance for towing at the opposite end of the raised vehicle. Otherwise, the bumperand/or underbody of the towed vehicle will bedamaged during towing.
 From rear

IN CASE OF AN EMERGENCY
339
40E019±1
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle with an automatictransmission from the rear with front wheels onthe ground, as this may cause serious damage tothe transmission.

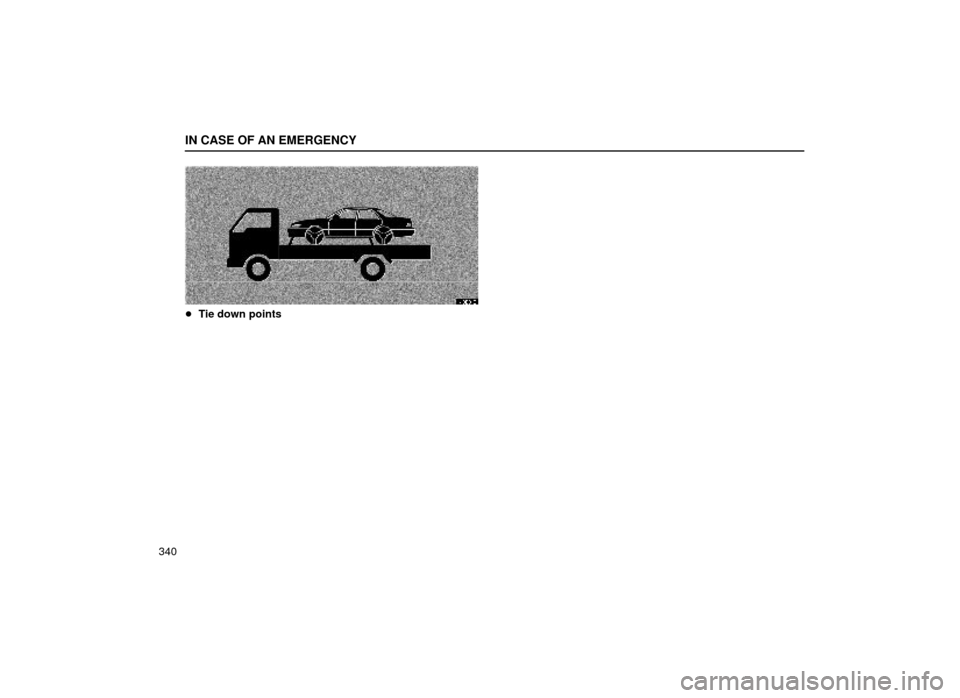

(b) Using a flat bed truck

IN CASE OF AN EMERGENCY
340
40E013
Tie down points
