IN CASE OF AN EMERGENCY
361
(a) Towing with a wheel lift type truck
From front
40E018±2
Release the parking brake.
NOTICE
When lifting wheels, take care to ensure adequate
ground clearance for towing at the opposite end of the raised vehicle. Otherwise, the bumperand/or underbody of the towed vehicle will bedamaged during towing.
 From rear

IN CASE OF AN EMERGENCY
362
40E019±1
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle with an automatictransmission from the rear with front wheels onthe ground, as this may cause serious damage tothe transmission.
(b) Using a flat bed truck

IN CASE OF AN EMERGENCY
363
40E013

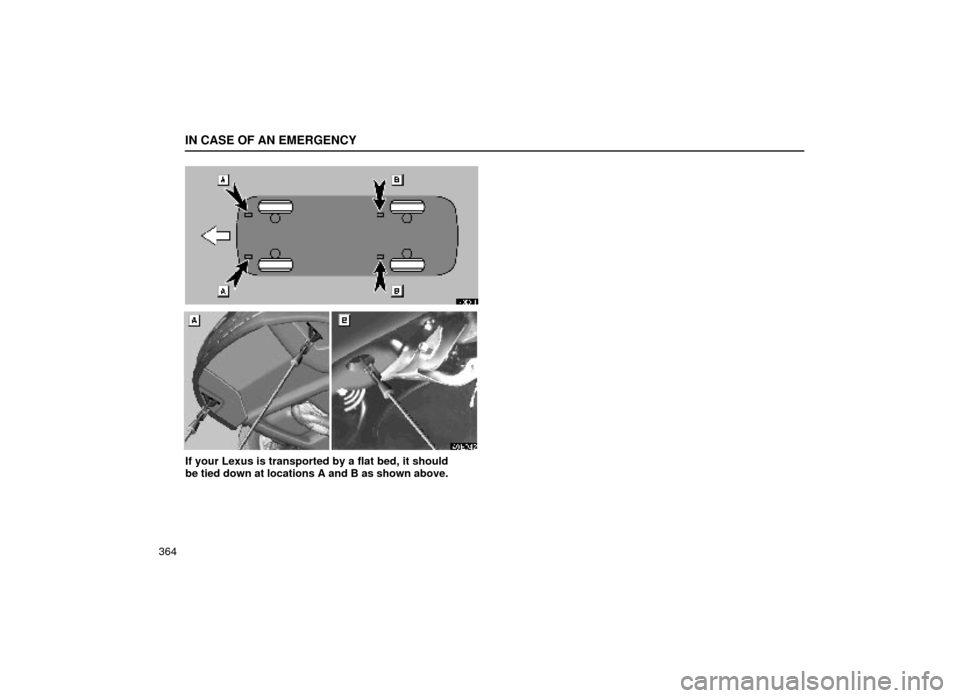

Tie down points

IN CASE OF AN EMERGENCY
364
40E014
40E042
If your Lexus is transported by a flat bed, it should
be tied down at locations A and B as shown above.

IN CASE OF AN EMERGENCY
365
40E016

Rear emergency towing eyelets
NOTICE
Do not use the rear emergency towing eyelets.
Tie down angle
40E017

IN CASE OF AN EMERGENCY
366If you use chains or wires to tie down your vehicle,
the angles shaded black must be at 45
.
(c) Towing with a sling type truck
40E020±1
NOTICE
Do not tow with a sling type truck, either from the
front or rear. This may cause body damage.
(d) Emergency towing
40E043

IN CASE OF AN EMERGENCY
367
If towing is necessary, we recommend you to have
it done by your Lexus dealer or a commercial tow
truck service.
If towing service is not available in an emergency,
your
vehicle may be temporarily towed by a cable or
chain secured to the emergency towing eyelet. Use
extreme caution when towing the vehicle.
NOTICE
Only use specified towing eyelet; otherwise your
vehicle may be damaged.
A driver must be in the vehicle to steer it and operate the
brakes. Towing in this manner may be done only on
hard±surfaced roads for a short distance and at low
speeds. Also, the wheels, axles, drive train, steering
and brakes must all be in good condition.

IN CASE OF AN EMERGENCY
368
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use in towing vehicles. Securely fasten the cableor chain to the towing eyelet provided.
Before towing, release the parking brake and put the
transmission in ªNº. The ignition key must be in ªACCº
(engine off) or ªONº (engine running).
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.

IN CASE OF AN EMERGENCY
369
IF YOU CANNOT SHIFT
AUTOMATIC TRANSMISSION SELECTOR LEVER
40E044
If you cannot shift the selector lever out of ªPº
position to other positions even though the brake
pedal is depressed, use the shift lock override
button as follows:

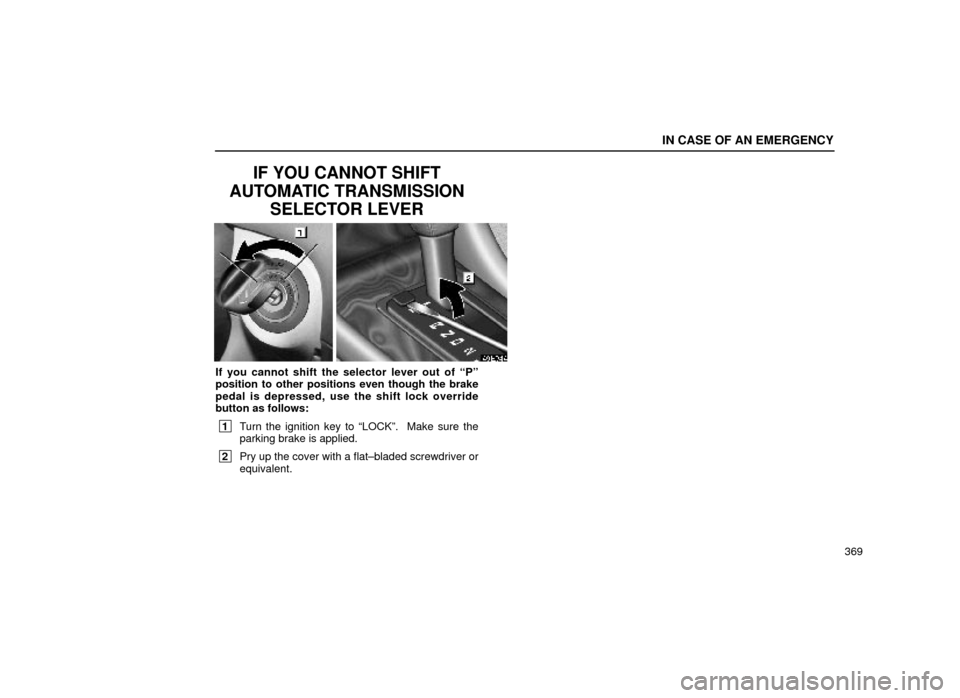

1Turn the ignition key to ªLOCKº. Make sure the
parking brake is applied.
2Pry up the cover with a flat±bladed screwdriver or
equivalent.

IN CASE OF AN EMERGENCY
370
40E023a

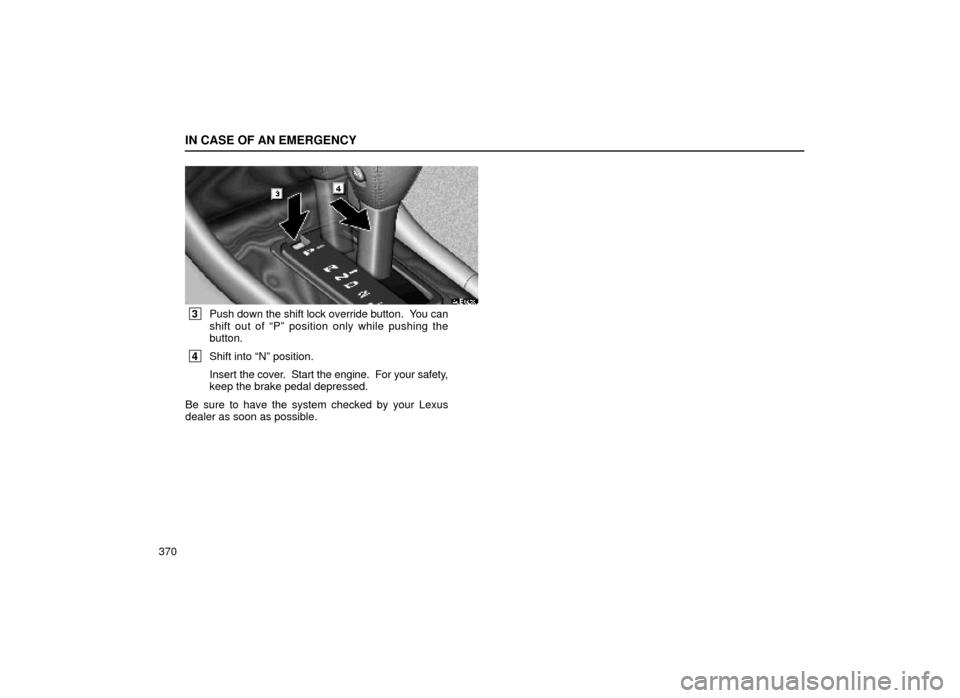

3Push down the shift lock override button. You can
shift out of ªPº position only while pushing the
button.
4Shift into ªNº position.
Insert the cover. Start the engine. For your safety,
keep the brake pedal depressed.
Be sure to have the system checked by your Lexus
dealer as soon as possible.
