INTRODUCTION
288

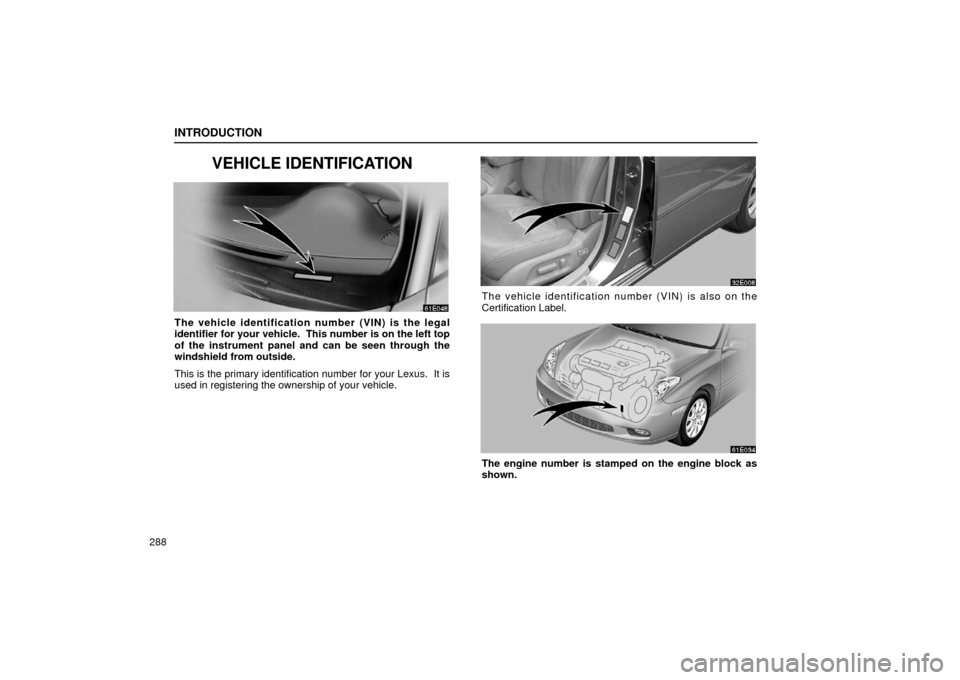

VEHICLE IDENTIFICATION
The vehicle identification number (VIN) is the legal
identifier for your vehicle. This number is on the left top
of the instrument panel and can be seen through the
windshield from outside.
This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
The vehicle identification number (VIN) is also on the
Certification Label.
The engine number is stamped on the engine block as
shown.

INTRODUCTION
289
ENGINE COMPARTMENT OVERVIEW
1 Power steering fluid
reservoir
2 Engine oil filler cap
3 Brake fluid reservoir
4 Fuse box
5 Battery
6 Fuse box
7 Radiator
8 Condenser
9 Electric cooling fans
10 Engine oil level
dipstick
11 Washer fluid tank
12 Engine coolant
reservoir

INTRODUCTION
290
DOITYOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing doityourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for doityourself
maintenance, see “Parts and tools” on page 291.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:
CAUTION
 When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)
 Right after driving, the engine compartment the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.
 Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.
 Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.
 Be sure that the ignition is off if you work near the
electric cooling fans or radiator grille. With the
ignition on, the electric cooling fans will
automatically start to run if the engine coolant
temperature is high and/or the air conditioning is on.
 Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.

INTRODUCTION
291
Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.
 Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.
NOTICE
Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally
causing a short circuit.
 Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.
 Do not drive with the air cleaner removed, or
excessive engine wear could result. Also backfiring
could cause a fire in the engine compartment.
 Do not overfill automatic transmission fluid, or the
transmission could be damaged.
 Be careful not to scratch the glass surface with the
wiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
doityourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
Checking the engine oil level
Parts (if level is low):
Use API grade SJ “EnergyConserving”, SL
“EnergyConserving” or ILSAC multigrade engine oil. For
recommended oil viscosity, see page 305.
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
“Toyota Long Life Coolant” or equivalent
See “Checking the engine coolant level” on page 306 for
instructions.
 Demineralized or distilled water
Tools:
 Funnel (only for adding coolant)

INTRODUCTION
292
Checking brake fluid
Parts (if level is low):
FMVSS No. 116 DOT 3 or SAE J1703 brake fluid
Tools:
 Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEXRON
II or III
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking battery condition
Tools:
Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal clamp bolts)
Checking and replacing the blade type fuses
Parts (if replacement is necessary):
Fuse with same amperage rating as original
Checking the cartridge type fuses
Parts (if replacement is necessary):
Genuine Lexus fuse or equivalent with same amperage
rating as original
Adding washer fluid
Parts:
Water
 Washer fluid containing antifreeze (for winter use)
Tools:
 Funnel

INTRODUCTION
293

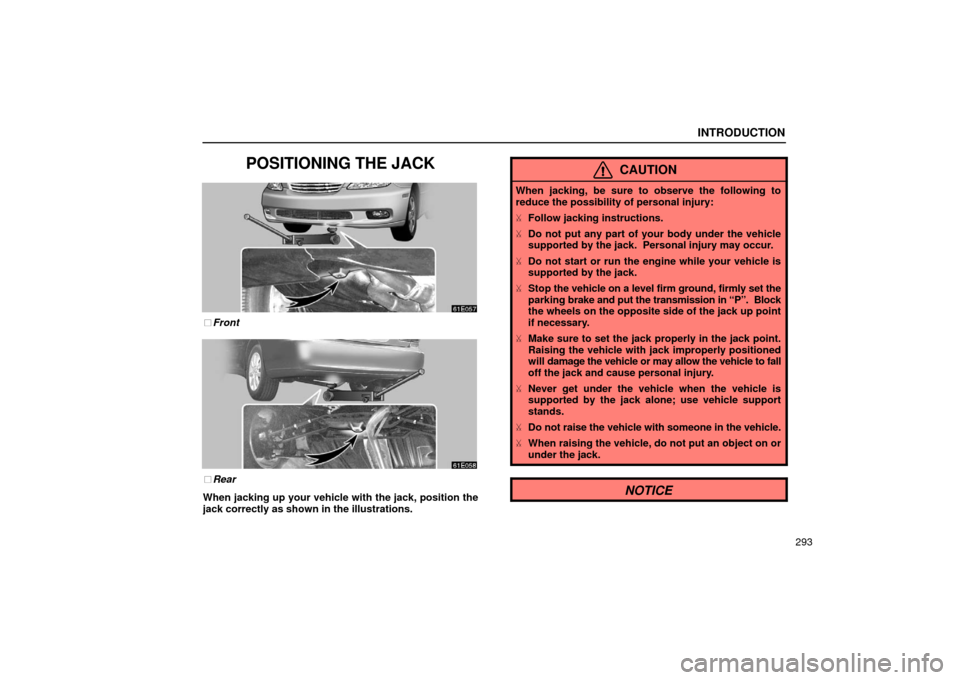

POSITIONING THE JACK
Front
Rear
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustrations.
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
Follow jacking instructions.
 Do not put any part of your body under the vehicle
supported by the jack. Personal injury may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
 Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in “P”. Block
the wheels on the opposite side of the jack up point
if necessary.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.
 Do not raise the vehicle with someone in the vehicle.
 When raising the vehicle, do not put an object on or
under the jack.
NOTICE

INTRODUCTION
294Make sure to place the jack correctly, or your vehicle
may be damaged.

INTRODUCTION
295

SECTION 6 – 2
296
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Fuel 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Facts about engine oil consumption 302
. . . . . . . . . . . . . . . . . . . . . . . .
Used engine oil 303
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Checking the engine oil level 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 306
. . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 308
. . . . . . . . . . . . . . . . . . . . . . .
Spark plugs 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

ENGINE
297
SPECIFICATIONS
GENERALModel
Type
Bore and stroke
Displacement
Valve clearance (engine cold) Intake
Exhaust
Drive belt tension (with Borroughs drive belt tension gauge
No. BT3373F)
1MZ FE
6 cylinder V type, 4 cycle, gasoline
87.5  83 mm (3.44  3.27 in.)
2995 cm
3 (182.8 cu. in.)
0.15 0.25 mm (0.006 0.010 in.)
0.25 0.35 mm (0.010 0.014 in.)
115  20 lb.
