INTRODUCTION
ii
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
New vehicle warranty
 Emission control systems warranty
 Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.
Accessories, spare parts and modification of
your Lexus
A wide variety of nongenuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle. This vehicle should not be modified with nongenuine Lexus
products. Modification with nongenuine Lexus products
could af
fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian InterferenceCausing
Equipment Standard.
Installation of a mobile twoway radio system
As the installation of a mobile twoway radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, antilock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.

KEYS AND DOORS
13

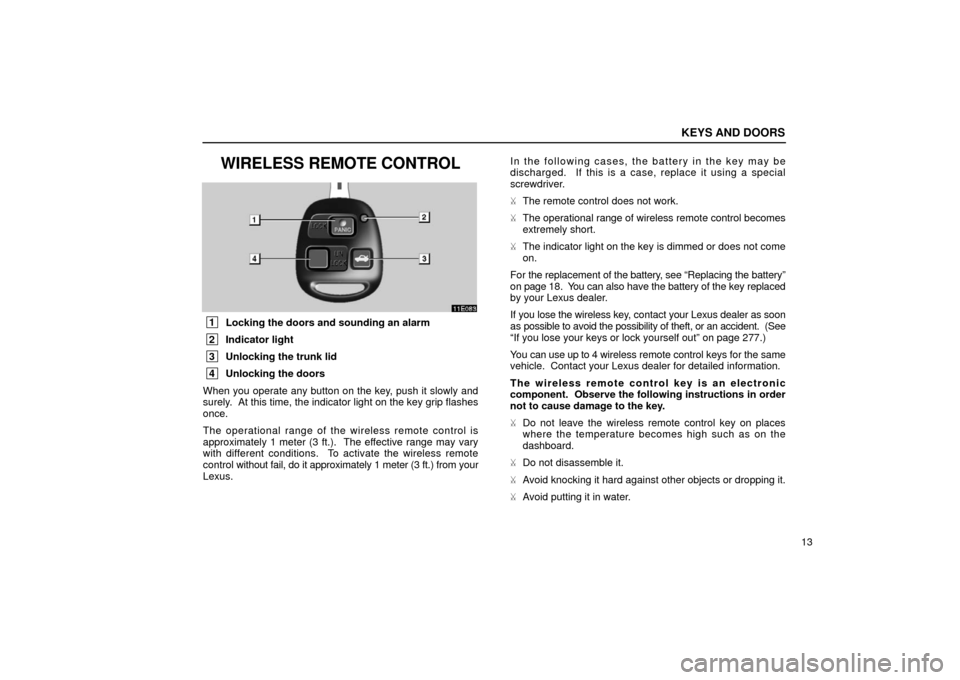

WIRELESS REMOTE CONTROL
1Locking the doors and sounding an alarm
2Indicator light
3Unlocking the trunk lid
4Unlocking the doors
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control without fail, do it approximately 1 meter (3 ft.) from your
Lexus. In the following cases, th
e battery in the key may be
discharged. If this is a case, replace it using a special
screwdriver.
 The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 18. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page 277.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
 Do not leave the wireless remote control key on places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.

KEYS AND DOORS
18

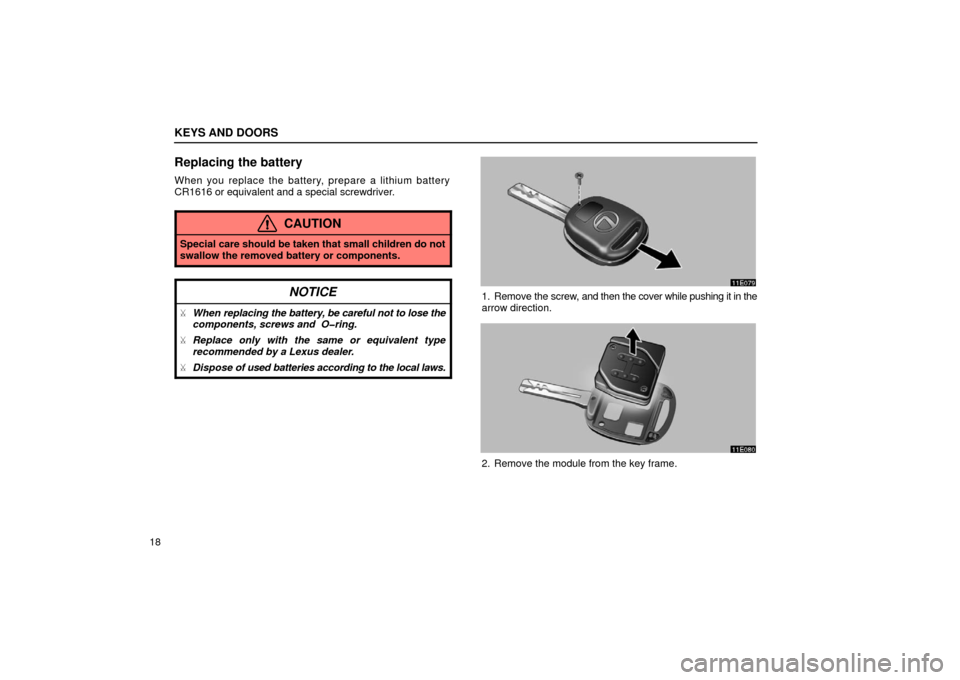

Replacing the battery
When you replace the battery, prepare a lithium battery
CR1616 or equivalent and a special screwdriver.
CAUTION
Special care should be taken that small children do not
swallow the removed battery or components.
NOTICE
When replacing the battery, be careful not to lose the
components, screws and Oring.
 Replace only with the same or equivalent type
recommended by a Lexus dealer.
 Dispose of used batteries according to the local laws.
1. Remove the screw, and then the cover while pushing it in the
arrow direction.
2. Remove the module from the key frame.

KEYS AND DOORS
19
3. Remove the 2 screws to take out the lid of the module.
4. Take out the discharged battery and put a new battery with
the positive side up.
NOTICE
Make sure the positive side and negative side of the
battery should be faced correctly.
 Do not replace the battery with wet hands. Water may
cause unexpected rust.
 Do not touch or move any components inside of the
transmitter, or it may interfere with proper operation.
 Be careful not to bend the electrode of the battery
insertion and that dust or oils do not adhere to the
inside of the module.
 Take care not to lose the screws and Oring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the Oring when
installing.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any button on the wireless key, make sure
the indicator light comes on.

SWITCHES
28

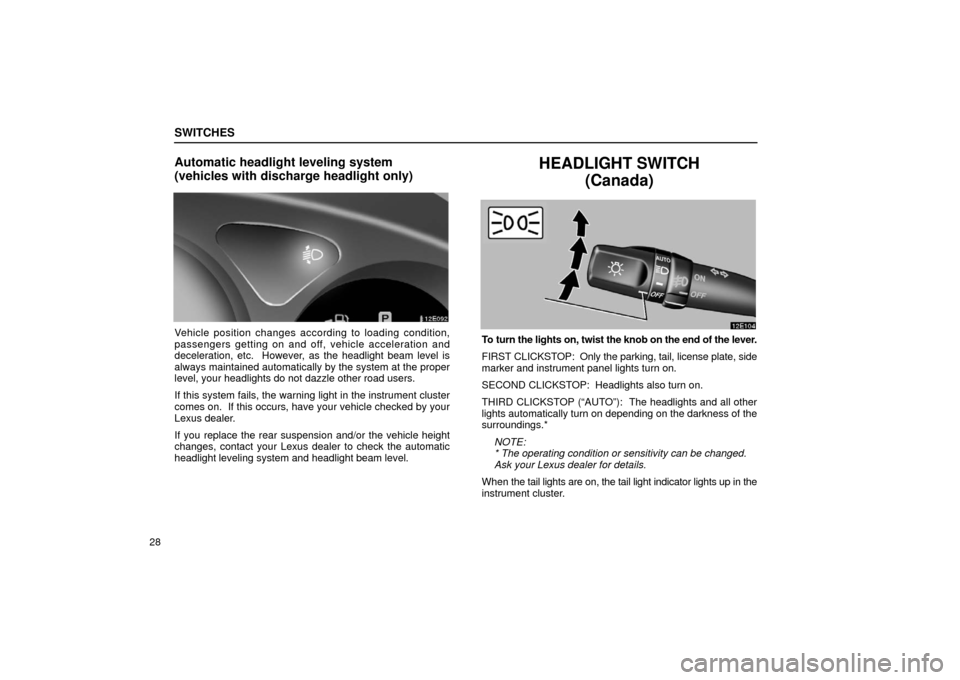

Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, as the headlight beam level is
always maintained automatically by the system at the proper
level, your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension and/or the vehicle height
changes, contact your Lexus dealer to check the automatic
headlight leveling system and headlight beam level.
HEADLIGHT SWITCH(Canada)
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKST OP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
NOTE:
* The operating condition or sensitivity can be changed.
Ask your Lexus dealer for details.
When the tail lights are on, the tail light indicator lights up in the
instrument cluster.

SWITCHES
30Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the “OFF” position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist
the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (“AUTO”), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, as the headlight beam level is
always maintained automatically by the system at the proper
level, your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension and/or the vehicle height
changes, contact your Lexus dealer to check the automatic
headlight leveling system and headlight beam level.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
49
(e) Stop and check.
(f) Stop and check.
(g) Add engine oil.
(h) Take vehicle to Lexus
dealer.
(i) Take vehicle to Lexus dealer.
(j) Close all doors.
(k) Replace bulb.
(l) Take vehicle to Lexus dealer.
(m) Add washer fluid. (n) Take vehicle to
Lexus dealer.
(o) Low fuel level Fill up tank. warning light
(p) Key reminder buzzer Remove key.
or
w59

GAUGES, METERS AND SERVICE REMINDER INDICATORS
55
(j) Open Door Warning Light
This light remains on until all the doors are completely closed.
(k) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at
the first or second clickstop), it indicates that one or more of the
tail lights are burned out.
If it comes on when the brake pedal is depressed, one or more
stop lights are burned out.
Have defective bulbs replaced as soon as possible.
(l) Vehicle Skid Control System/Traction Control System Warning Light
This light warns that there is a problem somewhere in the
vehicle skid control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving. The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.
(m) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes
nearly empty. Fill the tank as soon as possible.
(n) Automatic Headlight Leveling System
Warning Light (vehicles with discharge
headlight only)
This light warns that when there is a problem somewhere
in the automatic headlight leveling system.
If it comes on, have your vehicle checked by your Lexus dealer.
(o) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
nearly empty. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(p) Key Reminder Buzzer
This buzzer reminds you to remove the key when you open the
driver’s door with the ignition key in the “ACC” or “LOCK”
position.

INTERIOR EQUIPMENT
66

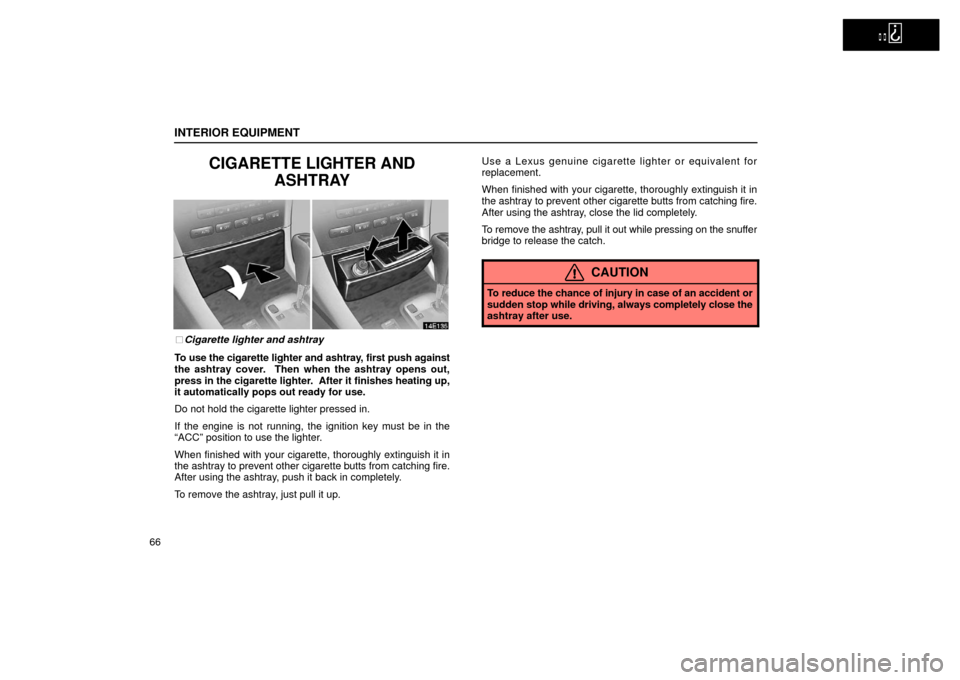

CIGARETTE LIGHTER ANDASHTRAY
Cigarette lighter and ashtray
To use the cigarette lighter and ashtray, first push against
the ashtray cover. Then when the ashtray opens out,
press in the cigarette lighter. After it finishes heating up,
it automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
“ACC” position to use the lighter.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, push it back in completely.
To remove the ashtray, just pull it up. Use a Lexus genuine cigarette lighter or equivalent for
replacement.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the lid completely.
To remove the ashtray, pull it
out while pressing on the snuffer
bridge to release the catch.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always completely close the
ashtray after use.

EXTERIOR EQUIPMENT
87

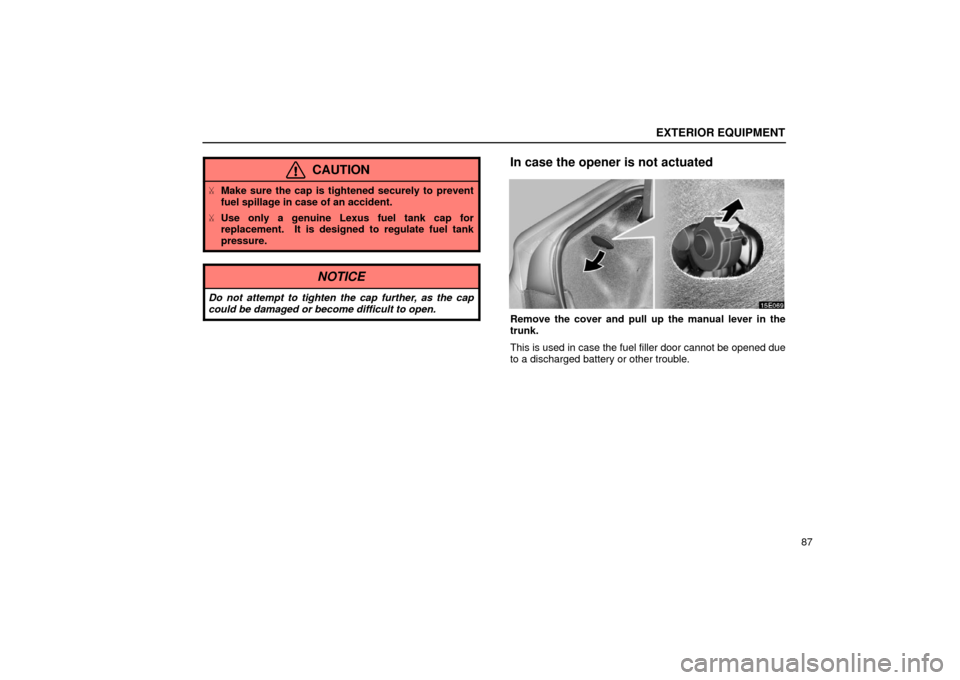

CAUTION
Make sure the cap is tightened securely to prevent
fuel spillage in case of an accident.
 Use only a genuine Lexus fuel tank cap for
replacement. It is designed to regulate fuel tank
pressure.
NOTICE
Do not attempt to tighten the cap further, as the cap
could be damaged or become difficult to open.
In case the opener is not actuated
Remove the cover and pull up the manual lever in the
trunk.
This is used in case the fuel filler door cannot be opened due
to a discharged battery or other trouble.
