SWITCHES
32

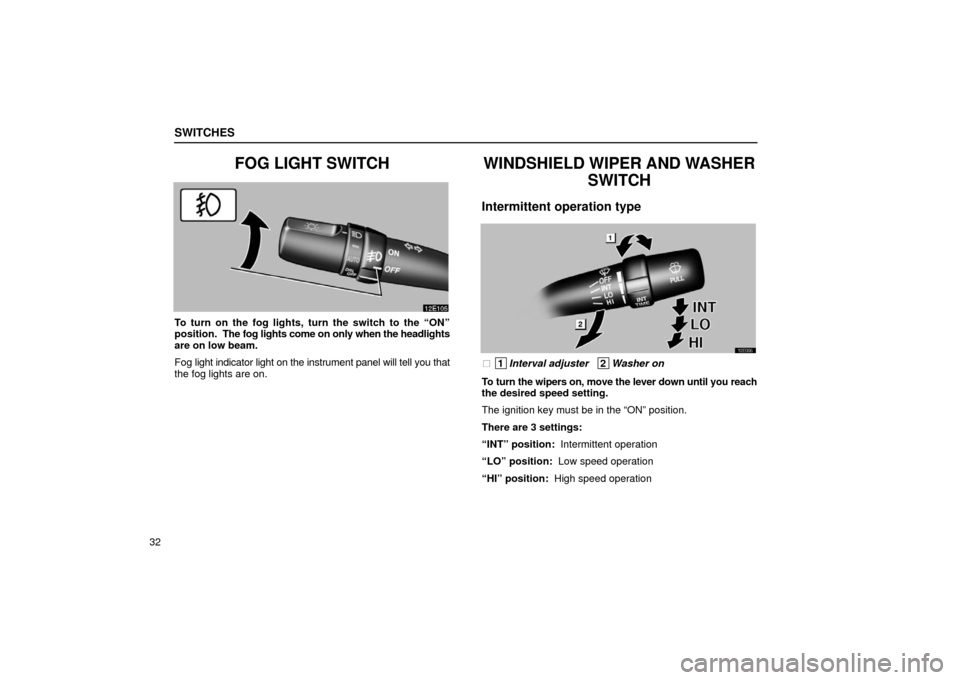

FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the “ON”
position. The fog lights come on only when the headlights
are on low beam.
Fog light indicator light on the instrument panel will tell you that
the fog lights are on.
WINDSHIELD WIPER AND WASHERSWITCH
Intermittent operation type
 1Interval adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“INT” position: Intermittent operation
“LO” position: Low speed operation
“HI” position: High speed operation

SWITCHES
33
Twist the interval adjuster upward to increase the wiping
time
interval between sweeps, and downward to decrease
it.
The wiper lever must be in the “INT” position.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 336.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.

SWITCHES
34
Raindrop detection type
 1Automatic control adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition switch must be in the “ON” position.
There are 3 settings:
“AUTO” position: Automatic operation
“LO” position: Low speed operation
“HI” position: High speed operation Automatic operation
The wiper speed is determined by the amount of raindrops
and sunlight detected by the automatic wiper control
sensor.
Twist the automatic control adjuster in the “–” direction to
lower the sensitivity, and the “+” direction to boost the
sensitivity.
The sensor is on the inside of the windshield as shown above.
Even if the wiper lever is in the “AUTO”
position, the system will
switch to intermittent operations in the following conditions:
 When the windshield gets extremely hot (at more than 80 C
or 176 F) or cold (at less than –10 C or 14F)
 When the system malfunctions.

SWITCHES
35
When
the ignition switch is turned off with the wiper lever in the
“AUTO” position, and then the ignition switch is turned on
again, the automatic operation may not work even if raindrops
are on the windshield.
In this case, move the lever to another position and return it to
the “AUTO” position again.
CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the “AUTO” position with the
ignition switch on, the wipers could operate
automatically in the following cases:
 If you touch the upper center of the windshield
adjacent to the sensor.
 If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
 If the windshield vibrates.
 If you touch the sensor.
NOTICE
Do not apply detergent to or wet the automatic wiper
control sensor when cleaning the inside of the
windshield.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 336.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.

SWITCHES
36
Shifting the windshield wiper position
 1Rest position 2Retracted position
The wiper blades retract under the hood when the wipers are
turned off.
In the following cases, the wipers should be shifted from the
retracted position (position 2) to the rest position (position 1)
above the hood level.
 When cleaning the windshield
 When inspecting or replacing the wipers
 When the retraction may be obstructed by snow, etc., at the
bottom of the windshield
Other than the above cases, keep the wipers in the retracted
position.
* More than 10 cm (3.9 in.)
SHIFTING TO THE REST POSITION
Hold the connection of the wiper arm and wiper blade and
pull it upward for more than 10 cm (3.9 in.) along the
windshield glass with the force of about 98 N (10 kgf, 22
lbf).
NOTICE
To prevent the wiper blades from being deformed, be
sure to hold the connection of the wiper arm and wiper
blade securely.

ELECTRICAL COMPONENTS
328
No.FUSEAMPERECIRCUIT
38 POWERPOINT15Power outlet
39 RAD NO.120Car audio system, navigation
system
40 GAUGE110
Gauges and meters, clock,
outside temperature gauge,
multiinformation display, shift
lock system
41 ECUIG10
SRS airbag system, power
windows, antilock brake
system, electronic modulated
suspension, driving position
memory system
42 WIPER25Windshield wipers
43 HTR10Air conditioning system
44 MIR
HTR10Outside rear view mirror
heaters
45 AM15Starting system
46 FOG15Front fog lights
47 SUN
SHADE15Rear sunshade
48 GAUGE210
Auto antiglare inside rear
view mirror, compass, backup
lights, automatic light control
system, automa tic headlight
leveling system, cruise control
system, seat belt reminder
lights
No.FUSEAMPERECIRCUIT
49 PANEL10
Glove box light, console box
light, clock, outside
temperature gauge,
multiinformation display,
instrument cluster lights,
instrument panel lights,
overdriveoff indicator light
50 TAIL10Tail lights, parking lights,
license plate lights
51 PWR NO.420Rear passenger’s power
window (left side)
52 PWR NO.220Front passenger’s door lock
system, front passenger’s
power window
53 OBD7.5Onboard diagnosis system
54 SEAT
HTR20Seat heaters
55 WASHER15Windshield washer
56 FA NRLY10Electric cooling fans
57 STOP15Stop lights, high mounted stop-
light
58 FUEL
OPEN5Fuel filler door opener
59 DOOR NO.225
Multiplex communication
system (power door lock
system, autodoor locking
system, wireless remote
control system)
