reset Lexus ES300 2002 Owner's Manuals (in English)

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viiiPage
1
Tachometer 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Traction control system off indicator light 234 . . . .
3 Vehicle skid control system/traction control
system warning light 55
. . . . . . . . . . . . . . . . . . . . . . . . .
4 Headlight indicator light 26
. . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 31
. . . . . . . . . . .
6 Turn signal indicator light 31
. . . . . . . . . . . . . . . . . . . .
7 Fog light indicator light 32
. . . . . . . . . . . . . . . . . . . . . . .
8 Cruise control indicator light 230
. . . . . . . . . . . . . . . .
9 Slip indicator light 234, 236
. . . . . . . . . . . . . . . . . . . . . .
10 Automatic headlight leveling system
warning light 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Low fuel level warning light 55
. . . . . . . . . . . . . . . . . . .
12 Automatic transmission indicator lights 223 . . . . . .
13 Engine coolant temperature gauge 46
. . . . . . . . . . . . Page
14 Odometer and trip meter
48
. . . . . . . . . . . . . . . . . . . . .
15 Trip meter reset knob 48
. . . . . . . . . . . . . . . . . . . . . . . .
16 Fuel gauge 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Low washer fluid warning light 55
. . . . . . . . . . . . . . . .
18 Low engine oil level warning light 52
. . . . . . . . . . . . .
19 Multiinformation display 57
. . . . . . . . . . . . . . . . . . . . .
20 Rear light failure warning light 55
. . . . . . . . . . . . . . . .
21 Low engine oil pressure warning light 52
. . . . . . . . .
22 Brake system warning light 50
. . . . . . . . . . . . . . . . . . .
23 Antilock brake system warning light 53
. . . . . . . . . .
24 Driver’s seat belt reminder light 50
. . . . . . . . . . . . . . .
25 Discharge warning light 51
. . . . . . . . . . . . . . . . . . . . . .
26 SRS warning light 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Open door warning light 55
. . . . . . . . . . . . . . . . . . . . . .
28 Malfunction indicator lamp 52
. . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
xPage
1
Tachometer 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Traction control system off indicator light 234 . . . .
3 Vehicle skid control system/traction control
system warning light 55
. . . . . . . . . . . . . . . . . . . . . . . . .
4 Tail light indicator light 28
. . . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 31
. . . . . . . . . . .
6 Turn signal indicator light 31
. . . . . . . . . . . . . . . . . . . .
7 Fog light indicator light 32
. . . . . . . . . . . . . . . . . . . . . . .
8 Cruise control indicator light 230
. . . . . . . . . . . . . . . .
9 Slip indicator light 234, 236
. . . . . . . . . . . . . . . . . . . . . .
10 Automatic headlight leveling system
warning light 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Low fuel level warning light 55
. . . . . . . . . . . . . . . . . . .
12 Automatic transmission indicator lights 223 . . . . . .
13 Engine coolant temperature gauge 46
. . . . . . . . . . . . Page
14 Odometer and trip meter
48
. . . . . . . . . . . . . . . . . . . . .
15 Trip meter reset knob 48
. . . . . . . . . . . . . . . . . . . . . . . .
16 Fuel gauge 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Low washer fluid warning light 55
. . . . . . . . . . . . . . . .
18 Low engine oil level warning light 52
. . . . . . . . . . . . .
19 Multiinformation display 57
. . . . . . . . . . . . . . . . . . . . .
20 Rear light failure warning light 55
. . . . . . . . . . . . . . . .
21 Low engine oil pressure warning light 52
. . . . . . . . .
22 Brake system warning light 50
. . . . . . . . . . . . . . . . . . .
23 Antilock brake system warning light 53
. . . . . . . . . .
24 Driver’s seat belt reminder light 50
. . . . . . . . . . . . . . .
25 Discharge warning light 51
. . . . . . . . . . . . . . . . . . . . . .
26 SRS warning light 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Open door warning light 55
. . . . . . . . . . . . . . . . . . . . . .
28 Malfunction indicator lamp 52
. . . . . . . . . . . . . . . . . . .

KEYS AND DOORS
22If you do any of the following, no door can be unlocked with the
power door lock switch.

Lock all the side doors with the key or wireless remote
control when the front doors are closed.
 Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset in the following ways.
 Turn the ignition key to the “ON” position.
 Unlock all the doors with the key or wireless remote control.
 Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the doors with the
power door lock switch.
Setting the auto door locking and unlocking
functions
You can set the following auto door locking and unlocking
functions.
(a) Locking linked with the shift position
All the doors are locked automatically when the selector lever
is moved out of the “P” position with the ignition switch in the
“ON” position.*
NOTE:
* This function is the default setting for new vehicles.
(b) Unlocking linked with the shift position
All the doors are automatically unlocked when the selector
lever is moved to the “P” position with the ignition switch in the
“ON” position.
(c) Locking linked with the vehicle speed
All the doors are locked automatically at 20 km/h (12 mph) or
higher vehicle speed. However, if any door is unlocked during
driving, this auto locking function does not operate until the
unlocked door is once opened.
(d) Unlocking linked with opening the driver’s door
All the doors are automatically unlocked when the driver ’s door
is opened within 10 seconds after the ignition switch is turned
from “ON” to the “ACC” or “LOCK” position.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
48
ODOMETER AND TRIP METER
Trip meter reset knob
This meter displays the odometer and two trip meters. To
change the mode indication, push the trip meter reset
knob briefly. Each time you push the knob, the mode
changes in order from the odometer to trip meter A to trip
meter B, then back to the odometer.
The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.
For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.
To set the A trip meter to zero, display the A meter reading,
push the knob and hold it. The same applies for the B trip
meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
SERVICE REMINDER INDICATORS AND WARNING BUZZERS
IF THIS INDICATOR
OR BUZZER COMES
ON ... DO THIS.
(a)
If parking brake is off,
stop immediately and
contact Lexus dealer.
(b) Fasten seat belt.

(indicator and buzzer)
(c) Fasten front
passenger’s seat belt.
(on the center console)
(d) Take vehicle to Lexus
dealer immediately.
or
13E050

GAUGES, METERS AND SERVICE REMINDER INDICATORS
58
(1) Instantaneous fuel consumption(“MPG” or “L/100km”)
The instantaneous fuel consumption is calculated and
displayed based on distance and fuel consumption for 2
seconds with the engine running.
The displayed value is updated every 2 seconds.
Note that an accurate figure may not be shown in the following
cases.
 When the vehicle is stopped with the engine running, the
display will indicate the extremely high fuel consumption.
 When the vehicle is driving down a long slope, applying the
engine brake, the display will indicate the extremely low fuel
consumption.
The calculation is reset when the ignition switch is turned off.
(2) Average fuel consumption (“AVG. MPG” or “AVG. L/100 km”)
Average fuel consumption is calculated and displayed
based on total driving distance and total fuel consumption
with the engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push the “RESET” button.
(3) Driving range(“RANGE MI” or “RANGE km”)
The distance the vehicle can travel with the remaining fuel
is calculated and displayed based on the quantity of
remaining fuel and past fuel consumption.
The driving range display indicates the approximate distance
that you can drive until the fuel gauge reaches “E”. It is dif ferent
from the actual distance traveled.
The displayed value is updated every time the fuel equivalent
for 1 mile or 1 km is consumed.
Every time you refuel the vehicle, the calculation is reset.
The actual driving range varies with driving habits and road
conditions. If fuel consumption is good, the driving range will
be longer. If fuel consumption is poor, the driving range will be
shorter.
If the low fuel level warning light comes on, refuel even if the
display indicates that the vehicle can be driven further.
(4) Average vehicle speed (“AVG. MPH” or “AVG. km/h”)
Average vehicle speed is calculated and displayed based
on total driving distance and total driving time with the
engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push the “RESET” button.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
59
(5) Driving time(“E/T”)
The elapsed time after the engine starts is displayed.
When the engine is started, driving time is counted from 0:00.
Up to 99:59 (99 hours, 59 minutes) can be displayed. When
the driving time exceeds 99:59, the counter returns to 0:00.
To reset the calculations, push the “RESET” button.
INSTRUMENT PANEL LIGHT CONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.
If the instrument panel light control dial is turned fully down, the
foot lights will turn off.

INTERIOR EQUIPMENT
65
All of the lights come on when any of the doors are
opened.*
After all the doors are closed, the lights remain
on for about 15 seconds and then go out.**
NOTE:
* The operating condition can be changed.
** The duration of lighting can be changed and only the foot
lights can be set not to come on.
Ask your Lexus dealer for details.
However, in the following cases, the lights go out immediately:
 All the doors are closed and the ignition key is in the “ACC”
or “ON” position. (The foot lights come on when the ignition
switch is in the “ON” posi tion. See the following “Foot
lights”.)
 All the doors are locked.
When all the doors are unlocked simultaneously with a key or
wireless remote control, all of the lights come on for about 15
seconds and then go out, even if no door is opened.
Foot lights
The foot lights also come on when the ignition switch is in the
“ON” position with the selector lever in the “P” position. When
the selector lever is moved out of the “P” position, the foot lights
will be dimmed.*
NOTE:
* The foot lights can be set to turn off when the selector lever
is moved out of the “P” position.
Ask your Lexus dealer for details.
When the instrument panel light control dial is turned fully
down, the foot lights will turn off.

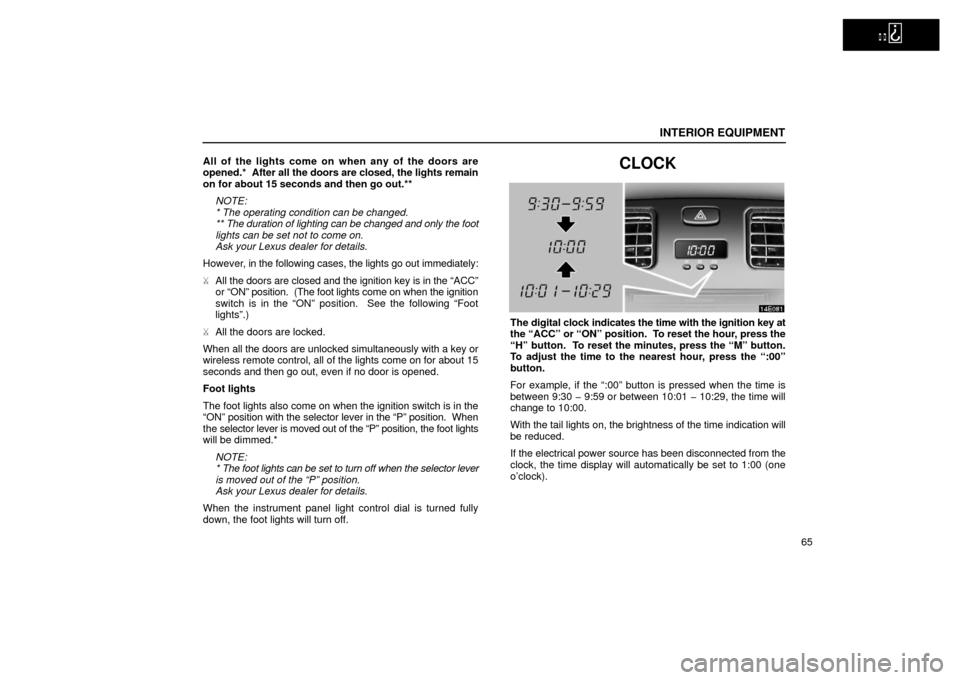

CLOCK
The digital clock indicates the time with the ignition key at
the “ACC” or “ON” position. To reset the hour, press the
“H” button. To reset the minutes, press the “M” button.
To adjust the time to the nearest hour, press the “:00”
button.
For example, if the “:00” button is pressed when the time is
between 9:30 9:59 or between 10:01 10:29, the time will
change to 10:00.
With the tail lights on, the brightness of the time indication will
be reduced.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00 (one
o’clock).

AUDIO
173
1Ejecting a compact disc
(See page 183 for details.)
2Function buttons

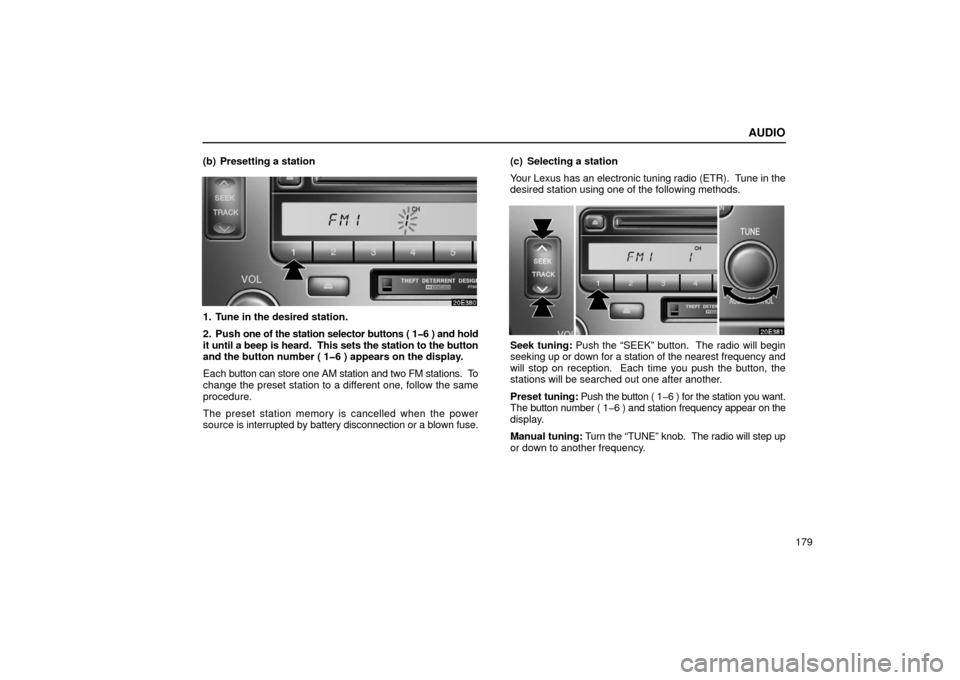

1 6: Station selector buttons
(See page 179 for details.)

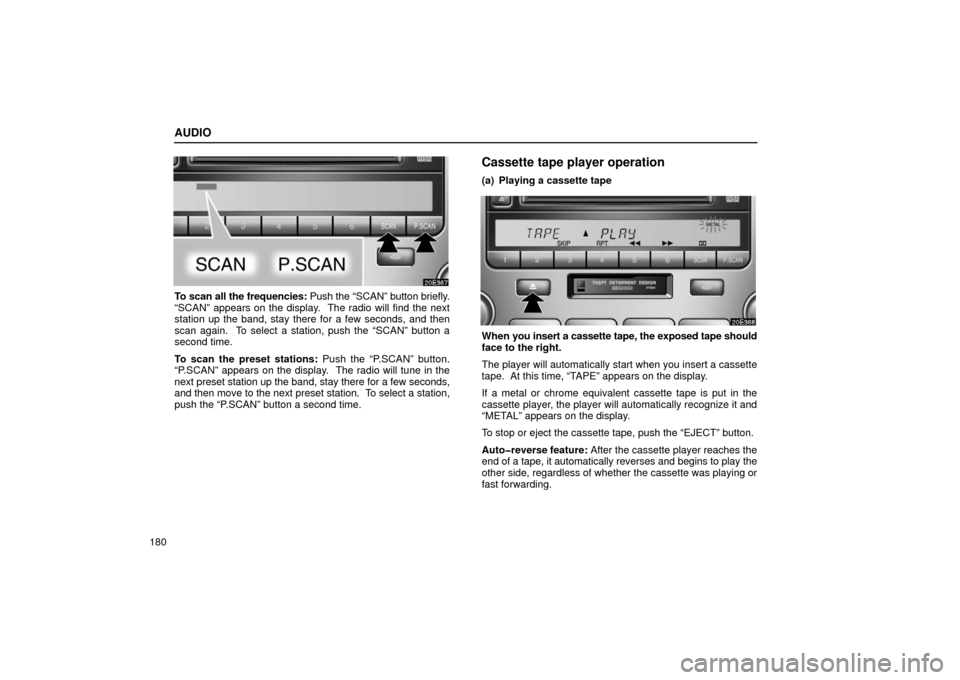

SCAN: Scan tuning
(See page 180 for details.)
P.SCAN: Preset scan tuning
(See page 180 for details.)
3
Display of functions in TAPE or CD mode
:DOLBY NR
(See page 181 for details.)
: Rewinding or reversing
(See page 181 or 186 for details.)
: Fast forwarding
(See page 181 or 186 for details.)
RPT: Automatic repeat
(See page 182 or 187 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 182 for details.)
:Disc selection
(See page 185 for details.)
RAND: Random access
(See page 187 for details.)
SCAN: Scan selection
(See page 186 for details.)
4
Compact disc slot
(See page 183 for details.)
5Automatic sound levelizer/Mute
(See page 175 or 177 for details.)
6TUNE/AUDIO CONTROL knob
(See page 176 for details.)
7:
Side change
(See page 181 for details.)
8 Mode selectors
(See page 175 for details.)
9Stopping and ejecting a cassette tape
(See page 180 for details.)
10Turning the system on and adjusting the volume
(See page 174 for details.)
11Cassette tape slot
(See page 180 for details.)
12Radio mode: Seek tuning
(See page 179 for details.)
TAPE mode: Direct access to a desired program
(See page 182 for details.)
CD mode: Direct access to a desired program
(See page 186 for details.)

AUDIO
179
(b) Presetting a station
1. Tune in the desired station.
2. Push
one of the station selector buttons ( 16 ) and hold
it until a beep is heard. This sets the station to the button
and the button number ( 16 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse. (c) Selecting a station
Your Lexus has an electronic tuning radio (ETR). Tune in the
desired station using one of the following methods.
Seek tuning: Push the “SEEK” button. The radio will begin
seeking up
or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched out one after another.
Preset tuning: Push the button ( 16 ) for the station you want.
The button number ( 16 ) and station frequency appear on the
display.
Manual tuning: Turn the “TUNE” knob. The radio will step up
or down to another frequency.

AUDIO
180
To scan all the frequencies: Push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the “SCAN” button a
second time.
To scan the preset stations: Push the “P.SCAN” button.
“P.SCAN” appears on the display. The radio will tune in the
next preset station up the band, stay there for a few seconds,
and then move to the next preset station. To select a station,
push the “P.SCAN” button a second time.
Cassette tape player operation
(a) Playing a cassette tape
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
“METAL” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.
