seat memory Lexus ES300 2002 Owner's Manuals (in English)

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viPage
1
Door lock switch and power window
switches 21, 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 150
. . . . . . . . . . .
3 Power rear view mirror control switches 100 . . . . . .
4 Side vents 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Instrument panel light control dial 59
. . . . . . . . . . . . .
6 Headlight, turn signal and
fog light switches 26, 28, 31, 32
. . . . . . . . . . . . . . . . . . .
7 Multiinformation display control switches 57 . . . .
8 Ignition switch 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Wiper and washer switches 32
. . . . . . . . . . . . . . . . . . .
10 Seat heater switches 42
. . . . . . . . . . . . . . . . . . . . . . . . .
11 Emergency flasher switch 41
. . . . . . . . . . . . . . . . . . . .
12 Clock 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
13 Car audio 172, 193
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Front passenger’s seat belt reminder light 51 . . . . .
15 Security indicator light 12, 154
. . . . . . . . . . . . . . . . . . . Page
16 Glove box
68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Automatic air conditioning controls 158
. . . . . . . . . .
18 Rear window and outside rear view mirror
defogger switch 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Ashtray 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
20 Automatic transmission selector lever 223 . . . . . . . .
21 Rear electric sunshade switch 77
. . . . . . . . . . . . . . . .
22 Electronic modulated suspension
control switch 233 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch 234
. . . . . . . . . . .
24 Cruise control switch 230
. . . . . . . . . . . . . . . . . . . . . . .
25 Power adjustable pedals switch 98
. . . . . . . . . . . . . . .
26 Parking brake pedal 221
. . . . . . . . . . . . . . . . . . . . . . . . .
27 Auxiliary box 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28 Hood lock release lever 82
. . . . . . . . . . . . . . . . . . . . . .
29 Trunk lid opener 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 Fuel filler door opener 85
. . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1 – 6
91
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seats92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Head restraints 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Trunk storage extension 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering whee l97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Power adjustable pedals 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
SRS airbags 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Child restraint 131
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Driving position memory system 150
. . . . . . . . . . . . . . . . . . . . . . . . . . .

COMFORT ADJUSTMENT
150
DRIVING POSITION MEMORYSYSTEM
The microcomputer can memorize the positions of the driver’s
seat and outside rear view mirrors. Two different driving
position profiles can be entered into the computer’s memory.
Recording a driving position in the computer’s memory can
only be done when the ignition key is in the “ON” position and
the selector lever is in the “P” position.

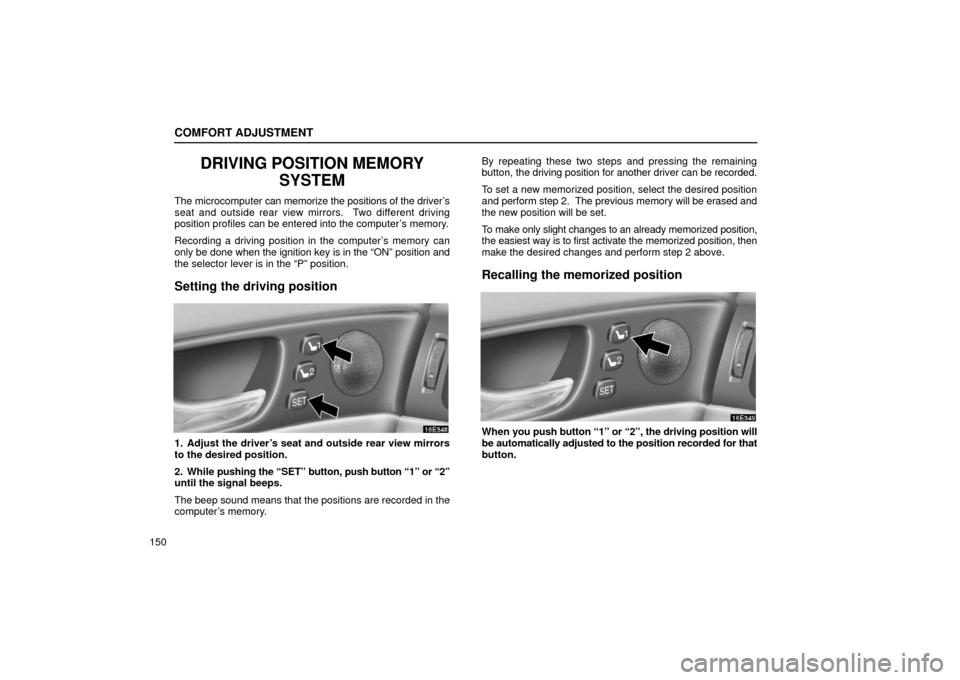

Setting the driving position
1. Adjust the driver’s seat and outside rear view mirrors
to the desired position.
2. While pushing the “SET” button, push button “1” or “2”
until the signal beeps.
The beep sound means that the positions are recorded in the
computer’s memory. By repeating these two steps
and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When you push button “1” or “2”, the driving position will
be automatically adjusted to the position recorded for that
button.

COMFORT ADJUSTMENT
151
Conditions for memorized position activation

Ignition key “ON” and selector lever in “P” position.
 Ignition switch off and within 30 seconds of opening driver’s
door.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1” or “2”)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory will be erased and the memorized positions will have
to be set again.

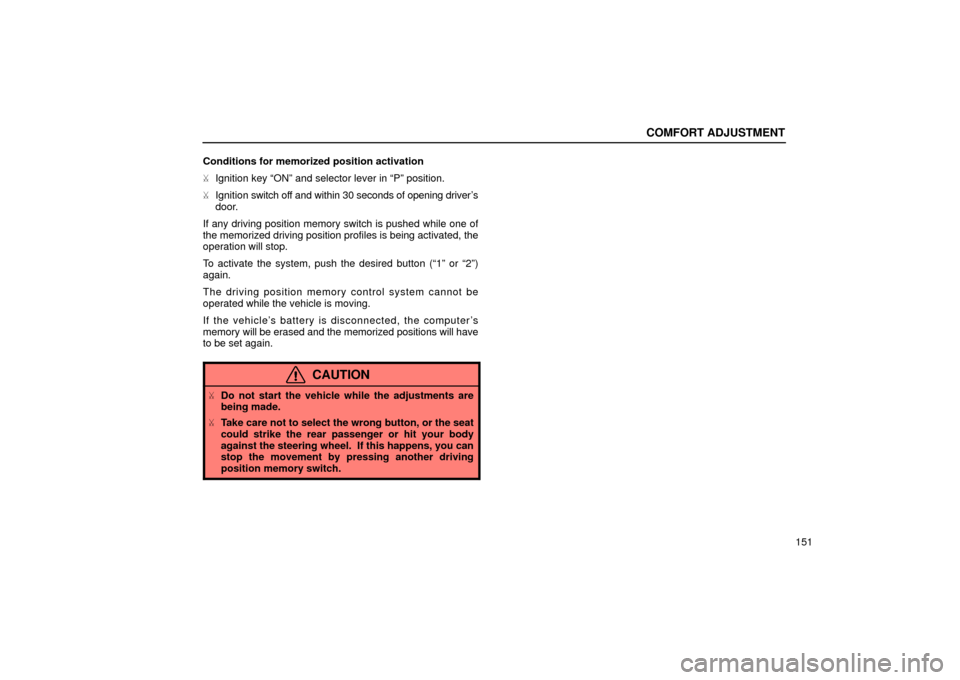

CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.

ELECTRICAL COMPONENTS
327
24 SPARE5Spare fuse
25 SPARE10Spare fuse
No.FUSEAMPERECIRCUIT
26 ABS NO.160
All components in “RDI FAN”,
“ABS NO.2”, “ABS NO.3”,
“CDS”, “HTR (50 A)” and “ADJ
PDL” fuses and antilock brake
system, vehicle skid control
system, traction control
system, brake assist system
27 ALT120
All components in “DEF”, “PWR
NO.1”, “PWR NO.2”, “PWR
NO.3”, “PWR NO.4”, “STOP”,
“DOOR NO.2”, “OBD”, “PWR
SEAT”, “FUEL OPEN”, “FOG”,
“AMP”, “PANEL”, “TAIL”,
“AM1”, “CIG”, “POWER
POINT”, “RAD NO.2”,
“ECUACC”, “GAUGE1”,
“GAUGE2”, “ECUIG”,
“WIPER”, “WASHER”, “HTR
(10 A)”, “SEAT HTR”, and
“SUNSHADE” fuses
28 SPARE15Spare fuse
29 A/C10Air conditioning system
30 DRL5Daytime running light system
31 HEAD RH
LW R15Righthand headlight (low
beam)
32 HEAD LHLW R15Lefthand headlight (low
beam) and front fog lights
No.FUSEAMPERECIRCUIT
33 ECUB10
Multiplex communication
system (power door lock
system, security system,
autodoor locking system,
automatic light control system,
headlight delay off system, tail
light auto cut system,
illuminated entry system,
daytime running light system,
wireless remote control
system) air conditioning
system, electronic modulated
suspension, driving position
memory system
34 DOME7.5
Ignition switch light, interior
light, personal lights, foot
lights, door courtesy lights,
trunk light, vanity lights, garage
door opener, clock, outside
temperature gauge,
multiinformation display
35 CIG15Cigarette lighter
36 ECUACC5
Power rear view mirrors, clock,
multiinformation display,
driving position memory
system
37 RAD NO.210Car audio system, navigation
system

ELECTRICAL COMPONENTS
328
No.FUSEAMPERECIRCUIT
38 POWERPOINT15Power outlet
39 RAD NO.120Car audio system, navigation
system
40 GAUGE110
Gauges and meters, clock,
outside temperature gauge,
multiinformation display, shift
lock system
41 ECUIG10
SRS airbag system, power
windows, antilock brake
system, electronic modulated
suspension, driving position
memory system
42 WIPER25Windshield wipers
43 HTR10Air conditioning system
44 MIR
HTR10Outside rear view mirror
heaters
45 AM15Starting system
46 FOG15Front fog lights
47 SUN
SHADE15Rear sunshade
48 GAUGE210
Auto antiglare inside rear
view mirror, compass, backup
lights, automatic light control
system, automa tic headlight
leveling system, cruise control
system, seat belt reminder
lights
No.FUSEAMPERECIRCUIT
49 PANEL10
Glove box light, console box
light, clock, outside
temperature gauge,
multiinformation display,
instrument cluster lights,
instrument panel lights,
overdriveoff indicator light
50 TAIL10Tail lights, parking lights,
license plate lights
51 PWR NO.420Rear passenger’s power
window (left side)
52 PWR NO.220Front passenger’s door lock
system, front passenger’s
power window
53 OBD7.5Onboard diagnosis system
54 SEAT
HTR20Seat heaters
55 WASHER15Windshield washer
56 FA NRLY10Electric cooling fans
57 STOP15Stop lights, high mounted stop-
light
58 FUEL
OPEN5Fuel filler door opener
59 DOOR NO.225
Multiplex communication
system (power door lock
system, autodoor locking
system, wireless remote
control system)

ELECTRICAL COMPONENTS
329
No.FUSEAMPERECIRCUIT
60 AMP25Car audio system
61 PWR NO.320Rear passenger’s power
window (right side)
62 PWR
SEAT30Power seats, driving position
memory system
63 PWR NO.130Driver’s door lock system,
driver’s power window, electric
moon roof
64 DEF40Rear window defogger

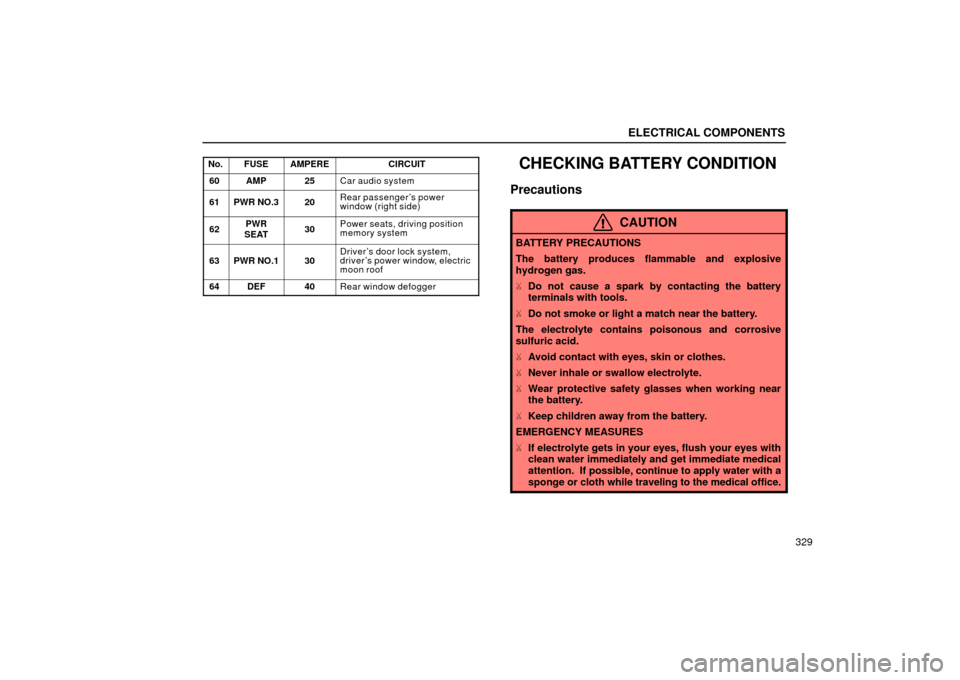

CHECKING BATTERY CONDITION
Precautions
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
 Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water immediately and get immediate medical
attention. If possible, continue to apply water with a
sponge or cloth while traveling to the medical office.
