THEFT DETERRENT
157
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
If you unlock any door or trunk with wireless remote control, the
turn signal lights flash twice.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using an ignition key or
wireless remote control
 Opening the hood forcibly
 Reconnecting the battery
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, the door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door using an ignition key or wireless remote
control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.

AUDIO
182
To scan all the frequencies: Push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the “SCAN” button a
second time.
To scan the preset stations: Push the “P.SCAN” button.
“P.SCAN” appears on the display. The radio will tune in the
next preset station up the band, stay there for a few seconds,
and then move to the next preset station. To select a station,
push the “P.SCAN” button a second time.
Cassette tape player operation
(a) Playing a cassette tape
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
“METAL” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

AUDIO
206To recall a radio text message, push the “MSG” button. Each
time you push the button, the available message will be
displayed beginning with the newest one.
If there is no radio text message in memory and when no
message is received, “NO MSG STORED” appears on the
display. After this, the display returns to the previous mode.
Cassette tape player operation
(a) Playing a cassette tape
When
you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
“METAL” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

STARTING AND DRIVING
232
(d) Backing up
 1Brake pedal 2“R” (Reverse) position
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the
selector lever to the “R” position.
NOTICE
Never shift into reverse while the vehicle is moving.
(e) Parking
 1 Brake pedal 2Parking brake pedal
3“P” (Park) position
1. Bring the vehicle to a complete stop.
2. Depress the parking brake fully to securely apply the
parking brake.
3. With the brake pedal held down with your foot, shift the
selector lever to the “P” position.
CAUTION
Never attempt to move the selector lever into “P” under
any circumstances while the vehicle is moving. Serious
mechanical damage and loss of vehicle control may
result.

STARTING AND DRIVING
233
(f) Good driving practice
If the transmission repeatedly shifts up and down between
fourth and overdrive gears when climbing a gentle slope,
shift the selector lever to the “4” position. Be sure to shift the
selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or the parking brake to hold
the vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.
(g) If you cannot shift the selector lever
If you cannot shift the selector lever even though the brake
pedal is depressed, use the shift lock override button. For
instructions, see “If you cannot shift automatic transmission
selector lever” on page 284.

STARTING AND DRIVING
242
BRAKE SYSTEM
The tandem master cylinder brake system is a hydraulic
system with two separate sub −systems. If either sub −system
should fail, the other will still work. However, the pedal will be
harder to press, and your stopping distance will be longer.
Also, the brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a single brake
system. Have your brakes fixed immediately.
Brake booster
The brake booster uses engine vacuum to power −assist the
brakes. If the engine should quit while you are driving, you can
bring the vehicle to a stop with normal pedal pressure. There
is enough reserved vacuum for one or two stops but no more!
CAUTION
 Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your reserved
vacuum.
 Even if the power assist is completely lost, the brakes
will still work. But you will have to push the pedal
hard, much harder than normal. And your braking
distance will be longer.
Antilock brake system
The antilock brake system is designed to help prevent
lockup of the wheels during a sudden braking or braking
on slippery road surfaces. This assists in providing
directional stability and steering performance of the
vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti−lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti−lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti −lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery road surfaces such as
on the manhole cover, the steel plate under the construction,
joints in the bridge, etc. on a rainy day tends to activate the
anti−lock brake system.

STARTING AND DRIVING
243
You may hear a click or motor sound in the engine
compartment for
a few seconds when the engine is started or
just after the vehicle is started. This means that the anti −lock
brake system is in the self− check mode, and does not indicate
a malfunction.
When the antilock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
 You may hear the anti− lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
 At the end of the anti−lock brake system activation, the
brake pedal may move a little forward.
CAUTION
Do not overestimate the antilock brake system:
Although the antilock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the antilock
brake system on.
If tires grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the antilock brake system does not provide
vehicle control.
Antilock brake system is not designed to shorten the
stopping distance: Always drive at the moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an antilock
brake system, your vehicle may require a longer
stopping distance in the following cases:
 Driving on rough, gravel or snowcovered roads.
 Driving with tire chains installed.
 Driving over the st eps such as the joints on the road.
 Driving on roads where the road surface is pitted or
has other differences in surface height.
Install all 4 tires of specified size at appropriate
pressure: The antilock brake system detects vehicle
speeds using the speed sensors for respective wheels’
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.

STARTING AND DRIVING

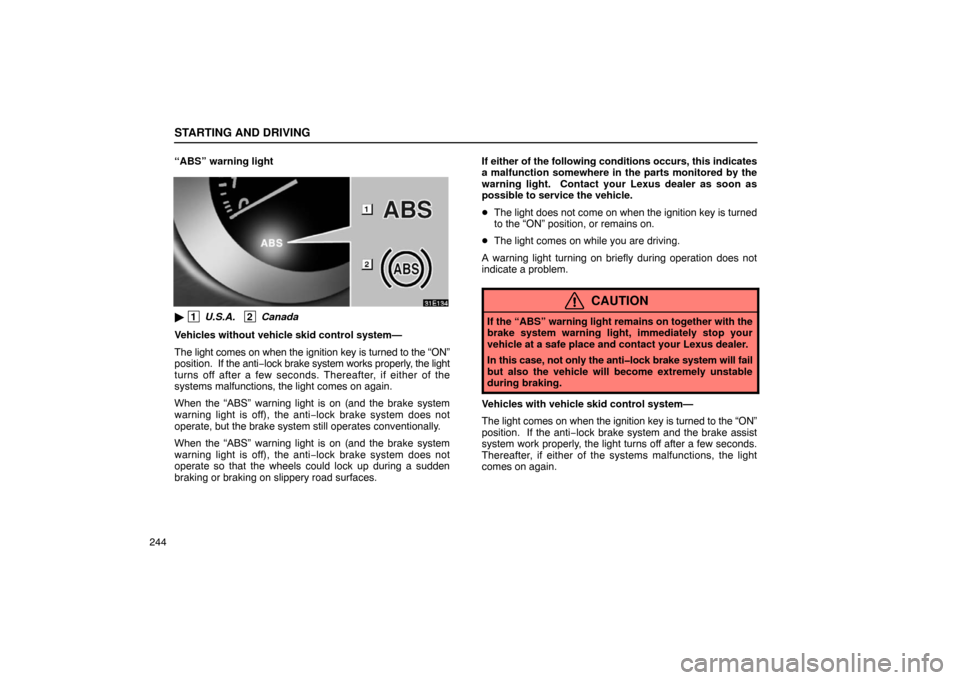

244“ABS” warning light
 1
U.S.A. 2 Canada
Vehicles without vehicle skid control system—
The light comes on when the ignition key is turned to the “ON”
position. If the anti −lock brake system works properly, the light
turns off after a few seconds. Thereafter, if either of the
systems malfunctions, the light comes on again.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti− lock brake system does not
operate, but the brake system still operates conventionally.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti− lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces. If either of the following conditions occurs, this indicates
a malfunction somewhere in the parts monitored by the
warning light. Contact your Lexus dealer as soon as
possible to service the vehicle.

The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.

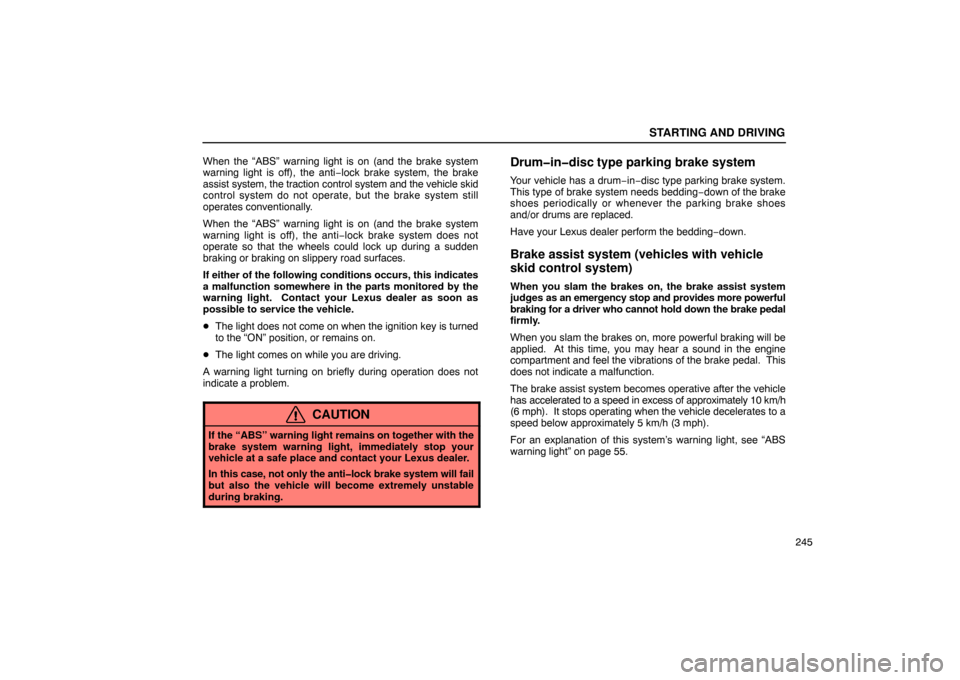

CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the antilock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Vehicles with vehicle skid control system—
The light comes on when the ignition key is turned to the “ON”
position. If the anti−lock brake system and the brake assist
system work properly, the light turns off after a few seconds.
Thereafter, if either of the systems malfunctions, the light
comes on again.

STARTING AND DRIVING
245
When the “ABS” warning light is on (and the brake system
warning light is off), the anti
−lock brake system, the brake
assist system, the traction control system and the vehicle skid
control system do not operate, but the brake system still
operates conventionally.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti− lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the parts monitored by the
warning light. Contact your Lexus dealer as soon as
possible to service the vehicle.
 The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the antilock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Drumindisc type parking brake system
Your vehicle has a drum−in−disc type parking brake system.
This type of brake system needs bedding −down of the brake
shoes periodically or whenever the parking brake shoes
and/or drums are replaced.
Have your Lexus dealer perform the bedding −down.
Brake assist system (vehicles with vehicle
skid control system)
When you slam the brakes on, the brake assist system
judges as an emergency stop and provides more powerful
braking for a driver who cannot hold down the brake pedal
firmly.
When you slam the brakes on, more powerful braking will be
applied. At this time, you may hear a sound in the engine
compartment and feel the vibrations of the brake pedal. This
does not indicate a malfunction.
The brake assist system becomes operative after the vehicle
has accelerated to a speed in excess of approximately 10 km/h
(6 mph). It stops operating when the vehicle decelerates to a
speed below approximately 5 km/h (3 mph).
For an explanation of this system’s warning light, see “ABS
warning light” on page 55.

DRIVING TIPS
250
BREAKIN PERIOD
Drive gently and avoid high speeds.
You need not follow a break−in schedule with your new Lexus.
But following a few simple tips for the first 1600 km (1000 miles)
can add to the future economy and long life of your vehicle:
 Avoid full throttle acceleration when starting and driving.
 Avoid racing the engine.
 Try to avoid hard stops during the first 300 km (200 miles).
 Do not drive for a long time at any single speed, either fast
or slow.
 Do not tow a trailer during the first 800 km (500 miles).
OPERATION IN FOREIGN
COUNTRIES
If you plan to drive your Lexus in another country ...
First, comply with the vehicle registration laws.
Second, confirm the availability of the correct fuel (unleaded
and minimum octane rating).
