PICTORIAL INDEX
viiiPage
1
Tachometer 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Traction control system off indicator light 238 . . . .
3 Vehicle skid control system/traction control
system warning light 57
. . . . . . . . . . . . . . . . . . . . . . . . .
4 Headlight indicator light 28
. . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 33
. . . . . . . . . . .
6 Turn signal indicator light 33
. . . . . . . . . . . . . . . . . . . .
7 Fog light indicator light 34
. . . . . . . . . . . . . . . . . . . . . . .
8 Cruise control indicator light 234
. . . . . . . . . . . . . . . .
9 Slip indicator light 238, 240
. . . . . . . . . . . . . . . . . . . . . .
10 Automatic headlight leveling system
warning light 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Low fuel level warning light 57
. . . . . . . . . . . . . . . . . . .
12 Automatic transmission indicator lights 227 . . . . . .
13 Engine coolant temperature gauge 48
. . . . . . . . . . . . Page
14 Odometer and trip meter
50
. . . . . . . . . . . . . . . . . . . . .
15 Trip meter reset knob 50
. . . . . . . . . . . . . . . . . . . . . . . .
16 Fuel gauge 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Low washer fluid warning light 57
. . . . . . . . . . . . . . . .
18 Low engine oil level warning light 54
. . . . . . . . . . . . .
19 Multiinformation display 59
. . . . . . . . . . . . . . . . . . . . .
20 Rear light failure warning light 57
. . . . . . . . . . . . . . . .
21 Low engine oil pressure warning light 54
. . . . . . . . .
22 Brake system warning light 52
. . . . . . . . . . . . . . . . . . .
23 Antilock brake system warning light 55
. . . . . . . . . .
24 Driver’s seat belt reminder light 52
. . . . . . . . . . . . . . .
25 Discharge warning light 53
. . . . . . . . . . . . . . . . . . . . . .
26 SRS warning light 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Open door warning light 57
. . . . . . . . . . . . . . . . . . . . . .
28 Malfunction indicator lamp 54
. . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
xPage
1
Tachometer 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Traction control system off indicator light 238 . . . .
3 Vehicle skid control system/traction control
system warning light 57
. . . . . . . . . . . . . . . . . . . . . . . . .
4 Tail light indicator light 30
. . . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 33
. . . . . . . . . . .
6 Turn signal indicator light 33
. . . . . . . . . . . . . . . . . . . .
7 Fog light indicator light 34
. . . . . . . . . . . . . . . . . . . . . . .
8 Cruise control indicator light 234
. . . . . . . . . . . . . . . .
9 Slip indicator light 238, 240
. . . . . . . . . . . . . . . . . . . . . .
10 Automatic headlight leveling system
warning light 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Low fuel level warning light 57
. . . . . . . . . . . . . . . . . . .
12 Automatic transmission indicator lights 227 . . . . . .
13 Engine coolant temperature gauge 48
. . . . . . . . . . . . Page
14 Odometer and trip meter
50
. . . . . . . . . . . . . . . . . . . . .
15 Trip meter reset knob 50
. . . . . . . . . . . . . . . . . . . . . . . .
16 Fuel gauge 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Low washer fluid warning light 57
. . . . . . . . . . . . . . . .
18 Low engine oil level warning light 54
. . . . . . . . . . . . .
19 Multiinformation display 59
. . . . . . . . . . . . . . . . . . . . .
20 Rear light failure warning light 57
. . . . . . . . . . . . . . . .
21 Low engine oil pressure warning light 54
. . . . . . . . .
22 Brake system warning light 52
. . . . . . . . . . . . . . . . . . .
23 Antilock brake system warning light 55
. . . . . . . . . .
24 Driver’s seat belt reminder light 52
. . . . . . . . . . . . . . .
25 Discharge warning light 53
. . . . . . . . . . . . . . . . . . . . . .
26 SRS warning light 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Open door warning light 57
. . . . . . . . . . . . . . . . . . . . . .
28 Malfunction indicator lamp 54
. . . . . . . . . . . . . . . . . . .

PICTORIAL INDEX
xii

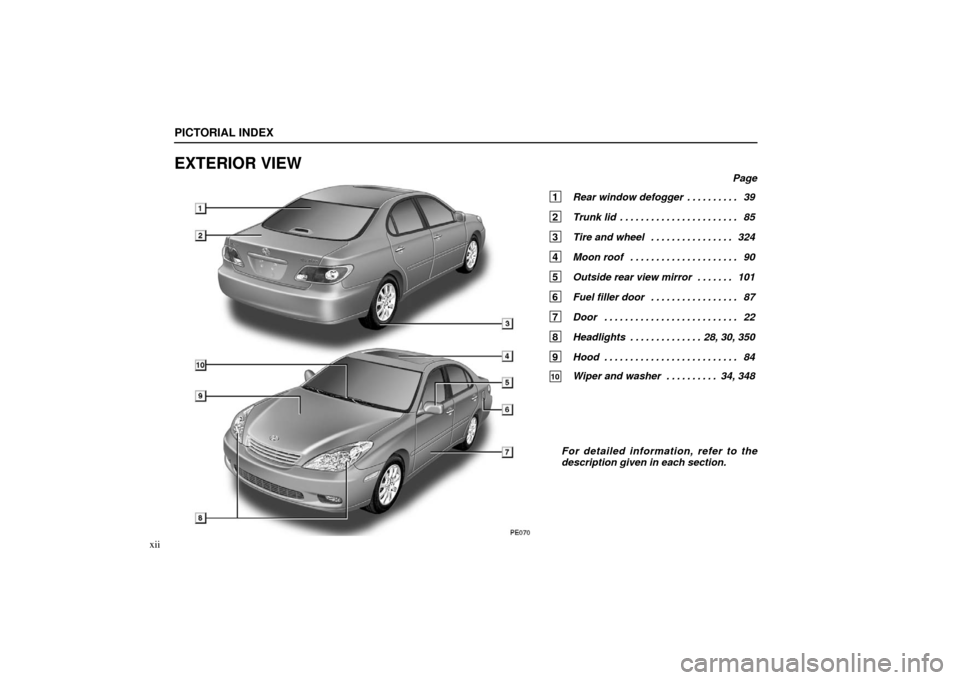

EXTERIOR VIEW
Page
1 Rear window defogger 39
. . . . . . . . . .
2 Trunk lid 85
. . . . . . . . . . . . . . . . . . . . . . .
3 Tire and wheel 324
. . . . . . . . . . . . . . . .
4 Moon roof 90
. . . . . . . . . . . . . . . . . . . . .
5 Outside rear view mirror 101 . . . . . . .
6 Fuel filler door 87
. . . . . . . . . . . . . . . . .
7 Door 22
. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Headlights 28, 30, 350
. . . . . . . . . . . . . .
9 Hood 84
. . . . . . . . . . . . . . . . . . . . . . . . . .
10 Wiper and washer 34, 348
. . . . . . . . . .
For detailed information, refer to the
description given in each section.

Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on at full
intensity.
Daytime running light
system off
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
BE004
BE004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on at full
intensity.
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Automatic light control

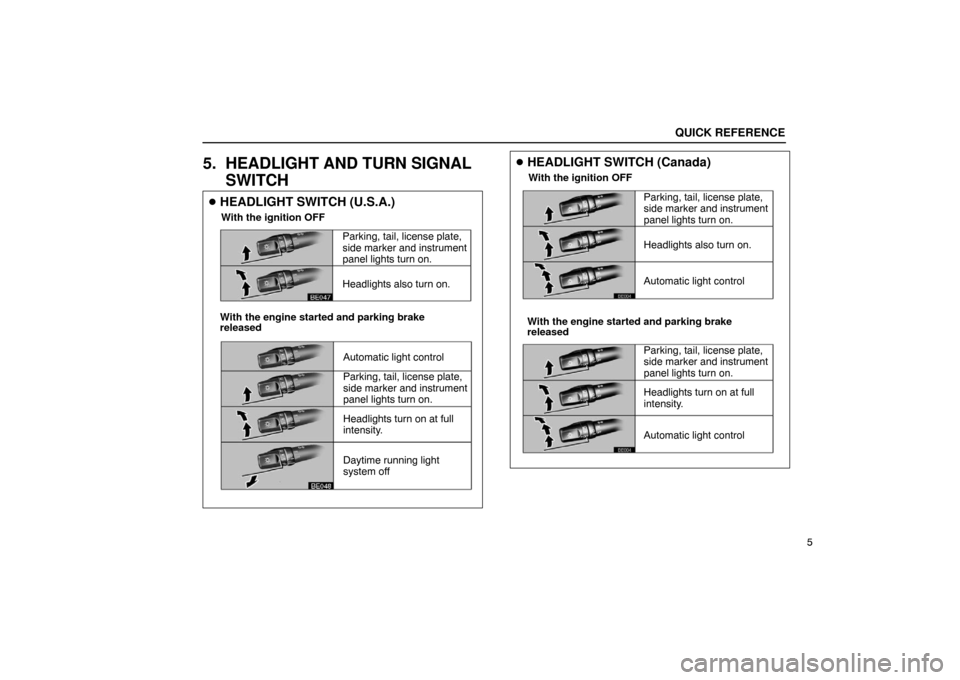

QUICK REFERENCE
5
5. HEADLIGHT AND TURN SIGNAL SWITCH
HEADLIGHT SWITCH (U.S.A.)
With the ignition OFF
With the engine started and parking brake
released
 HEADLIGHT SWITCH (Canada)
With the ignition OFF
With the engine started and parking brake
released

KEYS AND DOORS
16In the following cases, th
e battery in the key may be
discharged. If this is a case, replace it using a special
screwdriver.
 The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 20. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key , contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page 285.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
 Do not leave the wireless remote control key on places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.
Locking/Unlocking the doors
When you push the “LOCK” button on the key briefly, all
the doors can be locked from outside the vehicle.
At this time, one beep sounds and the turn signal lights flash
once.* However, when you push the “LOCK” button with any
door not closed securely, the buzzer sounds for 10 seconds.**
To stop the buzzer, close all the doors securely or push the
“UNLOCK” button. If the key is in the ignition switch, locking
cannot be done.
Make sure all the doors are locked when you leave the vehicle.
Push the “LOCK” button once again.
NOTE:
* The turn signal lights can be set not to flash and the beep
volume can be changed.
** The buzzer can be set not to sound if a door is not closed
securely.
Ask your Lexus dealer for details.
NOTICE
Do not push the “LOCK” button any longer than 2 to 3
seconds. Pushing the button longer activates an alarm.
For details, see page 18.

KEYS AND DOORS
17
When you push the “UNLOCK” button, the driver’s door
is unlocked. Pushing that button once again within 3
seconds from the first push, all other doors are also
unlocked.*
NOTE:
* The 2step unlocking function can be changed.
Ask your Lexus dealer for details.
At this time, two beeps sound and the turn signal lights flash
twice.* Together with the activation of unlocking, the interior
light comes on for 15 seconds if the interior light switch is in
“DOOR” position.** However, this function does not work
when the ignition key is in the “ACC” or “ON” position. For\
further information, see “Illuminated entry system” on page 66.
You have 30 seconds to open a door after using the wireless
remote unlock feature.*** If a door is not opened by then, all
the doors will be automatically locked again.
Even if the “LOCK” or “UNLOCK” button is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again. NOTE:
* The turn signal lights can be set not to flash and the beep
volume can be changed.
** The duration of lighting can be changed
*** The time before automatic relocking can be changed.
Ask your Lexus dealer for details.
 1 Off 2Louder
When you push any button on the key, the vehicle sounds one
beep when the doors are locked by remote control, and sounds
two beeps when the doors are unlocked.
You can adjust the beep loudness with the knob under the
instrument panel. Turning the knob clockwise increases the
volume and turning it counterclockwise until it stops turns the
buzzer off.

SWITCHES
28
HEADLIGHT SWITCH(U.S.A.)
“AUTO” position
The headlights and all other lights automatically turn on
depending on the darkness of the surroundings when the
ignition key is in the “ON” position.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.
To turn on the lights manually, twist the knob on the end
of the lever.
First clickstop: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
Second clickstop: Headlights also turn on. When
the headlights are on, the headlight indicator lights up in
the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
“DRL OFF” position
The daytime running light (DRL) system does not work
when the knob is set in this position.
For details, see the following “Daytime Running Light (DRL)
System”.

SWITCHES
29
The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed
with the ignition key turned to the “ACC” or “LOCK” position\
.*
If you want to turn off the lights immediately, push the “LOCK”
button on the wireless remote control key twice. The lights also
can be turned off immediately by pushing the “LOCK” button
on the wireless remote control key with all the doors locked and
the trunk lid closed.NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details. To turn on the lights again, turn the ignition key to the “ON”
position, or twist the knob on the end of lever to the “AUTO”
position and then twist the k
nob until the first or second
clickstop.
If you are going to park for over one week, make sure the knob
is in the “AUTO” or “DRL OFF” position.
Daytime Running Light (DRL) System
When the knob is set in the “AUTO” position, the headlights
turn on at reduced intensity when the parking brake is released
with the engine started. They will not go off until the ignition
switch is turned off.
The headlights will automatically adjust to full intensity and/or
turn on the other lights dependi ng on the darkness of the
surroundings.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
To cancel the DRL system, twist the knob to the “DRL OFF”
position.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.

SWITCHES
30
Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, as the headlight beam level is
always maintained automatically by the system at the proper
level, your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension and/or the vehicle height
changes, contact your Lexus dealer to check the automatic
headlight leveling system and headlight beam level.
HEADLIGHT SWITCH(Canada)
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKST OP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.

SWITCHES
31
With
the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the tail lights are on, the tail light indicator lights up in the
instrument cluster.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed
with the ignition key turned to the “ACC” or “LOCK” position\
.*
If you want to turn off the lights immediately, push the “LOCK”
button on the wireless remote control key twice. The lights also
can be turned off immediately by pushing the “LOCK” button
on the wireless remote control key with all the doors locked and
the trunk lid closed.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
