For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viPage
1
Door lock switch and power window
switches 24, 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 152
. . . . . . . . . . .
3 Power rear view mirror control switches 102 . . . . . .
4 Side vents 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Instrument panel light control dial 61
. . . . . . . . . . . . .
6 Headlight, turn signal and
fog light switches 28, 30, 33, 34
. . . . . . . . . . . . . . . . . . .
7 Multi information display control switches 59 . . . .
8 Ignition switch 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Wiper and washer switches 34
. . . . . . . . . . . . . . . . . . .
10 Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . .
11 Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . .
12 Clock 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
13 Car audio 174, 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Front passenger’s seat belt reminder light 53 . . . . .
15 Security indicator light 14, 156
. . . . . . . . . . . . . . . . . . . Page
16 Glove box
70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Automatic air conditioning controls 160
. . . . . . . . . .
18 Rear window and outside rear view mirror
defogger switch 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Ashtray 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
20 Automatic transmission selector lever 227 . . . . . . . .
21 Rear electric sunshade switch 79
. . . . . . . . . . . . . . . .
22 Electronic modulated suspension
control switch 237 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch 238
. . . . . . . . . . .
24 Cruise control switch 234
. . . . . . . . . . . . . . . . . . . . . . .
25 Power adjustable pedals switch 100
. . . . . . . . . . . . . .
26 Parking brake pedal 226
. . . . . . . . . . . . . . . . . . . . . . . . .
27 Auxiliary box 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28 Hood lock release lever 84
. . . . . . . . . . . . . . . . . . . . . .
29 Trunk lid opener 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 Fuel filler door opener 87
. . . . . . . . . . . . . . . . . . . . . . . .
Page 71 of 377
Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
57
(j) Open Door Warning Light
This light remains on until all the doors are completely closed.
(k) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at
the first or second clickstop), it indicates that one or more of the
tail lights are burned out.
If it comes on when the brake pedal is depressed, one or more
stop lights are burned out.
Have defective bulbs replaced as soon as possible.
(l) Vehicle Skid Control System/Traction Control System Warning Light
This light warns that there is a problem somewhere in the
vehicle skid control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to “ON”.
The warning light remains on after the ignition key is turned
to “ON”.
The warning light comes on while driving. The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.
(m) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes
nearly empty. Fill the tank as soon as possible.
(n) Automatic Headlight Leveling System
Warning Light (vehicles with discharge
headlight only)
This light warns that when there is a problem somewhere
in the automatic headlight leveling system.
If it comes on, have your vehicle checked by your Lexus dealer.
(o) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
nearly empty. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(p) Key Reminder Buzzer
This buzzer reminds you to remove the key when you open the
driver’s door with the ignition key in the “ACC” or “LOCK”
position.
Page 235 of 377
SECTION 3 – 1
221
STARTING AND DRIVING
Starting and driving
Three−way catalytic converter222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch with steering lock 225
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 227
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Electronic modulated suspension 237
. . . . . . . . . . . . . . . . . . . . . . . . . .
Traction control system 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle skid control system 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Brake pad wear limit indicators 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Page 251 of 377
STARTING AND DRIVING
237
ELECTRONIC MODULATEDSUSPENSION

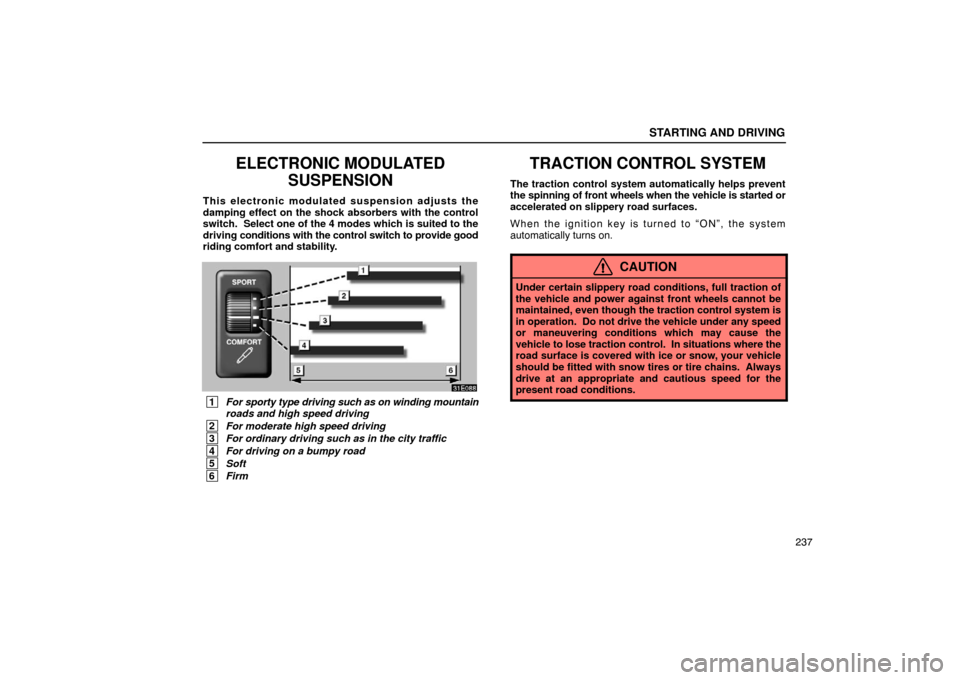

This electronic modulated suspension adjusts the
damping effect on the shock absorbers with the control
switch. Select one of the 4 modes which is suited to the
driving conditions with the control switch to provide good
riding comfort and stability.
1 For sporty type driving such as on winding mountain
roads and high speed driving
2For moderate high speed driving
3For ordinary driving such as in the city traffic
4For driving on a bumpy road
5Soft
6Firm
TRACTION CONTROL SYSTEM
The traction control system automatically helps prevent
the spinning of front wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”, the system
automatically turns on.
CAUTION
Under certain slippery road conditions, full traction of
the vehicle and power against front wheels cannot be
maintained, even though the traction control system is
in operation. Do not drive the vehicle under any speed
or maneuvering conditions which may cause the
vehicle to lose traction control. In situations where the
road surface is covered with ice or snow, your vehicle
should be fitted with snow tires or tire chains. Always
drive at an appropriate and cautious speed for the
present road conditions.
Page 252 of 377
STARTING AND DRIVING
238
Normal driving mode
Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle is
started. This means that the traction control system is in the
self−check mode, but does not indicate a malfunction.
When the traction control system is operating, the following
conditions occur:
The system controls the spinning of the front wheels. At this
time, the slip indicator light blinks.
You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is
functioning properly. The slip indicator light comes on for a few seconds when the
ignition key is turned to “ON”. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
Traction control off mode
If your wheels get stuck in a ditch when you are driving on
a severe off road and sand, turn off the traction control
system. This system that controls engine performance
interferes with the process of freeing your wheels.
To turn off: Push “TRAC OFF” switch.
The “TRAC OFF” indicator light will come on.
The vehicle skid control system is always activated, even if the
traction control system is turned off.
To turn on: Push “TRAC OFF” switch once again.
The “TRAC OFF” indicator light will go off.
Page 253 of 377
STARTING AND DRIVING
239
“TRAC
OFF” indicator light comes on for a few seconds when
the ignition key is turned to “ON”. It will come on again when
you push the “TRAC OFF” switch to turn off the system.
In the following cases, contact your Lexus dealer:
The indicator light does not come on when the ignition key
is turned to “ON”.
The indicator light remains on after the ignition is turned on.
The indicator light comes on with the normal driving mode
while driving.

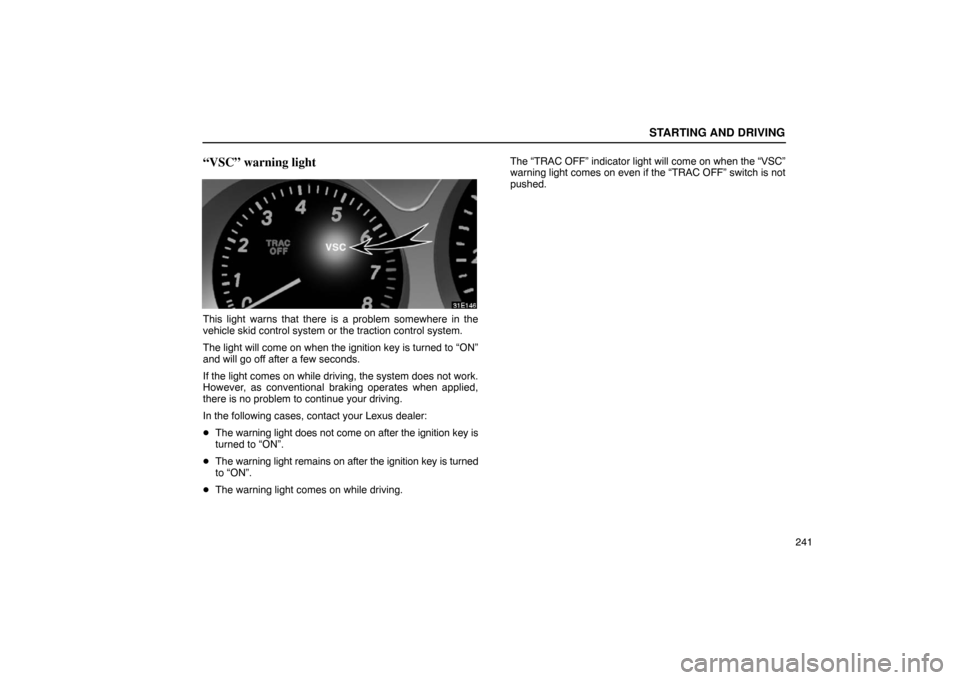

“VSC” warning light
This light warns that there is a problem somewhere in the
traction control system or the vehicle skid control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds. If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to “ON”.
The warning light remains on after the ignition key is turned
to “ON”.
The warning light comes on while driving.
The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.
Page 255 of 377
STARTING AND DRIVING
241

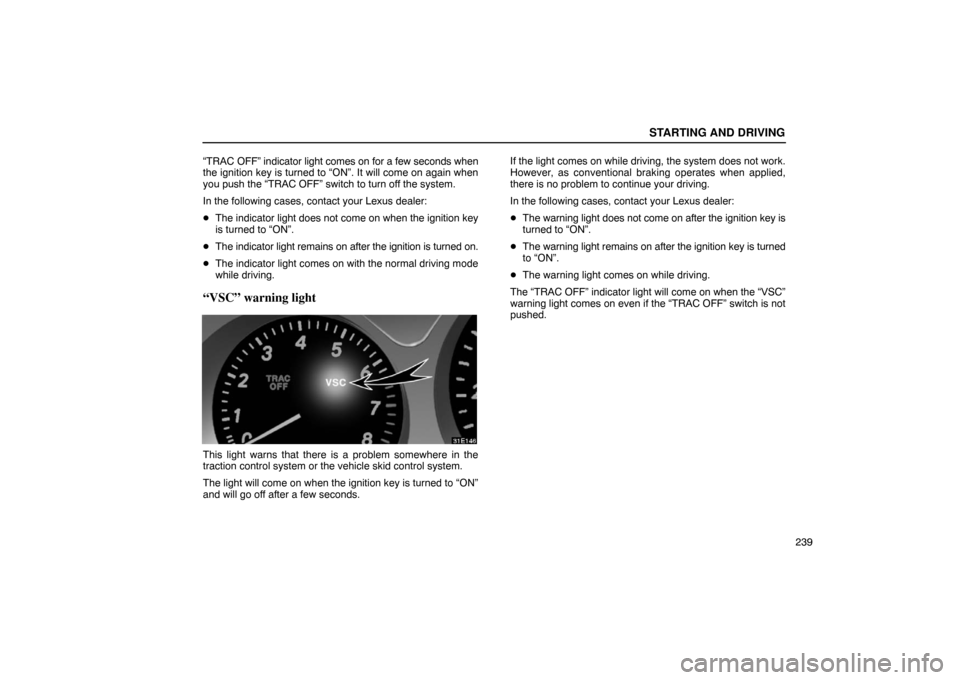

“VSC” warning light
This light warns that there is a problem somewhere in the
vehicle skid control system or the traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to “ON”.
The warning light remains on after the ignition key is turned
to “ON”.
The warning light comes on while driving. The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.
